(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

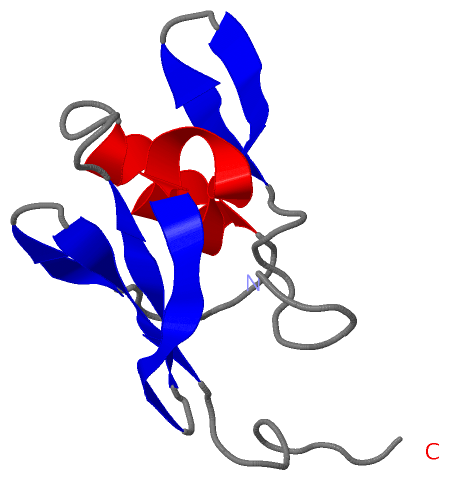

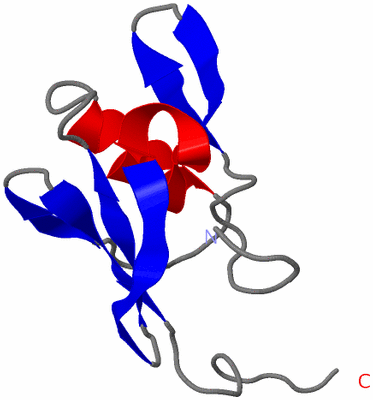

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

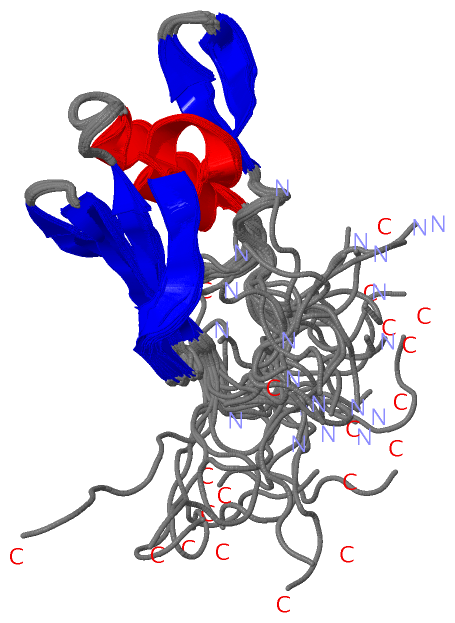

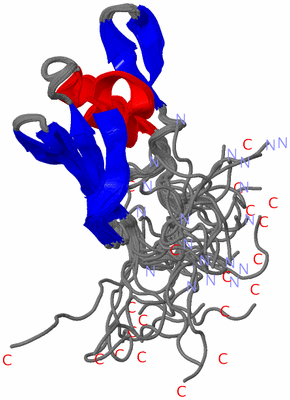

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF RSGI RUH-021, A DOMAIN II OF RIBOSOME RECYCLING FACTOR FROM MOUSE CDNA

Authors :  T. Abe, H. Hirota, S. Koshiba, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  28 May 04  (Deposition) - 28 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Ribosome Recycling Factor, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Abe, H. Hirota, S. Koshiba, T. Kigawa, S. Yokoyama
Solution Structure Of Rsgi Ruh-021, A Domain Ii Of Ribosome Recycling Factor From Mouse Cdna
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MITOCHONDRIAL RIBOSOME RECYCLING FACTOR
    Chains: A
    Engineered: YES
    Expression System Plasmid: P030908-28
    Expression System Vector Type: PLASMID
    Fragment: DOMAIN II
    Gene: RIKEN CDNA 2310061P21
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS SYSTEM
    Synonym: RIKEN CDNA 2400002D02
    Tissue: TONGUE

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WIH)

(-) Sites  (0, 0)

(no "Site" information available for 1WIH)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WIH)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WIH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WIH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1WIH)

(-) Exons   (0, 0)

(no "Exon" information available for 1WIH)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:84
 aligned with RRFM_MOUSE | Q9D6S7 from UniProtKB/Swiss-Prot  Length:262

    Alignment length:137
                                    75        85        95       105       115       125       135       145       155       165       175       185       195
           RRFM_MOUSE    66 GQPQARVTVNRALVEDIISLEEVDEDMKSVVEALKDNFNKTLNIRTAPGSLDHITVVTADGKVALNQIGQISMKSPQVILVNMASFPECTAAAIKAIRESGMNLNPEVEGTLIRVPIPKVTREHREMLVKLAKQNTN 202
               SCOP domains d1                                           wiha_ A: Ribosome recycling factor, RRF                                                      SCOP domains
               CATH domains 1w                                           ihA00 A:1-84  [code=3.30.1360.40, no name defined]                                           CATH domains
               Pfam domains --------------------------------------------------RRF-1wihA01 A:8-78                                                     ---------------- Pfam domains
         Sec.struct. author ..-------------------------------------------.........eeee..eeeehhhhheeeeee..eeeee......hhhhhhhhhhh.......eee..eeeee.....----------...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wih A   1 GS-------------------------------------------SGSSGLDHITVVTADGKVALNQIGQISMKSPQVILVNMASFPECTAAAIKAIRESGMNLNPEVEGTLIRVPIPKVT----------SGPSSG  84
                             |       -         -         -         -     |   7        17        27        37        47        57        67        77|        - |
                             2                                           3                                                                         78         79
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: RRF] (3)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (RRFM_MOUSE | Q9D6S7)
molecular function
    GO:0043023    ribosomal large subunit binding    Interacting selectively and non-covalently with any part of the larger ribosomal subunit.
biological process
    GO:0070126    mitochondrial translational termination    The process resulting in the release of a polypeptide chain from the ribosome in a mitochondrion, usually in response to a termination codon (note that mitochondria use variants of the universal genetic code that differ between different taxa).
    GO:0032790    ribosome disassembly    The disaggregation of a ribosome into its constituent components; includes the dissociation of ribosomal subunits.
    GO:0006412    translation    The cellular metabolic process in which a protein is formed, using the sequence of a mature mRNA or circRNA molecule to specify the sequence of amino acids in a polypeptide chain. Translation is mediated by the ribosome, and begins with the formation of a ternary complex between aminoacylated initiator methionine tRNA, GTP, and initiation factor 2, which subsequently associates with the small subunit of the ribosome and an mRNA or circRNA. Translation ends with the release of a polypeptide chain from the ribosome.
cellular component
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
