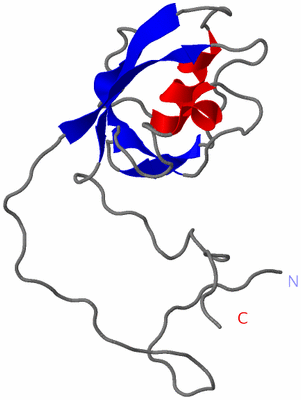

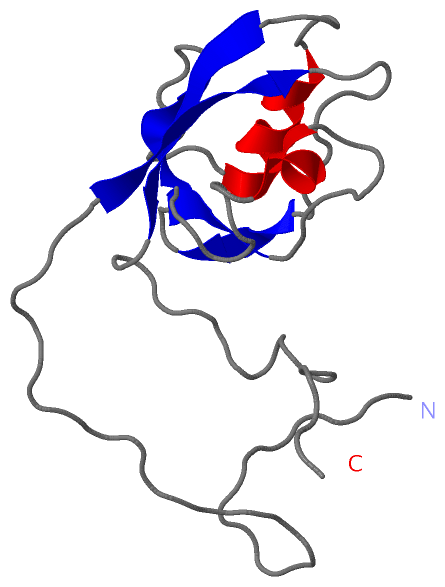

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

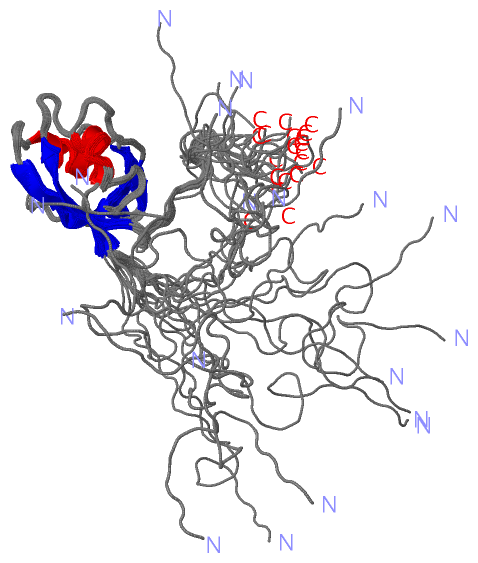

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  THE SOLUTION STRUCTURE OF RSGI RUH-020, A PDZ DOMAIN OF HYPOTHETICAL PROTEIN FROM MOUSE

Authors :  W. Ohashi, T. Yamazaki, H. Hirota, T. Tomizawa, S. Koshiba, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  28 May 04  (Deposition) - 28 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Pdz Domain, Structural Genomics, Mouse Cdna, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  W. Ohashi, T. Yamazaki, H. Hirota, T. Tomizawa, S. Koshiba, T. Kigawa, S. Yokoyama
The Solution Structure Of Rsgi Ruh-020, A Pdz Domain Of Hypothetical Protein From Mouse
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RIKEN CDNA 4930408O21
    Chains: A
    Engineered: YES
    Fragment: PDZ DOMAIN
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS
    Synonym: RSGI RUH-020

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WIF)

(-) Sites  (0, 0)

(no "Site" information available for 1WIF)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WIF)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WIF)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WIF)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PDZPS50106 PDZ domain profile.PDZD9_MOUSE27-109  1A:27-109

(-) Exons   (0, 0)

(no "Exon" information available for 1WIF)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:126
 aligned with PDZD9_MOUSE | Q9D9M4 from UniProtKB/Swiss-Prot  Length:266

    Alignment length:144
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
          PDZD9_MOUSE     1 MEKGSLKSKNEKEQLSKAKASVSSLNKVIQTKLTVGNLGLGLVVIQNGPYLQISHLINKGAAASDGILQPGDVLISVGHANVLGYTLREFLKLLQNITIGTVLQIKAYRGFLEIPQEWQDVYDLIPETKFPIPHTPKKTEPARE 144
               SCOP domains d1wifa_ A: hypothetical PDZ domain containing protein Uqcrc2 (4930408O21Rik)                                                                     SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ---------------------------PDZ-1wifA01 A:28-106                                                           -------------------------------------- Pfam domains
         Sec.struct. author ...........................eeeeeee.........eeee..eeee.......hhhhh........eeee........hhhhhhhhhh......eeeeeee............------------------...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------------------------PDZ  PDB: A:27-109 UniProt: 27-109                                                 ----------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1wif A   1 GSSGSSGSKNEKEQLSKAKASVSSLNKVIQTKLTVGNLGLGLVVIQNGPYLQISHLINKGAAASDGILQPGDVLISVGHANVLGYTLREFLKLLQNITIGTVLQIKAYRGFLEIPQEWQD------------------SGPSSG 126
                                    10        20        30        40        50        60        70        80        90       100       110       120         -       122
                                                                                                                                                 120                121
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WIF)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: PDZ-like (184)
(-)
Family: PDZ (172)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (PDZD9_MOUSE | Q9D9M4)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
cellular component
    GO:0005575    cellular_component    The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.
