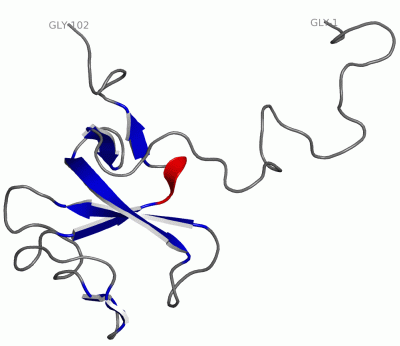

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

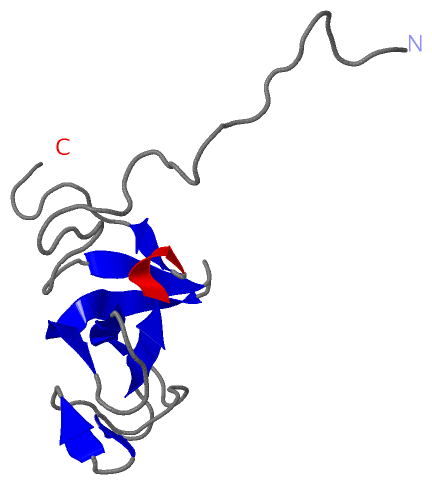

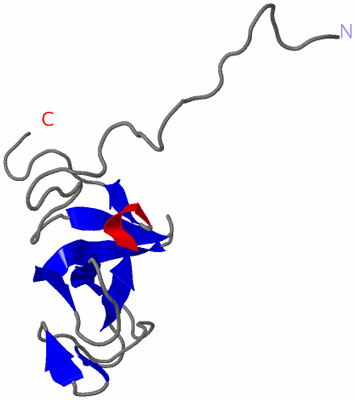

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

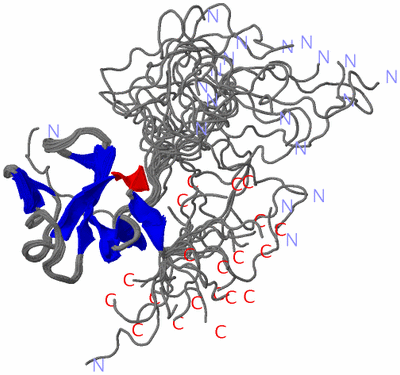

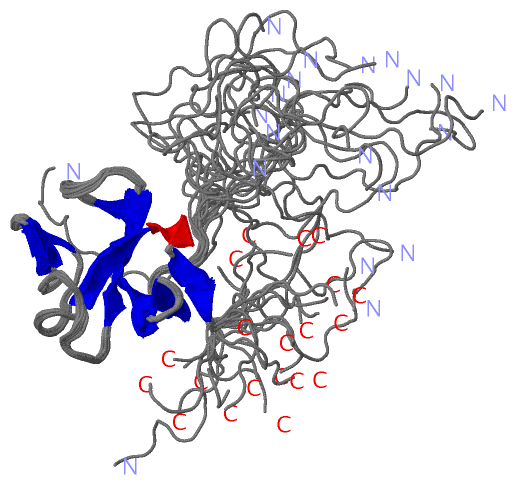

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE 2ND CAP-GLY DOMAIN IN MOUSE CLIP170-RELATED 59KDA PROTEIN CLIPR-59

Authors :  K. Saito, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  28 May 04  (Deposition) - 28 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Microtubule Binding, Trans-Golgi Network, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. Saito, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of The 2Nd Cap-Gly Domain In Mouse Clip170-Related 59Kda Protein Clipr-59
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CLIPR-59
    ChainsA
    EngineeredYES
    Expression System PlasmidP040223-85
    Expression System Vector TypePLASMID
    FragmentCAP-GLY DOMAIN
    GeneRIKEN CDNA 1500005P14
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    Other DetailsCELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WHH)

(-) Sites  (0, 0)

(no "Site" information available for 1WHH)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WHH)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WHH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WHH)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CAP_GLY_1PS00845 CAP-Gly domain signature.CLIP3_MOUSE314-345
436-467
  1-
A:46-77
2CAP_GLY_2PS50245 CAP-Gly domain profile.CLIP3_MOUSE314-356
436-478
  1-
A:46-88

(-) Exons   (0, 0)

(no "Exon" information available for 1WHH)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:102
 aligned with CLIP3_MOUSE | B9EHT4 from UniProtKB/Swiss-Prot  Length:547

    Alignment length:161
                                   346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496
          CLIP3_MOUSE   337 GSVGGVRYFICPPKQGLFASVSKVSKAVDAPPSSVTSTPRTPRMDFSRVTGKGRREHKGKKKSPSSPSLGSLQQREGAKAEVGDQVLVAGQKQGIVRFYGKTDFAPGYWYGIELDQPTGKHDGSVFGVRYFTCAPRHGVFAPASRIQRIGGSTDPPGDSVG 497
               SCOP domains d1wh                 h                           a_           A: CLIP170-related 59kda protein CLIPR-59 (1500005P14Rik)                                           SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....-----------------.---------------------------...----------......................eeee...eeeeeeeeee......eeeeee..........ee..ee........eeeehhh.eee..-----...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) CAP_GLY_2  PDB: -   -------------------------------------------------------------------------------CAP_GLY_2  PDB: A:46-88 UniProt: 436-478   ------------------- PROSITE (1)
                PROSITE (2) CAP_GLY_1------------------------------------------------------------------------------------------CAP_GLY_1  PDB: A:46-77         ------------------------------ PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1whh A   1 GSSG-----------------S---------------------------SGK----------SPSSPSLGSLQQREGAKAEVGDQVLVAGQKQGIVRFYGKTDFAPGYWYGIELDQPTGKHDGSVFGVRYFTCAPRHGVFAPASRIQRIG-----SGPSSG 102
                               |     -         - |       -         -         6 |       -  |     16        26        36        46        56        66        76        86        96     | 101
                               4                 5                           6 8          9                                                                                     96    97

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WHH)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1WHH)

(-) Gene Ontology  (24, 24)

NMR Structure(hide GO term definitions)
Chain A   (CLIP3_MOUSE | B9EHT4)
molecular function
    GO:0035594    ganglioside binding    Interacting selectively and non-covalently with a ganglioside, a ceramide oligosaccharide carrying in addition to other sugar residues, one or more sialic acid residues.
    GO:0008017    microtubule binding    Interacting selectively and non-covalently with microtubules, filaments composed of tubulin monomers.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0072321    chaperone-mediated protein transport    The directed movement of proteins into, out of or within a cell, or between cells, mediated by chaperone molecules that bind to the transported proteins.
    GO:0045444    fat cell differentiation    The process in which a relatively unspecialized cell acquires specialized features of an adipocyte, an animal connective tissue cell specialized for the synthesis and storage of fat.
    GO:0044091    membrane biogenesis    A cellular process that results in the biosynthesis of constituent macromolecules, assembly, and arrangement of constituent parts of a membrane.
    GO:0031115    negative regulation of microtubule polymerization    Any process that stops, prevents, or reduces the frequency, rate or extent of microtubule polymerization.
    GO:0018230    peptidyl-L-cysteine S-palmitoylation    The covalent attachment of a palmitoyl group to a sulfur (S) atom within a cysteine residue to form peptidyl-S-palmitoyl-L-cysteine.
    GO:0043065    positive regulation of apoptotic process    Any process that activates or increases the frequency, rate or extent of cell death by apoptotic process.
    GO:0045807    positive regulation of endocytosis    Any process that activates or increases the frequency, rate or extent of endocytosis.
    GO:0090004    positive regulation of establishment of protein localization to plasma membrane    Any process that increases the frequency, rate or extent of the directed movement of a protein to a specific location in the plasma membrane.
    GO:0010828    positive regulation of glucose transport    Any process that increases the frequency, rate or extent of glucose transport. Glucose transport is the directed movement of the hexose monosaccharide glucose into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0001934    positive regulation of protein phosphorylation    Any process that activates or increases the frequency, rate or extent of addition of phosphate groups to amino acids within a protein.
cellular component
    GO:0005794    Golgi apparatus    A compound membranous cytoplasmic organelle of eukaryotic cells, consisting of flattened, ribosome-free vesicles arranged in a more or less regular stack. The Golgi apparatus differs from the endoplasmic reticulum in often having slightly thicker membranes, appearing in sections as a characteristic shallow semicircle so that the convex side (cis or entry face) abuts the endoplasmic reticulum, secretory vesicles emerging from the concave side (trans or exit face). In vertebrate cells there is usually one such organelle, while in invertebrates and plants, where they are known usually as dictyosomes, there may be several scattered in the cytoplasm. The Golgi apparatus processes proteins produced on the ribosomes of the rough endoplasmic reticulum; such processing includes modification of the core oligosaccharides of glycoproteins, and the sorting and packaging of proteins for transport to a variety of cellular locations. Three different regions of the Golgi are now recognized both in terms of structure and function: cis, in the vicinity of the cis face, trans, in the vicinity of the trans face, and medial, lying between the cis and trans regions.
    GO:0005795    Golgi stack    The set of thin, flattened membrane-bounded compartments, called cisternae, that form the central portion of the Golgi complex. The stack usually comprises cis, medial, and trans cisternae; the cis- and trans-Golgi networks are not considered part of the stack.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0031901    early endosome membrane    The lipid bilayer surrounding an early endosome.
    GO:0010008    endosome membrane    The lipid bilayer surrounding an endosome.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0045121    membrane raft    Any of the small (10-200 nm), heterogeneous, highly dynamic, sterol- and sphingolipid-enriched membrane domains that compartmentalize cellular processes. Small rafts can sometimes be stabilized to form larger platforms through protein-protein and protein-lipid interactions.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0055038    recycling endosome membrane    The lipid bilayer surrounding a recycling endosome.
    GO:0005802    trans-Golgi network    The network of interconnected tubular and cisternal structures located within the Golgi apparatus on the side distal to the endoplasmic reticulum, from which secretory vesicles emerge. The trans-Golgi network is important in the later stages of protein secretion where it is thought to play a key role in the sorting and targeting of secreted proteins to the correct destination.
    GO:0032588    trans-Golgi network membrane    The lipid bilayer surrounding any of the compartments that make up the trans-Golgi network.
