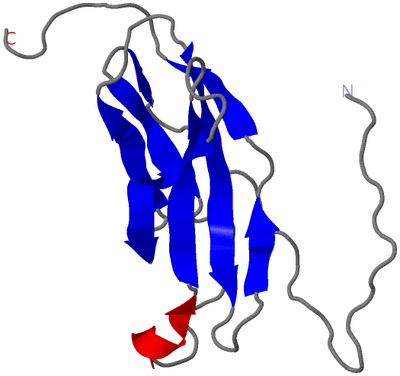

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

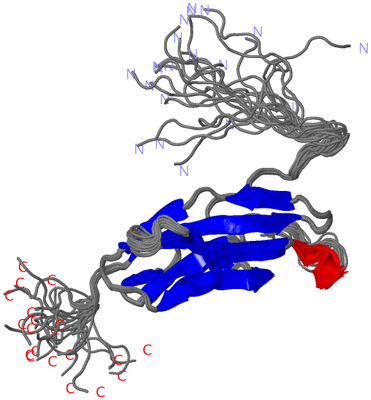

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF FIBRONECTIN TYPE III DOMAIN OF MOUSE HYPOTHETICAL PROTEIN

Authors :  N. Tochio, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  27 May 04  (Deposition) - 27 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Fn3 Domain, Similar To 1700007B22Rik Protein, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Tochio, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of Fibronectin Type Iii Domain Of Mouse Hypothetical Protein
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - UNNAMED PROTEIN PRODUCT
    Chains: A
    Engineered: YES
    Expression System Plasmid: P031222-40
    Expression System Vector Type: PLASMID
    Fragment: FN3 DOMAIN
    Gene: RIKEN CDNA 4933435J10
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WFU)

(-) Sites  (0, 0)

(no "Site" information available for 1WFU)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WFU)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WFU)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WFU)

(-) PROSITE Motifs  (3, 3)

NMR Structure (3, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FN3PS50853 Fibronectin type-III domain profile.FANK1_MOUSE11-108  1A:18-114
2ANK_REP_REGIONPS50297 Ankyrin repeat region circular profile.FANK1_MOUSE114-342  1A:116-120
3ANK_REPEATPS50088 Ankyrin repeat profile.FANK1_MOUSE143-175
176-208
209-241
243-276
277-309		  1A:118-120
-
-
-
-

(-) Exons   (0, 0)

(no "Exon" information available for 1WFU)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:120
 aligned with FANK1_MOUSE | Q9DAM9 from UniProtKB/Swiss-Prot  Length:344

    Alignment length:174
                                   1
                                   | 3        13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163
          FANK1_MOUSE     - -------MEPHKVVPLSKPHPPVVGKVTHHSIELYWDLEQKEKRQGPQEQWLRFSIEEEDPKMHSYGVIYTGYATRHVVEGLEPRTLYKFRLKVTSPSGEYEYSPVVSVATTREPISSEHFHRAVSVNDEDLLLRILEGGHVMIDVPNKFGFTALMVAAQKGYTRLVKILVSNG 167
               SCOP domains d1wfua_ A: Fibronectin type 3 and ankyrin repeat domains 1 protein, FANK1                                                                                                      SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..........................ee..eeeee...........hhhhh.eeeeeee......eeeeeee...eeeee......eeeeeeeee.....eee...eeee....------------------------..------.------------------------... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) -----------------FN3  PDB: A:18-114 UniProt: 11-108                                                                -----ANK_REP_REGION  PDB: A:116-120 UniProt: 114-342        PROSITE (1)
                PROSITE (2) -----------------------------------------------------------------------------------------------------------------------------------------------------ANK_REPEAT  PDB: A:118-12 PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1wfu A   1 GSSGSSGMEPHKVVPLSKPHPPVVGKVTHHSIELYWDLEQKEKRQGPQEQWLRFSIEEEDPKMHSYGVIYTGYATRHVVEGLEPRTLYKFRLKVTSPSGEYEYSPVVSVATTRE------------------------SG------P------------------------SSG 120
                                    10        20        30        40        50        60        70        80        90       100       110   |     -         -       116      |  -         -         - |
                                                                                                                                           114                      115|    117                      118
                                                                                                                                                                     116
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WFU)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1WFU)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (FANK1_MOUSE | Q9DAM9)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1wfu)

  Sites
(no "Sites" information available for 1wfu)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1wfu)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

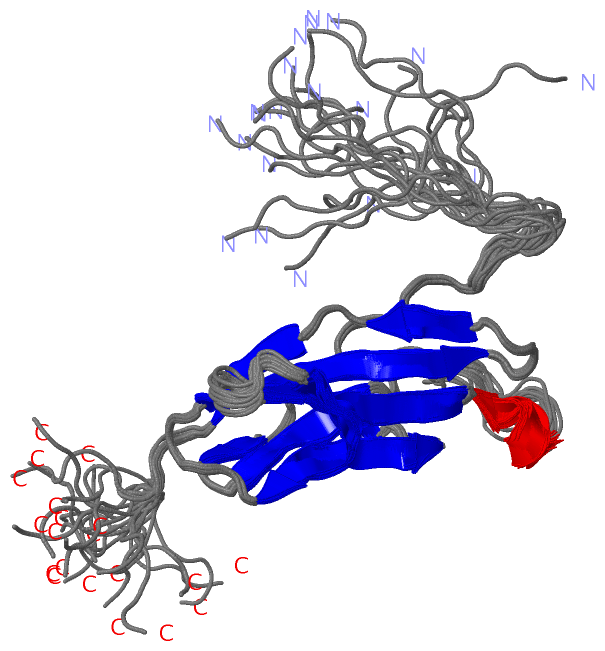

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
