(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

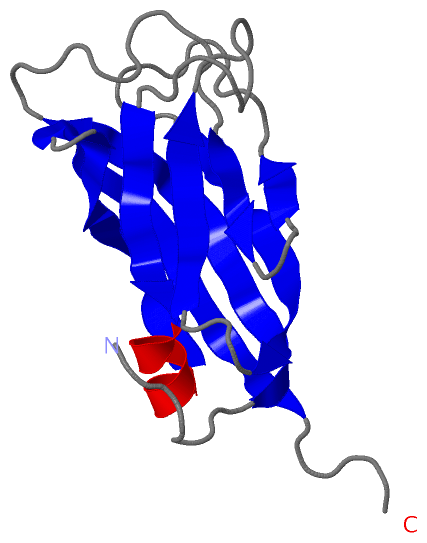

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

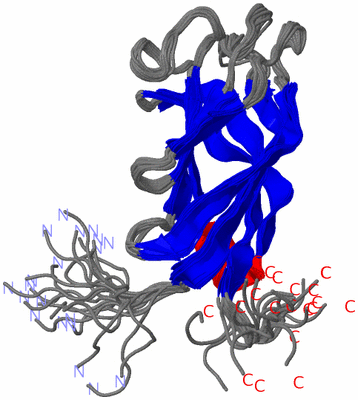

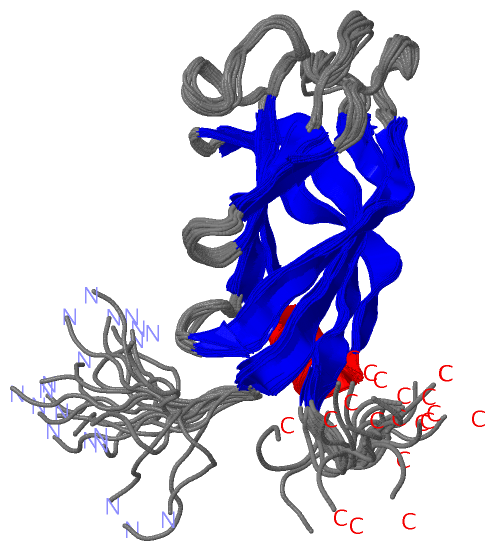

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  C2 DOMAIN-CONTAINING PROTEIN FROM PUTATIVE ELICITOR-RESPONSIVE GENE

Authors :  T. Nagashima, F. Hayashi, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  26 May 04  (Deposition) - 26 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  C2 Domain, Elicitor-Responsive Gene, Riken Structural Genomics/Proteomics Initiative, Rsgi, Structural Genomics, Plant Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Nagashima, F. Hayashi, S. Yokoyama
C2 Domain-Containing Protein From Putative Elicitor-Responsive Gene
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PUTATIVE ELICITOR-RESPONSIVE GENE
    Chains: A
    Engineered: YES
    Expression System Plasmid: P031104-14
    Expression System Vector Type: PLASMID
    Fragment: C2 DOMAIN
    Gene: RIKEN CDNA RAFL05-11-F09
    Organism Common: THALE CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702
    Other Details: CELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WFJ)

(-) Sites  (0, 0)

(no "Site" information available for 1WFJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WFJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WFJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WFJ)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1C2PS50004 C2 domain profile.Y1322_ARATH1-87  1A:8-93

(-) Exons   (0, 0)

(no "Exon" information available for 1WFJ)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:136
 aligned with Y1322_ARATH | Q9C8S6 from UniProtKB/Swiss-Prot  Length:147

    Alignment length:137
                                  1
                                  |  4        14        24        34        44        54        64        74        84        94       104       114       124
          Y1322_ARATH     - ------MPHGTLEVVLVSAKGLEDADFLNNMDPYVQLTCRTQDQKSNVAEGMGTTPEWNETFIFTVSEGTTELKAKIFDKDVGTEDDAVGEATIPLEPVFVEGSIPPTAYNVVKDEEYKGEIWVALSFKPSENRSRG 131
               SCOP domains d1wfja_ A: C2 domain protein At1g63220                                                                                                    SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----------C2-1wfjA01 A:12-93                                                                -------------------------------------------- Pfam domains
         Sec.struct. author ........eeeeeeeeeeeee.............eeee....eee...........eeeeeeeeeee....eeeeee............eeeeeehhhhhhhheeeeeeeeeee..eeeeeeeeeeeeee.-..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------C2  PDB: A:8-93 UniProt: 1-87                                                          -------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wfj A   1 GSSGSSGPHGTLEVVLVSAKGLEDADFLNNMDPYVQLTCRTQDQKSNVAEGMGTTPEWNETFIFTVSEGTTELKAKIFDKDVGTEDDAVGEATIPLEPVFVEGSIPPTAYNVVKDEEYKGEIWVALSFKPS-GPSSG 136
                                    10        20        30        40        50        60        70        80        90       100       110       120       130| |
                                                                                                                                                            131 |
                                                                                                                                                              132
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WFJ)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: C2 (71)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 1WFJ)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1wfj)

  Sites
(no "Sites" information available for 1wfj)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1wfj)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
