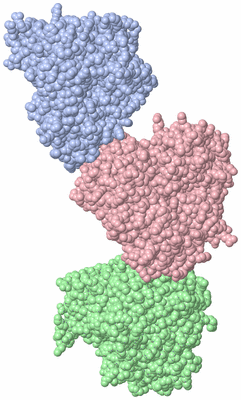

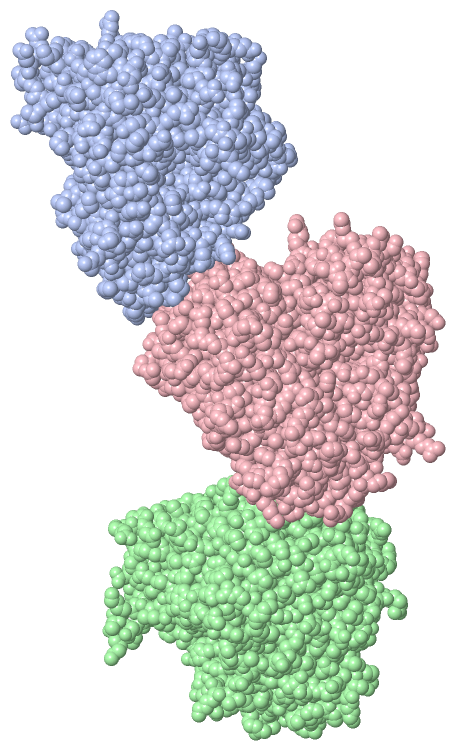

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

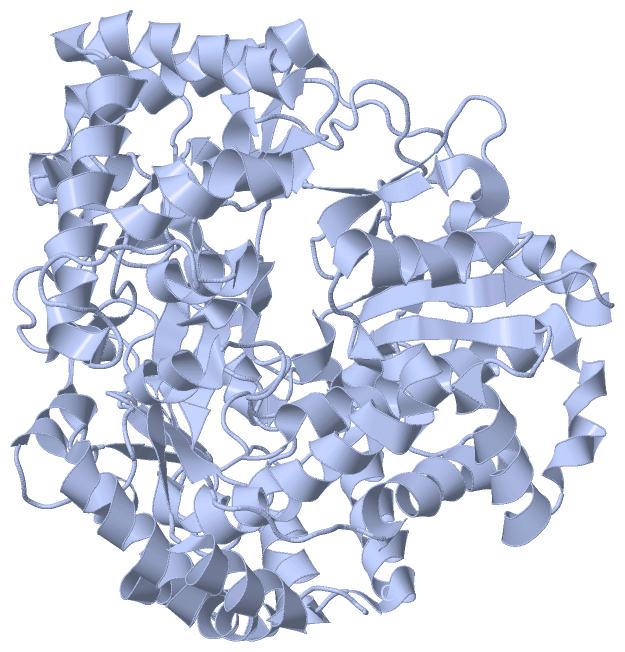

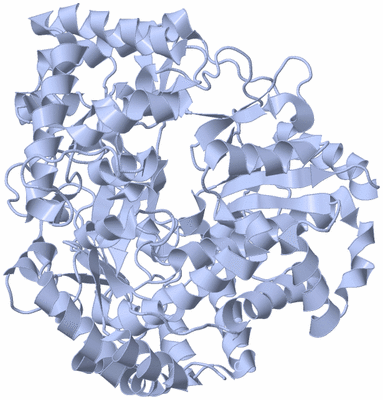

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

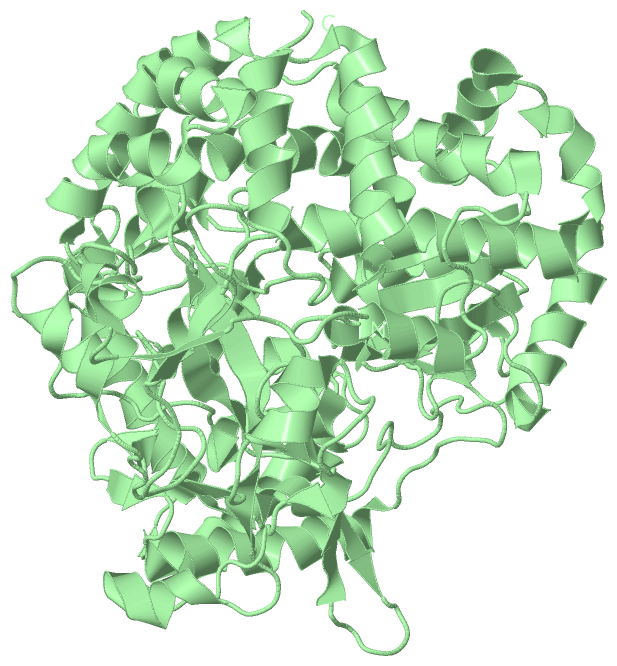

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

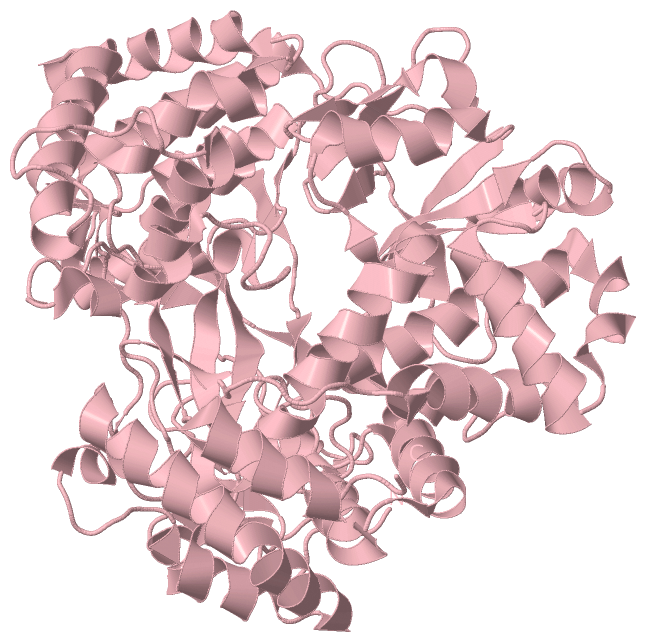

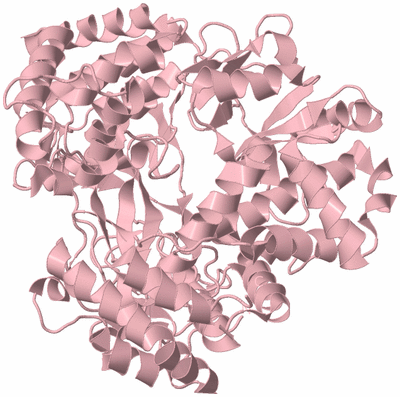

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  BACK-PRIMING MODE OF PHI6 RNA-DEPENDENT RNA POLYMERASE

Authors :  M. R. L. Laurila, P. S. Salgado, D. I. Stuart, J. M. Grimes, D. H. Bamford
Date :  26 Oct 04  (Deposition) - 27 Jan 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Keywords :  Polymerase, Phi6 Rna-Dependent Rna Polymerase, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. R. L. Laurila, P. S. Salgado, D. I. Stuart, J. M. Grimes, D. H. Bamford
Back-Priming Mode Of Phi6 Rna-Dependent Rna Polymerase
J. Gen. Virol. V. 86 521 2005
PubMed-ID: 15659773  |  Reference-DOI: 10.1099/VIR.0.80492-0

(-) Compounds

Molecule 1 - P2 PROTEIN
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Mutation: YES
    Organism Scientific: PSEUDOMONAS PHAGE PHI-6
    Organism Taxid: 10879
    Synonym: PHI6 RNA-DEPENDENT RNA POLYMERASE

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WAC)

(-) Sites  (0, 0)

(no "Site" information available for 1WAC)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WAC)

(-) Cis Peptide Bonds  (6, 6)

Asymmetric Unit
No.Residues
1Ile A:96 -Pro A:97
2Ile A:153 -Pro A:154
3Ile B:96 -Pro B:97
4Ile B:153 -Pro B:154
5Ile C:96 -Pro C:97
6Ile C:153 -Pro C:154

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WAC)

(-) PROSITE Motifs  (1, 3)

Asymmetric Unit (1, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RDRP_PHAGEPS50522 RdRp of RNA-containing bacteriophages catalytic domain profile.RDRP_BPPH6310-485

 		  3A:309-484
B:309-484
C:309-484
Biological Unit 1 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RDRP_PHAGEPS50522 RdRp of RNA-containing bacteriophages catalytic domain profile.RDRP_BPPH6310-485

 		  1A:309-484
-
-
Biological Unit 2 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RDRP_PHAGEPS50522 RdRp of RNA-containing bacteriophages catalytic domain profile.RDRP_BPPH6310-485

 		  1-
B:309-484
-
Biological Unit 3 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RDRP_PHAGEPS50522 RdRp of RNA-containing bacteriophages catalytic domain profile.RDRP_BPPH6310-485

 		  1-
-
C:309-484

(-) Exons   (0, 0)

(no "Exon" information available for 1WAC)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:662
 aligned with RDRP_BPPH6 | P11124 from UniProtKB/Swiss-Prot  Length:665

    Alignment length:664
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551       561       571       581       591       601       611       621       631       641       651       661
           RDRP_BPPH6     2 PRRAPAFPLSDIKAQMLFANNIKAQQASKRSFKEGAIETYEGLLSVDPRFLSFKNELSRYLTDHFPANVDEYGRVYGNGVRTNFFGMRHMNGFPMIPATWPLASNLKKRADADLADGPVSERDNLLFRAAVRLMFSDLEPVPLKIRKGSSTCIPYFSNDMGTKIEIAERALEKAEEAGNLMLQGKFDDAYQLHQMGGAYYVVYRAQSTDAITLDPKTGKFVSKDRMVADFEYAVTGGEQGSLFAASKDASRLKEQYGIDVPDGFFCERRRTAMGGPFALNAPIMAVAQPVRNKIYSKYAYTFHHTTRLNKEEKVKEWSLCVATDVSDHDTFWPGWLRDLICDELLNMGYAPWWVKLFETSLKLPVYVGAPAPEQGHTLLGDPSNPDLEVGLSSGQGATDLMGTLLMSITYLVMQLDHTAPHLNSRIKDMPSACRFLDSYWQGHEEIRQISKSDDAILGWTKGRALVGGHRLFEMLKEGKVNPSPYMKISYEHGGAFLGDILLYDSRREPGSAIFVGNINSMLNNQFSPEYGVQSGVRDRSKRKRPFPGLAWASMKDTYGACPIYSDVLEAIERCWWNAFGESYRAYREDMLKRDTLELSRYVASMARQAGLAELTPIDLEVLADPNKLQYKWTEADVSANIHEVLMHGVSVEKTERFLRSVMPR 665
               SCOP domains d1waca_ A: dsRNA phage RNA-dependent RNA-polymerase                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eee..hhhhhh.....hhhhhhhhh.......eee..ee..hhhhhhhhhhhhhhhhhhh..................hhhh.eeeeee..........hhhhhhh........hhhhhhhhhhhhhhhhh.......eee............hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh....eeeeeeee....eee......eee...eeehhhhhhh......eee.....hhhhhhhh.......eeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhh..eeeeeee.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh...eee.........eee.................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh....eeeeee..eeeeee...hhhhhhhhhhhhhhhh.........eee....ee..eeee.....hhhhheee.hhhhhhhhhhh..........hhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhh..--.....hhhhhhhheee.hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RDRP_PHAGE  PDB: A:309-484 UniProt: 310-485                                                                                                                                     ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wac A   1 PRRAPAFPLSDIKAQMLFANNIKAQQASKRSFKEGAIETYEGLLSVDPRFLSFKNELSRYLTDHFPANVDEYGRVYGNGVRTNFFGMRHMNGFPMIPATWPLASNLKKRADADLADGPVSERDNLLFRAAVRLMFSDLEPVPLKIRKGSSTCIPYFSNDMGTKIEIAERALEKAEEAGNLMLQGKFDDAYQLHQMGGAYYVVYRAQSTDAITLDPKTGKFVSKDRMVADFEYAVTGGEQGSLFAASKDASRLKEQYGIDVPDGFFCERRRTAMGGPFALNAPIMAVAQPVRNKIYSKYAYTFHHTTRLNKEEKVKEWSLCVATDVSDHDTFWPGWLRDLICDELLNMGYAPWWVKLFETSLKLPVYVGAPAPEQGHTLLGDPSNPDLEVGLSSGQGATDLMGTLLMSITYLVMQLDHTAPHLNSRIKDMPSACRFLDSYWQGHEEIRQISKSDDAMLGWTKGRALVGGHRLFEMLKEGKVNPSPYMKISYEHGGAFLGDILLYDSRREPGSAIFVGNINSMLNNQFSPEYGVQSGVRDRSKRKRPFPGLAWASMKDTYGACPIYSDVLEAIERCWWNAFGESYRAYREDMLKRDTLELSRYVASMARQAGLAELTPIDLEVLADPNKLSG--TEADVSANIHEVLMHGVSVEKTERFLRSVMPR 662
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630  |    638       648       658
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                               630  |
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  631


Chain B from PDB  Type:PROTEIN  Length:662
 aligned with RDRP_BPPH6 | P11124 from UniProtKB/Swiss-Prot  Length:665

    Alignment length:664
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551       561       571       581       591       601       611       621       631       641       651       661
           RDRP_BPPH6     2 PRRAPAFPLSDIKAQMLFANNIKAQQASKRSFKEGAIETYEGLLSVDPRFLSFKNELSRYLTDHFPANVDEYGRVYGNGVRTNFFGMRHMNGFPMIPATWPLASNLKKRADADLADGPVSERDNLLFRAAVRLMFSDLEPVPLKIRKGSSTCIPYFSNDMGTKIEIAERALEKAEEAGNLMLQGKFDDAYQLHQMGGAYYVVYRAQSTDAITLDPKTGKFVSKDRMVADFEYAVTGGEQGSLFAASKDASRLKEQYGIDVPDGFFCERRRTAMGGPFALNAPIMAVAQPVRNKIYSKYAYTFHHTTRLNKEEKVKEWSLCVATDVSDHDTFWPGWLRDLICDELLNMGYAPWWVKLFETSLKLPVYVGAPAPEQGHTLLGDPSNPDLEVGLSSGQGATDLMGTLLMSITYLVMQLDHTAPHLNSRIKDMPSACRFLDSYWQGHEEIRQISKSDDAILGWTKGRALVGGHRLFEMLKEGKVNPSPYMKISYEHGGAFLGDILLYDSRREPGSAIFVGNINSMLNNQFSPEYGVQSGVRDRSKRKRPFPGLAWASMKDTYGACPIYSDVLEAIERCWWNAFGESYRAYREDMLKRDTLELSRYVASMARQAGLAELTPIDLEVLADPNKLQYKWTEADVSANIHEVLMHGVSVEKTERFLRSVMPR 665
               SCOP domains d1wacb_ B: dsRNA phage RNA-dependent RNA-polymerase                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eee..hhhhhh.....hhhhhhhhh.......eee..ee..hhhhhhhhhhhhhhhhhhh..................hhhh.eeeeee..........hhhhhhh........hhhhhhhhhhhhhhhhh.......eee............hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh....eeeeeeee....eee......eee...eeehhhhhhh......eee.....hhhhhhhh.......eeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhh..eeeeeee.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh...eee.........eee.................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh....eeeeee..eeeeee...hhhhhhhhhhhhhhhh.........eee....ee..eeee.....hhhhheee.hhhhhhhhhhh..........hhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhh..--.....hhhhhhhheee.hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RDRP_PHAGE  PDB: B:309-484 UniProt: 310-485                                                                                                                                     ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wac B   1 PRRAPAFPLSDIKAQMLFANNIKAQQASKRSFKEGAIETYEGLLSVDPRFLSFKNELSRYLTDHFPANVDEYGRVYGNGVRTNFFGMRHMNGFPMIPATWPLASNLKKRADADLADGPVSERDNLLFRAAVRLMFSDLEPVPLKIRKGSSTCIPYFSNDMGTKIEIAERALEKAEEAGNLMLQGKFDDAYQLHQMGGAYYVVYRAQSTDAITLDPKTGKFVSKDRMVADFEYAVTGGEQGSLFAASKDASRLKEQYGIDVPDGFFCERRRTAMGGPFALNAPIMAVAQPVRNKIYSKYAYTFHHTTRLNKEEKVKEWSLCVATDVSDHDTFWPGWLRDLICDELLNMGYAPWWVKLFETSLKLPVYVGAPAPEQGHTLLGDPSNPDLEVGLSSGQGATDLMGTLLMSITYLVMQLDHTAPHLNSRIKDMPSACRFLDSYWQGHEEIRQISKSDDAMLGWTKGRALVGGHRLFEMLKEGKVNPSPYMKISYEHGGAFLGDILLYDSRREPGSAIFVGNINSMLNNQFSPEYGVQSGVRDRSKRKRPFPGLAWASMKDTYGACPIYSDVLEAIERCWWNAFGESYRAYREDMLKRDTLELSRYVASMARQAGLAELTPIDLEVLADPNKLSG--TEADVSANIHEVLMHGVSVEKTERFLRSVMPR 662
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630  |    638       648       658
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                               630  |
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  631


Chain C from PDB  Type:PROTEIN  Length:662
 aligned with RDRP_BPPH6 | P11124 from UniProtKB/Swiss-Prot  Length:665

    Alignment length:664
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551       561       571       581       591       601       611       621       631       641       651       661
           RDRP_BPPH6     2 PRRAPAFPLSDIKAQMLFANNIKAQQASKRSFKEGAIETYEGLLSVDPRFLSFKNELSRYLTDHFPANVDEYGRVYGNGVRTNFFGMRHMNGFPMIPATWPLASNLKKRADADLADGPVSERDNLLFRAAVRLMFSDLEPVPLKIRKGSSTCIPYFSNDMGTKIEIAERALEKAEEAGNLMLQGKFDDAYQLHQMGGAYYVVYRAQSTDAITLDPKTGKFVSKDRMVADFEYAVTGGEQGSLFAASKDASRLKEQYGIDVPDGFFCERRRTAMGGPFALNAPIMAVAQPVRNKIYSKYAYTFHHTTRLNKEEKVKEWSLCVATDVSDHDTFWPGWLRDLICDELLNMGYAPWWVKLFETSLKLPVYVGAPAPEQGHTLLGDPSNPDLEVGLSSGQGATDLMGTLLMSITYLVMQLDHTAPHLNSRIKDMPSACRFLDSYWQGHEEIRQISKSDDAILGWTKGRALVGGHRLFEMLKEGKVNPSPYMKISYEHGGAFLGDILLYDSRREPGSAIFVGNINSMLNNQFSPEYGVQSGVRDRSKRKRPFPGLAWASMKDTYGACPIYSDVLEAIERCWWNAFGESYRAYREDMLKRDTLELSRYVASMARQAGLAELTPIDLEVLADPNKLQYKWTEADVSANIHEVLMHGVSVEKTERFLRSVMPR 665
               SCOP domains d1wacc_ C: dsRNA phage RNA-dependent RNA-polymerase                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -------------------RdRP_1-1wacC01 C:20-635                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            --     --------------------------- Pfam domains (1)
           Pfam domains (2) -------------------RdRP_1-1wacC02 C:20-635                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            --     --------------------------- Pfam domains (2)
           Pfam domains (3) -------------------RdRP_1-1wacC03 C:20-635                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            --     --------------------------- Pfam domains (3)
         Sec.struct. author .....eee..hhhhhh.....hhhhhhhhh.......eee..ee..hhhhhhhhhhhhhhhhhhh..................hhhh.eeeeee..........hhhhhhh........hhhhhhhhhhhhhhhhh.......eee............hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh....eeeeeeee....eee......eee...eeehhhhhhh......eee.....hhhhhhhh.......eeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhh..eeeeeee.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh...eee.........eee.................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh....eeeeee..eeeeee...hhhhhhhhhhhhhhhh.........eee....ee..eeee.....hhhhheee.hhhhhhhhhhh..........hhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhh..--.....hhhhhhhheee.hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RDRP_PHAGE  PDB: C:309-484 UniProt: 310-485                                                                                                                                     ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wac C   1 PRRAPAFPLSDIKAQMLFANNIKAQQASKRSFKEGAIETYEGLLSVDPRFLSFKNELSRYLTDHFPANVDEYGRVYGNGVRTNFFGMRHMNGFPMIPATWPLASNLKKRADADLADGPVSERDNLLFRAAVRLMFSDLEPVPLKIRKGSSTCIPYFSNDMGTKIEIAERALEKAEEAGNLMLQGKFDDAYQLHQMGGAYYVVYRAQSTDAITLDPKTGKFVSKDRMVADFEYAVTGGEQGSLFAASKDASRLKEQYGIDVPDGFFCERRRTAMGGPFALNAPIMAVAQPVRNKIYSKYAYTFHHTTRLNKEEKVKEWSLCVATDVSDHDTFWPGWLRDLICDELLNMGYAPWWVKLFETSLKLPVYVGAPAPEQGHTLLGDPSNPDLEVGLSSGQGATDLMGTLLMSITYLVMQLDHTAPHLNSRIKDMPSACRFLDSYWQGHEEIRQISKSDDAMLGWTKGRALVGGHRLFEMLKEGKVNPSPYMKISYEHGGAFLGDILLYDSRREPGSAIFVGNINSMLNNQFSPEYGVQSGVRDRSKRKRPFPGLAWASMKDTYGACPIYSDVLEAIERCWWNAFGESYRAYREDMLKRDTLELSRYVASMARQAGLAELTPIDLEVLADPNKLSG--TEADVSANIHEVLMHGVSVEKTERFLRSVMPR 662
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630  |    638       648       658
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                               630  |
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  631
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric Unit
(-)
Class: Multi-domain proteins (alpha and beta) (2421)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WAC)

(-) Pfam Domains  (1, 3)

Asymmetric Unit
(-)
Clan: RdRP (210)

(-) Gene Ontology  (11, 11)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C   (RDRP_BPPH6 | P11124)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0050265    RNA uridylyltransferase activity    Catalysis of the reaction: UTP + RNA(n) = diphosphate + RNA(n+1).
    GO:0003968    RNA-directed 5'-3' RNA polymerase activity    Catalysis of the reaction: nucleoside triphosphate + RNA(n) = diphosphate + RNA(n+1); uses an RNA template, i.e. the catalysis of RNA-template-directed extension of the 3'-end of an RNA strand by one nucleotide at a time.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
    GO:0001172    transcription, RNA-templated    The cellular synthesis of RNA on a template of RNA.
    GO:0019079    viral genome replication    Any process involved directly in viral genome replication, including viral nucleotide metabolism.
cellular component
    GO:0019012    virion    The complete fully infectious extracellular virus particle.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1wac)

  Sites
(no "Sites" information available for 1wac)

  Cis Peptide Bonds
    Ile A:153 - Pro A:154   [ RasMol ]
    Ile A:96 - Pro A:97   [ RasMol ]
    Ile B:153 - Pro B:154   [ RasMol ]
    Ile B:96 - Pro B:97   [ RasMol ]
    Ile C:153 - Pro C:154   [ RasMol ]
    Ile C:96 - Pro C:97   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1wac
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RDRP_BPPH6 | P11124
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RDRP_BPPH6 | P11124
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RDRP_BPPH6 | P11124: 1hhs 1hht 1hi0 1hi1 1hi8 1uvi 1uvj 1uvk 1uvl 1uvm 1uvn 2jl9 2jlf 2jlg 4a8f 4a8k 4a8m 4a8o 4a8q 4a8s 4a8w 4a8y 4b02 5fj6 5fj7

(-) Related Entries Specified in the PDB File

1hhs RNA DEPENDENT RNA POLYMERASE FROM DSRNA BACTERIOPHAGE PHI6
1hht RNA DEPENDENT RNA POLYMERASE FROM DSRNA BACTERIOPHAGE PHI6 PLUS TEMPLATE
1hi0 RNA DEPENDENT RNA POLYMERASE FROM DSRNA BACTERIOPHAGE PHI6 PLUS INITIATION COMPLEX
1hi1 RNA DEPENDENT RNA POLYMERASE FROM DSRNA BACTERIOPHAGE PHI6 PLUS BOUND NTP
1hi8 RNA DEPENDENT RNA POLYMERASE FROM DSRNA BACTERIOPHAGE PHI6
1uvi THE STRUCTURAL BASIS FOR RNA SPECIFICITY AND CA2+ INHIBITION OF AN RNA-DEPENDENT RNA POLYMERASE
1uvj THE STRUCTURAL BASIS FOR RNA SPECIFICITY AND CA2+ INHIBITION OF AN RNA-DEPENDENT RNA POLYMERASE
1uvk THE STRUCTURAL BASIS FOR RNA SPECIFICITY AND CA2+ INHIBITION OF AN RNA-DEPENDENT RNA POLYMERASE
1uvl THE STRUCTURAL BASIS FOR RNA SPECIFICITY AND CA2+ INHIBITION OF AN RNA-DEPENDENT RNA POLYMERASE
1uvm THE STRUCTURAL BASIS FOR RNA SPECIFICITY AND CA2+ INHIBITION OF AN RNA-DEPENDENT RNA POLYMERASE
1uvn THE STRUCTURAL BASIS FOR RNA SPECIFICITY AND CA2+ INHIBITION OF AN RNA-DEPENDENT RNA POLYMERASE
