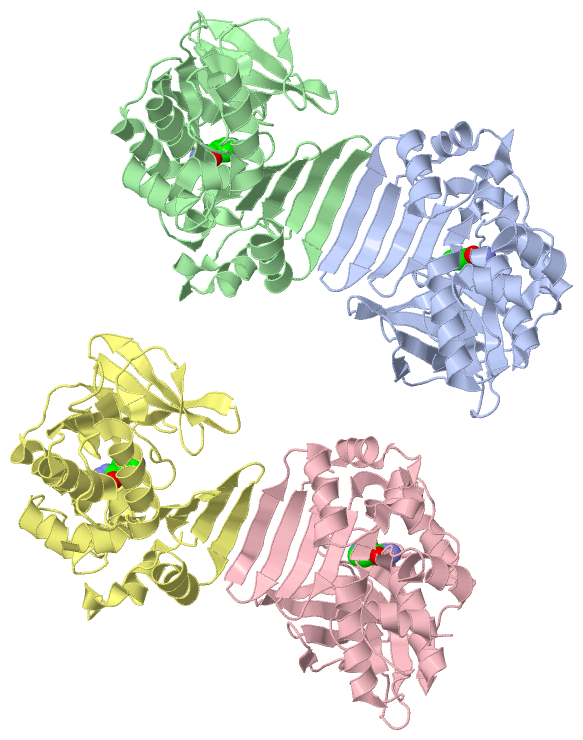

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

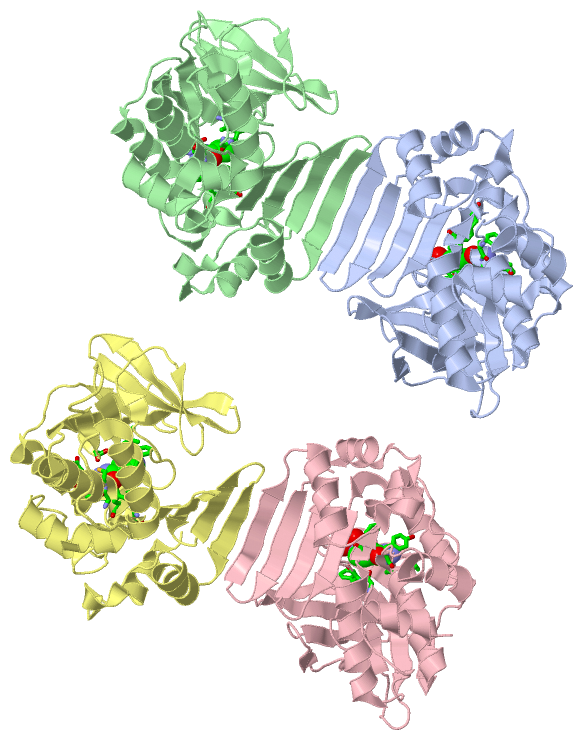

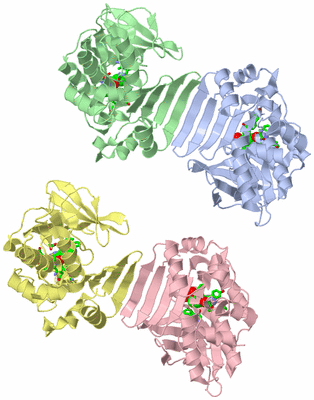

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

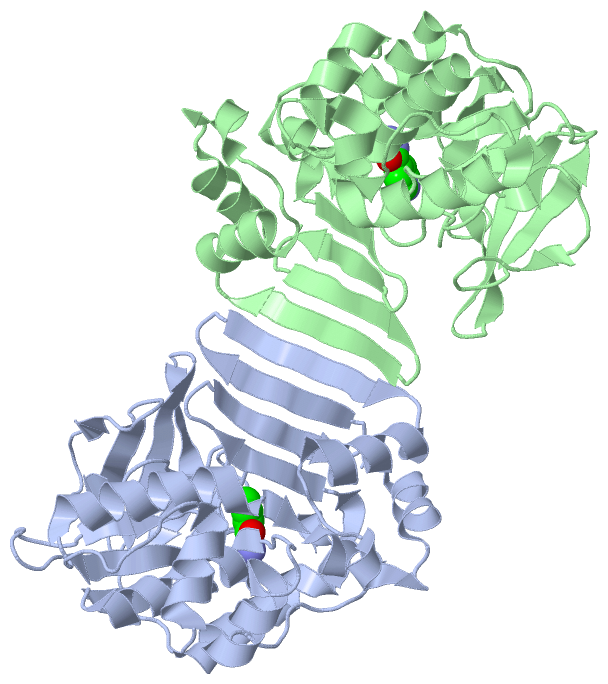

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

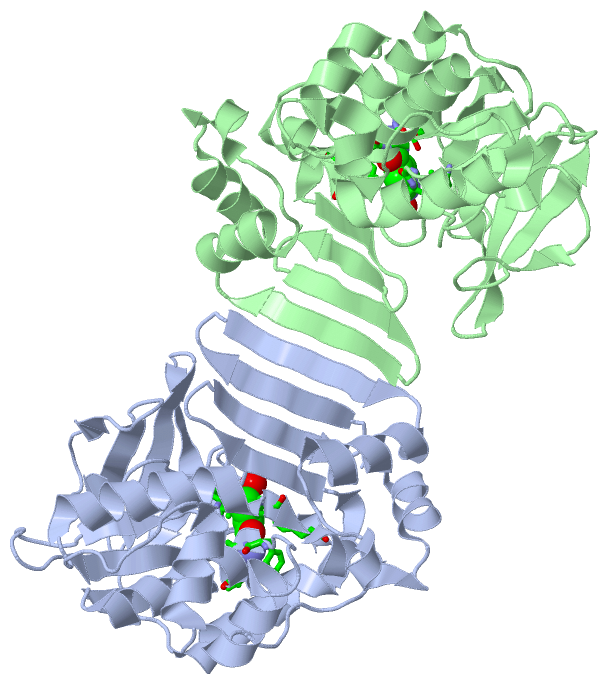

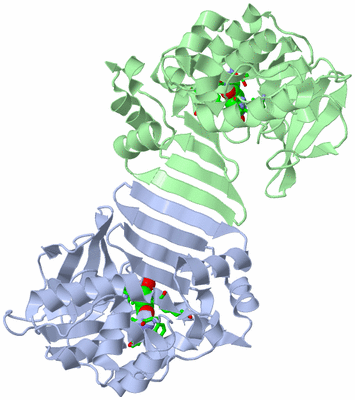

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

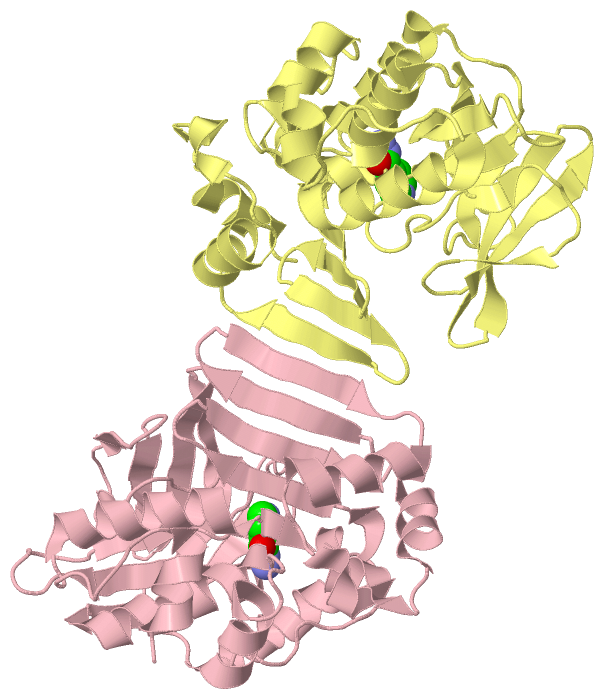

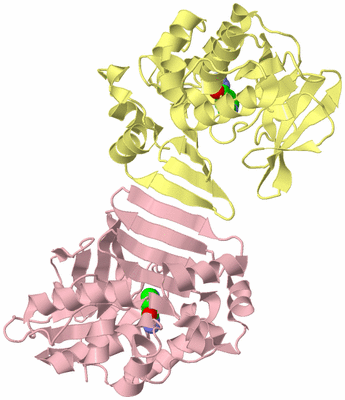

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  ARYLAMINE N-ACETYLTRANSFERASE FROM MYCOBACTERIUM SMEGMATIS WITH THE ANTI-TUBERCULAR DRUG ISONIAZID BOUND IN THE ACTIVE SITE.

Authors :  J. Sandy, S. Holton, E. Fullham, E. Sim, M. E. M. Noble
Date :  17 Aug 04  (Deposition) - 23 Feb 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Nat, Tuberculosis, Acetyltransferase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Sandy, S. Holton, E. Fullham, E. Sim, M. E. M. Noble
Binding Of The Anti-Tubercular Drug Isoniazid To The Arylamine N-Acetyltransferase Protein From Mycobacterium Smegmatis
Protein Sci. V. 14 775 2005
PubMed-ID: 15722451  |  Reference-DOI: 10.1110/PS.041163505

(-) Compounds

Molecule 1 - ARYLAMINE N-ACETYLTRANSFERASE
    Chains: A, B, C, D
    EC Number: 2.3.1.5
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector: PET28B
    Organism Scientific: MYCOBACTERIUM SMEGMATIS
    Organism Taxid: 1772
    Other Details: ISONIAZID

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
1ISZ4Ligand/Ion4-(DIAZENYLCARBONYL)PYRIDINE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1ISZ2Ligand/Ion4-(DIAZENYLCARBONYL)PYRIDINE
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1ISZ2Ligand/Ion4-(DIAZENYLCARBONYL)PYRIDINE

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPHE A:38 , TYR A:69 , CYS A:70 , TYR A:71 , VAL A:95 , THR A:109 , PHE A:130 , PHE A:204 , HOH A:2248BINDING SITE FOR RESIDUE ISZ A1276
2AC2SOFTWAREPHE B:38 , TYR B:69 , CYS B:70 , TYR B:71 , VAL B:95 , THR B:109 , GLY B:129 , PHE B:130 , PHE B:204 , HOH B:2196BINDING SITE FOR RESIDUE ISZ B1276
3AC3SOFTWAREPHE C:38 , TYR C:69 , CYS C:70 , TYR C:71 , VAL C:95 , THR C:109 , GLY C:129 , PHE C:130 , PHE C:204 , HOH C:2172 , HOH C:2173BINDING SITE FOR RESIDUE ISZ C1276
4AC4SOFTWAREPHE D:38 , TYR D:69 , CYS D:70 , TYR D:71 , VAL D:95 , THR D:109 , GLY D:129 , PHE D:130 , PHE D:204BINDING SITE FOR RESIDUE ISZ D1276

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1W6F)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1W6F)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1W6F)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1W6F)

(-) Exons   (0, 0)

(no "Exon" information available for 1W6F)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:273
 aligned with NAT_MYCSM | O86309 from UniProtKB/Swiss-Prot  Length:275

    Alignment length:273
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272
            NAT_MYCSM     3 MDLGGYLTRIGLDGRPRPDLGTLHAIVAAHNRSIPFENLDPLLGIPVADLSAEALFAKLVDRRRGGYCYEHNGLLGYVLEELGFEVERLSGRVVWMRADDAPLPAQTHNVLSVAVPGADGRYLVDVGFGGQTLTSPIRLEAGPVQQTRHEPYRLTRHGDDHTLAAQVRGEWQPLYTFTTEPRPRIDLEVGSWYVSTHPGSHFVTGLTVAVVTDDARYNLRGRNLAVHRSGATEHIRFDSAAQVLDAIVNRFGIDLGDLAGRDVQARVAEVLDT 275
               SCOP domains d1w6fa_ A: Arylamine N-acetyltransferase                                                                                                                                                                                                                                          SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhh........hhhhhhhhhhhhhhhh.eehhhhhh.......hhhhhhhhhh......hhhhhhhhhhhhhhhh..eeeeeeeee............eeeeeeeee.......eee............ee.....ee......eeeeee..eeeeeeee..eeeeeeee.....hhhhhhhhhhhhhhh..hhhhhh.eeeee...eeeeee..eeeeee..eeeeeee.hhhhhhhhhhhh....hhhhh..hhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w6f A   3 MDLGGYLTRIGLDGRPRPDLGTLHAIVAAHNRSIPFENLDPLLGIPVADLSAEALFAKLVDRRRGGYCYEHNGLLGYVLEELGFEVERLSGRVVWMRADDAPLPAQTHNVLSVAVPGADGRYLVDVGFGGQTLTSPIRLEAGPVQQTRHEPYRLTRHGDDHTLAAQVRGEWQPLYTFTTEPRPRIDLEVGSWYVSTHPGSHFVTGLTVAVVTDDARYNLRGRNLAVHRSGATEHIRFDSAAQVLDAIVNRFGIDLGDLAGRDVQARVAEVLDT 275
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272


Chain B from PDB  Type:PROTEIN  Length:269
 aligned with NAT_MYCSM | O86309 from UniProtKB/Swiss-Prot  Length:275

    Alignment length:269
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266
            NAT_MYCSM     7 GYLTRIGLDGRPRPDLGTLHAIVAAHNRSIPFENLDPLLGIPVADLSAEALFAKLVDRRRGGYCYEHNGLLGYVLEELGFEVERLSGRVVWMRADDAPLPAQTHNVLSVAVPGADGRYLVDVGFGGQTLTSPIRLEAGPVQQTRHEPYRLTRHGDDHTLAAQVRGEWQPLYTFTTEPRPRIDLEVGSWYVSTHPGSHFVTGLTVAVVTDDARYNLRGRNLAVHRSGATEHIRFDSAAQVLDAIVNRFGIDLGDLAGRDVQARVAEVLDT 275
               SCOP domains d1w6fb_ B: Arylamine N-acetyltransferase                                                                                                                                                                                                                                      SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhh.......hhhhhhhhhhhhhhhh.eehhhhhh.......hhhhhhhhhh......hhhhhhhhhhhhhhhhh.eeeeeeeee............eeeeeeeee.......eee............ee.....ee......eeeeee..eeeeeeee..eeeeeeee.....hhhhhhhhhhhhhhh..hhhhhh.eeeee....eeeee..eeeeee..eeeeeee.hhhhhhhhhhhh....hhhhh..hhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w6f B   7 GYLTRIGLDGRPRPDLGTLHAIVAAHNRSIPFENLDPLLGIPVADLSAEALFAKLVDRRRGGYCYEHNGLLGYVLEELGFEVERLSGRVVWMRADDAPLPAQTHNVLSVAVPGADGRYLVDVGFGGQTLTSPIRLEAGPVQQTRHEPYRLTRHGDDHTLAAQVRGEWQPLYTFTTEPRPRIDLEVGSWYVSTHPGSHFVTGLTVAVVTDDARYNLRGRNLAVHRSGATEHIRFDSAAQVLDAIVNRFGIDLGDLAGRDVQARVAEVLDT 275
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266


Chain C from PDB  Type:PROTEIN  Length:272
 aligned with NAT_MYCSM | O86309 from UniProtKB/Swiss-Prot  Length:275

    Alignment length:272
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273
            NAT_MYCSM     4 DLGGYLTRIGLDGRPRPDLGTLHAIVAAHNRSIPFENLDPLLGIPVADLSAEALFAKLVDRRRGGYCYEHNGLLGYVLEELGFEVERLSGRVVWMRADDAPLPAQTHNVLSVAVPGADGRYLVDVGFGGQTLTSPIRLEAGPVQQTRHEPYRLTRHGDDHTLAAQVRGEWQPLYTFTTEPRPRIDLEVGSWYVSTHPGSHFVTGLTVAVVTDDARYNLRGRNLAVHRSGATEHIRFDSAAQVLDAIVNRFGIDLGDLAGRDVQARVAEVLDT 275
               SCOP domains d1w6fc_ C: Arylamine N-acetyltransferase                                                                                                                                                                                                                                         SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhh........hhhhhhhhhhhhhhhh.eehhhhhh.......hhhhhhhhhh......hhhhhhhhhhhhhhhhh.eeeeeeeee............eeeeeeeee.......eee............ee.....ee......eeeeee..eeeeeeee..eeeeeeee.....hhhhhhhhhhhhhhh..hhhhhh.eeeee...eeeeee..eeeeee..eeeeee..hhhhhhhhhhhh...hhhhhh..hhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w6f C   4 DLGGYLTRIGLDGRPRPDLGTLHAIVAAHNRSIPFENLDPLLGIPVADLSAEALFAKLVDRRRGGYCYEHNGLLGYVLEELGFEVERLSGRVVWMRADDAPLPAQTHNVLSVAVPGADGRYLVDVGFGGQTLTSPIRLEAGPVQQTRHEPYRLTRHGDDHTLAAQVRGEWQPLYTFTTEPRPRIDLEVGSWYVSTHPGSHFVTGLTVAVVTDDARYNLRGRNLAVHRSGATEHIRFDSAAQVLDAIVNRFGIDLGDLAGRDVQARVAEVLDT 275
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273


Chain D from PDB  Type:PROTEIN  Length:269
 aligned with NAT_MYCSM | O86309 from UniProtKB/Swiss-Prot  Length:275

    Alignment length:269
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265
            NAT_MYCSM     6 GGYLTRIGLDGRPRPDLGTLHAIVAAHNRSIPFENLDPLLGIPVADLSAEALFAKLVDRRRGGYCYEHNGLLGYVLEELGFEVERLSGRVVWMRADDAPLPAQTHNVLSVAVPGADGRYLVDVGFGGQTLTSPIRLEAGPVQQTRHEPYRLTRHGDDHTLAAQVRGEWQPLYTFTTEPRPRIDLEVGSWYVSTHPGSHFVTGLTVAVVTDDARYNLRGRNLAVHRSGATEHIRFDSAAQVLDAIVNRFGIDLGDLAGRDVQARVAEVLD 274
               SCOP domains d1w6fd_ D: Arylamine N-acetyltransferase                                                                                                                                                                                                                                      SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---------------Acetyltransf_2-1w6fD01 D:21-261                                                                                                                                                                                                                  ------------- Pfam domains (1)
           Pfam domains (2) ---------------Acetyltransf_2-1w6fD02 D:21-261                                                                                                                                                                                                                  ------------- Pfam domains (2)
           Pfam domains (3) ---------------Acetyltransf_2-1w6fD03 D:21-261                                                                                                                                                                                                                  ------------- Pfam domains (3)
           Pfam domains (4) ---------------Acetyltransf_2-1w6fD04 D:21-261                                                                                                                                                                                                                  ------------- Pfam domains (4)
         Sec.struct. author hhhhhhh........hhhhhhhhhhhhhhhh.eehhhhhh.......hhhhhhhhhh......hhhhhhhhhhhhhhhh..eeeeeeeee............eeeeeeeee.......eee............ee.....eee....eeeeeee..eeeeeeee..eeeeeeee.....hhhhhhhhhhhhhhh..hhhhhh.eeeee...eeeeee..eeeeee...eeeeee.hhhhhhhhhhhh...hhhhhh..hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w6f D   6 GGYLTRIGLDGRPRPDLGTLHAIVAAHNRSIPFENLDPLLGIPVADLSAEALFAKLVDRRRGGYCYEHNGLLGYVLEELGFEVERLSGRVVWMRADDAPLPAQTHNVLSVAVPGADGRYLVDVGFGGQTLTSPIRLEAGPVQQTRHEPYRLTRHGDDHTLAAQVRGEWQPLYTFTTEPRPRIDLEVGSWYVSTHPGSHFVTGLTVAVVTDDARYNLRGRNLAVHRSGATEHIRFDSAAQVLDAIVNRFGIDLGDLAGRDVQARVAEVLD 274
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1W6F)

(-) Pfam Domains  (1, 4)

Asymmetric Unit
(-)
Clan: Peptidase_CA (169)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (NAT_MYCSM | O86309)
molecular function
    GO:0016407    acetyltransferase activity    Catalysis of the transfer of an acetyl group to an acceptor molecule.
    GO:0004060    arylamine N-acetyltransferase activity    Catalysis of the reaction: acetyl-CoA + an arylamine = CoA + an N-acetylarylamine.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016746    transferase activity, transferring acyl groups    Catalysis of the transfer of an acyl group from one compound (donor) to another (acceptor).
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ISZ  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1w6f)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1w6f
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  NAT_MYCSM | O86309
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.3.1.5
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  NAT_MYCSM | O86309
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        NAT_MYCSM | O86309: 1gx3 1w5r

(-) Related Entries Specified in the PDB File

1gx3 M. SMEGMATIS ARYLAMINE N-ACETYL TRANSFERASE
1w5r X-RAY CRYSTALLOGRAPHIC STRCUTURE OF A C70Q MYCOBACTERIUM SMEGMATIS N-ARYLAMINE ACETYLTRANSFERASE
