1W30 - JenaLib

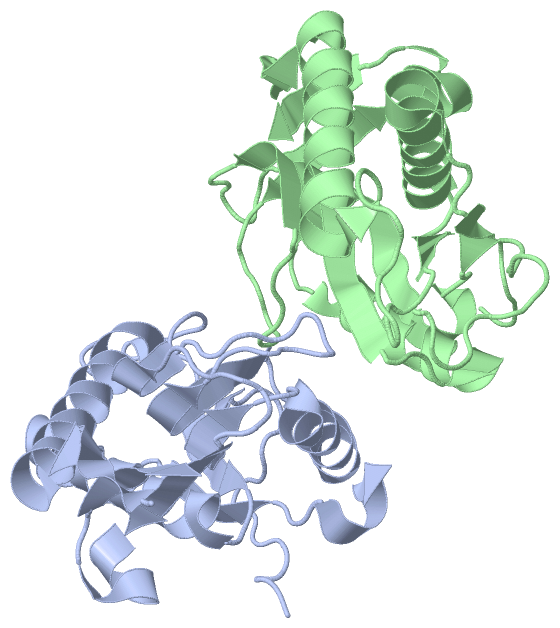

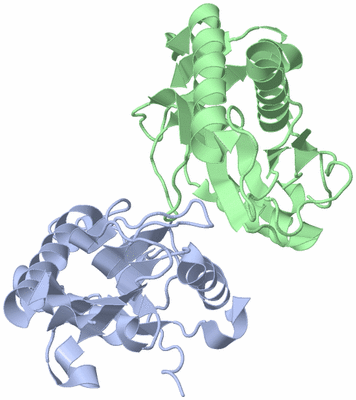

Asymmetric Unit (Jmol Viewer)

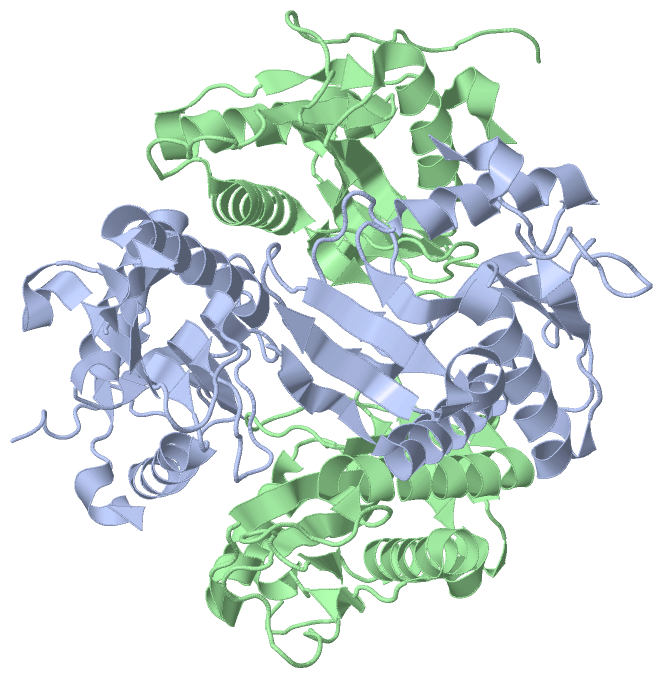

Biological Unit 1 (Jmol Viewer)

Title :   PYRR OF MYCOBACTERIUM TUBERCULOSIS AS A POTENTIAL DRUG TARGET

Authors :   K. A. Kantardjieff, C. Vasquez, P. Castro, N. N. Warfel, B. -S. Rho, T. Lekin, C. -Y. Kim, B. W. Segelke, T. Terwilliger, B. Rupp, Tb Structural Genomics Consortium (Tbsgc)

Date :   11 Jul 04 (Deposition) - 29 Sep 04 (Release) - 06 May 15 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.90

Chains :   Asym. Unit : A,B
Biol. Unit 1: A,B  (2x)

Keywords :   Pyrr, Transferase, Glycosyltransferase, Psi, Protein Structure Initiative, Tb Structural Genomics Consortium, Tb, Tbsgc (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. A. Kantardjieff, C. Vasquez, P. Castro, N. N. Warfel, B. -S. Rho, T. Lekin, C. -Y. Kim, B. W. Segelke, T. Terwilliger, B. Rupp
Structure Of Pyrr (Rv1379) From Mycobacterium Tuberculosis: A Persistence Gene And Protein Drug Target
Acta Crystallogr. , Sect. D V. 61 355 2005
PubMed-ID: 15805589 | Reference-DOI: 10.1107/S090744490403389X

Molecule 1 - PYRR BIFUNCTIONAL PROTEIN
	Chains	:	A, B
	EC Number	:	2.4.2.9
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector	:	PET
	Mutation	:	YES
	Organism Scientific	:	MYCOBACTERIUM TUBERCULOSIS
	Organism Taxid	:	1773
	Other Details	:	GSHHHHHH C-TERMINAL TAG
	Strain	:	HRV37
	Synonym	:	URACIL PHOSPHORIBOSYLTRANSFERASE, UPRTASE

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (2x)	:	A	B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1W30)

(no "Site" information available for 1W30)

(no "SS Bond" information available for 1W30)

Asymmetric Unit

No.	Residues
1	Pro A:56	-	Thr A:57
2	Pro B:56	-	Thr B:57

(no "SAP(SNP)/Variant" information available for 1W30)

(no "PROSITE Motif" information available for 1W30)

(no "Exon" information available for 1W30)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:174
 aligned with PYRR_MYCBO | P65942 from UniProtKB/Swiss-Prot  Length:193

    Alignment length:182
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
           PYRR_MYCBO    12 ESRELMSAADVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRDDLMIKPPRPLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
               SCOP domains d1w30a_ A: Pyrimidine operon regulator PyrR                                                                                                                                            SCOP domains
               CATH domains 1w30A00 A:12-193  [code=3.40.50.2020, no name defined]                                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeehhhhhhhhhhhhhhhhhhhh............eeeee..hhhhhhhhhhhhhhhhhhh...eeee..hhhhh.--------...............eeeeeeeee..hhhhhhhhhhhhhhh...eeeeeeeee...........eeeee.......eeeeehhhhhh..eeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w30 A  12 ESRELMSAANVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRD--------PLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
                                    21        31        41        51        61        71        81        |-       101       111       121       131       141       151       161       171       181       191
                                                                                                         90       99

Chain A from PDB  Type:PROTEIN  Length:174
 aligned with PYRR_MYCTO | P9WHK2 from UniProtKB/Swiss-Prot  Length:193

    Alignment length:182
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
           PYRR_MYCTO    12 ESRELMSAADVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRDDLMIKPPRPLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
               SCOP domains d1w30a_ A: Pyrimidine operon regulator PyrR                                                                                                                                            SCOP domains
               CATH domains 1w30A00 A:12-193  [code=3.40.50.2020, no name defined]                                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeehhhhhhhhhhhhhhhhhhhh............eeeee..hhhhhhhhhhhhhhhhhhh...eeee..hhhhh.--------...............eeeeeeeee..hhhhhhhhhhhhhhh...eeeeeeeee...........eeeee.......eeeeehhhhhh..eeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w30 A  12 ESRELMSAANVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRD--------PLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
                                    21        31        41        51        61        71        81        |-       101       111       121       131       141       151       161       171       181       191
                                                                                                         90       99

Chain A from PDB  Type:PROTEIN  Length:174
 aligned with PYRR_MYCTU | P9WHK3 from UniProtKB/Swiss-Prot  Length:193

    Alignment length:182
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
           PYRR_MYCTU    12 ESRELMSAADVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRDDLMIKPPRPLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
               SCOP domains d1w30a_ A: Pyrimidine operon regulator PyrR                                                                                                                                            SCOP domains
               CATH domains 1w30A00 A:12-193  [code=3.40.50.2020, no name defined]                                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeehhhhhhhhhhhhhhhhhhhh............eeeee..hhhhhhhhhhhhhhhhhhh...eeee..hhhhh.--------...............eeeeeeeee..hhhhhhhhhhhhhhh...eeeeeeeee...........eeeee.......eeeeehhhhhh..eeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w30 A  12 ESRELMSAANVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRD--------PLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
                                    21        31        41        51        61        71        81        |-       101       111       121       131       141       151       161       171       181       191
                                                                                                         90       99

Chain B from PDB  Type:PROTEIN  Length:177
 aligned with PYRR_MYCBO | P65942 from UniProtKB/Swiss-Prot  Length:193

    Alignment length:182
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
           PYRR_MYCBO    12 ESRELMSAADVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRDDLMIKPPRPLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
               SCOP domains d1w30b_ B: Pyrimidine operon regulator PyrR                                                                                                                                            SCOP domains
               CATH domains 1w30B00 B:12-193  [code=3.40.50.2020, no name defined]                                                                                                                                 CATH domains
           Pfam domains (1) --Pribosyltran-1w30B01 B:14-150                                                                                                            ------------------------------------------- Pfam domains (1)
           Pfam domains (2) --Pribosyltran-1w30B02 B:14-150                                                                                                            ------------------------------------------- Pfam domains (2)
         Sec.struct. author .eeeeehhhhhhhhhhhhhhhhhhhhh...........eeeee..hhhhhhhhhhhhhhhhhhh...eeee..hhhhh.-----..................eeeeeeeee..hhhhhhhhhhhhhhh...eeeeeeeee...........eeeee.......eeeeehhhhhh..eeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w30 B  12 ESRELMSAANVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRD-----PPRPLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
                                    21        31        41        51        61        71        81        |-    |  101       111       121       131       141       151       161       171       181       191
                                                                                                         90    96

Chain B from PDB  Type:PROTEIN  Length:177
 aligned with PYRR_MYCTO | P9WHK2 from UniProtKB/Swiss-Prot  Length:193

    Alignment length:182
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
           PYRR_MYCTO    12 ESRELMSAADVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRDDLMIKPPRPLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
               SCOP domains d1w30b_ B: Pyrimidine operon regulator PyrR                                                                                                                                            SCOP domains
               CATH domains 1w30B00 B:12-193  [code=3.40.50.2020, no name defined]                                                                                                                                 CATH domains
           Pfam domains (1) --Pribosyltran-1w30B01 B:14-150                                                                                                            ------------------------------------------- Pfam domains (1)
           Pfam domains (2) --Pribosyltran-1w30B02 B:14-150                                                                                                            ------------------------------------------- Pfam domains (2)
         Sec.struct. author .eeeeehhhhhhhhhhhhhhhhhhhhh...........eeeee..hhhhhhhhhhhhhhhhhhh...eeee..hhhhh.-----..................eeeeeeeee..hhhhhhhhhhhhhhh...eeeeeeeee...........eeeee.......eeeeehhhhhh..eeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w30 B  12 ESRELMSAANVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRD-----PPRPLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
                                    21        31        41        51        61        71        81        |-    |  101       111       121       131       141       151       161       171       181       191
                                                                                                         90    96

Chain B from PDB  Type:PROTEIN  Length:177
 aligned with PYRR_MYCTU | P9WHK3 from UniProtKB/Swiss-Prot  Length:193

    Alignment length:182
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
           PYRR_MYCTU    12 ESRELMSAADVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRDDLMIKPPRPLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
               SCOP domains d1w30b_ B: Pyrimidine operon regulator PyrR                                                                                                                                            SCOP domains
               CATH domains 1w30B00 B:12-193  [code=3.40.50.2020, no name defined]                                                                                                                                 CATH domains
           Pfam domains (1) --Pribosyltran-1w30B01 B:14-150                                                                                                            ------------------------------------------- Pfam domains (1)
           Pfam domains (2) --Pribosyltran-1w30B02 B:14-150                                                                                                            ------------------------------------------- Pfam domains (2)
         Sec.struct. author .eeeeehhhhhhhhhhhhhhhhhhhhh...........eeeee..hhhhhhhhhhhhhhhhhhh...eeee..hhhhh.-----..................eeeeeeeee..hhhhhhhhhhhhhhh...eeeeeeeee...........eeeee.......eeeeehhhhhh..eeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w30 B  12 ESRELMSAANVGRTISRIAHQIIEKTALDDPVGPDAPRVVLLGIPTRGVTLANRLAGNITEYSGIHVGHGALDITLYRD-----PPRPLASTSIPAGGIDDALVILVDDVLYSGRSVRSALDALRDVGRPRAVQLAVLVDRGHRELPLRADYVGKNVPTSRSESVHVRLREHDGRDGVVISR 193
                                    21        31        41        51        61        71        81        |-    |  101       111       121       131       141       151       161       171       181       191
                                                                                                         90    96

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: PRTase-like (145)

Superfamily: PRTase-like (145)

Family: Phosphoribosyltransferases (PRTases) (100)

Protein domain: Pyrimidine operon regulator PyrR (8)

Mycobacterium tuberculosis [TaxId: 1773] (1)

1a	d1w30a_	A:
1b	d1w30b_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.2020, no name defined] (117)

Mycobacterium tuberculosis. Organism_taxid: 1773. Strain: hrv37. (1)

1a	1w30B00	B:12-193
1b	1w30A00	A:12-193

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: PRTase-like (59)

Family: Pribosyltran (59)

Mycobacterium tuberculosis (1)

1a	Pribosyltran-1w30B01	B:14-150
1b	Pribosyltran-1w30B02	B:14-150

Asymmetric Unit(hide GO term definitions)

Chain A,B (PYRR_MYCBO | P65942)

molecular function
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0016757	transferase activity, transferring glycosyl groups	Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
	GO:0004845	uracil phosphoribosyltransferase activity	Catalysis of the reaction: diphosphate + UMP = 5-phospho-alpha-D-ribose 1-diphosphate + uracil.
biological process
	GO:0009116	nucleoside metabolic process	The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.

Chain A,B (PYRR_MYCTO | P9WHK2)

molecular function
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0016757	transferase activity, transferring glycosyl groups	Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
	GO:0004845	uracil phosphoribosyltransferase activity	Catalysis of the reaction: diphosphate + UMP = 5-phospho-alpha-D-ribose 1-diphosphate + uracil.
biological process
	GO:0009116	nucleoside metabolic process	The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.

Chain A,B (PYRR_MYCTU | P9WHK3)

molecular function
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0016757	transferase activity, transferring glycosyl groups	Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
	GO:0004845	uracil phosphoribosyltransferase activity	Catalysis of the reaction: diphosphate + UMP = 5-phospho-alpha-D-ribose 1-diphosphate + uracil.
biological process
	GO:0009116	nucleoside metabolic process	The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0005618	cell wall	The rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal, most prokaryotic cells and some protozoan parasites, maintaining their shape and protecting them from osmotic lysis. In plants it is made of cellulose and, often, lignin; in fungi it is composed largely of polysaccharides; in bacteria it is composed of peptidoglycan; in protozoan parasites such as Giardia species, it's made of carbohydrates and proteins.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1w30)

	Sites
(no "Sites" information available for 1w30)

	Cis Peptide Bonds
		Pro A:56 - Thr A:57	[ RasMol ]
		Pro B:56 - Thr B:57	[ RasMol ]

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1w30
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PYRR_MYCBO \| P65942
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	PYRR_MYCTO \| P9WHK2
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	PYRR_MYCTU \| P9WHK3
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.4.2.9
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	PYRR_MYCBO \| P65942
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	PYRR_MYCTO \| P9WHK2
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	PYRR_MYCTU \| P9WHK3
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	PYRR_MYCTU \| P9WHK3	:	5iao

(no "Related Entries Specified in the PDB File" available for 1W30)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (2, 2)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 2)

Pfam Domains (1, 2)

Gene Ontology (7, 19)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
