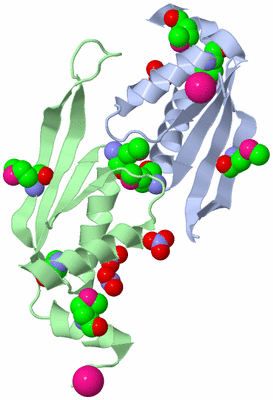

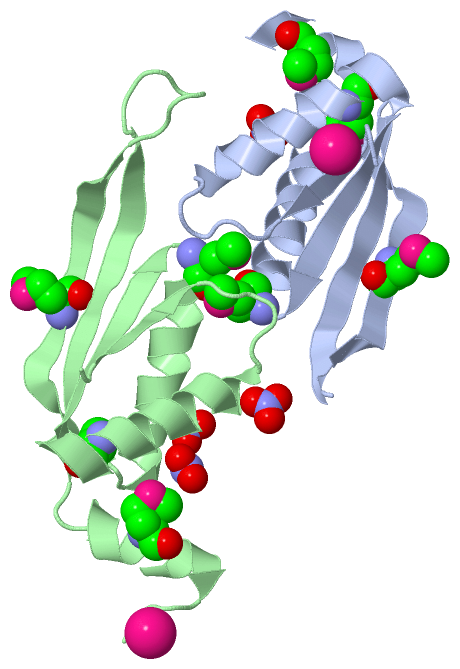

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

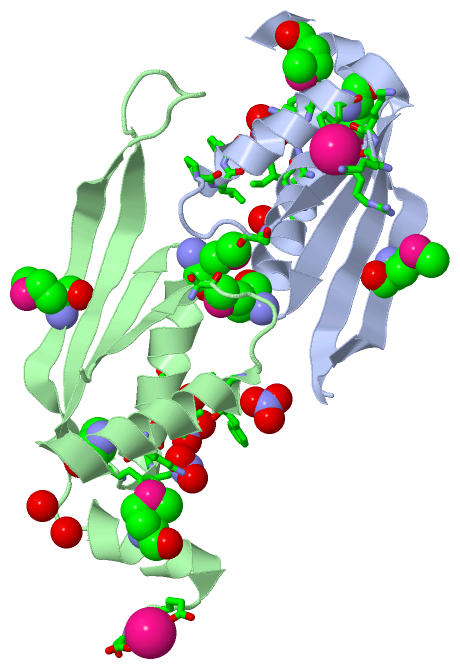

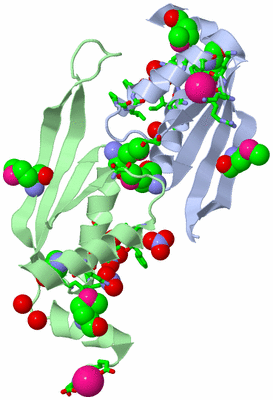

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

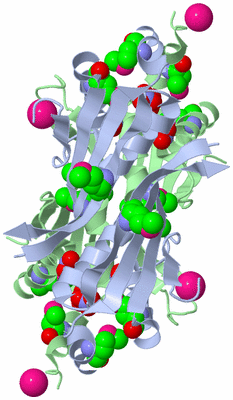

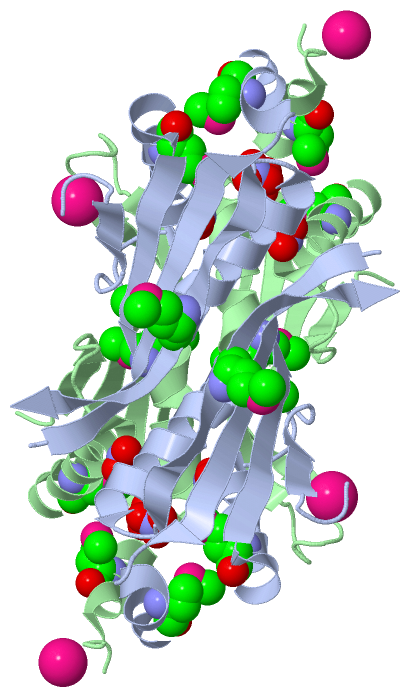

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

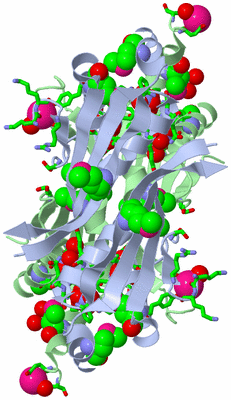

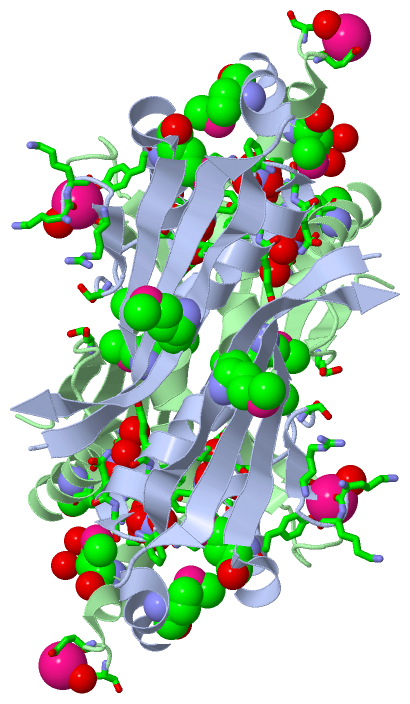

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  X-RAY STRUCTURE OF GENE PRODUCT FROM ARABIDOPSIS THALIANA AT2G34160

Authors :  G. E. Wesenberg, D. W. Smith, G. N. Phillips Jr. , E. Bitto, C. A. Bingman S. T. M. Allard, Center For Eukaryotic Structural Genomics (Ces
Date :  24 Aug 04  (Deposition) - 31 Aug 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Structural Genomics, Protein Structure Initiative, Cesg, At2G34160, Unknown Function, Nitrate, Psi, Center For Eukaryotic Structural Genomics (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Center For Eukaryotic Structural Genomics
X-Ray Structure Of Gene Product From Arabidopsis Thaliana At2G34160
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - UNKNOWN PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Cell Line: B834-DE3
    Expression System Plasmid: PVP13-GW
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: AT2G34160
    Organism Common: THALE CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 14)

Asymmetric Unit (3, 14)
No.NameCountTypeFull Name
1K2Ligand/IonPOTASSIUM ION
2MSE8Mod. Amino AcidSELENOMETHIONINE
3NO34Ligand/IonNITRATE ION
Biological Unit 1 (2, 24)
No.NameCountTypeFull Name
1K-1Ligand/IonPOTASSIUM ION
2MSE16Mod. Amino AcidSELENOMETHIONINE
3NO38Ligand/IonNITRATE ION

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:19 , LYS A:20 , ARG A:22 , TYR A:42 , HOH A:422 , HOH B:423 , HOH B:432BINDING SITE FOR RESIDUE K A 301
2AC2SOFTWARELYS A:40 , ILE A:67 , ASN A:71 , PHE A:73 , PHE B:33BINDING SITE FOR RESIDUE NO3 A 402
3AC3SOFTWARESER A:26 , SER B:26 , GLU B:120 , GLU B:122 , HOH B:437BINDING SITE FOR RESIDUE K B 300
4AC4SOFTWAREGLU A:66 , ILE A:67 , ASN A:70 , ASN A:71 , HOH A:406 , LEU B:32 , PHE B:33BINDING SITE FOR RESIDUE NO3 B 400
5AC5SOFTWAREPRO A:31 , LEU A:32 , PHE A:33 , GLU B:66 , ILE B:67 , ASN B:70 , ASN B:71 , HOH B:409BINDING SITE FOR RESIDUE NO3 B 401
6AC6SOFTWAREPHE A:33 , LYS B:40 , ILE B:67 , ASN B:71 , PHE B:73BINDING SITE FOR RESIDUE NO3 B 403

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1VM0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1VM0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1VM0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1VM0)

(-) Exons   (0, 0)

(no "Exon" information available for 1VM0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:93
 aligned with Y2416_ARATH | O22969 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:99
                                    28        38        48        58        68        78        88        98       108
          Y2416_ARATH    19 KKNRIQVSNTKKPLFFYVNLAKRYMQQYNDVELSALGMAIATVVTVTEILKNNGFAVEKKIMTSTVDIKDDARGRPVQKAKIEITLVKSEKFDELMAAA 117
               SCOP domains d1vm0a_ A: Hypothetical protein At2g34160                                                           SCOP domains
               CATH domains 1vm0A00 A:19-117  [code=3.30.110.20, no name defined]                                               CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee......hhhhhhhhhhhhhhhhheeeeeee..hhhhhhhhhhhhhhh..eeeeeeeeeeeee.------.eeeeeeeeeeee..hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1vm0 A  19 KKNRIQVSNTKKPLFFYVNLAKRYmQQYNDVELSALGmAIATVVTVTEILKNNGFAVEKKImTSIVDIK------PVQKAKIEITLVKSEKFDELmAAA 117
                                    28        38    |   48       |58        68        78 |      |-     |  98       108     |
                                                   43-MSE       56-MSE                  80-MSE 87     94                 114-MSE


Chain B from PDB  Type:PROTEIN  Length:103
 aligned with Y2416_ARATH | O22969 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:103
                                    29        39        49        59        69        79        89        99       109       119
          Y2416_ARATH    20 KNRIQVSNTKKPLFFYVNLAKRYMQQYNDVELSALGMAIATVVTVTEILKNNGFAVEKKIMTSTVDIKDDARGRPVQKAKIEITLVKSEKFDELMAAANEEKE 122
               SCOP domains d1vm0b_ B: Hypothetical protein At2g34160                                                               SCOP domains
               CATH domains 1vm0B00 B:20-122  [code=3.30.110.20, no name defined]                                                   CATH domains
           Pfam domains (1) -Alba-1vm0B01 B:21-84                                            -------------------------------------- Pfam domains (1)
           Pfam domains (2) -Alba-1vm0B02 B:21-84                                            -------------------------------------- Pfam domains (2)
         Sec.struct. author ..eeee.....hhhhhhhhhhhhhhhhheeeeeee..hhhhhhhhhhhhhhh..eeeeeeeeeeeee........eeeeeeeeeeee..hhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 1vm0 B  20 KNRIQVSNTKKPLFFYVNLAKRYmQQYNDVELSALGmAIATVVTVTEILKNNGFAVEKKImTSIVDIKDDARGRPVQKAKIEITLVKSEKFDELmAAANEEKE 122
                                    29        39   |    49      | 59        69        79|       89        99       109    |  119
                                                  43-MSE       56-MSE                  80-MSE                           114-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: AlbA (7)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Y2416_ARATH | O22969)
molecular function
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    K  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NO3  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1vm0)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1vm0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y2416_ARATH | O22969
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y2416_ARATH | O22969
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Y2416_ARATH | O22969: 2q3v
