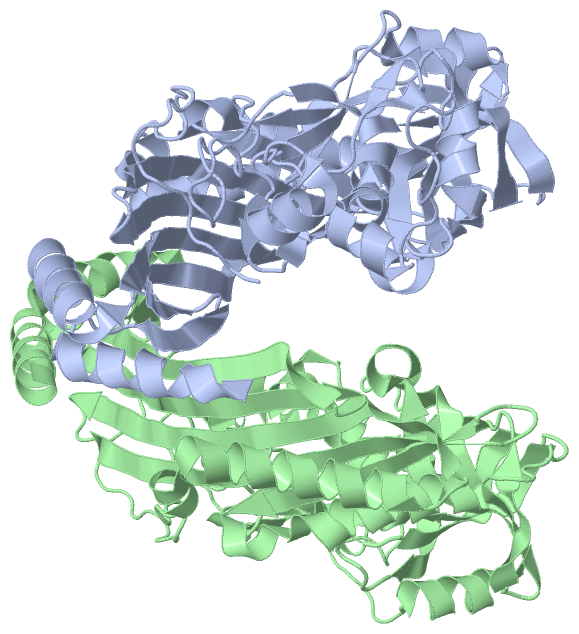

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A PUTATIVE MODULATOR OF A DNA GYRASE (TM0727) FROM THERMOTOGA MARITIMA MSB8 AT 1.95 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  09 Jul 04  (Deposition) - 21 Sep 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.95
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Pmba-Related Protein, Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi, Gene Regulation (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Rife, R. Schwarzenbacher, D. Mcmullan, P. Abdubek, E. Ambing, H. Axelrod, T. Biorac, J. M. Canaves, H. J. Chiu, A. M. Deacon, M. Didonato, M. A. Elsliger, A. Godzik, C. Grittini, S. K. Grzechnik, J. Hale, E. Hampton, G. W. Han, J. Haugen, M. Hornsby, L. Jaroszewski, H. E. Klock, E. Koesema, A. Kreusch, P. Kuhn, S. A. Lesley, M. D. Miller, K. Moy, E. Nigoghossian, J. Paulsen, K. Quijano, R. Reyes, E. Sims, G. Spraggon, R. C. Stevens, H. Van Den Bedem, J. Velasquez, J. Vincent, A. White, G. Wolf, Q. Xu, K. O. Hodgson, J. Wooley, I. A. Wilson
Crystal Structure Of A Putative Modulator Of Dna Gyrase (Pmba) From Thermotoga Maritima At 1. 95 A Resolution Reveal A New Fold.
Proteins V. 61 444 2005
PubMed-ID: 16104019  |  Reference-DOI: 10.1002/PROT.20468

(-) Compounds

Molecule 1 - PMBA-RELATED PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: TM0727
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 243274
    Strain: MSB8

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1VL4)

(-) Sites  (0, 0)

(no "Site" information available for 1VL4)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1VL4)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1VL4)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1VL4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1VL4)

(-) Exons   (0, 0)

(no "Exon" information available for 1VL4)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:429
 aligned with Q9WZI6_THEMA | Q9WZI6 from UniProtKB/TrEMBL  Length:435

    Alignment length:433
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430
         Q9WZI6_THEMA     1 MTFEEFKDRLFALAKKNGVEVQISFLETREFSLRLANGDLDQYTDAGKFNVEIKVLKDGKTGTFRTQVLENPEKCFEEALSNLQVKDSEEKEYFFEGGKEYREMETYVGRFEKLSVKEKMDMAKKAHESAAKDERVVMVPTVMYKDMVIKKIITNTLGLDVESQMDGGFLFAMAIARDANPRSGSWYELARTPEDLNPEEIGKRAAEEAISLIGSKTIPSGKYPVLMRNTALLDLMEMFIPMISAENVQKNLSPLKGKLGEQVGNPAVSIKDLPYHPKGLSSTPFDDEGVPTTEKFVLENGVLKTFLHNLKTARKEGVEPTGNGFVGGIRPVNLMLMPGEKSFEELLKEMDRGVVITEVEGMHAGANSISGEFSLFAKGYWVENGEIAHGVEDITISGNFLDLLRKIVLVGNDVKVSQHTIAPSVLVEVLDVA 433
               SCOP domains d1vl4a_ A: PmbA-related protein TM0727                                                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh.eeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeee..eeeeeee....hhhhhhhhhhhhhhh.----...................hhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeee.....eeeeeeeee.hhhhhhhhhhhhhhhhhhhhh........eeeeeeehhhhhhhhh..hhhhhhhhhhhh...................eeee.....................eeeee..ee.....hhhhhhhhh......ee..ee...eeee.....hhhhhhhhhh.eeeeeeeehhhhhh.....eeeeeeeeeeee..eeeeeeeeeeeeeehhhhhhheeee....ee...eee..eeeeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1vl4 A   1 MTFEEFKDRLFALAKKNGVEVQISFLETREFSLRLANGDLDQYTDAGKFNVEIKVLKDGKTGTFRTQVLENPEKCFEEALSNLQVK----KEYFFEGGKEYREMETYVGRFEKLSVKEKMDMAKKAHESAAKDERVVMVPTVMYKDMVIKKIITNTLGLDVESQMDGGFLFAMAIARDANPRSGSWYELARTPEDLNPEEIGKRAAEEAISLIGSKTIPSGKYPVLMRNTALLDLMEMFIPMISAENVQKNLSPLKGKLGEQVGNPAVSIKDLPYHPKGLSSTPFDDEGVPTTEKFVLENGVLKTFLHNLKTARKEGVEPTGNGFVGGIRPVNLMLMPGEKSFEELLKEMDRGVVITEVEGMHAGANSISGEFSLFAKGYWVENGEIAHGVEDITISGNFLDLLRKIVLVGNDVKVSQHTIAPSVLVEVLDVA 433
                                    10        20        30        40        50        60        70        80     |   -|      100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430
                                                                                                                86   91


Chain B from PDB  Type:PROTEIN  Length:429
 aligned with Q9WZI6_THEMA | Q9WZI6 from UniProtKB/TrEMBL  Length:435

    Alignment length:433
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430
         Q9WZI6_THEMA     1 MTFEEFKDRLFALAKKNGVEVQISFLETREFSLRLANGDLDQYTDAGKFNVEIKVLKDGKTGTFRTQVLENPEKCFEEALSNLQVKDSEEKEYFFEGGKEYREMETYVGRFEKLSVKEKMDMAKKAHESAAKDERVVMVPTVMYKDMVIKKIITNTLGLDVESQMDGGFLFAMAIARDANPRSGSWYELARTPEDLNPEEIGKRAAEEAISLIGSKTIPSGKYPVLMRNTALLDLMEMFIPMISAENVQKNLSPLKGKLGEQVGNPAVSIKDLPYHPKGLSSTPFDDEGVPTTEKFVLENGVLKTFLHNLKTARKEGVEPTGNGFVGGIRPVNLMLMPGEKSFEELLKEMDRGVVITEVEGMHAGANSISGEFSLFAKGYWVENGEIAHGVEDITISGNFLDLLRKIVLVGNDVKVSQHTIAPSVLVEVLDVA 433
               SCOP domains d1vl4b_ B: PmbA-related protein TM0727                                                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ------------------PmbA_TldD-1vl4B01 B:19-306                                                                                                                                                                                                                                                                      ------------------------------------------------------------------------------------------------------------------------------- Pfam domains (1)
           Pfam domains (2) ------------------PmbA_TldD-1vl4B02 B:19-306                                                                                                                                                                                                                                                                      ------------------------------------------------------------------------------------------------------------------------------- Pfam domains (2)
         Sec.struct. author .hhhhhhhhhhhhhhhhh.eeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeee..eeeeeee....hhhhhhhhhhhhhhh.----...................hhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeee.....eeeeeeeee.hhhhhhhhhhhhhhhhhhhh.........eeeeeeehhhhhhhhh.hhhhhhhhhhhhh...................eeee.....................eeeee..ee.....hhhhhhhhh......ee..ee...eeee.....hhhhhhhhhh.eeeeeeeehhhhhh.....eeeeeeeeeeee..eeeeee...eeeeehhhhhhheeee....ee...eee..eeeeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1vl4 B   1 MTFEEFKDRLFALAKKNGVEVQISFLETREFSLRLANGDLDQYTDAGKFNVEIKVLKDGKTGTFRTQVLENPEKCFEEALSNLQVK----KEYFFEGGKEYREMETYVGRFEKLSVKEKMDMAKKAHESAAKDERVVMVPTVMYKDMVIKKIITNTLGLDVESQMDGGFLFAMAIARDANPRSGSWYELARTPEDLNPEEIGKRAAEEAISLIGSKTIPSGKYPVLMRNTALLDLMEMFIPMISAENVQKNLSPLKGKLGEQVGNPAVSIKDLPYHPKGLSSTPFDDEGVPTTEKFVLENGVLKTFLHNLKTARKEGVEPTGNGFVGGIRPVNLMLMPGEKSFEELLKEMDRGVVITEVEGMHAGANSISGEFSLFAKGYWVENGEIAHGVEDITISGNFLDLLRKIVLVGNDVKVSQHTIAPSVLVEVLDVA 433
                                    10        20        30        40        50        60        70        80     |   -|      100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430
                                                                                                                86   91
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1VL4)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: PmbA_TldD] (3)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q9WZI6_THEMA | Q9WZI6)
molecular function
    GO:0008237    metallopeptidase activity    Catalysis of the hydrolysis of peptide bonds by a mechanism in which water acts as a nucleophile, one or two metal ions hold the water molecule in place, and charged amino acid side chains are ligands for the metal ions.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1vl4)

  Sites
(no "Sites" information available for 1vl4)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1vl4)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1vl4
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9WZI6_THEMA | Q9WZI6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9WZI6_THEMA | Q9WZI6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
