1VJK - JenaLib

Title :   PUTATIVE MOLYBDOPTERIN CONVERTING FACTOR, SUBUNIT 1 FROM PYROCOCCUS FURIOSUS, PFU-562899-001

Authors :   L. Chen, Z. J. Liu, W. Tempel, A. Shah, D. Lee, J. P. Rose, J. C. Eneh, R. C. H F. E. Jenney Jr. , H. S. Lee, T. Li, F. L. Poole Ii, C. Shah, F. J. Sugar, M. W. W. Adams, D. C. Richardson, J. S. Richardson, B. C. Wang, Southeas Collaboratory For Structural Genomics (Secsg)

Date :   10 Mar 04 (Deposition) - 10 Aug 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.51

Chains :   Asym./Biol. Unit : A

Keywords :   Structural Genomics, Molybdopterin Converting Factor, Subunit 1, Pfu- 562899-001, Pyrococcus Furiosus, Psi, Protein Structure Initiative, Southeast Collaboratory For Structural Genomics, Secsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   L. Chen, Z. J. Liu, W. Tempel, A. Shah, D. Lee, J. P. Rose, J. C. Eneh, R. C. Hopkins, F. E. Jenney Jr. , H. S. Lee, T. Li, F. L. Poole Ii, C. Shah F. J. Sugar, M. W. W. Adams, D. C. Richardson, J. S. Richardson, B. C. Wang, Southeast Collaboratory For Structural Genomics
Putative Molybdopterin Converting Factor, Subunit 1 From Pyrococcus Furiosus, Pfu-562899-001 '
To Be Published
PubMed: search

Compounds

Molecule 1 - MOLYBDOPTERIN CONVERTING FACTOR, SUBUNIT 1
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Organism Scientific	:	PYROCOCCUS FURIOSUS
	Organism Taxid	:	2261
	Other Details	:	THE PROTEIN WAS CLONED, EXPRESSED AND PURIFIED BY THE SECSG PYROCOCCUS PROTEIN PRODUCTION GROUP (M.W.W.ADAMS, P.S.BRERETON, M.IZUMI, F.E.JENNEY JR., H.- S.LEE, F.L.POOLE II, C.SHAH, F.SUGAR) UNDER THE DIRECTION OF M.W.W.ADAMS.

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:88
 aligned with Q8U3C7_PYRFU | Q8U3C7 from UniProtKB/TrEMBL  Length:90

    Alignment length:88
                                    10        20        30        40        50        60        70        80
          Q8U3C7_PYRFU    1 MVKVKVKYFARFRQLAGVDEEEIELPEGARVRDLIEEIKKRHEKFKEEVFGEGYDEDADVNIAVNGRYVSWDEELKDGDVVGVFPPVS 88
               SCOP domains d1vjka_ A: Molybdopterin synthase subunit MoaD                                           SCOP domains
               CATH domains 1vjkA00 A:1-88  [code=3.10.20.30, no name defined]                                       CATH domains
               Pfam domains ---------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee.hhhhhhhh..eeeeee....hhhhhhhhhhhhhhhhhhh............eeee...............eeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------- Transcript
                  1vjk A  1 SVKVKVKYFARFRQLAGVDEEEIELPEGARVRDLIEEIKKRHEKFKEEVFGEGYDEDADVNIAVNGRYVSWDEELKDGDVVGVFPPVS 88
                                    10        20        30        40        50        60        70        80

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (Q8U3C7_PYRFU | Q8U3C7)

biological process
	GO:0006777		Mo-molybdopterin cofactor biosynthetic process		The chemical reactions and pathways resulting in the formation of the Mo-molybdopterin cofactor, essential for the catalytic activity of some enzymes. The cofactor consists of a mononuclear molybdenum (Mo) ion coordinated by one or two molybdopterin ligands.

Visualization

Interactive Views

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1vjk)

	Sites
(no "Sites" information available for 1vjk)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1vjk)

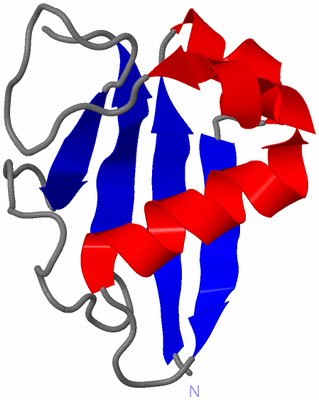

Still Images
