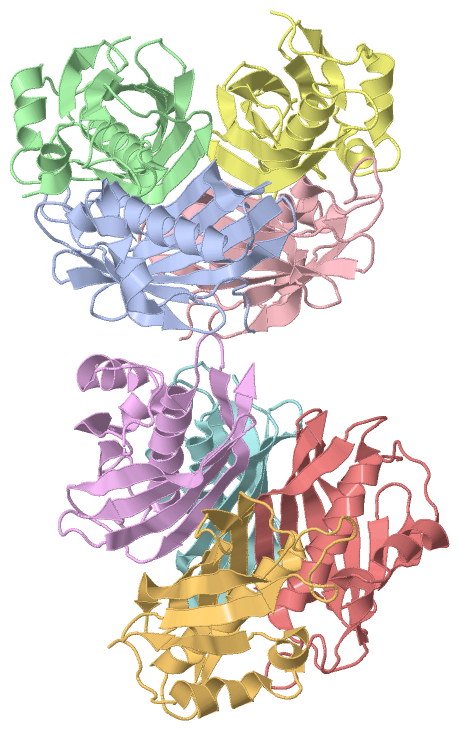

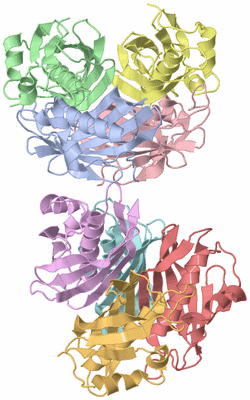

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

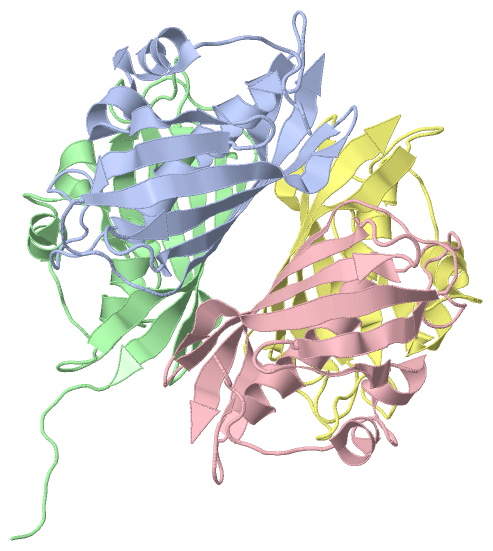

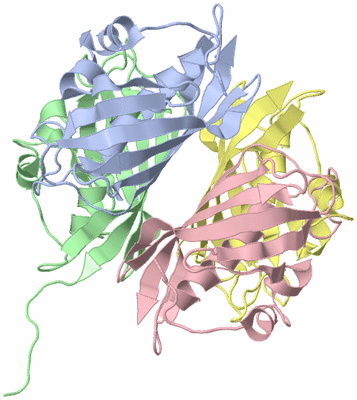

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

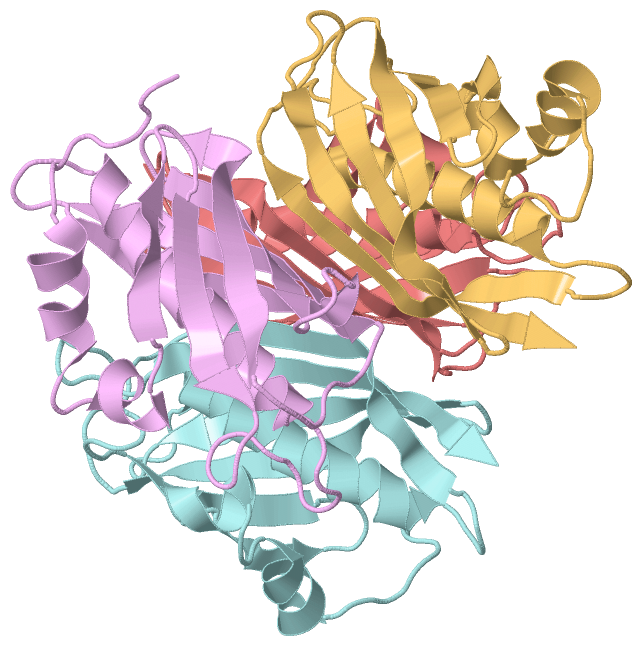

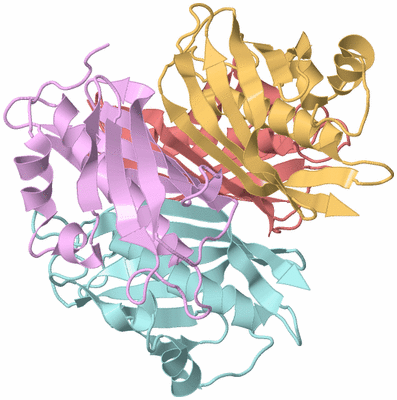

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A PUTATIVE THIOESTERASE

Authors :  Structural Genomix, S. K. Burley, New York Sgx Research Center For Structural Genomics (Nysgxrc)
Date :  01 Dec 03  (Deposition) - 30 Dec 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  E,F,G,H  (1x)
Keywords :  Psi, Protein Structure Initiative, New York Sgx Research Center For Structural Genomics, Nysgxrc, Structural Genomics, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Badger, J. M. Sauder, J. M. Adams, S. Antonysamy, K. Bain, M. G. Bergseid, S. G. Buchanan, M. D. Buchanan, Y. Batiyenko, J. A. Christopher, S. Emtage, A. Eroshkina, I. Feil, E. B. Furlong, K. S. Gajiwala, X. Gao, D. He, J. Hendle, A. Huber, K. Hoda, P. Kearins, C. Kissinger, B. Laubert, H. A. Lewis, J. Lin, K. Loomis, D. Lorimer, G. Louie, M. Maletic, C. D. Marsh, I. Miller, J. Molinari, H. J. Muller-Dieckmann, J. M. Newman, B. W. Noland, B. Pagarigan, F. Park, T. S. Peat, K. W. Post, S. Radojicic, A. Ramos, R. Romero, M. E. Rutter, W. E. Sanderson, K. D. Schwinn, J. Tresser, J. Winhoven, T. A. Wright, L. Wu, J. Xu, T. J. Harris
Structural Analysis Of A Set Of Proteins Resulting From A Bacterial Genomics Project
Proteins V. 60 787 2005
PubMed-ID: 16021622  |  Reference-DOI: 10.1002/PROT.20541
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN YDII
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: YDII, B1686
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x):     EFGH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1VI8)

(-) Sites  (0, 0)

(no "Site" information available for 1VI8)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1VI8)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1VI8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1VI8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1VI8)

(-) Exons   (0, 0)

(no "Exon" information available for 1VI8)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:138
 aligned with MENI_ECOLI | P77781 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:138
                             1                                                                                                                                    136
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129      |
           MENI_ECOLI     - -MIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAIL-   -
               SCOP domains d1vi8a_ A: Hypothetical protein YdiI                                                                                                       SCOP domains
               CATH domains 1vi8A00 A:0-137  [code=3.10.129.10, no name defined]                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhhh.hhhhhh..eeeee....eeeeee............hhhhhhhhhhhhhhhhhhh......eeeeeeeeeee.......eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vi8 A   0 SLIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAILE 137
                                     9        19        29        39        49        59        69        79        89        99       109       119       129


Chain B from PDB  Type:PROTEIN  Length:146
 aligned with MENI_ECOLI | P77781 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:146
                             1                                                                                                                                    136
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129      |  -
           MENI_ECOLI     - -MIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAIL---------   -
               SCOP domains d1vi8b_ B: Hypothetical protein YdiI                                                                                                               SCOP domains
               CATH domains 1vi8B00 B:0-145  [code=3.10.129.10, no name defined]                                                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhh...hhhhhh..eeeee....eeeeee............hhhhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.......eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee......... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1vi8 B   0 SLIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAILEGGSHHHHH 145
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139


Chain C from PDB  Type:PROTEIN  Length:138
 aligned with MENI_ECOLI | P77781 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:138
                             1                                                                                                                                    136
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129      |
           MENI_ECOLI     - -MIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAIL-   -
               SCOP domains d1vi8c_ C: Hypothetical protein YdiI                                                                                                       SCOP domains
               CATH domains 1vi8C00 C:0-137  [code=3.10.129.10, no name defined]                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhh....hhhhhh..eeeee....eeeeee............hhhhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.......eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vi8 C   0 SLIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAILE 137
                                     9        19        29        39        49        59        69        79        89        99       109       119       129


Chain D from PDB  Type:PROTEIN  Length:138
 aligned with MENI_ECOLI | P77781 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:138
                             1                                                                                                                                    136
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129      |
           MENI_ECOLI     - -MIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAIL-   -
               SCOP domains d1vi8d_ D: Hypothetical protein YdiI                                                                                                       SCOP domains
               CATH domains 1vi8D00 D:0-137  [code=3.10.129.10, no name defined]                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhh....hhhhh.eeeee....eeeee.............hhhhhhhhhhhhhhhhhhh......eeeeeeeeeee........eeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vi8 D   0 SLIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAILE 137
                                     9        19        29        39        49        59        69        79        89        99       109       119       129


Chain E from PDB  Type:PROTEIN  Length:138
 aligned with MENI_ECOLI | P77781 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:138
                             1                                                                                                                                    136
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129      |
           MENI_ECOLI     - -MIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAIL-   -
               SCOP domains d1vi8e_ E: Hypothetical protein YdiI                                                                                                       SCOP domains
               CATH domains 1vi8E00 E:0-137  [code=3.10.129.10, no name defined]                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhh..hhhhhh..eeeee....eeeeee............hhhhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.......eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vi8 E   0 SLIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAILE 137
                                     9        19        29        39        49        59        69        79        89        99       109       119       129


Chain F from PDB  Type:PROTEIN  Length:138
 aligned with MENI_ECOLI | P77781 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:138
                             1                                                                                                                                    136
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129      |
           MENI_ECOLI     - -MIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAIL-   -
               SCOP domains d1vi8f_ F: Hypothetical protein YdiI                                                                                                       SCOP domains
               CATH domains 1vi8F00 F:0-137  [code=3.10.129.10, no name defined]                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhh...hhhhhh..eeeee....eeeeee............hhhhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.......eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vi8 F   0 SLIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAILE 137
                                     9        19        29        39        49        59        69        79        89        99       109       119       129


Chain G from PDB  Type:PROTEIN  Length:137
 aligned with MENI_ECOLI | P77781 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:137
                                                                                                                                                                 136
                                    10        20        30        40        50        60        70        80        90       100       110       120       130     |
           MENI_ECOLI     1 MIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAIL-   -
               SCOP domains d1vi8g_ G: Hypothetical protein YdiI                                                                                                      SCOP domains
               CATH domains 1vi8G00 G:1-137  [code=3.10.129.10, no name defined]                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhh..hhhhhh..eeeee....eeeeee............hhhhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.......eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1vi8 G   1 LIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAILE 137
                                    10        20        30        40        50        60        70        80        90       100       110       120       130


Chain H from PDB  Type:PROTEIN  Length:138
 aligned with MENI_ECOLI | P77781 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:138
                             1                                                                                                                                    136
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129      |
           MENI_ECOLI     - -MIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAIL-   -
               SCOP domains d1vi8h_ H: Hypothetical protein YdiI                                                                                                       SCOP domains
               CATH domains 1vi8H00 H:0-137  [code=3.10.129.10, no name defined]                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhh..hhhhhh..eeeee....eeeeee............hhhhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.......eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vi8 H   0 SLIWKRKITLEALNAMGEGNMVGFLDIRFEHIGDDTLEATMPVDSRTKQPFGLLHGGASVVLAESIGSVAGYLCTEGEQKVVGLEINANHVRSAREGRVRGVCKPLHLGSRHQVWQIEIFDEKGRLCCSSRLTTAILE 137
                                     9        19        29        39        49        59        69        79        89        99       109       119       129
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 8)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 8)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1VI8)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H   (MENI_ECOLI | P77781)
molecular function
    GO:0061522    1,4-dihydroxy-2-naphthoyl-CoA thioesterase activity    Catalysis of the reaction 1,4-dihydroxy-2-naphthoyl-CoA + H2O = 1,4-dihydroxy-2-naphthoate + CoA.
    GO:0016289    CoA hydrolase activity    Catalysis of the reaction: X-CoA + H2O = X + CoA; X may be any group.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016790    thiolester hydrolase activity    Catalysis of the reaction: RCO-SR' + H2O = RCOOH + HSR'. This reaction is the hydrolysis of a thiolester bond, an ester formed from a carboxylic acid and a thiol (i.e., RCO-SR'), such as that found in acetyl-coenzyme A.
biological process
    GO:0009234    menaquinone biosynthetic process    The chemical reactions and pathways resulting in the formation of any of the menaquinones. Structurally, menaquinones consist of a methylated naphthoquinone ring structure and side chains composed of a variable number of unsaturated isoprenoid residues. Menaquinones that have vitamin K activity and are known as vitamin K2.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1vi8)

  Sites
(no "Sites" information available for 1vi8)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1vi8)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1vi8
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MENI_ECOLI | P77781
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MENI_ECOLI | P77781
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MENI_ECOLI | P77781: 1sbk 1vh5 4k49 4k4a 4k4b

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1VI8)
