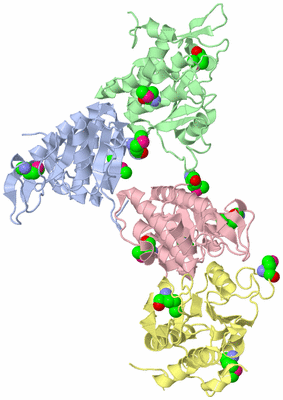

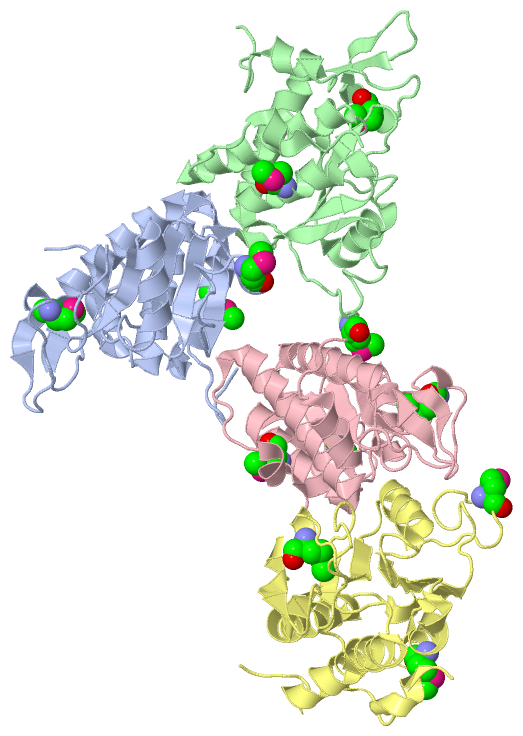

Asymmetric Unit (Jmol Viewer)

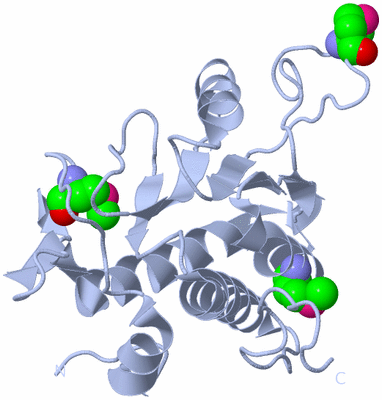

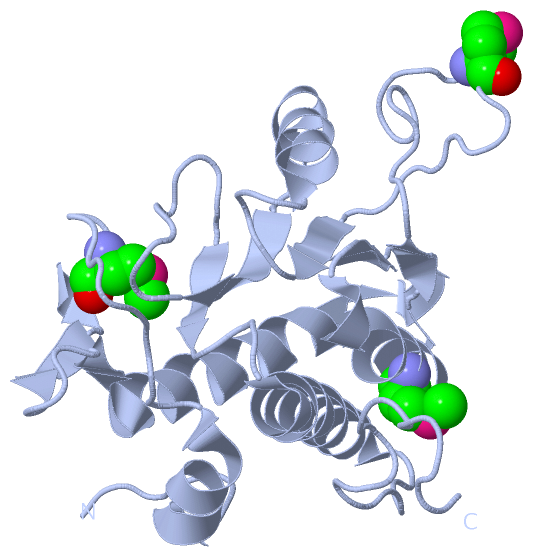

Biological Unit 1 (Jmol Viewer)

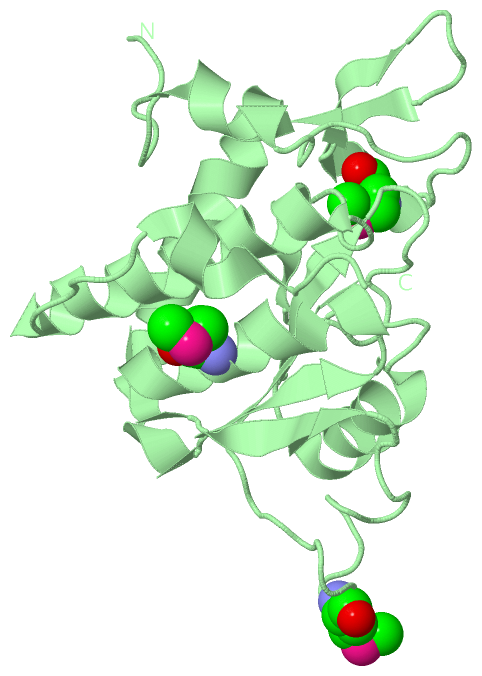

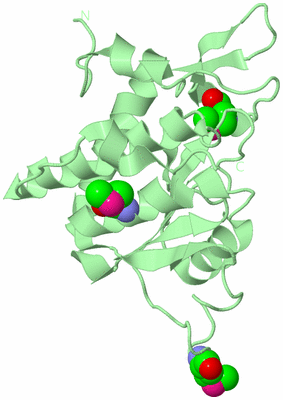

Biological Unit 2 (Jmol Viewer)

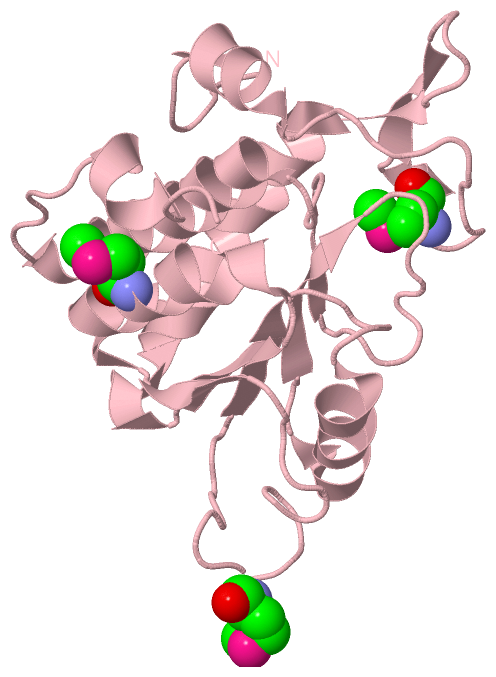

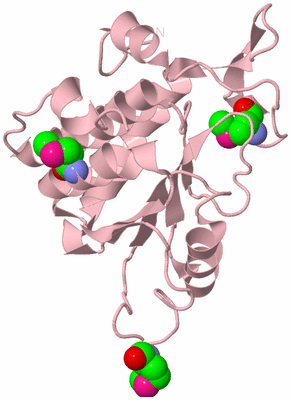

Biological Unit 3 (Jmol Viewer)

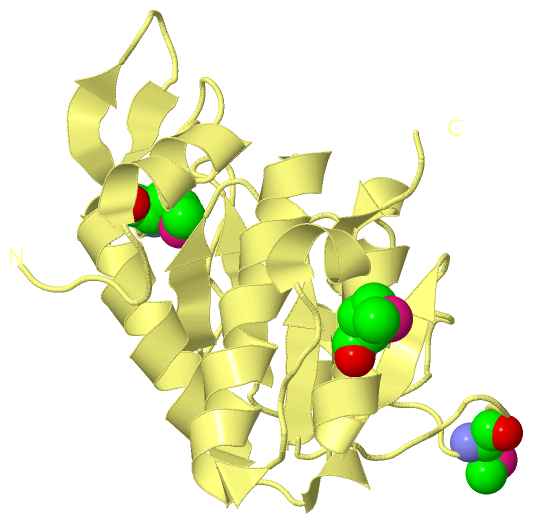

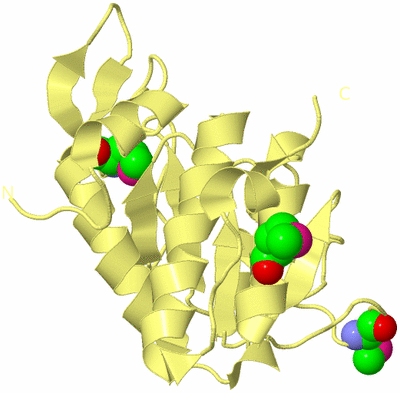

Biological Unit 4 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF RIBOSOMAL PROTEIN S2P

Authors :   Structural Genomix

Date :   01 Dec 03 (Deposition) - 30 Dec 03 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.65

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)

Keywords :   Structural Genomics, Ribosome (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. Badger, J. M. Sauder, J. M. Adams, S. Antonysamy, K. Bain, M. G. Bergseid, S. G. Buchanan, M. D. Buchanan, Y. Batiyenko, J. A. Christopher, S. Emtage, A. Eroshkina, I. Feil, E. B. Furlong, K. S. Gajiwala, X. Gao, D. He, J. Hendle, A. Huber, K. Hoda, P. Kearins, C. Kissinger, B. Laubert, H. A. Lewis, J. Lin, K. Loomis, D. Lorimer, G. Louie, M. Maletic, C. D. Marsh, I. Miller, J. Molinari, H. J. Muller-Dieckmann, J. M. Newman, B. W. Noland, B. Pagarigan, F. Park, T. S. Peat, K. W. Post, S. Radojicic, A. Ramos, R. Romero, M. E. Rutter, W. E. Sanderson, K. D. Schwinn, J. Tresser, J. Winhoven, T. A. Wright, L. Wu, J. Xu, T. J. Harris
Structural Analysis Of A Set Of Proteins Resulting From A Bacterial Genomics Project
Proteins V. 60 787 2005
PubMed-ID: 16021622 | Reference-DOI: 10.1002/PROT.20541
(for further references see the PDB file header)

Molecule 1 - 30S RIBOSOMAL PROTEIN S2P
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Gene	:	RPS2P, AF1133
	Organism Scientific	:	ARCHAEOGLOBUS FULGIDUS
	Organism Taxid	:	2234

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 12)

No.	Name	Count	Type	Full Name
1	MSE	12	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 1 (1, 3)

No.	Name	Count	Type	Full Name
1	MSE	3	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 2 (1, 3)

No.	Name	Count	Type	Full Name
1	MSE	3	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 3 (1, 3)

No.	Name	Count	Type	Full Name
1	MSE	3	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 4 (1, 3)

No.	Name	Count	Type	Full Name
1	MSE	3	Mod. Amino Acid	SELENOMETHIONINE

(no "Site" information available for 1VI5)

(no "SS Bond" information available for 1VI5)

(no "Cis Peptide Bond" information available for 1VI5)

(no "SAP(SNP)/Variant" information available for 1VI5)

Asymmetric Unit (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RIBOSOMAL_S2_2	PS00963	Ribosomal protein S2 signature 2.	RS2_ARCFU	115-139	4	A:115-139 B:115-139 C:115-139 D:115-139

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RIBOSOMAL_S2_2	PS00963	Ribosomal protein S2 signature 2.	RS2_ARCFU	115-139	1	A:115-139 - - -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RIBOSOMAL_S2_2	PS00963	Ribosomal protein S2 signature 2.	RS2_ARCFU	115-139	1	- B:115-139 - -

Biological Unit 3 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RIBOSOMAL_S2_2	PS00963	Ribosomal protein S2 signature 2.	RS2_ARCFU	115-139	1	- - C:115-139 -

Biological Unit 4 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RIBOSOMAL_S2_2	PS00963	Ribosomal protein S2 signature 2.	RS2_ARCFU	115-139	1	- - - D:115-139

(no "Exon" information available for 1VI5)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:198
 aligned with RS2_ARCFU | O29132 from UniProtKB/Swiss-Prot  Length:197

    Alignment length:198
                                                                                                                                                                                                                          197
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194  |
            RS2_ARCFU     5 EYEYLVPPDDYLAAGVHIGTQIKTGDMKKFIFKVRQDGLYVLDIRKLDERIRVAAKFLSRYEPSKILLVAARQYAHKPVQMFSKVVGSDYIVGRFIPGTLTNPMLSEYREPEVVFVNDPAIDKQAVSEATAVGIPVVALCDSNNSSADVDLVIPTNNKGRRALAIVYWLLAREIAKIRGQDFTYSIEDFEAEL-----   -
               SCOP domains d1vi5a_ A: Ribosomal protein S2                                                                                                                                                                        SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......hhhhhhhhh...........hhh.eeee.....eeehhhhhhhhhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhhhhhhh.eeee....................eeee.....hhhhhhhhhhhh..eeeee..........eeee....hhhhhhhhhhhhhhhhhhhhh................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------RIBOSOMAL_S2_2           --------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vi5 A   5 EYEYLVPPDDYLAAGVHIGTQIKTGDmKKFIFKVRQDGLYVLDIRKLDERIRVAAKFLSRYEPSKILLVAARQYAHKPVQmFSKVVGSDYIVGRFIPGTLTNPmLSEYREPEVVFVNDPAIDKQAVSEATAVGIPVVALCDSNNSSADVDLVIPTNNKGRRALAIVYWLLAREIAKIRGQDFTYSIEDFEAELEGGSH 202
                                    14        24      | 34        44        54        64        74        84|       94       104   |   114       124       134       144       154       164       174       184       194
                                                     31-MSE                                                85-MSE                108-MSE

Chain B from PDB  Type:PROTEIN  Length:195
 aligned with RS2_ARCFU | O29132 from UniProtKB/Swiss-Prot  Length:197

    Alignment length:195
                                                                                                                                                                                                                           197
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193   |
            RS2_ARCFU     4 KEYEYLVPPDDYLAAGVHIGTQIKTGDMKKFIFKVRQDGLYVLDIRKLDERIRVAAKFLSRYEPSKILLVAARQYAHKPVQMFSKVVGSDYIVGRFIPGTLTNPMLSEYREPEVVFVNDPAIDKQAVSEATAVGIPVVALCDSNNSSADVDLVIPTNNKGRRALAIVYWLLAREIAKIRGQDFTYSIEDFEAEL-   -
               SCOP domains d1vi5b_ B: Ribosomal protein S2                                                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhh...........hhhhh.eeee.....eeehhhhhhhhhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhhhhhhh.eeee....................eeee.....hhhhhhhhhhhh..eeeee..........eeee....hhhhhhhhhhhhhhhhhhhhh.....hhhhhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------RIBOSOMAL_S2_2           ----------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1vi5 B   4 KEYEYLVPPDDYLAAGVHIGTQIKTGDmKKFIFKVRQDGLYVLDIRKLDERIRVAAKFLSRYEPSKILLVAARQYAHKPVQmFSKVVGSDYIVGRFIPGTLTNPmLSEYREPEVVFVNDPAIDKQAVSEATAVGIPVVALCDSNNSSADVDLVIPTNNKGRRALAIVYWLLAREIAKIRGQDFTYSIEDFEAELE 198
                                    13        23       |33        43        53        63        73        83 |      93       103    |  113       123       133       143       153       163       173       183       193
                                                      31-MSE                                                85-MSE                108-MSE

Chain C from PDB  Type:PROTEIN  Length:193
 aligned with RS2_ARCFU | O29132 from UniProtKB/Swiss-Prot  Length:197

    Alignment length:193
                                                                                                                                                                                                                         197
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195 |
            RS2_ARCFU     6 YEYLVPPDDYLAAGVHIGTQIKTGDMKKFIFKVRQDGLYVLDIRKLDERIRVAAKFLSRYEPSKILLVAARQYAHKPVQMFSKVVGSDYIVGRFIPGTLTNPMLSEYREPEVVFVNDPAIDKQAVSEATAVGIPVVALCDSNNSSADVDLVIPTNNKGRRALAIVYWLLAREIAKIRGQDFTYSIEDFEAEL-   -
               SCOP domains d1vi5c_ C: Ribosomal protein S2                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhh...........hhh.eeee.....eeehhhhhhhhhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhhhhhhh.eeee....................eeee.....hhhhhhhhhhhh..eeeee..........eeee....hhhhhhhhhhhhhhhhhhhhh.....hhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------RIBOSOMAL_S2_2           ----------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1vi5 C   6 YEYLVPPDDYLAAGVHIGTQIKTGDmKKFIFKVRQDGLYVLDIRKLDERIRVAAKFLSRYEPSKILLVAARQYAHKPVQmFSKVVGSDYIVGRFIPGTLTNPmLSEYREPEVVFVNDPAIDKQAVSEATAVGIPVVALCDSNNSSADVDLVIPTNNKGRRALAIVYWLLAREIAKIRGQDFTYSIEDFEAELE 198
                                    15        25     |  35        45        55        65        75        85        95       105  |    115       125       135       145       155       165       175       185       195
                                                    31-MSE                                                85-MSE                108-MSE

Chain D from PDB  Type:PROTEIN  Length:192
 aligned with RS2_ARCFU | O29132 from UniProtKB/Swiss-Prot  Length:197

    Alignment length:192
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195
            RS2_ARCFU     6 YEYLVPPDDYLAAGVHIGTQIKTGDMKKFIFKVRQDGLYVLDIRKLDERIRVAAKFLSRYEPSKILLVAARQYAHKPVQMFSKVVGSDYIVGRFIPGTLTNPMLSEYREPEVVFVNDPAIDKQAVSEATAVGIPVVALCDSNNSSADVDLVIPTNNKGRRALAIVYWLLAREIAKIRGQDFTYSIEDFEAEL 197
               SCOP domains d1vi5d_ D: Ribosomal protein S2                                                                                                                                                                  SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....hhhhhhhh..........hhhhh.eeee.....eeehhhhhhhhhhhhhhhhh..hhh.eeeee.hhhhhhhhhhhhhhhh.eeee....................eeee.....hhhhhhhhhhhh..eeeee..........eeee....hhhhhhhhhhhhhhhhhhhhh.....hhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------RIBOSOMAL_S2_2           ---------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vi5 D   6 YEYLVPPDDYLAAGVHIGTQIKTGDmKKFIFKVRQDGLYVLDIRKLDERIRVAAKFLSRYEPSKILLVAARQYAHKPVQmFSKVVGSDYIVGRFIPGTLTNPmLSEYREPEVVFVNDPAIDKQAVSEATAVGIPVVALCDSNNSSADVDLVIPTNNKGRRALAIVYWLLAREIAKIRGQDFTYSIEDFEAEL 197
                                    15        25     |  35        45        55        65        75        85        95       105  |    115       125       135       145       155       165       175       185       195
                                                    31-MSE                                                85-MSE                108-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Flavodoxin-like (1057)

Superfamily: Ribosomal protein S2 (74)

Family: Ribosomal protein S2 (74)

Protein domain: Ribosomal protein S2 (74)

Archaeoglobus fulgidus [TaxId: 2234] (2)

1a	d1vi5a_	A:
1b	d1vi5b_	B:
1c	d1vi5c_	C:
1d	d1vi5d_	D:

(no "CATH Domain" information available for 1VI5)

(no "Pfam Domain" information available for 1VI5)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (RS2_ARCFU | O29132)

molecular function
	GO:0003735	structural constituent of ribosome	The action of a molecule that contributes to the structural integrity of the ribosome.
biological process
	GO:0006412	translation	The cellular metabolic process in which a protein is formed, using the sequence of a mature mRNA or circRNA molecule to specify the sequence of amino acids in a polypeptide chain. Translation is mediated by the ribosome, and begins with the formation of a ternary complex between aminoacylated initiator methionine tRNA, GTP, and initiation factor 2, which subsequently associates with the small subunit of the ribosome and an mRNA or circRNA. Translation ends with the release of a polypeptide chain from the ribosome.
cellular component
	GO:0005622	intracellular	The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
	GO:0030529	intracellular ribonucleoprotein complex	An intracellular macromolecular complex containing both protein and RNA molecules.
	GO:0005840	ribosome	An intracellular organelle, about 200 A in diameter, consisting of RNA and protein. It is the site of protein biosynthesis resulting from translation of messenger RNA (mRNA). It consists of two subunits, one large and one small, each containing only protein and RNA. Both the ribosome and its subunits are characterized by their sedimentation coefficients, expressed in Svedberg units (symbol: S). Hence, the prokaryotic ribosome (70S) comprises a large (50S) subunit and a small (30S) subunit, while the eukaryotic ribosome (80S) comprises a large (60S) subunit and a small (40S) subunit. Two sites on the ribosomal large subunit are involved in translation, namely the aminoacyl site (A site) and peptidyl site (P site). Ribosomes from prokaryotes, eukaryotes, mitochondria, and chloroplasts have characteristically distinct ribosomal proteins.
	GO:0015935	small ribosomal subunit	The smaller of the two subunits of a ribosome.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
(no "Sites" information available for 1vi5)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1vi5)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1vi5
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RS2_ARCFU \| O29132
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RS2_ARCFU \| O29132
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	RS2_ARCFU \| O29132	:	1vi6

(no "Related Entries Specified in the PDB File" available for 1VI5)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 12)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 4)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (6, 6)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
