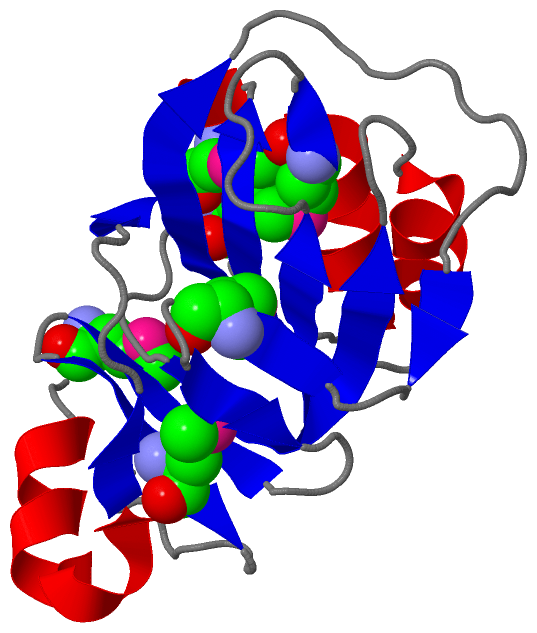

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF REGULATOR OF RIBONUCLEASE ACIVITY A PROTEIN 1

Authors :  Structural Genomix
Date :  01 Dec 03  (Deposition) - 30 Dec 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.87
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Badger, J. M. Sauder, J. M. Adams, S. Antonysamy, K. Bain, M. G. Bergseid, S. G. Buchanan, M. D. Buchanan, Y. Batiyenko, J. A. Christopher, S. Emtage, A. Eroshkina, I. Feil, E. B. Furlong, K. S. Gajiwala, X. Gao, D. He, J. Hendle, A. Huber, K. Hoda, P. Kearins, C. Kissinger, B. Laubert, H. A. Lewis, J. Lin, K. Loomis, D. Lorimer, G. Louie, M. Maletic, C. D. Marsh, I. Miller, J. Molinari, H. J. Muller-Dieckmann, J. M. Newman, B. W. Noland, B. Pagarigan, F. Park, T. S. Peat, K. W. Post, S. Radojicic, A. Ramos, R. Romero, M. E. Rutter, W. E. Sanderson, K. D. Schwinn, J. Tresser, J. Winhoven, T. A. Wright, L. Wu, J. Xu, T. J. Harris
Structural Analysis Of A Set Of Proteins Resulting From A Bacterial Genomics Project
Proteins V. 60 787 2005
PubMed-ID: 16021622  |  Reference-DOI: 10.1002/PROT.20541
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - REGULATOR OF RIBONUCLEASE ACIVITY A PROTEIN 1
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: RRAA1, VC2366
    Organism Scientific: VIBRIO CHOLERAE
    Organism Taxid: 666

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 6)

Asymmetric/Biological Unit (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1VI4)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1VI4)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1VI4)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1VI4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1VI4)

(-) Exons   (0, 0)

(no "Exon" information available for 1VI4)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:162
 aligned with RRAAH_VIBCH | Q9KPK1 from UniProtKB/Swiss-Prot  Length:161

    Alignment length:162
                                                                                                                                                                                          161
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160|
          RRAAH_VIBCH     1 MRDITPDLCDKYESQVTLLNLPLQNFGQRSAFWGEIVTVRCYHDNSKVRDVLSQNGKGKVLVVDGHGSCHKALMGDQLAILAIKNDWEGVIIYGAVRDVVAMSEMDLGIKALGTSPFKTEKRGAGQVNVTLTMQNQIVEPGDYLYADWNGILMSETALDVA-   -
               SCOP domains d1vi4a_ A: Hypothetical protein VC2366                                                                                                                             SCOP domains
               CATH domains -1vi4A00 A:3-163  [code=3.50.30.40, no name defined]                                                                                                               CATH domains
               Pfam domains Methyltransf_6-1vi4A01 A:2-154                                                                                                                           --------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhee.....ee......eeeeeeeee....hhhhhhhhh.....eeeeee.......eeehhhhhhhhhhh...eeeeeeee.hhhhhh....eeeeeee...........ee...eee..eee....eeeee..eeeee........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vi4 A   2 mRDITPDLCDKYESQVTLLNLPLQNFGQRSAFWGEIVTVRCYHDNSKVRDVLSQNGKGKVLVVDGHGSCHKALmGDQLAILAIKNDWEGVIIYGAVRDVVAmSEmDLGIKALGTSPFKTEKRGAGQVNVTLTmQNQIVEPGDYLYADWNGILmSETALDVAE 163
                            |       11        21        31        41        51        61        71   |    81        91       101 |  |  111       121       131  |    141       151  |    161
                            |                                                                       75-MSE                     103-MSE                        134-MSE             154-MSE
                            2-MSE                                                                                                 106-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: Methyltransf_6] (5)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (RRAAH_VIBCH | Q9KPK1)
molecular function
    GO:0047443    4-hydroxy-4-methyl-2-oxoglutarate aldolase activity    Catalysis of the reaction: 4-hydroxy-4-methyl-2-oxoglutarate = 2 pyruvate.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0008948    oxaloacetate decarboxylase activity    Catalysis of the reaction: oxaloacetate = pyruvate + CO2.
    GO:0008428    ribonuclease inhibitor activity    Stops, prevents or reduces the activity of a ribonuclease, any enzyme that catalyzes the hydrolysis of phosphodiester bonds in chains of RNA.
biological process
    GO:0043086    negative regulation of catalytic activity    Any process that stops or reduces the activity of an enzyme.
    GO:0051252    regulation of RNA metabolic process    Any process that modulates the frequency, rate or extent of the chemical reactions and pathways involving RNA.
