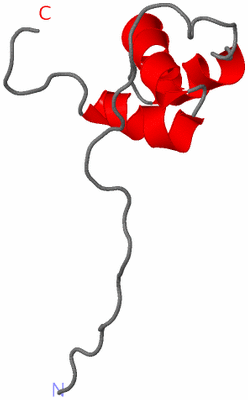

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

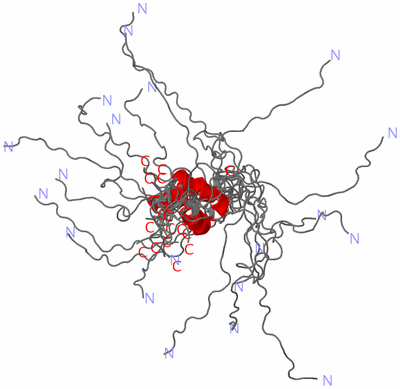

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF RSGI RUH-014, A UBA DOMAIN FROM ARABIDOPSIS CDNA

Authors :  H. Onuki, Y. Doi-Katayama, F. Hayashi, H. Hirota, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  23 Apr 04  (Deposition) - 23 Oct 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Uba Domain, Arabidopsis Thaliana, Cdna, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Onuki, Y. Doi-Katayama, F. Hayashi, H. Hirota, S. Yokoyama
Solution Structure Of Rsgi Ruh-014, A Uba Domain From Arabidopsis Thaliana Cdna
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RHOMBOID FAMILY PROTEIN
    Chains: A
    Engineered: YES
    Expression System Plasmid: P030224-40
    Expression System Vector Type: PLASMID
    Fragment: UBA DOMAIN
    Organism Common: THALE CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702
    Other Details: CELL-FREE PROTEIN SYNTHESIS (E. COLI)
    Synonym: RSGI RUH-014

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1VG5)

(-) Sites  (0, 0)

(no "Site" information available for 1VG5)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1VG5)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1VG5)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1VG5)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1UBAPS50030 Ubiquitin-associated domain (UBA) profile.RBL15_ARATH361-401  1A:27-67

(-) Exons   (0, 0)

(no "Exon" information available for 1VG5)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:73
 aligned with RBL15_ARATH | Q8LB17 from UniProtKB/Swiss-Prot  Length:403

    Alignment length:190
                                                                                                                                                                                                                   403
                                   227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397     |   -
          RBL15_ARATH   218 GSSFFTTIESASWMSSFIRRPKFIMCTGGNPSSYIPTYSAQNTTSSGFSTGNAWRSLSSWLPQREASNQSSEDSRFPGRGRTLSTARDPTAPAGETDPNLHARLLEDSSSPDRLSDATVNTVADSRQAPIANAAVLPQSQGRVAASEEQIQKLVAMGFDRTQVEVALAAADDDLTVAVEILMSQQA----   -
               SCOP domains d                                           1vg 5a_                                                                          A: Rhomboid family protein At3g58460                              SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .-------------------------------------------...-...-------------------------------------------------------------------------......................hhhhhhhhh....hhhhhhhhhhh..hhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------------------------UBA  PDB: A:27-67 UniProt: 361-401       ------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1vg5 A   1 G-------------------------------------------SSG-SSG-------------------------------------------------------------------------SRQAPIANAAVLPQSQGRVAASEEQIQKLVAMGFDRTQVEVALAAADDDLTVAVEILMSQSGPSSG  73
                            |        -         -         -         -    | | |6|        -         -         -         -         -         -         -    |   13        23        33        43        53        63        73
                            |                                           2 4 5 7                                                                         8
                            1
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1VG5)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1VG5)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (RBL15_ARATH | Q8LB17)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0004252    serine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
