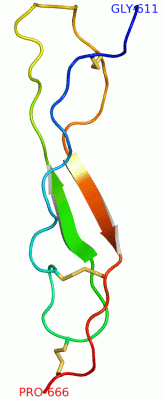

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

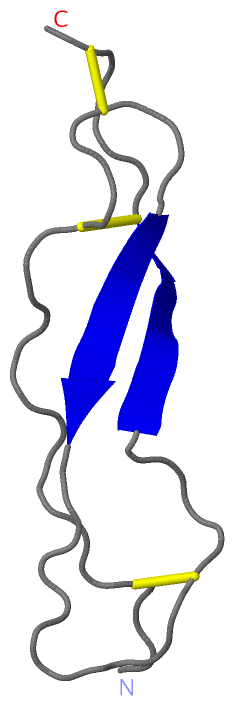

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

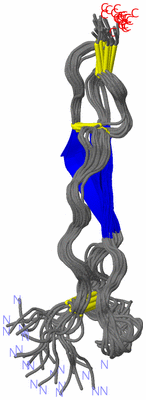

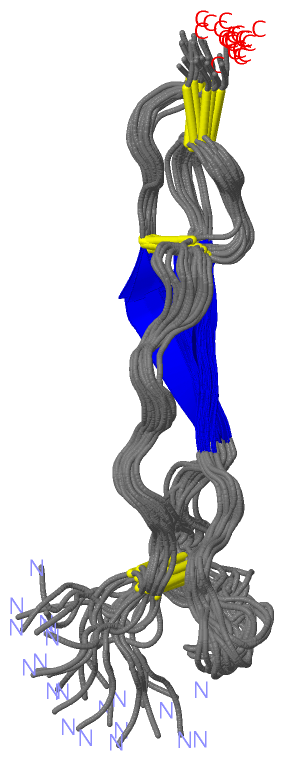

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  F-SPONDIN TSR DOMAIN 4

Authors :  K. Paakkonen, H. Tossavainen, P. Permi, I. Kilpelainen, P. Guntert
Date :  06 Apr 04  (Deposition) - 19 Apr 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  F-Spondin, Tsr, Cell Adhesion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Paakkonen, H. Tossavainen, P. Permi, H. Rakkolainen, H. Rauvala, E. Raulo, I. Kilpelainen, P. Guntert
Solution Structures Of The First And Fourth Tsr Domains Of F-Spondin
Proteins V. 64 665 2006
PubMed-ID: 16736493  |  Reference-DOI: 10.1002/PROT.21030
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - F-SPONDIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: F-SPONDIN TSR DOMAIN 4
    Organism Common: NORWAY RAT
    Organism Scientific: RATTUS NORVEGICUS
    Organism Taxid: 10116

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1VEX)

(-) Sites  (0, 0)

(no "Site" information available for 1VEX)

(-) SS Bonds  (3, 3)

NMR Structure
No.Residues
1A:615 -A:650
2A:626 -A:660
3A:630 -A:665

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1VEX)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1VEX)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TSP1PS50092 Thrombospondin type-1 (TSP1) repeat profile.SPON1_RAT442-495
501-555
558-611
614-666
668-721
754-806		  1-
-
-
A:614-666
-
-

(-) Exons   (0, 0)

(no "Exon" information available for 1VEX)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:56
 aligned with SPON1_RAT | P35446 from UniProtKB/Swiss-Prot  Length:807

    Alignment length:75
                                   601       611       621       631       641       651       661
            SPON1_RAT   592 GSMCKAETSQAEKCMMPECHTIPCLLSPWSEWSDCSVTCGKGMRTRQRMLKSLAELGDCNEDLEQAEKCMLPECP 666
               SCOP domains --------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .-------------------......................eeeee................eeeee....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE TSP1  PDB: -        --TSP1  PDB: A:614-666 UniProt: 614-666                 PROSITE
                 Transcript --------------------------------------------------------------------------- Transcript
                 1vex A 611 G-------------------SIPCLLSPWSEWSDCSVTCGKGMRTRQRMLKSLAELGDCNEDLEQAEKCMLPECP 666
                            |        -         -|      621       631       641       651       661
                            |                 612
                          611
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1VEX)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1VEX)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1VEX)

(-) Gene Ontology  (4, 4)

NMR Structure(hide GO term definitions)
Chain A   (SPON1_RAT | P35446)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0007155    cell adhesion    The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005578    proteinaceous extracellular matrix    A layer consisting mainly of proteins (especially collagen) and glycosaminoglycans (mostly as proteoglycans) that forms a sheet underlying or overlying cells such as endothelial and epithelial cells. The proteins are secreted by cells in the vicinity. An example of this component is found in Mus musculus.
