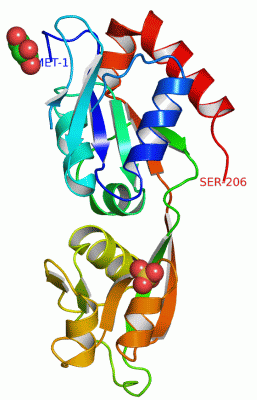

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

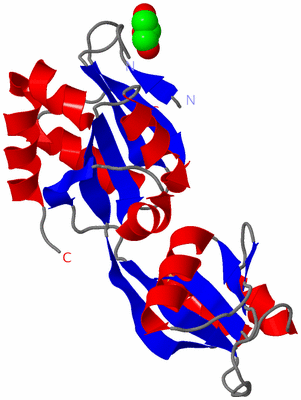

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

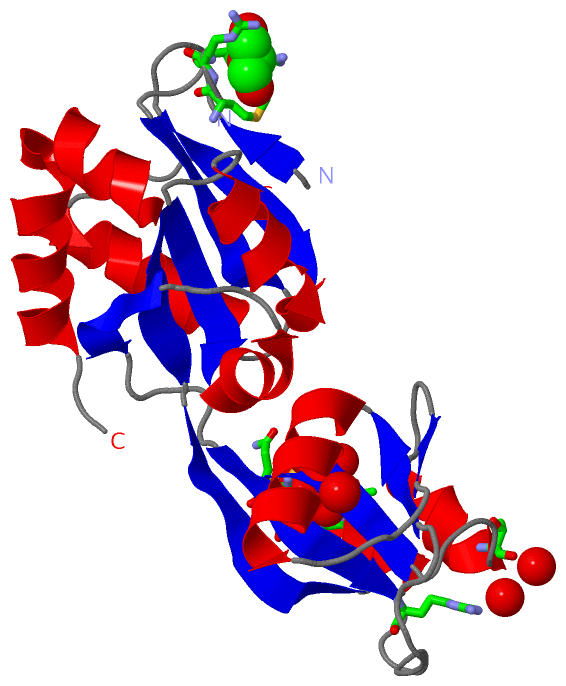

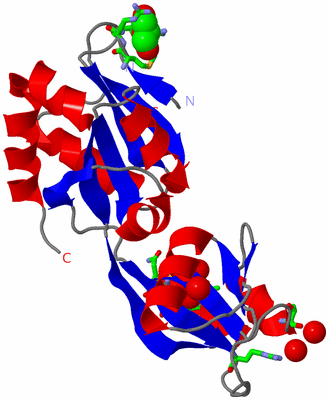

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  ATP-PHOSPHORIBOSYLTRANSFERASE(HISG) FROM THERMUS THERMOPHILUS HB8

Authors :  R. Omi, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  27 Mar 04  (Deposition) - 21 Jun 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.20
Chains :  Asym./Biol. Unit :  A
Keywords :  Transferase, Riken Structural Genomics/Proteomics Initiative, Rsgi, Structural Genomics (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Omi, M. Goto, I. Miyahara, K. Hirotsu
Crystal Structure Of Atp-Phosphoribosyltransferase(Hisg)
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - ATP PHOSPHORIBOSYLTRANSFERASE
    Chains: A
    EC Number: 2.4.2.17
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET11A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 274

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL
2SO41Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREVAL A:155 , GLN A:156 , THR A:157 , GLY A:158 , ALA A:159 , THR A:160 , HOH A:1005 , HOH A:1045 , HOH A:1064 , HOH A:1077BINDING SITE FOR RESIDUE SO4 A 1001
2AC2SOFTWAREMET A:1 , ARG A:2 , ARG A:3 , ARG A:101 , THR A:145 , HOH A:1080 , HOH A:1091BINDING SITE FOR RESIDUE GOL A 1002

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1VE4)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1VE4)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1VE4)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ATP_P_PHORIBOSYLTRPS01316 ATP phosphoribosyltransferase signature.HIS1_THET2140-161  1A:140-161

(-) Exons   (0, 0)

(no "Exon" information available for 1VE4)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:201
 aligned with HIS1_THET2 | P62381 from UniProtKB/Swiss-Prot  Length:206

    Alignment length:206
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
           HIS1_THET2     1 MRRFALTVALPKGRMFREAYEVLKRAGLDLPEVEGERTLLHGKEGGVALLELRNKDVPIYVDLGIAEIGVVGKDVLLDSGRDLFEPVDLGFGACRLSLIRRPGDTGPIRRVATKYPNFTARLLKERGWAADVVELSGNIELAAVTGLADAVVDVVQTGATLRAAGLVEVEVLAHSTARLVVNRQALKLKRAVLKPLIQRLRELSGS 206
               SCOP domains d1ve4a1 A:1-206 ATP phosphoribosy     ltransferase (ATP-PRTase, HisG), catalytic domain                                                                                                                        SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------1ve4A02 A:94-176 Periplasmic binding protein-like II                               ------------------------------ CATH domains
               Pfam domains ---------------------------------------------------HisG-1ve4A01 A:52-204                                                                                                                                    -- Pfam domains
         Sec.struct. author .....eeeeee...hhhhhhhhhhhh.......-----.ee.....eeeeeehhhhhhhhhhh....eeeeehhhhhhh....eeeee.....eeeeeee..........eee.hhhhhhhhhhhh.....eee....hhhhhhh....eeeeee..hhhhhhh..eeeeeeeee.eeeeehhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------ATP_P_PHORIBOSYLTR    --------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ve4 A   1 MRRFALTVALPKGRMFREAYEVLKRAGLDLPEV-----LLHGKEGGVALLELRNKDVPIYVDLGIAEIGVVGKDVLLDSGRDLFEPVDLGFGACRLSLIRRPGDTGPIRRVATKYPNFTARLLKERGWAADVVELSGNIELAAVTGLADAVVDVVQTGATLRAAGLVEVEVLAHSTARLVVNRQALKLKRAVLKPLIQRLRELSGS 206
                                    10        20        30  |     40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
                                                           33    39
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: PBP (391)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (HIS1_THET2 | P62381)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003879    ATP phosphoribosyltransferase activity    Catalysis of the reaction: 1-(5-phospho-D-ribosyl)-ATP + diphosphate = ATP + 5-phospho-alpha-D-ribose 1-diphosphate.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016757    transferase activity, transferring glycosyl groups    Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
biological process
    GO:0008652    cellular amino acid biosynthetic process    The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
    GO:0000105    histidine biosynthetic process    The chemical reactions and pathways resulting in the formation of histidine, 2-amino-3-(1H-imidazol-4-yl)propanoic acid.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ve4)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

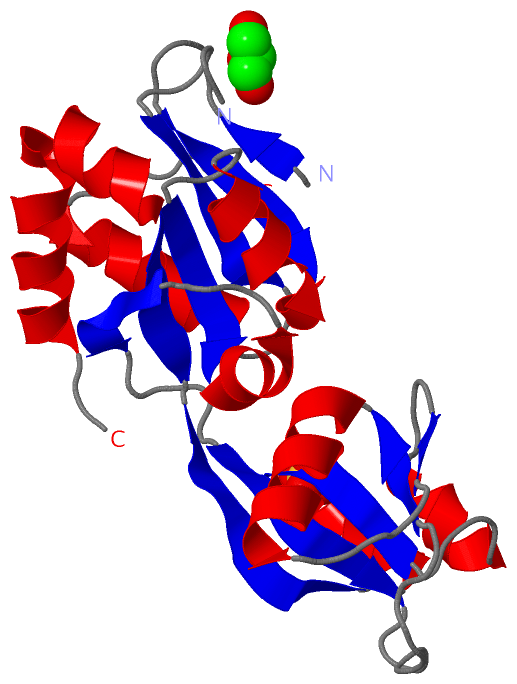

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ve4
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HIS1_THET2 | P62381
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.4.2.17
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HIS1_THET2 | P62381
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1VE4)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1VE4)
