1V9I - JenaLib

Title :   CRYSTAL STRUCTURE ANALYSIS OF THE SITE SPECIFIC MUTANT (Q253C) OF BOVINE CARBONIC ANHYDRASE II

Authors :   R. Saito, T. Sato, A. Ikai, N. Tanaka

Date :   26 Jan 04 (Deposition) - 10 Feb 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.95

Chains :   Asym./Biol. Unit : C

Keywords :   Beta Sheet, Zinc Metalloenzyme, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   R. Saito, T. Sato, A. Ikai, N. Tanaka
Crystal Structure Analysis Of The Site Specific Mutant (Q253C) Of Bovine Carbonic Anhydrase Ii
To Be Published
PubMed: search
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 1)

Sites (1, 1)

SS Bonds (0, 0)

Cis Peptide Bonds (3, 3)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (1, 1)

PROSITE Motifs (2, 2)

Exons (0, 0)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain C from PDB  Type:PROTEIN  Length:261
 aligned with CAH2_BOVIN | P00921 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:261
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
           CAH2_BOVIN     - -MSHHWGYGKHNGPEHWHKDFPIANGERQSPVDIDTKAVVQDPALKPLALVYGEATSRRMVNNGHSFNVEYDDSQDKAVLKDGPLTGTYRLVQFHFHWGSSDDQGSEHTVDRKKYAAELHLVHWNTKYGDFGTAAQQPDGLAVVGVFLKVGDANPALQKVLDALDSIKTKGKSTDFPNFDPGSLLPNVLDYWTYPGSLTTPPLLESVTWIVLKEPISVSSQQMLKFRTLNFNAEGEPELLMLANWRPAQPLKNRQVRGFPK 260
               SCOP domains d1v9ic_ C: Carbonic anhydrase                                                                                                                                                                                                                                         SCOP domains
               CATH domains 1v9iC00 C:1-261 Carbonic Anhydrase II                                                                                                                                                                                                                                 CATH domains
               Pfam domains -----Carb_anhydrase-1v9iC01 C:6-259                                                                                                                                                                                                                                -- Pfam domains
         Sec.struct. author ....................hhhhhh......eehhhhhee......ee.......eeeeee....eeeee.......eeee......eeeeeeee............ee.......eeeeeeee.hhhhhhhhh.....eeeeeeeeee....hhhhhhhhhhhhhh....eee....hhhhhh.....eeeeee..........eeeeee...eeehhhhhhhhhhh...........................eee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------Q----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---ALPHA_CA_2  PDB: C:4-260 UniProt: 3-259                                                                                                                                                                                                                          - PROSITE (1)
                PROSITE (2) ---------------------------------------------------------------------------------------------------------ALPHA_CA_1       ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v9i C   1 RCSHHWGYGKHNGPEHWHKDFPIANGERQSPVDIDTKAVVQDPALKPLALVYGEATSRRMVNNGHSFNVEYDDSQDKAVLKDGPLTGTYRLVQFHFHWGSSDDQGSEHTVDRKKYAAELHLVHWNTKYGDFGTAAQQPDGLAVVGVFLKVGDANPALQKVLDALDSIKTKGKSTDFPNFDPGSLLPNVLDYWTYPGSLTTPPLLESVTWIVLKEPISVSSQQMLKFRTLNFNAEGEPELLMLANWRPAQPLKNRCVRGFPK 261
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (1, 1)

Gene Ontology (11, 11)

Asymmetric/Biological Unit(hide GO term definitions)

Chain C (CAH2_BOVIN | P00921)

molecular function
	GO:0004089	carbonate dehydratase activity	Catalysis of the reaction: H2CO3 = CO2 + H2O.
	GO:0016829	lyase activity	Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0008270	zinc ion binding	Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
	GO:0038166	angiotensin-activated signaling pathway	The series of molecular signals generated as a consequence of angiotensin II binding to an angiotensin receptor on the surface of the cell, and proceeding with the activated receptor transmitting the signal to a heterotrimeric G-protein complex to initiate a change in cell activity. Ends with regulation of a downstream cellular process, e.g. transcription.
	GO:0006730	one-carbon metabolic process	The chemical reactions and pathways involving the transfer of one-carbon units in various oxidation states.
	GO:2001150	positive regulation of dipeptide transmembrane transport	Any process that activates or increases the frequency, rate or extent of dipeptide transmembrane transport.
	GO:0044070	regulation of anion transport	Any process that modulates the frequency, rate or extent of the directed movement of anions, atoms or small molecules with a net negative charge into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0051453	regulation of intracellular pH	Any process that modulates the internal pH of a cell, measured by the concentration of the hydrogen ion.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Visualization

Interactive Views

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

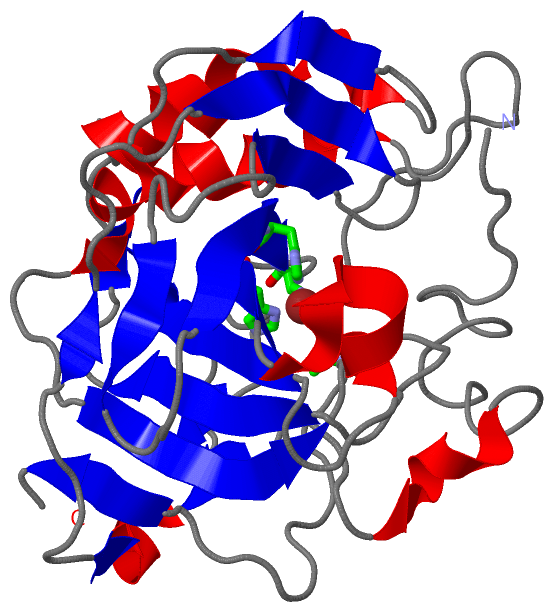

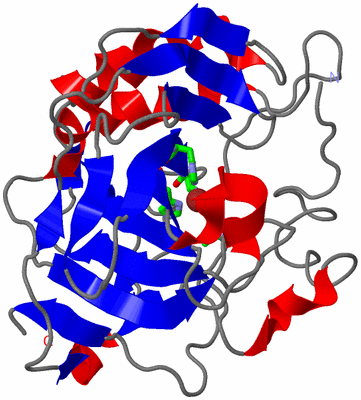

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Phe C:259 - Pro C:260	[ RasMol ]
		Pro C:201 - Pro C:202	[ RasMol ]
		Ser C:30 - Pro C:31	[ RasMol ]

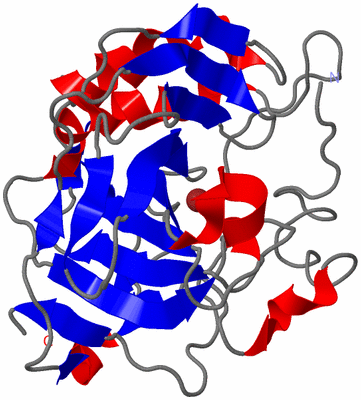

Still Images

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1v9i
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CAH2_BOVIN \| P00921
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	4.2.1.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Description
