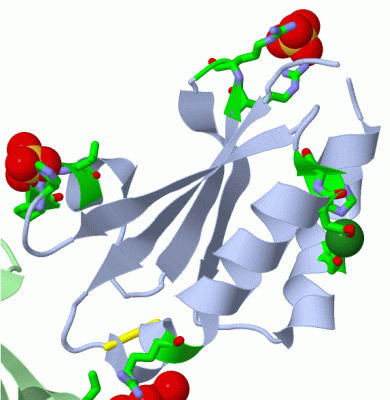

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

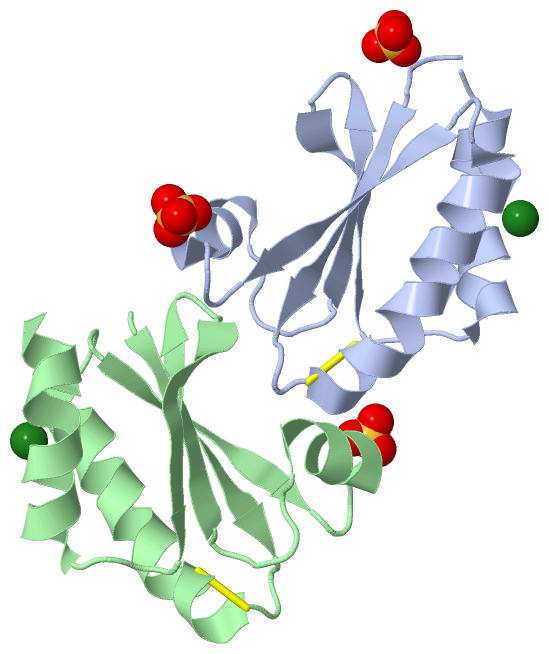

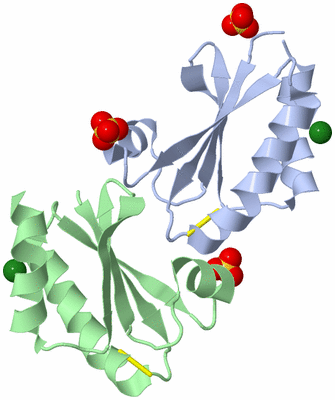

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

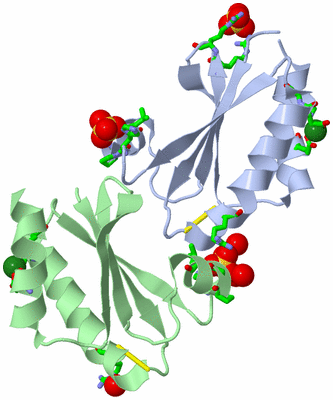

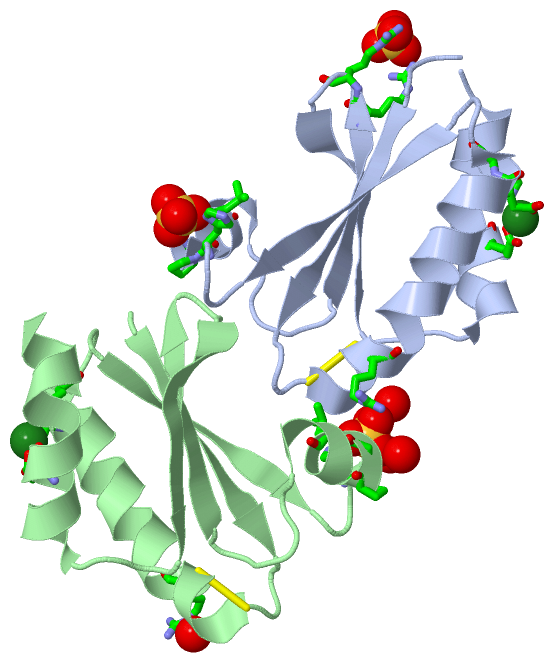

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

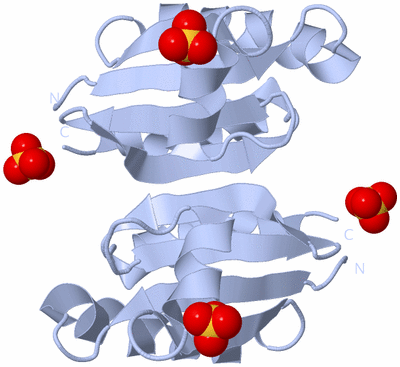

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

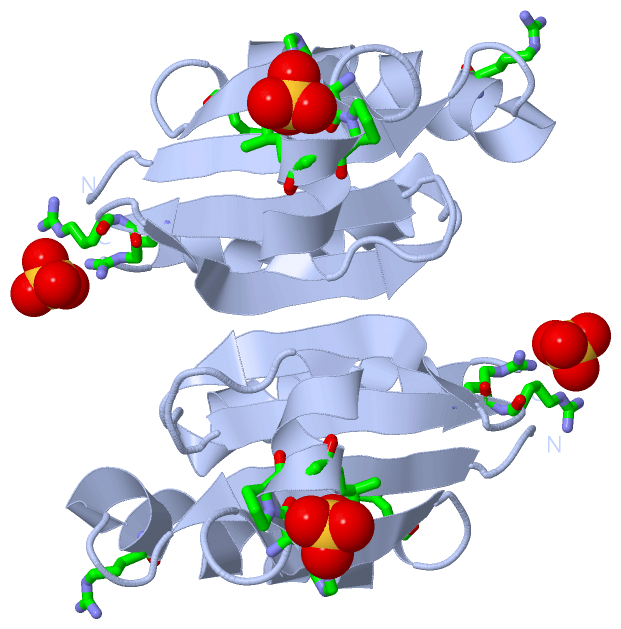

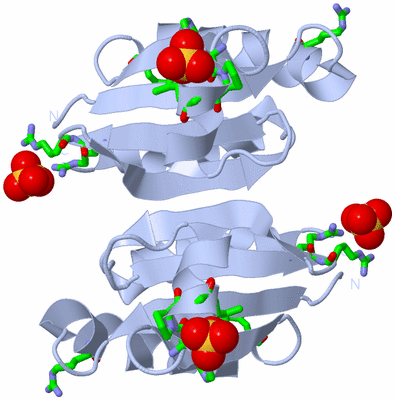

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

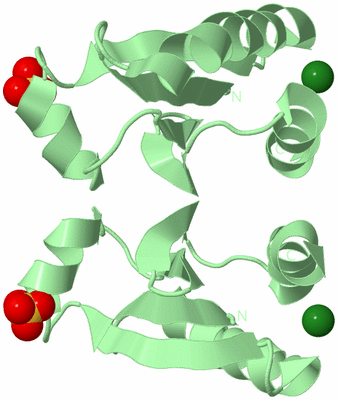

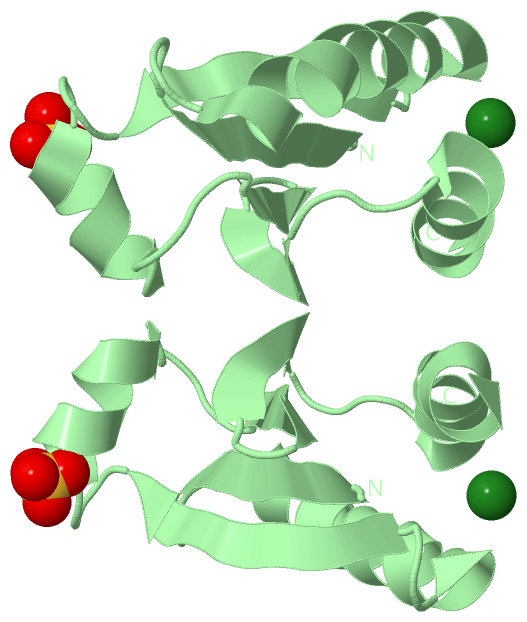

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE ANALYSIS OF THIOREDOXIN FROM THERMUS THERMOPHILUS

Authors :  P. H. Rehse, T. H. Tahirov, Riken Structural Genomics/Proteomics I (Rsgi)
Date :  21 Jan 04  (Deposition) - 01 Feb 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.82
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (2x)
Biol. Unit 2:  B  (2x)
Keywords :  Oxidoreductase, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. H. Rehse, T. H. Tahirov
Crystallographic Analysis Of Thioredoxin From The Thermophilic Bacteria Thermus Thermophilus
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - THIOREDOXIN
    Chains: A, B
    EC Number: 1.8.1.9
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET-11A
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): A
Biological Unit 2 (2x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric Unit (2, 5)
No.NameCountTypeFull Name
1MG2Ligand/IonMAGNESIUM ION
2SO43Ligand/IonSULFATE ION
Biological Unit 1 (1, 4)
No.NameCountTypeFull Name
1MG-1Ligand/IonMAGNESIUM ION
2SO44Ligand/IonSULFATE ION
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1MG-1Ligand/IonMAGNESIUM ION
2SO42Ligand/IonSULFATE ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:78 , HIS A:79 , GLU A:130 , ASP B:78BINDING SITE FOR RESIDUE MG A 501
2AC2SOFTWAREASP A:78 , ASP B:78 , HIS B:79 , GLU B:130BINDING SITE FOR RESIDUE MG B 502
3AC3SOFTWAREHIS A:93 , PRO A:94 , GLY A:95 , LEU A:96 , ARG B:66 , HOH B:694BINDING SITE FOR RESIDUE SO4 A 601
4AC4SOFTWAREARG A:66 , HIS B:93 , PRO B:94 , GLY B:95 , LEU B:96 , HOH B:654 , HOH B:665 , HOH B:671 , HOH B:684BINDING SITE FOR RESIDUE SO4 B 602
5AC5SOFTWAREARG A:112 , ARG A:113BINDING SITE FOR RESIDUE SO4 A 603

(-) SS Bonds  (2, 2)

Asymmetric Unit
No.Residues
1A:62 -A:65
2B:62 -B:65

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Val A:105 -Pro A:106
2Val B:105 -Pro B:106

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1V98)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1V98)

(-) Exons   (0, 0)

(no "Exon" information available for 1V98)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:92
 aligned with Q5SI93_THET8 | Q5SI93 from UniProtKB/TrEMBL  Length:140

    Alignment length:92
                                    58        68        78        88        98       108       118       128       138
         Q5SI93_THET8    49 GAPLTLVDFFAPWCGPCRLVSPILEELARDHAGRLKVVKVNVDEHPGLAARYGVRSVPTLVLFRRGAPVATWVGASPRRVLEERLRPYLEGR 140
               SCOP domains d1v98a_ A: automated matches                                                                 SCOP domains
               CATH domains 1v98A00 A:49-140 Glutaredoxin                                                                CATH domains
               Pfam domains -------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee...hhhhhhhhhhhhhhhhhh...eeeeeee...hhhhhhhh......eeeeee..eeeeeee...hhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------- Transcript
                 1v98 A  49 GAPLTLVDFFAPWCGPCRLVSPILEELARDHAGRLKVVKVNVDEHPGLAARYGVRSVPTLVLFRRGAPVATWVGASPRRVLEERLRPYLEGR 140
                                    58        68        78        88        98       108       118       128       138


Chain B from PDB  Type:PROTEIN  Length:89
 aligned with Q5SI93_THET8 | Q5SI93 from UniProtKB/TrEMBL  Length:140

    Alignment length:89
                                    60        70        80        90       100       110       120       130
         Q5SI93_THET8    51 PLTLVDFFAPWCGPCRLVSPILEELARDHAGRLKVVKVNVDEHPGLAARYGVRSVPTLVLFRRGAPVATWVGASPRRVLEERLRPYLEG 139
               SCOP domains d1v98b_ B: automated matches                                                              SCOP domains
               CATH domains 1v98B00 B:51-139 Glutaredoxin                                                             CATH domains
           Pfam domains (1) Thioredoxin-1v98B01 B:51-135                                                         ---- Pfam domains (1)
           Pfam domains (2) Thioredoxin-1v98B02 B:51-135                                                         ---- Pfam domains (2)
         Sec.struct. author .eeeeeee...hhhhhhhhhhhhhhhhhh...eeeeeee...hhhhhhhh......eeeeee..eeeeeee...hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                 1v98 B  51 PLTLVDFFAPWCGPCRLVSPILEELARDHAGRLKVVKVNVDEHPGLAARYGVRSVPTLVLFRRGAPVATWVGASPRRVLEERLRPYLEG 139
                                    60        70        80        90       100       110       120       130
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: Thioredoxin (367)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q5SI93_THET8 | Q5SI93)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0015035    protein disulfide oxidoreductase activity    Catalysis of the reaction: a protein with reduced sulfide groups = a protein with oxidized disulfide bonds.
biological process
    GO:0045454    cell redox homeostasis    Any process that maintains the redox environment of a cell or compartment within a cell.
    GO:0006662    glycerol ether metabolic process    The chemical reactions and pathways involving glycerol ethers, any anhydride formed between two organic hydroxy compounds, one of which is glycerol.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0005623    cell    The basic structural and functional unit of all organisms. Includes the plasma membrane and any external encapsulating structures such as the cell wall and cell envelope.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Val A:105 - Pro A:106   [ RasMol ]
    Val B:105 - Pro B:106   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
