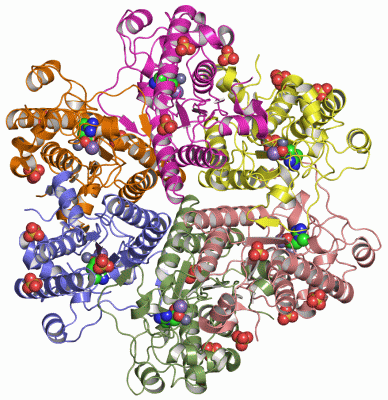

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

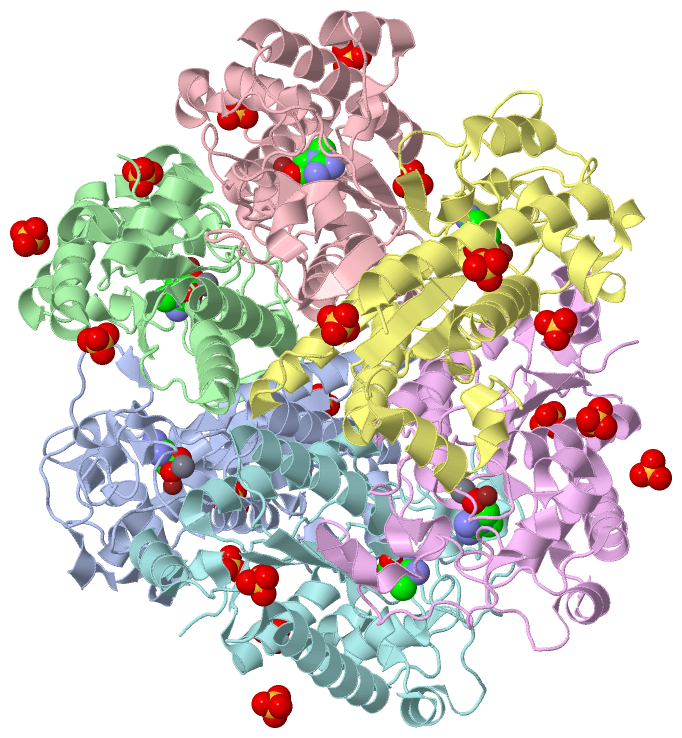

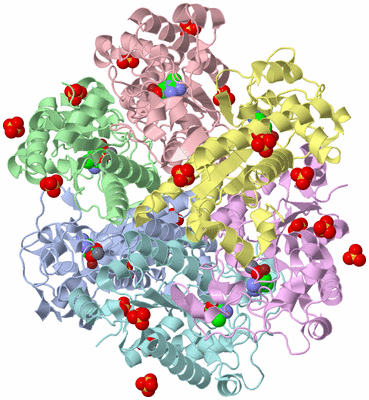

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

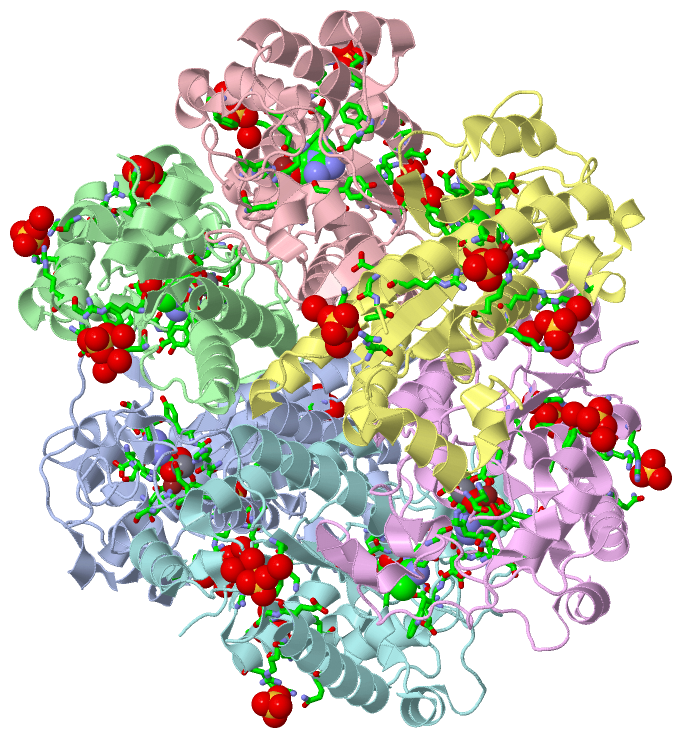

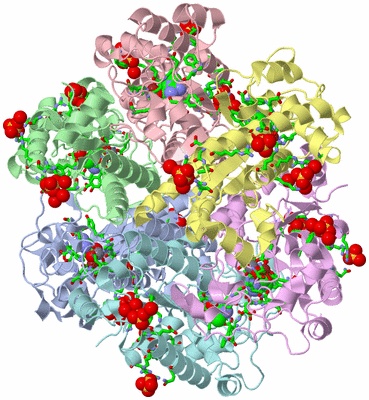

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CREATININASE-PRODUCT COMPLEX

Authors :  T. Yoshimoto, N. Tanaka, N. Kanada, T. Inoue, Y. Nakajima, M. Haratake, K. T. Nakamura, Y. Xu, K. Ito
Date :  26 Dec 03  (Deposition) - 27 Jan 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Mn-Activated Creatininase, Substrate Complex, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Yoshimoto, N. Tanaka, N. Kanada, T. Inoue, Y. Nakajima, M. Haratake, K. T. Nakamura, Y. Xu, K. Ito
Crystal Structures Of Creatininase Reveal The Substrate Binding Site And Provide An Insight Into The Catalytic Mechanism
J. Mol. Biol. V. 337 399 2004
PubMed-ID: 15003455  |  Reference-DOI: 10.1016/J.JMB.2004.01.022
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CREATININE AMIDOHYDROLASE
    Chains: A, B, C, D, E, F
    EC Number: 3.5.2.10
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: PSEUDOMONAS SP.
    Organism Taxid: 306
    Synonym: CREATININASE

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit : ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 36)

Asymmetric/Biological Unit (4, 36)
No.NameCountTypeFull Name
1CRN6Ligand/IonN-[(E)-AMINO(IMINO)METHYL]-N-METHYLGLYCINE
2MN6Ligand/IonMANGANESE (II) ION
3SO418Ligand/IonSULFATE ION
4ZN6Ligand/IonZINC ION

(-) Sites  (36, 36)

Asymmetric Unit (36, 36)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREGLU A:34 , ASP A:45 , HIS A:120 , ZN A:301 , CRN A:401 , HOH A:1001BINDING SITE FOR RESIDUE MN A 300
02AC2SOFTWAREHIS A:36 , ASP A:45 , GLU A:183 , MN A:300 , CRN A:401BINDING SITE FOR RESIDUE ZN A 301
03AC3SOFTWAREGLU B:34 , ASP B:45 , HIS B:120 , HOH B:1003 , ZN B:3301 , CRN B:3401BINDING SITE FOR RESIDUE MN B 3300
04AC4SOFTWAREHIS B:36 , ASP B:45 , GLU B:183 , MN B:3300 , CRN B:3401BINDING SITE FOR RESIDUE ZN B 3301
05AC5SOFTWAREGLU C:34 , ASP C:45 , HIS C:120 , HOH C:1005 , ZN C:4301 , CRN C:4401BINDING SITE FOR RESIDUE MN C 4300
06AC6SOFTWAREHIS C:36 , ASP C:45 , GLU C:183 , MN C:4300 , CRN C:4401BINDING SITE FOR RESIDUE ZN C 4301
07AC7SOFTWAREGLU D:34 , ASP D:45 , HIS D:120 , HOH D:1007 , ZN D:5301 , CRN D:5401BINDING SITE FOR RESIDUE MN D 5300
08AC8SOFTWAREHIS D:36 , ASP D:45 , GLU D:183 , MN D:5300 , CRN D:5401BINDING SITE FOR RESIDUE ZN D 5301
09AC9SOFTWAREGLU E:34 , ASP E:45 , HIS E:120 , HOH E:1009 , ZN E:6301 , CRN E:6401BINDING SITE FOR RESIDUE MN E 6300
10BC1SOFTWAREHIS E:36 , ASP E:45 , GLU E:183 , MN E:6300 , CRN E:6401BINDING SITE FOR RESIDUE ZN E 6301
11BC2SOFTWAREGLU F:34 , ASP F:45 , HIS F:120 , HOH F:1011 , ZN F:7301 , CRN F:7401BINDING SITE FOR RESIDUE MN F 7300
12BC3SOFTWAREHIS F:36 , ASP F:45 , GLU F:183 , MN F:7300 , CRN F:7401BINDING SITE FOR RESIDUE ZN F 7301
13BC4SOFTWARELYS A:54 , ARG A:55 , TYR A:191 , HOH A:1158 , HOH A:1732 , HOH A:2649 , HOH A:2699BINDING SITE FOR RESIDUE SO4 A 501
14BC5SOFTWAREARG A:59 , GLN A:247 , ARG A:254 , HOH A:2407 , HOH A:2754BINDING SITE FOR RESIDUE SO4 A 502
15BC6SOFTWAREARG A:113 , LYS A:147 , GLU A:256 , PHE A:257 , HOH A:1819BINDING SITE FOR RESIDUE SO4 A 503
16BC7SOFTWARELYS B:54 , ARG B:55 , TYR B:191 , HOH B:1136 , HOH B:1841BINDING SITE FOR RESIDUE SO4 B 3501
17BC8SOFTWAREARG B:59 , GLN B:247 , ARG B:254 , HOH B:2247BINDING SITE FOR RESIDUE SO4 B 3502
18BC9SOFTWAREARG B:113 , LYS B:147 , GLU B:256 , PHE B:257 , HOH B:1592 , HOH B:2365 , HOH B:2378BINDING SITE FOR RESIDUE SO4 B 3503
19CC1SOFTWARELYS C:54 , ARG C:55 , TYR C:191 , HOH C:1166 , HOH C:1959BINDING SITE FOR RESIDUE SO4 C 4501
20CC2SOFTWAREARG C:59 , GLN C:247 , ARG C:254BINDING SITE FOR RESIDUE SO4 C 4502
21CC3SOFTWAREARG C:113 , LYS C:147 , GLU C:256 , PHE C:257 , PRO C:258 , HOH C:1480 , HOH C:2715BINDING SITE FOR RESIDUE SO4 C 4503
22CC4SOFTWARELYS D:54 , ARG D:55 , TYR D:191 , HOH D:1398 , HOH D:2278 , HOH D:2558BINDING SITE FOR RESIDUE SO4 D 5501
23CC5SOFTWAREARG D:59 , GLN D:247 , ARG D:254BINDING SITE FOR RESIDUE SO4 D 5502
24CC6SOFTWAREARG D:113 , LYS D:147 , GLU D:256 , PHE D:257 , HOH D:1736 , HOH D:2369BINDING SITE FOR RESIDUE SO4 D 5503
25CC7SOFTWARELYS E:54 , ARG E:55 , TYR E:191 , HOH E:1375 , HOH E:2743BINDING SITE FOR RESIDUE SO4 E 6501
26CC8SOFTWAREARG E:59 , GLN E:247 , ARG E:254BINDING SITE FOR RESIDUE SO4 E 6502
27CC9SOFTWAREARG E:113 , LYS E:147 , GLU E:256 , PHE E:257 , HOH E:1424BINDING SITE FOR RESIDUE SO4 E 6503
28DC1SOFTWARELYS F:54 , ARG F:55 , TYR F:191 , HOH F:1174 , HOH F:1903 , HOH F:2400BINDING SITE FOR RESIDUE SO4 F 7501
29DC2SOFTWAREARG F:59 , GLN F:247 , ARG F:254BINDING SITE FOR RESIDUE SO4 F 7502
30DC3SOFTWAREARG F:113 , LYS F:147 , GLU F:256 , PHE F:257 , HOH F:1579 , HOH F:1979 , HOH F:2493BINDING SITE FOR RESIDUE SO4 F 7503
31DC4SOFTWAREGLU A:34 , HIS A:36 , ASP A:45 , SER A:78 , GLY A:119 , HIS A:120 , TYR A:121 , TRP A:174 , ASP A:175 , GLU A:177 , HIS A:178 , GLU A:183 , MN A:300 , ZN A:301 , HOH A:1001BINDING SITE FOR RESIDUE CRN A 401
32DC5SOFTWAREGLU B:34 , HIS B:36 , ASP B:45 , SER B:78 , HIS B:120 , TYR B:121 , TRP B:174 , ASP B:175 , GLU B:177 , HIS B:178 , GLU B:183 , HOH B:1003 , HOH B:2653 , MN B:3300 , ZN B:3301BINDING SITE FOR RESIDUE CRN B 3401
33DC6SOFTWAREGLU C:34 , HIS C:36 , ASP C:45 , SER C:78 , GLY C:119 , HIS C:120 , TYR C:121 , TRP C:174 , GLU C:177 , HIS C:178 , GLU C:183 , HOH C:1005 , MN C:4300 , ZN C:4301BINDING SITE FOR RESIDUE CRN C 4401
34DC7SOFTWAREGLU D:34 , HIS D:36 , ASP D:45 , SER D:78 , GLY D:119 , HIS D:120 , TYR D:121 , TRP D:154 , TRP D:174 , ASP D:175 , GLU D:177 , HIS D:178 , GLU D:183 , HOH D:1007 , MN D:5300 , ZN D:5301BINDING SITE FOR RESIDUE CRN D 5401
35DC8SOFTWAREGLU E:34 , HIS E:36 , ASP E:45 , SER E:78 , GLY E:119 , HIS E:120 , TYR E:121 , TRP E:154 , TRP E:174 , ASP E:175 , GLU E:177 , HIS E:178 , GLU E:183 , HOH E:1009 , MN E:6300 , ZN E:6301BINDING SITE FOR RESIDUE CRN E 6401
36DC9SOFTWAREGLU F:34 , HIS F:36 , ASP F:45 , SER F:78 , GLY F:119 , HIS F:120 , TYR F:121 , TRP F:174 , ASP F:175 , GLU F:177 , HIS F:178 , GLU F:183 , HOH F:1011 , MN F:7300 , ZN F:7301BINDING SITE FOR RESIDUE CRN F 7401

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1V7Z)

(-) Cis Peptide Bonds  (6, 6)

Asymmetric/Biological Unit
No.Residues
1Phe A:214 -Pro A:215
2Phe B:214 -Pro B:215
3Phe C:214 -Pro C:215
4Phe D:214 -Pro D:215
5Phe E:214 -Pro E:215
6Phe F:214 -Pro F:215

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1V7Z)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1V7Z)

(-) Exons   (0, 0)

(no "Exon" information available for 1V7Z)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1v7za_ A: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1v7zA00 A:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v7z A   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252


Chain B from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1v7zb_ B: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1v7zB00 B:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v7z B   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252


Chain C from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1v7zc_ C: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1v7zC00 C:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v7z C   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252


Chain D from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1v7zd_ D: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1v7zD00 D:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v7z D   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252


Chain E from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1v7ze_ E: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1v7zE00 E:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v7z E   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252


Chain F from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1v7zf_ F: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1v7zF00 F:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v7z F   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 6)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 6)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1V7Z)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (CRNA_PSEPU | P83772)
molecular function
    GO:0047789    creatininase activity    Catalysis of the reaction: creatinine + H(2)O = creatine.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0030145    manganese ion binding    Interacting selectively and non-covalently with manganese (Mn) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0006601    creatine biosynthetic process    The chemical reactions and pathways resulting in the formation of creatine, N-[amino(imino)methyl]-N-methylglycine. Creatine is formed by a process beginning with amidino group transfer from L-arginine to glycine to form guanidinoacetate, followed by methyl group transfer from S-adenosyl-L-methionine to guanidinoacetate; it is then is phosphorylated to form a pool that stores high energy phosphate for the replenishment of ATP during periods of high, or fluctuating energy demand. In animals, most creatine is transported to and used in muscle.
    GO:0006602    creatinine catabolic process    The chemical reactions and pathways resulting in the breakdown of creatinine, 2-amino-1,5-dihydro-1-methyl-4H-imidazol-4-one, an end product of creatine metabolism and a normal constituent of urine.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CRN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]
    DC1  [ RasMol ]  +environment [ RasMol ]
    DC2  [ RasMol ]  +environment [ RasMol ]
    DC3  [ RasMol ]  +environment [ RasMol ]
    DC4  [ RasMol ]  +environment [ RasMol ]
    DC5  [ RasMol ]  +environment [ RasMol ]
    DC6  [ RasMol ]  +environment [ RasMol ]
    DC7  [ RasMol ]  +environment [ RasMol ]
    DC8  [ RasMol ]  +environment [ RasMol ]
    DC9  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Phe A:214 - Pro A:215   [ RasMol ]
    Phe B:214 - Pro B:215   [ RasMol ]
    Phe C:214 - Pro C:215   [ RasMol ]
    Phe D:214 - Pro D:215   [ RasMol ]
    Phe E:214 - Pro E:215   [ RasMol ]
    Phe F:214 - Pro F:215   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1v7z
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CRNA_PSEPU | P83772
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.5.2.10
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CRNA_PSEPU | P83772
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CRNA_PSEPU | P83772: 1j2t 1j2u 1q3k 3a6d 3a6e 3a6f 3a6g 3a6h 3a6j 3a6k 3a6l

(-) Related Entries Specified in the PDB File

1j2t THE SAME PROTEIN.
