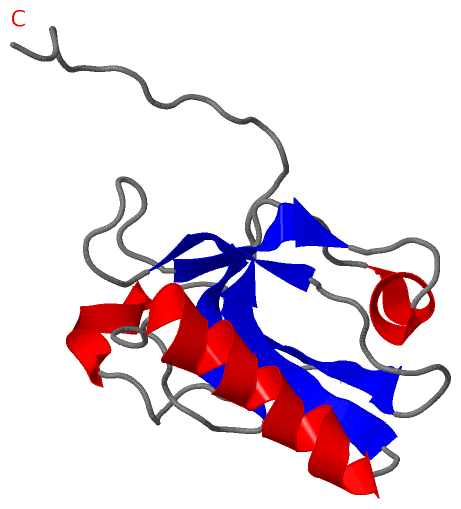

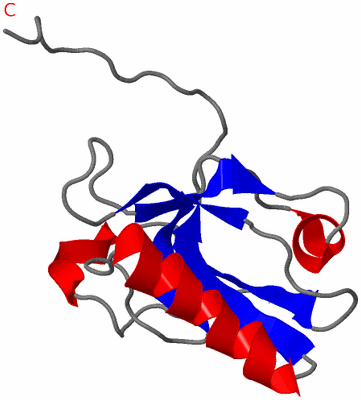

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

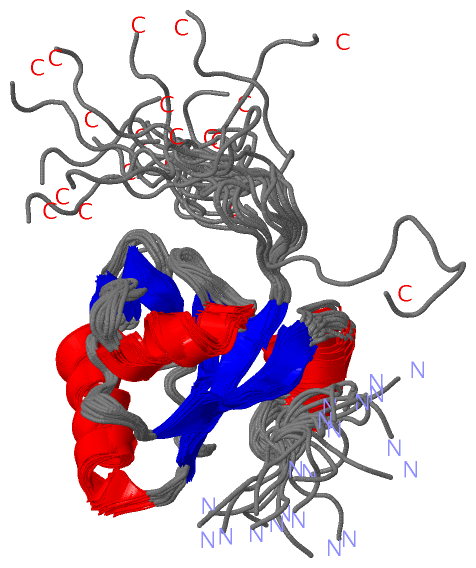

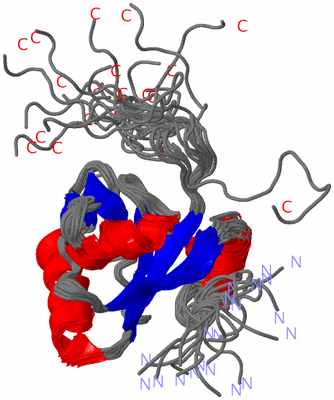

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE THIRD PDZ DOMAIN OF MOUSE HARMONIN

Authors :  K. Yamada, N. Nameki, K. Saito, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  28 Nov 03  (Deposition) - 28 May 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Structural Genomics, Usher Syndrome, Ush1, Riken Structural Genomics/Proteomics Initiative, Rsgi, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. Yamada, N. Nameki, K. Saito, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of The Third Pdz Domain Of Mouse Harmonin
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HARMONIN ISOFORM A1
    ChainsA
    EngineeredYES
    Expression System PlasmidP020401-47
    Expression System Vector TypePLASMID
    FragmentPDZ DOMAIN
    GeneRIKEN CDNA 2010016F01
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    Other DetailsCELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1V6B)

(-) Sites  (0, 0)

(no "Site" information available for 1V6B)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1V6B)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1V6B)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1V6B)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PDZPS50106 PDZ domain profile.USH1C_MOUSE87-155
211-281
752-825
  1-
-
A:18-91

(-) Exons   (0, 0)

(no "Exon" information available for 1V6B)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:118
 aligned with USH1C_MOUSE | Q9ES64 from UniProtKB/Swiss-Prot  Length:910

    Alignment length:147
                                   742       752       762       772       782       792       802       812       822       832       842       852       862       872
          USH1C_MOUSE   733 YEEGFDPYSMFSPEQIAGKDVRLLRIKKEGSLDLALEGGVDSPVGKVVVSAVYEGGAAERHGGVVKGDEIMAINGKIVTDYTLAEAEAALQKAWNQGGDWIDLVVAVCPPKEYDDELSSLPSSAAESPQLARKQLEAYEPVCRHGFF 879
               SCOP domains d1v6  ba_ A: Harmonin                                                                                                                               SCOP domains
               CATH domains 1v6b  A00 A:1-118  [code=2.30.42.10, no name defined]                                                                                               CATH domains
               Pfam domains -------------------PDZ-1v6bA01 A:18-102                                                                 ------------------------------------------- Pfam domains
         Sec.struct. author ....--.....hhhhhh...eeeeeee.......eeee........eeeee....hhhhhhh......eeeee........hhhhhhhhhhhhhhhh..eeeeeee............---------------------------.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------PDZ  PDB: A:18-91 UniProt: 752-825                                        ------------------------------------------------------ PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v6b A   1 GSEG--AATMFSPEQIAGKDVRLLRIKKEGSLDLALEGGVDSPVGKVVVSAVYEGGAAERHGGVVKGDEIMAINGKIVTDYTLAEAEAALQKAWNQGGDWIDLVVAVCPPKEYDDELT---------------------------FF 118
                               |  |  8        18        28        38        48        58        68        78        88        98       108       | -         -         -     |
                               4  5                                                                                                            116                         117

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: PDZ-like (184)
(-)
Family: PDZ (172)

(-) Gene Ontology  (32, 32)

NMR Structure(hide GO term definitions)
Chain A   (USH1C_MOUSE | Q9ES64)
molecular function
    GO:0051015    actin filament binding    Interacting selectively and non-covalently with an actin filament, also known as F-actin, a helical filamentous polymer of globular G-actin subunits.
    GO:0032029    myosin tail binding    Interacting selectively and non-covalently with the tail region of a myosin heavy chain.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0030507    spectrin binding    Interacting selectively and non-covalently with spectrin, a protein that is the major constituent of the erythrocyte cytoskeletal network. It associates with band 4.1 (see band protein) and actin to form the cytoskeletal superstructure of the erythrocyte plasma membrane. It is composed of nonhomologous chains, alpha and beta, which aggregate side-to-side in an antiparallel fashion to form dimers, tetramers, and higher polymers.
biological process
    GO:0000086    G2/M transition of mitotic cell cycle    The mitotic cell cycle transition by which a cell in G2 commits to M phase. The process begins when the kinase activity of M cyclin/CDK complex reaches a threshold high enough for the cell cycle to proceed. This is accomplished by activating a positive feedback loop that results in the accumulation of unphosphorylated and active M cyclin/CDK complex.
    GO:0051017    actin filament bundle assembly    The assembly of actin filament bundles; actin filaments are on the same axis but may be oriented with the same or opposite polarities and may be packed with different levels of tightness.
    GO:0042491    auditory receptor cell differentiation    The process in which a relatively unspecialized cell acquires specialized features of an auditory hair cell.
    GO:1904970    brush border assembly    The aggregation, arrangement and bonding together of adjacent microvilli through the formation of Ca(2+)-dependent adhesion links between them, forming a brush border.
    GO:0030154    cell differentiation    The process in which relatively unspecialized cells, e.g. embryonic or regenerative cells, acquire specialized structural and/or functional features that characterize the cells, tissues, or organs of the mature organism or some other relatively stable phase of the organism's life history. Differentiation includes the processes involved in commitment of a cell to a specific fate and its subsequent development to the mature state.
    GO:0043623    cellular protein complex assembly    The aggregation, arrangement and bonding together of a set of components to form a protein complex, occurring at the level of an individual cell.
    GO:0050957    equilibrioception    The series of events required for an organism to receive an orientational stimulus, convert it to a molecular signal, and recognize and characterize the signal. Equilibrioception refers to a combination of processes by which an organism can perceive its orientation with respect to gravity. In animals, stimuli come from labyrinth system of the inner ears, monitoring the direction of motion; visual stimuli, with information on orientation and motion; pressure receptors, which tell the organism which body surfaces are in contact with the ground; and proprioceptive cues, which report which parts of the body are in motion.
    GO:0042472    inner ear morphogenesis    The process in which the anatomical structures of the inner ear are generated and organized. The inner ear is the structure in vertebrates that contains the organs of balance and hearing. It consists of soft hollow sensory structures (the membranous labyrinth) containing fluid (endolymph) surrounded by fluid (perilymph) and encased in a bony cavity (the bony labyrinth). It consists of two chambers, the sacculus and utriculus, from which arise the cochlea and semicircular canals respectively.
    GO:0060122    inner ear receptor stereocilium organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of a stereocilium. A stereocilium is an actin-based protrusion from the apical surface of inner ear receptor cells.
    GO:0050885    neuromuscular process controlling balance    Any process that an organism uses to control its balance, the orientation of the organism (or the head of the organism) in relation to the source of gravity. In humans and animals, balance is perceived through visual cues, the labyrinth system of the inner ears and information from skin pressure receptors and muscle and joint receptors.
    GO:0030046    parallel actin filament bundle assembly    Assembly of actin filament bundles in which the filaments are tightly packed (approximately 10-20 nm apart) and oriented with the same polarity.
    GO:0045494    photoreceptor cell maintenance    Any process preventing the degeneration of the photoreceptor, a specialized cell type that is sensitive to light.
    GO:1904106    protein localization to microvillus    A process in which a protein is transported to, or maintained in, a location within a microvillus.
    GO:0032532    regulation of microvillus length    A process that modulates the length of a microvillus.
    GO:0050953    sensory perception of light stimulus    The series of events required for an organism to receive a sensory light stimulus, convert it to a molecular signal, and recognize and characterize the signal. This is a neurological process.
    GO:0007605    sensory perception of sound    The series of events required for an organism to receive an auditory stimulus, convert it to a molecular signal, and recognize and characterize the signal. Sonic stimuli are detected in the form of vibrations and are processed to form a sound.
cellular component
    GO:0045177    apical part of cell    The region of a polarized cell that forms a tip or is distal to a base. For example, in a polarized epithelial cell, the apical region has an exposed surface and lies opposite to the basal lamina that separates the epithelium from other tissue.
    GO:0005903    brush border    The dense covering of microvilli on the apical surface of a epithelial cells in tissues such as the intestine, kidney, and choroid plexus; the microvilli aid absorption by increasing the surface area of the cell.
    GO:0042995    cell projection    A prolongation or process extending from a cell, e.g. a flagellum or axon.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005902    microvillus    Thin cylindrical membrane-covered projections on the surface of an animal cell containing a core bundle of actin filaments. Present in especially large numbers on the absorptive surface of intestinal cells.
    GO:0001917    photoreceptor inner segment    The inner segment of a vertebrate photoreceptor containing mitochondria, ribosomes and membranes where opsin molecules are assembled and passed to be part of the outer segment discs.
    GO:0001750    photoreceptor outer segment    The outer segment of a vertebrate photoreceptor that contains discs of photoreceptive membranes.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0032420    stereocilium    An actin-based protrusion from the apical surface of auditory and vestibular hair cells and of neuromast cells. These protrusions are supported by a bundle of cross-linked actin filaments (an actin cable), oriented such that the plus (barbed) ends are at the tip of the protrusion, capped by a tip complex which bridges to the plasma. Bundles of stereocilia act as mechanosensory organelles.
    GO:0045202    synapse    The junction between a nerve fiber of one neuron and another neuron, muscle fiber or glial cell. As the nerve fiber approaches the synapse it enlarges into a specialized structure, the presynaptic nerve ending, which contains mitochondria and synaptic vesicles. At the tip of the nerve ending is the presynaptic membrane; facing it, and separated from it by a minute cleft (the synaptic cleft) is a specialized area of membrane on the receiving cell, known as the postsynaptic membrane. In response to the arrival of nerve impulses, the presynaptic nerve ending secretes molecules of neurotransmitters into the synaptic cleft. These diffuse across the cleft and transmit the signal to the postsynaptic membrane.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1v6b)

  Sites
(no "Sites" information available for 1v6b)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1v6b)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1v6b
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  USH1C_MOUSE | Q9ES64
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  USH1C_MOUSE | Q9ES64
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
