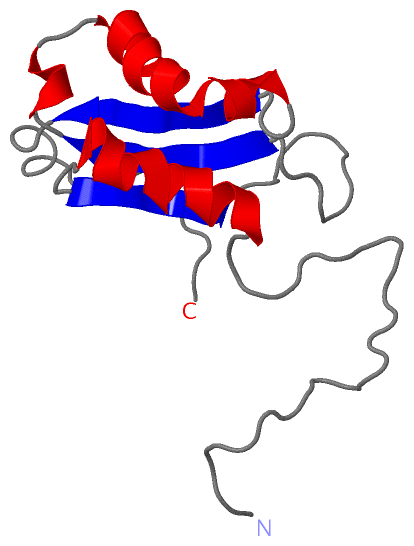

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

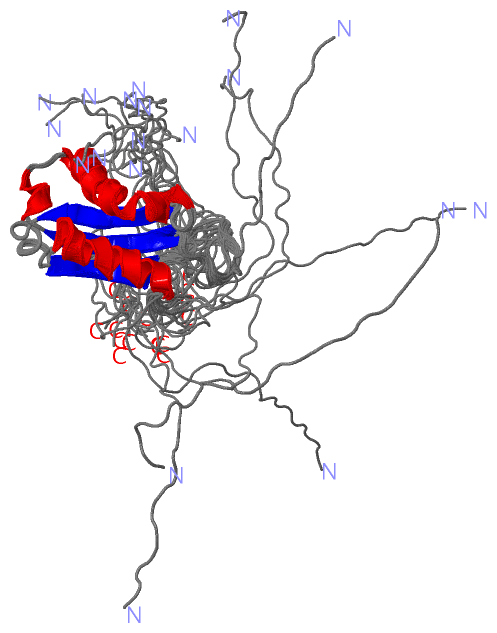

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF BOLA1 PROTEIN FROM MUS MUSCULUS

Authors :  T. Kasai, T. Tomizawa, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  26 Nov 03  (Deposition) - 18 Jan 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Stationary Phase Morphogene, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Kasai, T. Tomizawa, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of Bola1 Protein From Mus Musculus
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RIKEN CDNA 1810037G04
    Chains: A
    Engineered: YES
    Expression System Plasmid: PCR2.1
    Expression System Vector Type: PLASMID
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS
    Synonym: BOLA1

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1V60)

(-) Sites  (0, 0)

(no "Site" information available for 1V60)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1V60)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1V60)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1V60)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1V60)

(-) Exons   (0, 0)

(no "Exon" information available for 1V60)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:123
 aligned with BOLA1_MOUSE | Q9D8S9 from UniProtKB/Swiss-Prot  Length:137

    Alignment length:127
                                    11        21        31        41        51        61        71        81        91       101       111       121
          BOLA1_MOUSE     2 LSARSAQCMVSMATRSCVSRGSAGSAAAGPVEAAIRAKLEQALSPEVLELRNESGGHAVPAGSETHFRVAVVSSRFEGMSPLQRHRLVHEALSEELAGPVHALAIQAKTPAQWRENPQLDISPPCLG 128
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------BolA-1v60A01 A:38-114                                                        -------------- Pfam domains
         Sec.struct. author ......----..................hhhhhhhhhhhhhhh...eeeeee.............eeeeeee.hhhh..hhhhhhhhhhhhhhhhhh....eeeeeee................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v60 A   6 GSSGSS----GMATRSCVSRGSAGSAAAGPVEAAIRAKLEQALSPEVLELRNESGGHAVPAGSETHFRVAVVSSRFEGMSPLQRHRLVHEALSEELAGPVHALAIQAKTPAQWRENPQLDISPPCLG 128
                                 |   -|       21        31        41        51        61        71        81        91       101       111       121
                                11   12
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1V60)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1V60)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: BolA] (5)

(-) Gene Ontology  (4, 4)

NMR Structure(hide GO term definitions)
Chain A   (BOLA1_MOUSE | Q9D8S9)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
