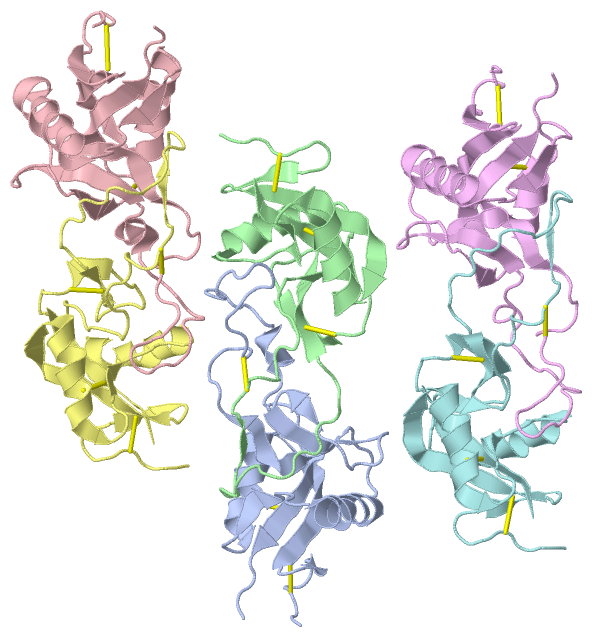

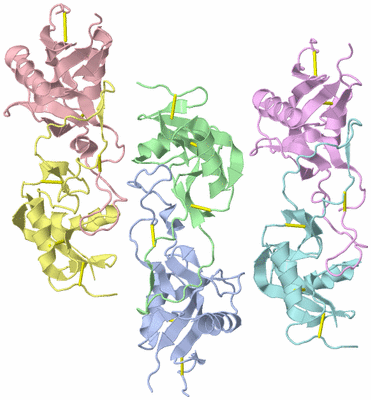

Asymmetric Unit (Jmol Viewer)

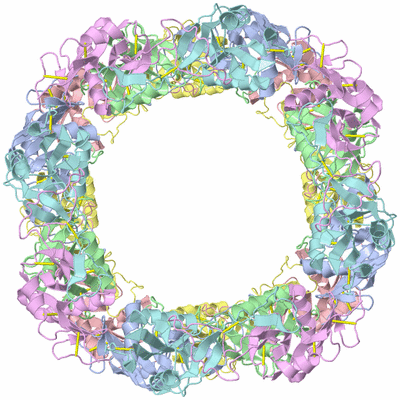

Biological Unit 1 (Jmol Viewer)

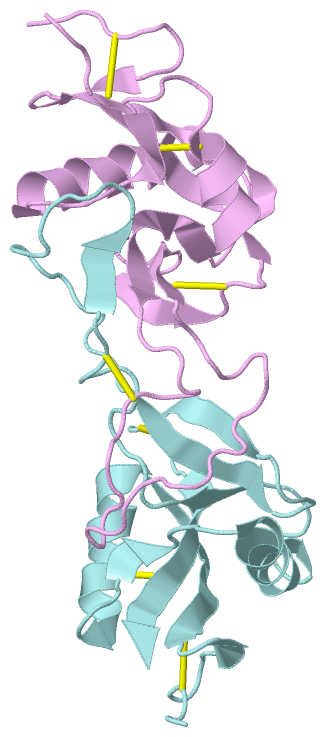

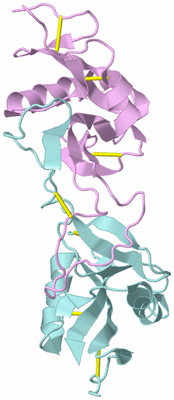

Biological Unit 2 (Jmol Viewer)

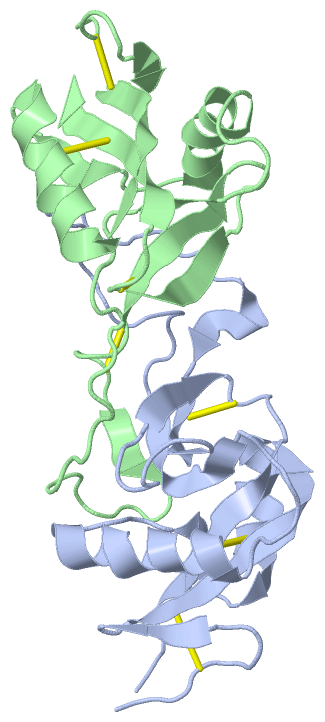

Biological Unit 3 (Jmol Viewer)

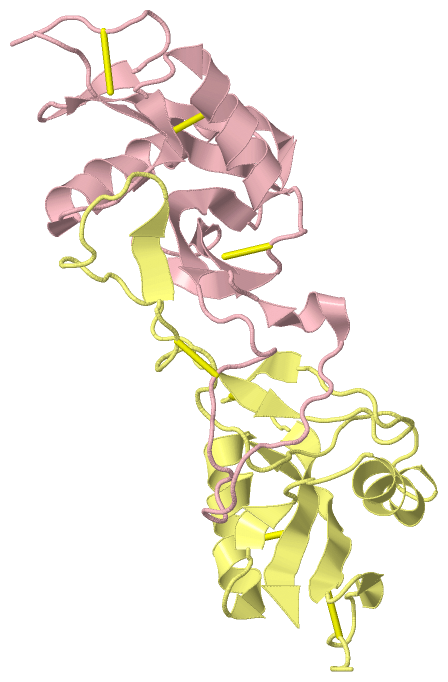

Biological Unit 4 (Jmol Viewer)

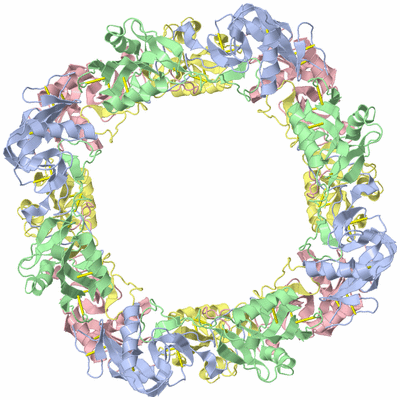

Biological Unit 5 (Jmol Viewer)

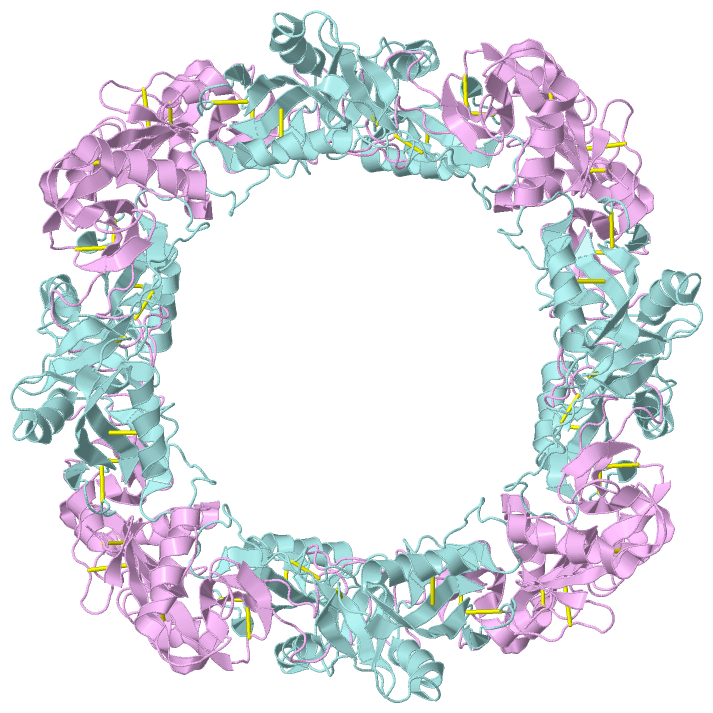

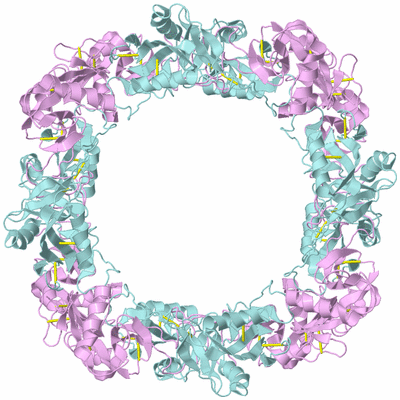

Biological Unit 6 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF A PLATELET AGGLUTINATION FACTOR ISOLATED FROM THE VENOM OF TAIWAN HABU (TRIMERESURUS MUCROSQUAMATUS)

Authors :   K. -F. Huang, T. -P. Ko, A. H. -J. Wang

Date :   14 Nov 03 (Deposition) - 02 Dec 03 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym. Unit : A,B,C,D,E,F
Biol. Unit 1: A,B,C,D,E,F  (4x)
Biol. Unit 2: E,F  (1x)
Biol. Unit 3: A,B  (1x)
Biol. Unit 4: C,D  (1x)
Biol. Unit 5: A,B,C,D  (4x)
Biol. Unit 6: E,F  (8x)

Keywords :   Lectin-Like, Square-Shaped Ring, Blood Clotting (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. F. Huang, T. P. Ko, C. C. Hung, J. Chu, A. H. Wang, S. H. Chiou
Crystal Structure Of A Platelet-Agglutinating Factor Isolated From The Venom Of Taiwan Habu (Trimeresurus Mucrosquamatus).
Biochem. J. V. 378 399 2004
PubMed-ID: 14613481 | Reference-DOI: 10.1042/BJ20031507

Molecule 1 - MUCROCETIN ALPHA CHAIN
	Chains	:	A, C, E
	Organism Scientific	:	PROTOBOTHROPS MUCROSQUAMATUS
	Organism Taxid	:	103944
	Secretion	:	SNAKE VENOM

Molecule 2 - MUCROCETIN BETA CHAIN
	Chains	:	B, D, F
	Organism Scientific	:	PROTOBOTHROPS MUCROSQUAMATUS
	Organism Taxid	:	103944
	Secretion	:	SNAKE VENOM

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	E	F
Biological Unit 1 (4x)	:	A	B	C	D	E	F
Biological Unit 2 (1x)	:					E	F
Biological Unit 3 (1x)	:	A	B
Biological Unit 4 (1x)	:			C	D
Biological Unit 5 (4x)	:	A	B	C	D
Biological Unit 6 (8x)	:					E	F

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1V4L)

(no "Site" information available for 1V4L)

Asymmetric Unit

No.	Residues
1	A:4	-	A:15
2	A:32	-	A:129
3	A:81	-	B:277
4	A:104	-	A:121
5	A:135	-	B:203
6	B:204	-	B:215
7	B:232	-	B:321
8	B:298	-	B:313
9	C:4	-	C:15
10	C:32	-	C:129
11	C:81	-	D:277
12	C:104	-	C:121
13	C:135	-	D:203
14	D:204	-	D:215
15	D:232	-	D:321
16	D:298	-	D:313
17	E:4	-	E:15
18	E:32	-	E:129
19	E:81	-	F:277
20	E:104	-	E:121
21	E:135	-	F:203
22	F:204	-	F:215
23	F:232	-	F:321
24	F:298	-	F:313

(no "Cis Peptide Bond" information available for 1V4L)

(no "SAP(SNP)/Variant" information available for 1V4L)

Asymmetric Unit (2, 12)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOA_PROMU	34-153	3	A:11-130 C:11-130 E:11-130
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOB_PROMU	34-145	3	B:211-322 D:211-322 F:211-322
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOB_PROMU	121-144	3	B:298-321 D:298-321 F:298-321
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOA_PROMU	127-152	3	A:104-129 C:104-129 E:104-129

Biological Unit 1 (2, 48)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOA_PROMU	34-153	12	A:11-130 C:11-130 E:11-130
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOB_PROMU	34-145	12	B:211-322 D:211-322 F:211-322
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOB_PROMU	121-144	12	B:298-321 D:298-321 F:298-321
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOA_PROMU	127-152	12	A:104-129 C:104-129 E:104-129

Biological Unit 2 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOA_PROMU	34-153	1	- - E:11-130
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOB_PROMU	34-145	1	- - F:211-322
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOB_PROMU	121-144	1	- - F:298-321
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOA_PROMU	127-152	1	- - E:104-129

Biological Unit 3 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOA_PROMU	34-153	1	A:11-130 - -
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOB_PROMU	34-145	1	B:211-322 - -
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOB_PROMU	121-144	1	B:298-321 - -
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOA_PROMU	127-152	1	A:104-129 - -

Biological Unit 4 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOA_PROMU	34-153	1	- C:11-130 -
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOB_PROMU	34-145	1	- D:211-322 -
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOB_PROMU	121-144	1	- D:298-321 -
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOA_PROMU	127-152	1	- C:104-129 -

Biological Unit 5 (2, 32)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOA_PROMU	34-153	8	A:11-130 C:11-130 -
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOB_PROMU	34-145	8	B:211-322 D:211-322 -
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOB_PROMU	121-144	8	B:298-321 D:298-321 -
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOA_PROMU	127-152	8	A:104-129 C:104-129 -

Biological Unit 6 (2, 32)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOA_PROMU	34-153	8	- - E:11-130
1	C_TYPE_LECTIN_2	PS50041	C-type lectin domain profile.	SLOB_PROMU	34-145	8	- - F:211-322
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOB_PROMU	121-144	8	- - F:298-321
2	C_TYPE_LECTIN_1	PS00615	C-type lectin domain signature.	SLOA_PROMU	127-152	8	- - E:104-129

(no "Exon" information available for 1V4L)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:135
 aligned with SLOA_PROMU | Q6TPH0 from UniProtKB/Swiss-Prot  Length:158

    Alignment length:135
                                    33        43        53        63        73        83        93       103       113       123       133       143       153
           SLOA_PROMU    24 DFDCIPGWSAYDRYCYQAFSEPKNWEDAESFCEEGVKTSHLVSIESSGEGDFVAQLVAEKIKTSFQYVWIGLRIQNKEQQCRSEWSDASSVNYENLYKQSSKKCYALKKGTELRTWFNVYCGRENPFVCKYTPEC 158
               SCOP domains d1v4la_ A: Snake coagglutinin alpha chain                                                                                               SCOP domains
               CATH domains 1v4lA00 A:1-135 Mannose-Binding Protein A, subunit A                                                                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeeeehhhhhhhhhhhh...eee....hhhhhhhhhhhhhh.......eeeeeeee......................hhhhh..eeeee........eee.....eeeeeee.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----------C_TYPE_LECTIN_2  PDB: A:11-130 UniProt: 34-153                                                                          ----- PROSITE (2)
                PROSITE (3) --------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                PROSITE (4) -------------------------------------------------------------------------------------------------------C_TYPE_LECTIN_1           ------ PROSITE (4)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v4l A   1 DFDCIPGWSAYDRYCYQAFSEPKNWEDAESFCEEGVKTSHLVSIESSGEGDFVAQLVAEKIKTSFQYVWIGLRIQNKEQQCRSEWSDASSVNYENLYKQSSKKCYALKKGTELRTWFNVYCGRENPFVCKYTPEC 135
                                    10        20        30        40        50        60        70        80        90       100       110       120       130

Chain B from PDB  Type:PROTEIN  Length:125
 aligned with SLOB_PROMU | Q6TPG9 from UniProtKB/Swiss-Prot  Length:148

    Alignment length:125
                                    33        43        53        63        73        83        93       103       113       123       133       143
           SLOB_PROMU    24 GFCCPLGWSSYDEHCYQVFQQKINWEDAEKFCTQQHRGSHLVSFHSSEEVDFVVSKTSPILKHDFVWMGLSNVWNECAKEWSDGTKLDYKAWSGQSDCITSKTTDNQWLSMDCSSKRYVVCKFQA 148
               SCOP domains d1v4lb_ B: Snake coagglutinin beta chain                                                                                      SCOP domains
               CATH domains 1v4lB00 B:201-325 Mannose-Binding Protein A, subunit A                                                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeeeehhhhhhhhhhhhh..eee....hhhhhhhhhhhhh......eee...........eee...............eeeeee.....eeeee....eeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ----------C_TYPE_LECTIN_2  PDB: B:211-322 UniProt: 34-145                                                                 --- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) -------------------------------------------------------------------------------------------------C_TYPE_LECTIN_1         ---- PROSITE (3)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v4l B 201 GFCCPLGWSSYDEHCYQVFQQKMNWEDAEKFCTQQHRGSHLVSFHSSEEVDFVVSKTSPILKHDFVWMGLSNVWNECAKEWSDGTKLDYKAWSGQSDCITSKTTDNQWLSMDCSSKRYVVCKFQA 325
                                   210       220       230       240       250       260       270       280       290       300       310       320

Chain C from PDB  Type:PROTEIN  Length:135
 aligned with SLOA_PROMU | Q6TPH0 from UniProtKB/Swiss-Prot  Length:158

    Alignment length:135
                                    33        43        53        63        73        83        93       103       113       123       133       143       153
           SLOA_PROMU    24 DFDCIPGWSAYDRYCYQAFSEPKNWEDAESFCEEGVKTSHLVSIESSGEGDFVAQLVAEKIKTSFQYVWIGLRIQNKEQQCRSEWSDASSVNYENLYKQSSKKCYALKKGTELRTWFNVYCGRENPFVCKYTPEC 158
               SCOP domains d1v4lc_ C: Snake coagglutinin alpha chain                                                                                               SCOP domains
               CATH domains 1v4lC00 C:1-135 Mannose-Binding Protein A, subunit A                                                                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeeeehhhhhhhhhhhh...eee....hhhhhhhhhhhhhhhh.....eeeeeeee......................hhhhh..eeeee.......eeee.....eeeeeee.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----------C_TYPE_LECTIN_2  PDB: C:11-130 UniProt: 34-153                                                                          ----- PROSITE (2)
                PROSITE (3) --------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                PROSITE (4) -------------------------------------------------------------------------------------------------------C_TYPE_LECTIN_1           ------ PROSITE (4)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v4l C   1 DFDCIPGWSAYDRYCYQAFSEPKNWEDAESFCEEGVKTSHLVSIESSGEGDFVAQLVAEKIKTSFQYVWIGLRIQNKEQQCRSEWSDASSVNYENLYKQSSKKCYALKKGTELRTWFNVYCGRENPFVCKYTPEC 135
                                    10        20        30        40        50        60        70        80        90       100       110       120       130

Chain D from PDB  Type:PROTEIN  Length:125
 aligned with SLOB_PROMU | Q6TPG9 from UniProtKB/Swiss-Prot  Length:148

    Alignment length:125
                                    33        43        53        63        73        83        93       103       113       123       133       143
           SLOB_PROMU    24 GFCCPLGWSSYDEHCYQVFQQKINWEDAEKFCTQQHRGSHLVSFHSSEEVDFVVSKTSPILKHDFVWMGLSNVWNECAKEWSDGTKLDYKAWSGQSDCITSKTTDNQWLSMDCSSKRYVVCKFQA 148
               SCOP domains d1v4ld_ D: Snake coagglutinin beta chain                                                                                      SCOP domains
               CATH domains 1v4lD00 D:201-325 Mannose-Binding Protein A, subunit A                                                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeeeehhhhhhhhhhhhh...ee.....hhhhhhhhhhhh....................eee...............eee..........eee....eeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ----------C_TYPE_LECTIN_2  PDB: D:211-322 UniProt: 34-145                                                                 --- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) -------------------------------------------------------------------------------------------------C_TYPE_LECTIN_1         ---- PROSITE (3)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v4l D 201 GFCCPLGWSSYDEHCYQVFQQKMNWEDAEKFCTQQHRGSHLVSFHSSEEVDFVVSKTSPILKHDFVWMGLSNVWNECAKEWSDGTKLDYKAWSGQSDCITSKTTDNQWLSMDCSSKRYVVCKFQA 325
                                   210       220       230       240       250       260       270       280       290       300       310       320

Chain E from PDB  Type:PROTEIN  Length:135
 aligned with SLOA_PROMU | Q6TPH0 from UniProtKB/Swiss-Prot  Length:158

    Alignment length:135
                                    33        43        53        63        73        83        93       103       113       123       133       143       153
           SLOA_PROMU    24 DFDCIPGWSAYDRYCYQAFSEPKNWEDAESFCEEGVKTSHLVSIESSGEGDFVAQLVAEKIKTSFQYVWIGLRIQNKEQQCRSEWSDASSVNYENLYKQSSKKCYALKKGTELRTWFNVYCGRENPFVCKYTPEC 158
               SCOP domains d1v4le_ E: Snake coagglutinin alpha chain                                                                                               SCOP domains
               CATH domains 1v4lE00 E:1-135 Mannose-Binding Protein A, subunit A                                                                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeeeeehhhhhhhh......eee....hhhhhhhhhhhhhhhh.....eeeeeeee.............................eeeee.......eeee....eeeeeeee.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----------C_TYPE_LECTIN_2  PDB: E:11-130 UniProt: 34-153                                                                          ----- PROSITE (2)
                PROSITE (3) --------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                PROSITE (4) -------------------------------------------------------------------------------------------------------C_TYPE_LECTIN_1           ------ PROSITE (4)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v4l E   1 DFDCIPGWSAYDRYCYQAFSEPKNWEDAESFCEEGVKTSHLVSIESSGEGDFVAQLVAEKIKTSFQYVWIGLRIQNKEQQCRSEWSDASSVNYENLYKQSSKKCYALKKGTELRTWFNVYCGRENPFVCKYTPEC 135
                                    10        20        30        40        50        60        70        80        90       100       110       120       130

Chain F from PDB  Type:PROTEIN  Length:125
 aligned with SLOB_PROMU | Q6TPG9 from UniProtKB/Swiss-Prot  Length:148

    Alignment length:125
                                    33        43        53        63        73        83        93       103       113       123       133       143
           SLOB_PROMU    24 GFCCPLGWSSYDEHCYQVFQQKINWEDAEKFCTQQHRGSHLVSFHSSEEVDFVVSKTSPILKHDFVWMGLSNVWNECAKEWSDGTKLDYKAWSGQSDCITSKTTDNQWLSMDCSSKRYVVCKFQA 148
               SCOP domains d1v4lf_ F: Snake coagglutinin beta chain                                                                                      SCOP domains
               CATH domains 1v4lF00 F:201-325 Mannose-Binding Protein A, subunit A                                                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeeeehhhhhhhhhhhhh...ee....hhhhhhhhhhhhh......eee...........eee...............eeeeee.....eeeee....eeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ----------C_TYPE_LECTIN_2  PDB: F:211-322 UniProt: 34-145                                                                 --- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) -------------------------------------------------------------------------------------------------C_TYPE_LECTIN_1         ---- PROSITE (3)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v4l F 201 GFCCPLGWSSYDEHCYQVFQQKMNWEDAEKFCTQQHRGSHLVSFHSSEEVDFVVSKTSPILKHDFVWMGLSNVWNECAKEWSDGTKLDYKAWSGQSDCITSKTTDNQWLSMDCSSKRYVVCKFQA 325
                                   210       220       230       240       250       260       270       280       290       300       310       320

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Mannose-Binding Protein A; Chain A (180)

Homologous Superfamily: Mannose-Binding Protein A, subunit A (180)

Protobothrops mucrosquamatus. Organism_taxid: 103944. (1)

1a	1v4lA00	A:1-135
1b	1v4lC00	C:1-135
1c	1v4lE00	E:1-135
1d	1v4lB00	B:201-325
1e	1v4lD00	D:201-325
1f	1v4lF00	F:201-325

(no "Pfam Domain" information available for 1V4L)

Asymmetric Unit(hide GO term definitions)

Chain A,C,E (SLOA_PROMU | Q6TPH0)

cellular component
	GO:0005576		extracellular region		The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Chain B,D,F (SLOB_PROMU | Q6TPG9)

cellular component
	GO:0005576		extracellular region		The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1v4l)

	Sites
(no "Sites" information available for 1v4l)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1v4l)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1v4l
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	SLOA_PROMU \| Q6TPH0
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	SLOB_PROMU \| Q6TPG9
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	SLOA_PROMU \| Q6TPH0
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	SLOB_PROMU \| Q6TPG9
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1V4L)

(no "Related Entries Specified in the PDB File" available for 1V4L)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (24, 24)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 12)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 6)

CATH Domains (1, 6)

Pfam Domains (0, 0)

Gene Ontology (1, 2)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
