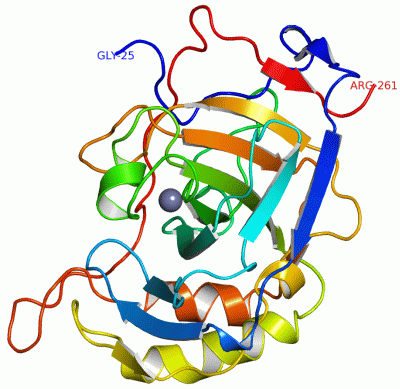

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

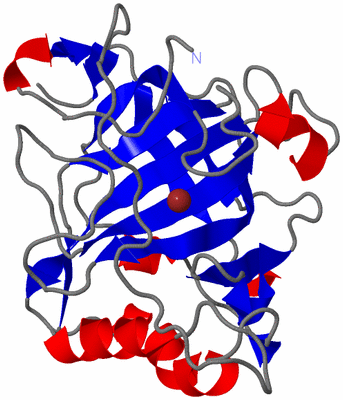

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

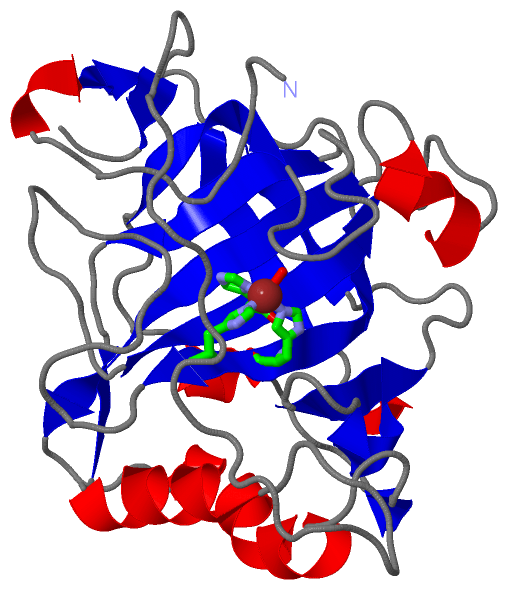

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  MURINE CARBONIC ANHYDRASE V

Authors :  P. A. Boriack-Sjodin, D. W. Christianson
Date :  03 Jul 96  (Deposition) - 11 Jan 97  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Lyase, Zinc, Mitochondrion, Transit Peptide (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. W. Heck, P. A. Boriack-Sjodin, M. Qian, C. Tu, D. W. Christianson, P. J. Laipis, D. N. Silverman
Structure-Based Design Of An Intramolecular Proton Transfer Site In Murine Carbonic Anhydrase V.
Biochemistry V. 35 11605 1996
PubMed-ID: 8794740  |  Reference-DOI: 10.1021/BI9608018
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CARBONIC ANHYDRASE V
    Cell Line: BL21
    Chains: A
    EC Number: 4.2.1.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: MCA5C Y64H F65A
    Expression System Plasmid: PET31 T7
    Expression System Strain: BL21 (DE3) PLYSS
    Expression System Taxid: 562
    Gene: MCA5C Y64H F65A
    Mutation: YES
    Organ: LIVER
    Organelle: MITOCHONDRIA
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: MURINE CARBONIC ANHYDRASE V
    Strain: BALB/CJ
    Synonym: CARBONATE DEHYDROGENASE (MCAVC)

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1ZN1Ligand/IonZINC ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:94 , HIS A:96 , HIS A:119 , HOH A:281BINDING SITE FOR RESIDUE ZN A 280
2ZINUNKNOWNZN A:280CATALYTICALLY ACTIVE METAL ION.

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1URT)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Ser A:29 -Pro A:30
2Pro A:201 -Pro A:202

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1URT)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ALPHA_CA_1PS00162 Alpha-carbonic anhydrases signature.CAH5A_MOUSE135-151  1A:105-121

(-) Exons   (0, 0)

(no "Exon" information available for 1URT)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:237
 aligned with CAH5A_MOUSE | P23589 from UniProtKB/Swiss-Prot  Length:299

    Alignment length:237
                                    64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284
          CAH5A_MOUSE    55 GTRQSPINIQWKDSVYDPQLAPLRVSYDAASCRYLWNTGYFFQVEFDDSCEDSGISGGPLGNHYRLKQFHFHWGATDEWGSEHAVDGHTYPAELHLVHWNSTKYENYKKASVGENGLAVIGVFLKLGAHHQALQKLVDVLPEVRHKDTQVAMGPFDPSCLLPACRDYWTYPGSLTTPPLAESVTWIVQKTPVEVSPSQLSTFRTLLFSGRGEEEDVMVNNYRPLQPLRDRKLRSSFR 291
               SCOP domains d1urta_ A: Carbonic anhydrase                                                                                                                                                                                                                 SCOP domains
               CATH domains 1urtA00 A:25-261 Carbonic Anhydrase II                                                                                                                                                                                                        CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhheee....eeeeee..hhheeeeee....eeeee.......eeeee......eeeeeeeee..................eeeeeeee.......hhhhhh....eeeeeeeeee....hhhhhhhhhhhhh.....eee.....hhhh......eeeeee..........eeeeee...eee.hhhhhhhhh...........................eee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------ALPHA_CA_1       -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1urt A  25 GTRQSPINIQWKDSVYDPQLAPLRVSYDAASCRYLWNTGHAFQVEFDDSCEDSGISGGPLGNHYRLKQFHFHWGATDEWGSEHAVDGHTYPAELHLVHWNSTKYENYKKASVGENGLAVIGVFLKLGAHHQALQKLVDVLPEVRHKDTQVAMGDFDPSCLMPACRDYWTYPGSLTTPPLAESVTWIVQKTPVEVSPSQLSMFRTLLFSGRGEEEDVMVNNYRPLQPLRDRKLRSSFR 261
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1URT)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CAH5A_MOUSE | P23589)
molecular function
    GO:0004089    carbonate dehydratase activity    Catalysis of the reaction: H2CO3 = CO2 + H2O.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0006094    gluconeogenesis    The formation of glucose from noncarbohydrate precursors, such as pyruvate, amino acids and glycerol.
    GO:0006730    one-carbon metabolic process    The chemical reactions and pathways involving the transfer of one-carbon units in various oxidation states.
cellular component
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    ZIN  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Pro A:201 - Pro A:202   [ RasMol ]
    Ser A:29 - Pro A:30   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1urt
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CAH5A_MOUSE | P23589
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  4.2.1.1
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CAH5A_MOUSE | P23589
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CAH5A_MOUSE | P23589: 1dmx 1dmy 1keq
