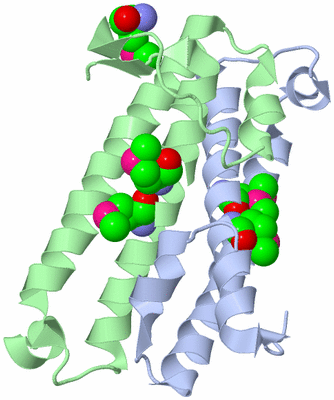

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE QUORUM-SENSING PROTEIN TRAM FROM AGROBACTERIUM TUMEFACIENS

Authors :  A. Vannini, S. Di Marco
Date :  30 Sep 03  (Deposition) - 25 May 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Transcription Repressor, Negative Regulator, Quorum-Sensing, Conjugation, Transcription Regulation, Repressor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Vannini, C. Volpari, S. Di Marco
Crystal Structure Of The Quorum-Sensing Protein Tram And Its Interaction With The Transcriptional Regulator Trar
J. Biol. Chem. V. 279 24291 2004
PubMed-ID: 15044488  |  Reference-DOI: 10.1074/JBC.M401855200

(-) Compounds

Molecule 1 - TRANSCRIPTIONAL REPRESSOR TRAM
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PT7.7
    Expression System Strain: B834
    Expression System Taxid: 562
    Organism Scientific: AGROBACTERIUM TUMEFACIENS
    Organism Taxid: 358
    Other Details: SYNTHETIC GENE
    Synonym: TRAM

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 5)

Asymmetric/Biological Unit (1, 5)
No.NameCountTypeFull Name
1MSE5Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1UPG)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1UPG)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1UPG)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UPG)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1UPG)

(-) Exons   (0, 0)

(no "Exon" information available for 1UPG)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:91
 aligned with TRAM_RHIRD | Q57471 from UniProtKB/Swiss-Prot  Length:102

    Alignment length:91
                                    21        31        41        51        61        71        81        91       101
           TRAM_RHIRD    12 VELRPLIGLTRGLPPTDLETITIDAIRTHRRLVEKADELFQALPETYKTGQACGGPQHIRYIEASIEMHAQMSALNTLYSILGFIPKVVVN 102
               SCOP domains d1upga_ A: Transcriptional repressor TraM                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) ...hhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh--...... Sec.struct. author (1)
     Sec.struct. author (2) ----------------------------------------------------------------------------------eee------ Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------- Transcript
                 1upg A  12 VELRPLIGLTRGLPPTDLETITIDAIRTHRRLVEKADELFQALPETYKTGQACGGPQHIRYIEASIEmHAQmSALNTLYSILGFIPKVVVN 102
                                    21        31        41        51        61        71       |81 |      91       101
                                                                                              79-MSE
                                                                                                  83-MSE


Chain B from PDB  Type:PROTEIN  Length:100
 aligned with TRAM_RHIRD | Q57471 from UniProtKB/Swiss-Prot  Length:102

    Alignment length:100
                                    10        20        30        40        50        60        70        80        90       100
           TRAM_RHIRD     1 MELEDANVTKKVELRPLIGLTRGLPPTDLETITIDAIRTHRRLVEKADELFQALPETYKTGQACGGPQHIRYIEASIEMHAQMSALNTLYSILGFIPKVV 100
               SCOP domains d1upgb_ B: Transcriptional repressor TraM                                                            SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) Prok-TraM-1upgB01 B:1-99                                                                           - Pfam domains (1)
           Pfam domains (2) Prok-TraM-1upgB02 B:1-99                                                                           - Pfam domains (2)
         Sec.struct. author ..eee.........hhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.ee... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------- Transcript
                 1upg B   1 mELEDANVTKKVELRPLIGLTRGLPPTDLETITIDAIRTHRRLVEKADELFQALPETYKTGQACGGPQHIRYIEASIEmHAQmSALNTLYSILGFIPKVV 100
                            |       10        20        30        40        50        60        70        80  |     90       100
                            1-MSE                                                                        79-MSE
                                                                                                             83-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1UPG)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: Prok-TraM] (3)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (TRAM_RHIRD | Q57471)
biological process
    GO:0000746    conjugation    The union or introduction of genetic information from compatible mating types that results in a genetically different individual. Conjugation requires direct cellular contact between the organisms.
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1upg)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1upg)


(-) Still Images

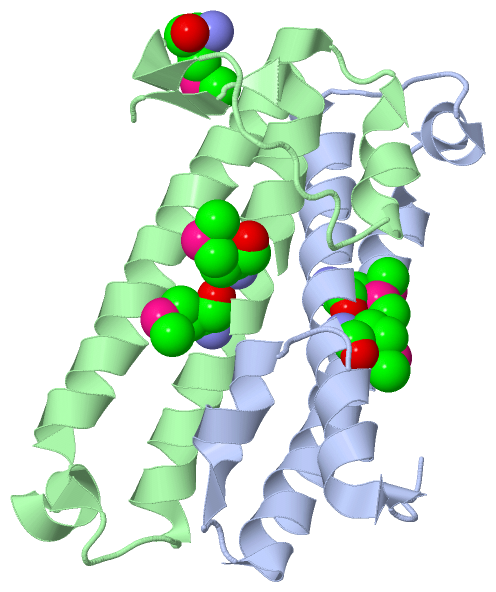

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1upg
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TRAM_RHIRD | Q57471
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TRAM_RHIRD | Q57471
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TRAM_RHIRD | Q57471: 1rfy 1us6

(-) Related Entries Specified in the PDB File

1us6 CRYSTAL STRUCTURE OF THE QUORUM-SENSING PROTEIN TRAM FROM AGROBACTERIUM TUMEFACIENS AT 1.65 ANG. RESOLUTION
