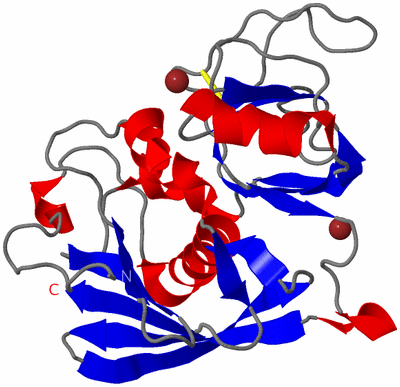

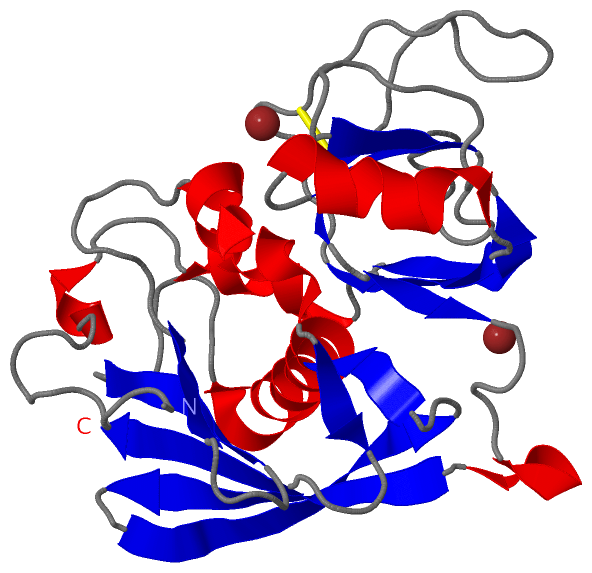

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

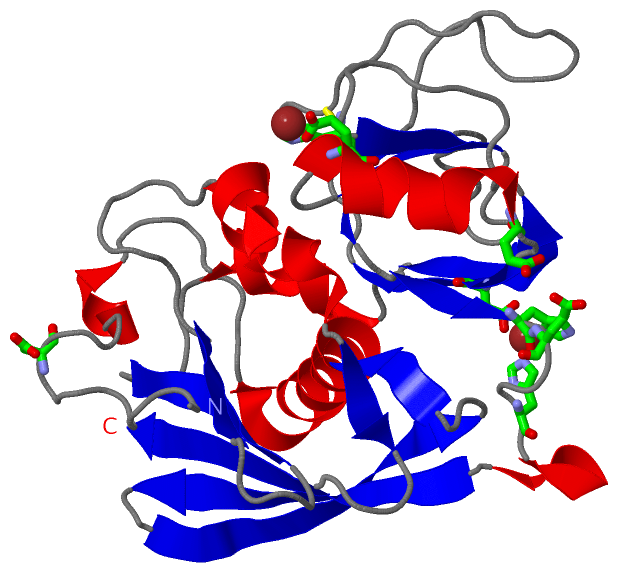

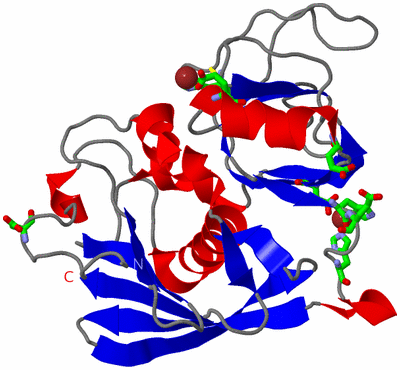

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  IDENTIFICATION OF A SECONDARY ZINC-BINDING SITE IN STAPHYLOCOCCAL ENTEROTOXIN C2: IMPLICATIONS FOR SUPERANTIGEN RECOGNITION

Authors :  A. C. Papageorgiou, M. D. Baker, J. D. Mcleod, S. Goda, D. M. Sansom, H. S. Tranter, K. R. Acharya
Date :  15 Sep 03  (Deposition) - 13 Nov 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Superantigen, Toxin, Enterotoxin, Zinc-Binding Site (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. C. Papageorgiou, M. D. Baker, J. D. Mcleod, S. Goda, C. N. Manzotti, D. M. Sanson, H. S. Tranter, K. R. Acharya
Identification Of A Secondary Zinc-Binding Site In Staphylococcal Enterotoxin C2: Implications For Superantigen Recognition
J. Biol. Chem. V. 279 1297 2004
PubMed-ID: 14559915  |  Reference-DOI: 10.1074/JBC.M307333200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ENTEROTOXIN TYPE C-2
    Chains: A
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 1280
    Synonym: STAPHYLOCOCCAL ENTEROTOXIN C2, SEC2

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1ZN2Ligand/IonZINC ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:9 , ASP A:83 , HIS A:118 , HIS A:122BINDING SITE FOR RESIDUE ZN A1237
2AC2SOFTWAREHIS A:47 , GLU A:71 , GLU A:80 , GLU A:119BINDING SITE FOR RESIDUE ZN A1238

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:93 -A:110

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1UNS)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UNS)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1STAPH_STREP_TOXIN_1PS00277 Staphylococcal enterotoxin/Streptococcal pyrogenic exotoxin signature 1.ENTC2_STAAU139-148  1A:112-121
2STAPH_STREP_TOXIN_2PS00278 Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.ENTC2_STAAU178-201  1A:151-174

(-) Exons   (0, 0)

(no "Exon" information available for 1UNS)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:236
 aligned with ENTC2_STAAU | P34071 from UniProtKB/Swiss-Prot  Length:266

    Alignment length:236
                                    37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257
          ENTC2_STAAU    28 ESQPDPTPDELHKSSEFTGTMGNMKYLYDDHYVSATKVMSVDKFLAHDLIYNISDKKLKNYDKVKTELLNEDLAKKYKDEVVDVYGSNYYVNCYFSSKDNVGKVTGGKTCMYGGITKHEGNHFDNGNLQNVLIRVYENKRNTISFEVQTDKKSVTAQELDIKARNFLINKKNLYEFNSSPYETGYIKFIENNGNTFWYDMMPAPGDKFDQSKYLMMYNDNKTVDSKSVKIEVHLTT 263
               SCOP domains d1unsa1 A:1-120 Staphylococcal enterotoxin C2, SEC2                                                                     d1unsa2 A:121-236 Staphylococcal enterotoxin C2, SEC2                                                                SCOP domains
               CATH domains 1unsA02 A:1-31,A:120-236       1unsA01 A:32-119  [code=2.40.50.110, no name defined]                                   1unsA02 A:1-31,A:120-236  [code=3.10.20.120, no name defined]                                                         CATH domains
               Pfam domains ----------------------Stap_Strp_toxin-1unsA02 A:23-118                                                                ----------Stap_Strp_tox_C-1unsA01 A:129-235                                                                          - Pfam domains
         Sec.struct. author ............hhhh....hhhhhhhhh...eeeeee.........eeee............eeee..hhhhhhhhhh..eeeee......................eeee..eee.....hhhhh.eeeeeeeee..eeeeeeeeee...eeehhhhhhhhhhhhhhhhh..........eeeeeee.....eeeee.........hhhhhhhhhhhh.eee....eeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------STAPH_STRE-----------------------------STAPH_STREP_TOXIN_2     -------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uns A   1 ESQPDPTPDELHKSSEFTGTMGNMKYLYDDHYVSATKVMSVDKFLAHDLIYNISDKKLKNYDKVKTELLNEDLAKKYKDEVVDVYGSNYYVNCYFSSKDNVGKVTGGKTCMYGGITKHEGNHFDNGNLQNVLIRVYENKRNTISFEVQTDKKSVTAQELDIKARNFLINKKNLYEFNSSPYETGYIKFIENNGNTFWYDMMPAPGDKFDQSKYLMMYNDNKTVDSKSVKIEVHLTT 236
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Clan: Ant-toxin_C (48)
(-)
Clan: no clan defined [family: Stap_Strp_toxin] (39)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (ENTC2_STAAU | P34071)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1uns)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1uns
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ENTC2_STAAU | P34071
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ENTC2_STAAU | P34071
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ENTC2_STAAU | P34071: 1cqv 1i4p 1i4q 1i4r 1i4x 1se2 1ste

(-) Related Entries Specified in the PDB File

1cqv CRYSTAL STRUCTURE OF STAPHYLOCOCCAL ENTEROTOXIN C2 AT 100K
1i4p CRYSTAL STRUCTURE OF STAPHYLOCOCCAL ENTEROTOXIN C2 AT 100KCRYSTALLIZED AT PH 5.5
1i4q CRYSTAL STRUCTURE OF STAPHYLOCOCCAL ENTEROTOXIN C2 AT 100KCRYSTALLIZED AT PH 6.0
1i4r CRYSTAL STRUCTURE OF STAPHYLOCOCCAL ENTEROTOXIN C2 AT 100KCRYSTALLIZED AT PH 6.5
1i4x STAPHYLOCOCCAL ENTEROTOXIN C2, MONOCLINIC FORM CRYSTALLIZEDAT PH 8.0
1se2 STAPHYLOCOCCAL ENTEROTOXIN C2, MONOCLINIC FORM
1ste STAPHYLOCOCCAL ENTEROTOXIN C2 FROM STAPHYLOCOCCUS AUREUS
