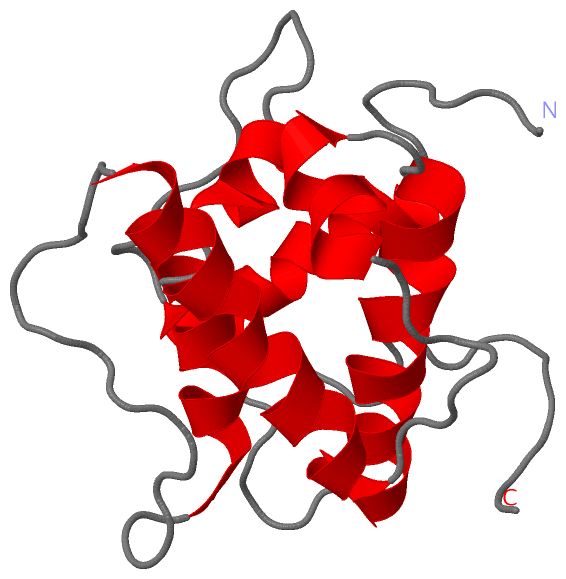

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

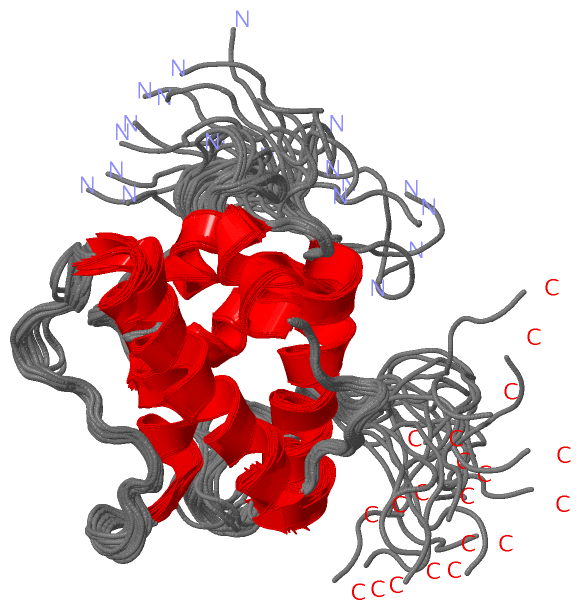

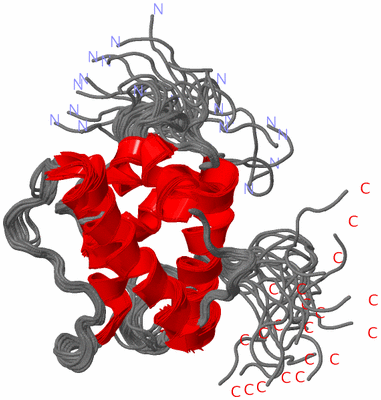

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE CH DOMAIN FROM MOUSE TRANGELIN

Authors :  T. Tomizawa, S. Koshiba, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  08 Aug 03  (Deposition) - 14 Sep 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Transgelin, Ch Domain, Actin Binding, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Tomizawa, S. Koshiba, T. Kigawa, S. Yokoyama
Solution Structure Of The Ch Domain From Mouse Trangelin
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TRANSGELIN
    Chains: A
    Engineered: YES
    Expression System Plasmid: P020520-56
    Expression System Vector Type: PLASMID
    Fragment: CALPONIN HOMOLOGY (CH) DOMAIN
    Gene: RIKEN CDNA 0610041C11
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS
    Synonym: SMOOTH MUSCLE PROTEIN 22-ALPHA, SM22-ALPHA, ACTIN- ASSOCIATED PROTEIN P27

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1UJO)

(-) Sites  (0, 0)

(no "Site" information available for 1UJO)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1UJO)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1UJO)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UJO)

(-) PROSITE Motifs  (3, 2)

NMR Structure (3, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CHPS50021 Calponin homology domain profile.TAGL_MOUSE24-137  1A:8-121
2CALPONIN_1PS01052 Calponin-like repeat signature.TAGL_MOUSE175-194  1A:140-144
3CALPONIN_2PS51122 Calponin-like repeat profile.TAGL_MOUSE175-200  1A:140-144

(-) Exons   (0, 0)

(no "Exon" information available for 1UJO)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:144
 aligned with TAGL_MOUSE | P37804 from UniProtKB/Swiss-Prot  Length:201

    Alignment length:180
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184
           TAGL_MOUSE     5 GPSYGMSREVQSKIEKKYDEELEERLVEWIVVQCGPDVGRPDRGRLGFQVWLKNGVILSKLVNSLYPEGSKPVKVPENPPSMVFKQMEQVAQFLKAAEDYGVIKTDMFQTVDLYEGKDMAAVQRTLMALGSLAVTKNDGNYRGDPNWFMKKAQEHKRDFTDSQLQEGKHVIGLQMGSNRG 184
               SCOP domains d 1ujoa           _ A: Transgelin                                                                                                                                                    SCOP domains
               CATH domains 1 ujoA0           0 A:1-144 Actin-binding Protein, T-fimbrin; domain 1                                                                                                               CATH domains
               Pfam domains ----------------------CH-1ujoA01 A:11-121                                                                                            ----------------------------------------------- Pfam domains
         Sec.struct. author .-.....-----------..hhhhhhhhhhhhhh.............hhhhhh..hhhhhhhhhhh...............hhhhhhhhhhhhhhhhhhh........hhhhhhh...hhhhhhhhhhhhhhhhhh...............------------------------..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) -------------------CH  PDB: A:8-121 UniProt: 24-137                                                                                  -------------------------------------CALPONIN_2 PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------CALPONIN_1 PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1ujo A   1 G-SSGSS-----------GEELEERLVEWIVVQCGPDVGRPDRGRLGFQVWLKNGVILSKLVNSLYPEGSKPVKVPENPPSMVFKQMEQVAQFLKAAEDYGVIKTDMFQTVDLYEGKDMAAVQRTLMALGSLAVTKNDGNYRGDPNWFMKS------------------------GPSSG 144
                            | |   |  -        |8        18        28        38        48        58        68        78        88        98       108       118       128       138|        -         -     | 144
                            | 2   6           7                                                                                                                                 139                      140
                            1
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: CH (43)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (TAGL_MOUSE | P37804)
biological process
    GO:0007010    cytoskeleton organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of cytoskeletal structures.
    GO:0030855    epithelial cell differentiation    The process in which a relatively unspecialized cell acquires specialized features of an epithelial cell, any of the cells making up an epithelium.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ujo)

  Sites
(no "Sites" information available for 1ujo)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ujo)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
