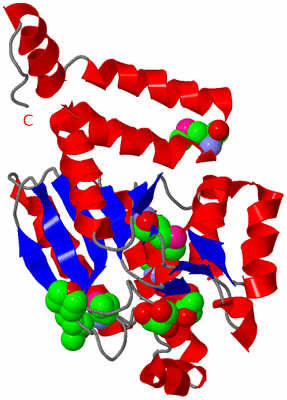

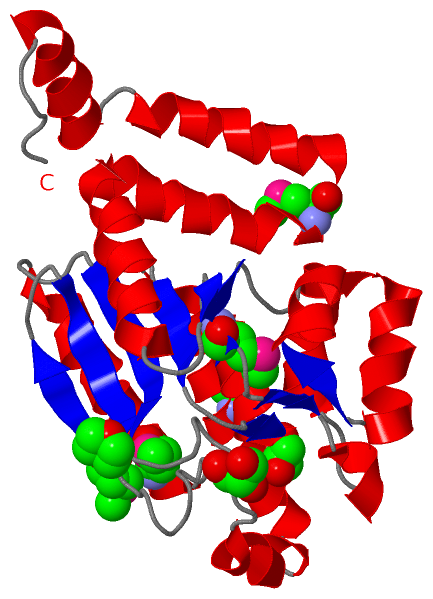

Asymmetric Unit (Jmol Viewer)

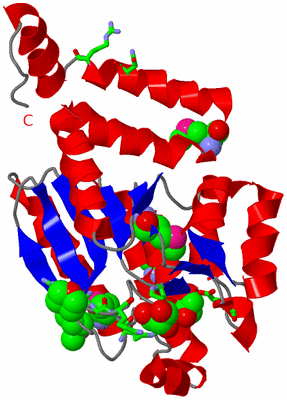

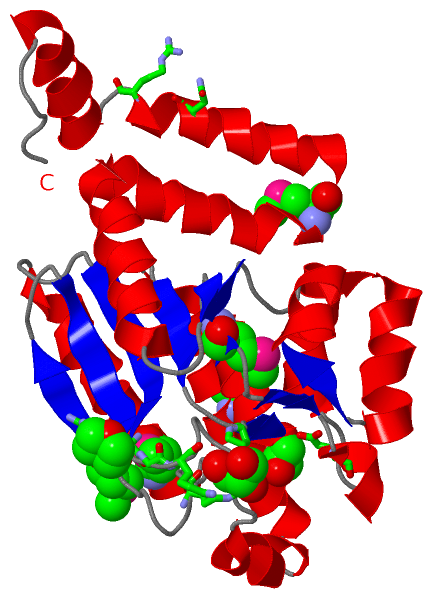

Asym. Unit - sites (Jmol Viewer)

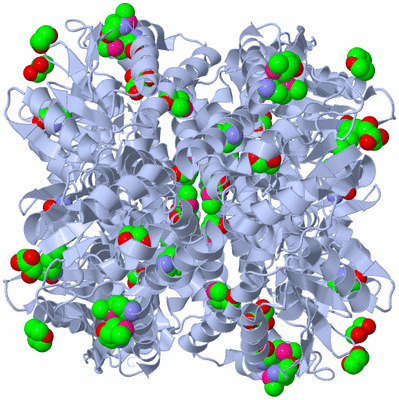

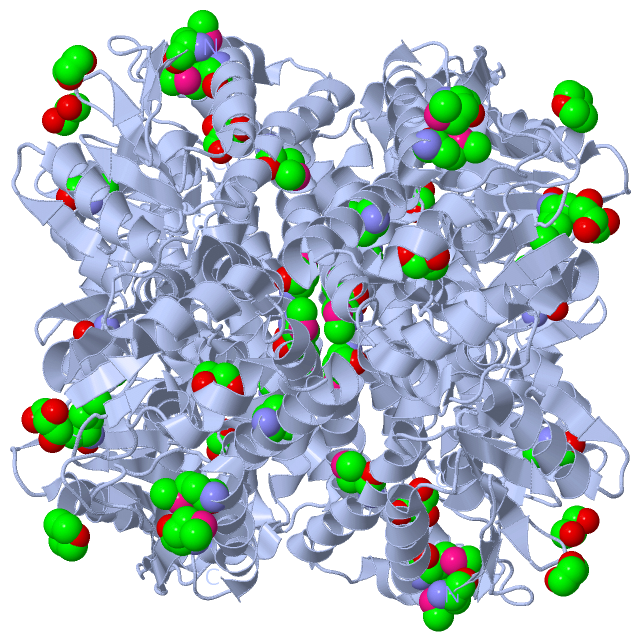

Biological Unit 1 (Jmol Viewer)

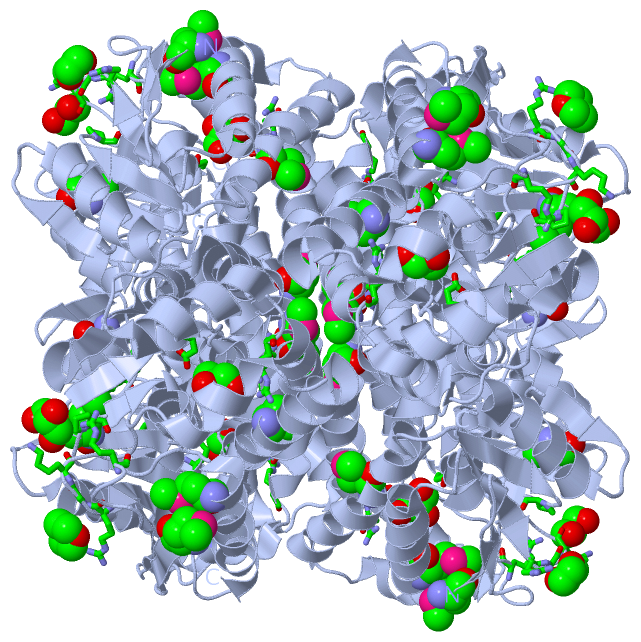

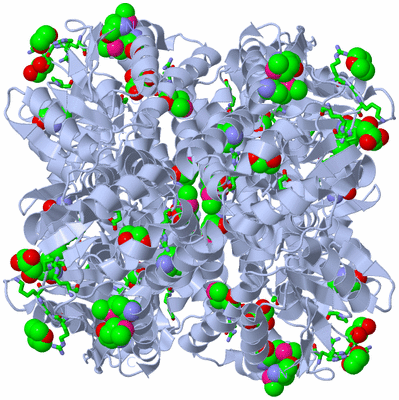

Biol. Unit 1 - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF ENOYL-COA HYDRATASE FROM THERMUS THERMOPHILUS HB8

Authors :   B. Bagautdinov, S. Kuramitsu, S. Yokoyama, M. Miyano, T. H. Tahirov, Ri Structural Genomics/Proteomics Initiative (Rsgi)

Date :   24 Jul 03 (Deposition) - 05 Aug 03 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.85

Chains :   Asym. Unit : A
Biol. Unit 1: A  (6x)

Keywords :   Lyase, Beta-Oxidation, Crotonase, Coa, Riken Structural Genomics/Proteomics Initiative, Rsgi, Structural Genomics (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   B. Bagautdinov, S. Kuramitsu, S. Yokoyama, M. Miyano, T. H. Tahirov
Crystal Structure Of Enoyl-Coa Hydratase From Thermus Thermophilus Hb8
To Be Published
PubMed: search

Molecule 1 - ENOYL-COA HYDRATASE
	Chains	:	A
	EC Number	:	4.2.1.17
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PET11A
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	THERMUS THERMOPHILUS
	Organism Taxid	:	274

		1
Asymmetric Unit	:	A
Biological Unit 1 (6x)	:	A

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 8)

No.	Name	Count	Type	Full Name
1	DIO	1	Ligand/Ion	1,4-DIETHYLENE DIOXIDE
2	GOL	2	Ligand/Ion	GLYCEROL
3	MSE	5	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 1 (3, 48)

No.	Name	Count	Type	Full Name
1	DIO	6	Ligand/Ion	1,4-DIETHYLENE DIOXIDE
2	GOL	12	Ligand/Ion	GLYCEROL
3	MSE	30	Mod. Amino Acid	SELENOMETHIONINE

Asymmetric Unit (3, 3)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ARG A:52 , GLY A:53	BINDING SITE FOR RESIDUE DIO A 500
2	AC2	SOFTWARE	ARG A:20 , LYS A:54 , PRO A:104	BINDING SITE FOR RESIDUE GOL A 300
3	AC3	SOFTWARE	GLU A:131 , ASN A:229 , ARG A:233	BINDING SITE FOR RESIDUE GOL A 400

(no "SS Bond" information available for 1UIY)

(no "Cis Peptide Bond" information available for 1UIY)

(no "SAP(SNP)/Variant" information available for 1UIY)

(no "PROSITE Motif" information available for 1UIY)

(no "Exon" information available for 1UIY)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:253
 aligned with P83702_THETH | P83702 from UniProtKB/TrEMBL  Length:253

    Alignment length:253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
         P83702_THETH     1 MVQVEKGHVAVVFLNDPERRNPLSPEMALSLLQALDDLEADPGVRAVVLTGRGKAFSAGADLAFLERVTELGAEENYRHSLSLMRLFHRVYTYPKPTVAAVNGPAVAGGAGLALACDLVVMDEEARLGYTEVKIGFVAALVSVILVRAVGEKAAKDLLLTGRLVEAREAKALGLVNRIAPPGKALEEAKALAEEVAKNAPTSLRLTKELLLALPGMGLEDGFRLAALANAWVRETGDLAEGIRAFFEKRPPRF 253
               SCOP domains d1uiya_ A: Enoyl-CoA hydratase (crotonase)                                                                                                                                                                                                                    SCOP domains
               CATH domains -1uiyA01 A:2-198 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                             1uiyA02 A:199-253                                       CATH domains
               Pfam domains --ECH-1uiyA01 A:3-248                                                                                                                                                                                                                                   ----- Pfam domains
         Sec.struct. author .eeee...eeeeee.........hhhhhhhhhhhhhhhhhh....eeeeee.........hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh...eeeee...eehhhhhhhhh..eeeee...eee.hhhhh...hhhhhhhhhhhhhhhhhhhhhhhh.eeehhhhhhh....eee...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uiy A   1 mVQVEKGHVAVVFLNDPERRNPLSPEmALSLLQALDDLEADPGVRAVVLTGRGKAFSAGADLAFLERVTELGAEENYRHSLSLmRLFHRVYTYPKPTVAAVNGPAVAGGAGLALACDLVVmDEEARLGYTEVKIGFVAALVSVILVRAVGEKAAKDLLLTGRLVEAREAKALGLVNRIAPPGKALEEAKALAEEVAKNAPTSLRLTKELLLALPGmGLEDGFRLAALANAWVRETGDLAEGIRAFFEKRPPRF 253
                            |       10        20      | 30        40        50        60        70        80   |    90       100       110       120|      130       140       150       160       170       180       190       200       210     | 220       230       240       250
                            |                        27-MSE                                                   84-MSE                              121-MSE                                                                                        216-MSE
                            1-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: ClpP/crotonase (207)

Superfamily: ClpP/crotonase (207)

Family: Crotonase-like (39)

Protein domain: Enoyl-CoA hydratase (crotonase) (5)

Thermus thermophilus [TaxId: 274] (1)

d1uiya_

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: ClpP_crotonase (88)

Family: ECH (52)

Thermus thermophilus (1)

ECH-1uiyA01

A:3-248
