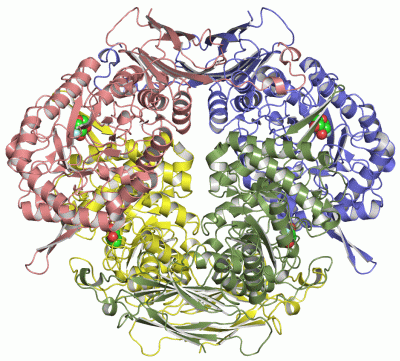

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

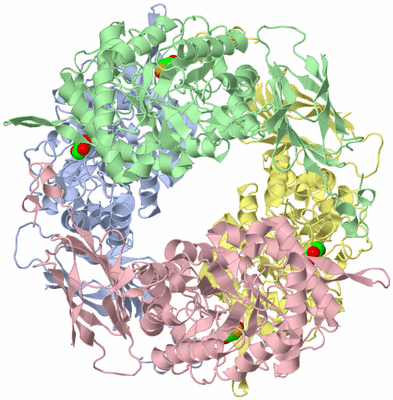

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

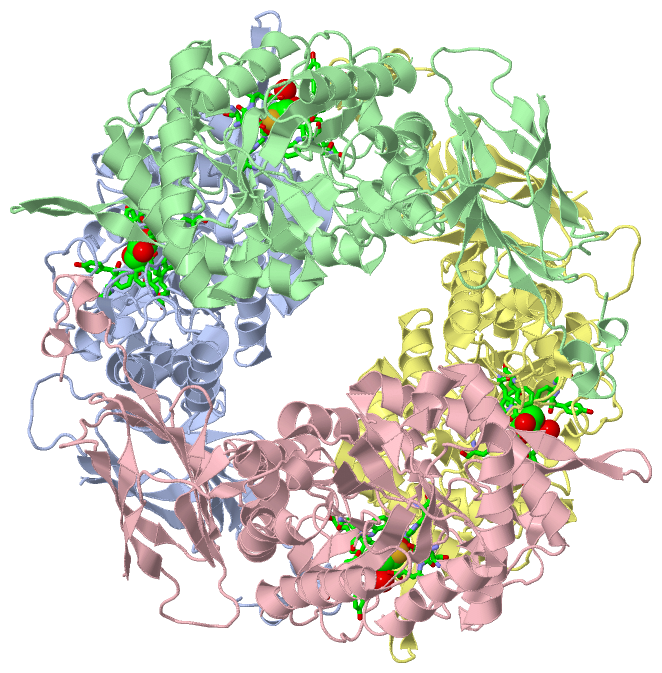

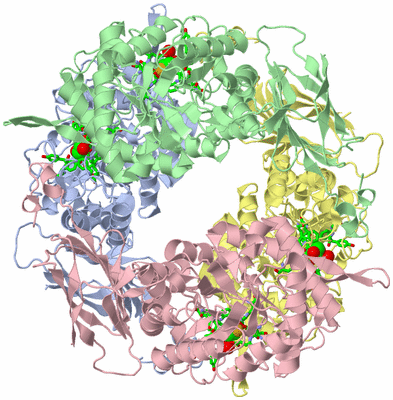

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BETA-D-XYLOSIDASE FROM THERMOANAEROBACTERIUM SACCHAROLYTICUM, A FAMILY 39 GLYCOSIDE HYDROLASE

Authors :  J. K. Yang, H. J. Yoon, H. J. Ahn, B. Il Lee, J. D. Pedelacq, E. C. Liong, J. Berendzen, M. Laivenieks, C. Vieille, G. J. Zeikus, D. J. Vocadlo, S. G. Withers, S. W. Suh
Date :  11 Jul 03  (Deposition) - 23 Dec 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Family 39 Glycoside Hydrolase, Xylosidase, Xylan, Xylose, Covalent Glycosyl-Enzyme Intermediate (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. K. Yang, H. J. Yoon, H. J. Ahn, B. I. Lee, J. D. Pedelacq, E. C. Liong, J. Berendzen, M. Laivenieks, C. Vieille, G. J. Zeikus, D. J. Vocadlo, S. G. Withers, S. W. Suh
Crystal Structure Of Beta-D-Xylosidase From Thermoanaerobacterium Saccharolyticum, A Family 39 Glycoside Hydrolase.
J. Mol. Biol. V. 335 155 2004
PubMed-ID: 14659747  |  Reference-DOI: 10.1016/J.JMB.2003.10.026
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BETA-XYLOSIDASE
    Chains: A, B, C, D
    EC Number: 3.2.1.37
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PXHP3
    Expression System Strain: B834(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMOANAEROBACTERIUM SACCHAROLYTICUM
    Organism Taxid: 28896
    Synonym: BETA-D-XYLOSIASE, 1,4-BETA-D-XYLAN XYLOHYDROLASE, XYLAN 1,4-BETA-XYLOSIDASE

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric/Biological Unit (1, 4)
No.NameCountTypeFull Name
1DFX4Ligand/Ion1,2-DEOXY-2-FLUORO-XYLOPYRANOSE

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:54 , PHE A:115 , ASN A:159 , GLU A:160 , PHE A:166 , TYR A:230 , GLU A:277 , TYR A:282 , TRP A:315 , GLU A:323 , PHE A:335BINDING SITE FOR RESIDUE DFX A 3277
2AC2SOFTWAREHIS B:54 , PHE B:115 , ASN B:159 , GLU B:160 , TYR B:230 , GLU B:277 , TYR B:282 , TRP B:315 , GLU B:323 , PHE B:335 , HOH B:2218BINDING SITE FOR RESIDUE DFX B 3277
3AC3SOFTWAREHIS C:54 , PHE C:115 , ASN C:159 , GLU C:160 , TYR C:230 , GLU C:277 , TYR C:282 , TRP C:315 , GLU C:323 , PHE C:335 , HOH C:2219BINDING SITE FOR RESIDUE DFX C 3277
4AC4SOFTWAREHIS D:54 , PHE D:115 , ASN D:159 , GLU D:160 , TYR D:230 , GLU D:277 , TYR D:282 , TRP D:315 , GLU D:323 , PHE D:335 , HOH D:2220BINDING SITE FOR RESIDUE DFX D 3277

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1UHV)

(-) Cis Peptide Bonds  (12, 12)

Asymmetric/Biological Unit
No.Residues
1Gly A:101 -Phe A:102
2Gly A:197 -Pro A:198
3Trp A:315 -Thr A:316
4Gly B:101 -Phe B:102
5Gly B:197 -Pro B:198
6Trp B:315 -Thr B:316
7Gly C:101 -Phe C:102
8Gly C:197 -Pro C:198
9Trp C:315 -Thr C:316
10Gly D:101 -Phe D:102
11Gly D:197 -Pro D:198
12Trp D:315 -Thr D:316

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UHV)

(-) PROSITE Motifs  (1, 4)

Asymmetric/Biological Unit (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLYCOSYL_HYDROL_F39PS01027 Glycosyl hydrolases family 39 active site.XYNB_THESA153-162


 		  4A:153-162
B:153-162
C:153-162
D:153-162

(-) Exons   (0, 0)

(no "Exon" information available for 1UHV)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:500
 aligned with XYNB_THESA | P36906 from UniProtKB/Swiss-Prot  Length:500

    Alignment length:500
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500
           XYNB_THESA     1 MIKVRVPDFSDKKFSDRWRYCVGTGRLGLALQKEYIETLKYVKENIDFKYIRGHGLLCDDVGIYREDVVGDEVKPFYNFTYIDRIFDSFLEIGIRPFVEIGFMPKKLASGTQTVFYWEGNVTPPKDYEKWSDLVKAVLHHFISRYGIEEVLKWPFEIWNEPNLKEFWKDADEKEYFKLYKVTAKAIKEVNENLKVGGPAICGGADYWIEDFLNFCYEENVPVDFVSRHATTSKQGEYTPHLIYQEIMPSEYMLNEFKTVREIIKNSHFPNLPFHITEYNTSYSPQNPVHDTPFNAAYIARILSEGGDYVDSFSYWTFSDVFEERDVPRSQFHGGFGLVALNMIPKPTFYTFKFFNAMGEEMLYRDEHMLVTRRDDGSVALIAWNEVMDKTENPDEDYEVEIPVRFRDVFIKRQLIDEEHGNPWGTWIHMGRPRYPSKEQVNTLREVAKPEIMTSQPVANDGYLNLKFKLGKNAVVLYELTERIDESSTYIGLDDSKINGY 500
               SCOP domains d1uhva1      d1uhva2 A:14-359 Beta-D-xylosidase, catalytic domain                                                                                                                                                                                                                                                                                                      d1uhva1 A:1-13,A:360-500 Beta-D-xylosidase                                                                                                    SCOP domains
               CATH domains 1uhvA01       1uhvA02 A:15-358 Glycosidases                                                                                                                                                                                                                                                                                                                           1uhvA01 A:1-14,A:359-500 Glycosyl hydrolase domain; family 39                                                                                  CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee..........hhhh.eee..hhhhhhhhhhhhhhhhhhh.....eee...........eeeeee..eeeeee.hhhhhhhhhhhhhhh.ee.eee............ee....ee.....hhhhhhhhhhhhhhhhhhhhhhhhhh...eee.........hhhhhhhhhhhhhhhhhhhhhhhh....eeeeee....hhhhhhhhhhhhhhh....eeeeeee.................hhhhhhhhhhhhhhhhhh.......eeeeeee......hhhhhhhhhhhhhhhhhhhhhhh..eeee.......................ee...eehhhhhhhhhhh....eeeeee..eeeee.....eeeeeee..........eeeeeeee.....eeeeeeee.....hhhhhhhhh......hhhhhhhhhhhh..eeeee.......eeeeeeee...eeeeeeeee...hhhhh...hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_H-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uhv A   1 MIKVRVPDFSDKKFSDRWRYCVGTGRLGLALQKEYIETLKYVKENIDFKYIRGHGLLCDDVGIYREDVVGDEVKPFYNFTYIDRIFDSFLEIGIRPFVEIGFMPKKLASGTQTVFYWEGNVTPPKDYEKWSDLVKAVLHHFISRYGIEEVLKWPFEIWNEPNLKEFWKDADEKEYFKLYKVTAKAIKEVNENLKVGGPAICGGADYWIEDFLNFCYEENVPVDFVSRHAYTSKQGEYTPHLIYQEIMPSEYMLNEFKTVREIIKNSHFPNLPFHITEYNTSYSPQNPVHDTPFNAAYIARILSEGGDYVDSFSYWTFSDVFEERDVPRSQFHGGFGLVALNMIPKPTFYTFKFFNAMGEEMLYRDEHMLVTRRDDGSVALIAWNEVMDKTENPDEDYEVEIPVRFRDVFIKRQLIDEEHGNPWGTWIHMGRPRYPSKEQVNTLREVAKPEIMTSQPVANDGYLNLKFKLGKNAVVLYELTERIDESSTYIGLDDSKINGY 500
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500


Chain B from PDB  Type:PROTEIN  Length:500
 aligned with XYNB_THESA | P36906 from UniProtKB/Swiss-Prot  Length:500

    Alignment length:500
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500
           XYNB_THESA     1 MIKVRVPDFSDKKFSDRWRYCVGTGRLGLALQKEYIETLKYVKENIDFKYIRGHGLLCDDVGIYREDVVGDEVKPFYNFTYIDRIFDSFLEIGIRPFVEIGFMPKKLASGTQTVFYWEGNVTPPKDYEKWSDLVKAVLHHFISRYGIEEVLKWPFEIWNEPNLKEFWKDADEKEYFKLYKVTAKAIKEVNENLKVGGPAICGGADYWIEDFLNFCYEENVPVDFVSRHATTSKQGEYTPHLIYQEIMPSEYMLNEFKTVREIIKNSHFPNLPFHITEYNTSYSPQNPVHDTPFNAAYIARILSEGGDYVDSFSYWTFSDVFEERDVPRSQFHGGFGLVALNMIPKPTFYTFKFFNAMGEEMLYRDEHMLVTRRDDGSVALIAWNEVMDKTENPDEDYEVEIPVRFRDVFIKRQLIDEEHGNPWGTWIHMGRPRYPSKEQVNTLREVAKPEIMTSQPVANDGYLNLKFKLGKNAVVLYELTERIDESSTYIGLDDSKINGY 500
               SCOP domains d1uhvb1      d1uhvb2 B:14-359 Beta-D-xylosidase, catalytic domain                                                                                                                                                                                                                                                                                                      d1uhvb1 B:1-13,B:360-500 Beta-D-xylosidase                                                                                                    SCOP domains
               CATH domains 1uhvB01       1uhvB02 B:15-358 Glycosidases                                                                                                                                                                                                                                                                                                                           1uhvB01 B:1-14,B:359-500 Glycosyl hydrolase domain; family 39                                                                                  CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee..........hhhh.eee..hhhhhhhhhhhhhhhhhhh.....eee...........eeeeee..eeeeee.hhhhhhhhhhhhhhh.ee.eee...hhhhh....ee....ee.....hhhhhhhhhhhhhhhhhhhhhhhhhh...eee.........hhhhhhhhhhhhhhhhhhhhhhhh....eeeeee....hhhhhhhhhhhhhh.....eeeeeee.................hhhhhhhhhhhhhhhhhh.......eeeeeee......hhhhhhhhhhhhhhhhhhhhhhh..eeee.......................ee...eehhhhhhhhhhh....eeeeee..eeeee.....eeeeeee..........eeeeeeee.....eeeeeeee.....hhhhhhhhh......hhhhhhhhhhhh..eeeee.......eeeeeeee...eeeeeeeee...hhhhh...hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_H-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uhv B   1 MIKVRVPDFSDKKFSDRWRYCVGTGRLGLALQKEYIETLKYVKENIDFKYIRGHGLLCDDVGIYREDVVGDEVKPFYNFTYIDRIFDSFLEIGIRPFVEIGFMPKKLASGTQTVFYWEGNVTPPKDYEKWSDLVKAVLHHFISRYGIEEVLKWPFEIWNEPNLKEFWKDADEKEYFKLYKVTAKAIKEVNENLKVGGPAICGGADYWIEDFLNFCYEENVPVDFVSRHAYTSKQGEYTPHLIYQEIMPSEYMLNEFKTVREIIKNSHFPNLPFHITEYNTSYSPQNPVHDTPFNAAYIARILSEGGDYVDSFSYWTFSDVFEERDVPRSQFHGGFGLVALNMIPKPTFYTFKFFNAMGEEMLYRDEHMLVTRRDDGSVALIAWNEVMDKTENPDEDYEVEIPVRFRDVFIKRQLIDEEHGNPWGTWIHMGRPRYPSKEQVNTLREVAKPEIMTSQPVANDGYLNLKFKLGKNAVVLYELTERIDESSTYIGLDDSKINGY 500
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500


Chain C from PDB  Type:PROTEIN  Length:500
 aligned with XYNB_THESA | P36906 from UniProtKB/Swiss-Prot  Length:500

    Alignment length:500
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500
           XYNB_THESA     1 MIKVRVPDFSDKKFSDRWRYCVGTGRLGLALQKEYIETLKYVKENIDFKYIRGHGLLCDDVGIYREDVVGDEVKPFYNFTYIDRIFDSFLEIGIRPFVEIGFMPKKLASGTQTVFYWEGNVTPPKDYEKWSDLVKAVLHHFISRYGIEEVLKWPFEIWNEPNLKEFWKDADEKEYFKLYKVTAKAIKEVNENLKVGGPAICGGADYWIEDFLNFCYEENVPVDFVSRHATTSKQGEYTPHLIYQEIMPSEYMLNEFKTVREIIKNSHFPNLPFHITEYNTSYSPQNPVHDTPFNAAYIARILSEGGDYVDSFSYWTFSDVFEERDVPRSQFHGGFGLVALNMIPKPTFYTFKFFNAMGEEMLYRDEHMLVTRRDDGSVALIAWNEVMDKTENPDEDYEVEIPVRFRDVFIKRQLIDEEHGNPWGTWIHMGRPRYPSKEQVNTLREVAKPEIMTSQPVANDGYLNLKFKLGKNAVVLYELTERIDESSTYIGLDDSKINGY 500
               SCOP domains d1uhvc1      d1uhvc2 C:14-359 Beta-D-xylosidase, catalytic domain                                                                                                                                                                                                                                                                                                      d1uhvc1 C:1-13,C:360-500 Beta-D-xylosidase                                                                                                    SCOP domains
               CATH domains 1uhvC01       1uhvC02 C:15-358 Glycosidases                                                                                                                                                                                                                                                                                                                           1uhvC01 C:1-14,C:359-500 Glycosyl hydrolase domain; family 39                                                                                  CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee......ee..hhhh.eee..hhhhhhhhhhhhhhhhhhhhh...eee...........eeeee....eeeee.hhhhhhhhhhhhhhh.ee.eee...hhhhh....ee....ee.....hhhhhhhhhhhhhhhhhhhhhhhhhh...eee.........hhhhhhhhhhhhhhhhhhhhhhhh....eeeeee....hhhhhhhhhhhhhh.....eeeeeee.................hhhhhhhhhhhhhhhhhh.......eeeeeee......hhhhhhhhhhhhhhhhhhhhhhh..eeee.......................ee...eehhhhhhhhhhh....eeeeee..eeeee.....eeeeeee..........eeeeeeee.....eeeeeeee.....hhhhhhhhh......hhhhhhhhhhhh..eeeee.......eeeeeeee...eeeeeeeee...hhhhh...hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_H-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uhv C   1 MIKVRVPDFSDKKFSDRWRYCVGTGRLGLALQKEYIETLKYVKENIDFKYIRGHGLLCDDVGIYREDVVGDEVKPFYNFTYIDRIFDSFLEIGIRPFVEIGFMPKKLASGTQTVFYWEGNVTPPKDYEKWSDLVKAVLHHFISRYGIEEVLKWPFEIWNEPNLKEFWKDADEKEYFKLYKVTAKAIKEVNENLKVGGPAICGGADYWIEDFLNFCYEENVPVDFVSRHAYTSKQGEYTPHLIYQEIMPSEYMLNEFKTVREIIKNSHFPNLPFHITEYNTSYSPQNPVHDTPFNAAYIARILSEGGDYVDSFSYWTFSDVFEERDVPRSQFHGGFGLVALNMIPKPTFYTFKFFNAMGEEMLYRDEHMLVTRRDDGSVALIAWNEVMDKTENPDEDYEVEIPVRFRDVFIKRQLIDEEHGNPWGTWIHMGRPRYPSKEQVNTLREVAKPEIMTSQPVANDGYLNLKFKLGKNAVVLYELTERIDESSTYIGLDDSKINGY 500
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500


Chain D from PDB  Type:PROTEIN  Length:500
 aligned with XYNB_THESA | P36906 from UniProtKB/Swiss-Prot  Length:500

    Alignment length:500
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500
           XYNB_THESA     1 MIKVRVPDFSDKKFSDRWRYCVGTGRLGLALQKEYIETLKYVKENIDFKYIRGHGLLCDDVGIYREDVVGDEVKPFYNFTYIDRIFDSFLEIGIRPFVEIGFMPKKLASGTQTVFYWEGNVTPPKDYEKWSDLVKAVLHHFISRYGIEEVLKWPFEIWNEPNLKEFWKDADEKEYFKLYKVTAKAIKEVNENLKVGGPAICGGADYWIEDFLNFCYEENVPVDFVSRHATTSKQGEYTPHLIYQEIMPSEYMLNEFKTVREIIKNSHFPNLPFHITEYNTSYSPQNPVHDTPFNAAYIARILSEGGDYVDSFSYWTFSDVFEERDVPRSQFHGGFGLVALNMIPKPTFYTFKFFNAMGEEMLYRDEHMLVTRRDDGSVALIAWNEVMDKTENPDEDYEVEIPVRFRDVFIKRQLIDEEHGNPWGTWIHMGRPRYPSKEQVNTLREVAKPEIMTSQPVANDGYLNLKFKLGKNAVVLYELTERIDESSTYIGLDDSKINGY 500
               SCOP domains d1uhvd1      d1uhvd2 D:14-359 Beta-D-xylosidase, catalytic domain                                                                                                                                                                                                                                                                                                      d1uhvd1 D:1-13,D:360-500 Beta-D-xylosidase                                                                                                    SCOP domains
               CATH domains 1uhvD01       1uhvD02 D:15-358 Glycosidases                                                                                                                                                                                                                                                                                                                           1uhvD01 D:1-14,D:359-500 Glycosyl hydrolase domain; family 39                                                                                  CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eee..........hhhh.eee..hhhhhhhhhhhhhhhhhhh.....eee...........eeeeee..eeeeee.hhhhhhhhhhhhhhh.ee.eee...hhhhh....ee....ee.....hhhhhhhhhhhhhhhhhhhhhhhhhh...eee.........hhhhhhhhhhhhhhhhhhhhhhhh....eeeeee....hhhhhhhhhhhhh......eeeeeee.................hhhhhhhhhhhhhhhhhh.......eeeeeee......hhhhhhhhhhhhhhhhhhhhhhhh.eeee.......................ee...eehhhhhhhhhhh....eeeeee..eeeee.....eeeeee...........eeeeeeee.....eeeeeeee.....hhhhhhhhh......hhhhhhhhhhhh..eeeee.......eeeeeeee....eeeeeeee...hhhhh...hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_H-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uhv D   1 MIKVRVPDFSDKKFSDRWRYCVGTGRLGLALQKEYIETLKYVKENIDFKYIRGHGLLCDDVGIYREDVVGDEVKPFYNFTYIDRIFDSFLEIGIRPFVEIGFMPKKLASGTQTVFYWEGNVTPPKDYEKWSDLVKAVLHHFISRYGIEEVLKWPFEIWNEPNLKEFWKDADEKEYFKLYKVTAKAIKEVNENLKVGGPAICGGADYWIEDFLNFCYEENVPVDFVSRHAYTSKQGEYTPHLIYQEIMPSEYMLNEFKTVREIIKNSHFPNLPFHITEYNTSYSPQNPVHDTPFNAAYIARILSEGGDYVDSFSYWTFSDVFEERDVPRSQFHGGFGLVALNMIPKPTFYTFKFFNAMGEEMLYRDEHMLVTRRDDGSVALIAWNEVMDKTENPDEDYEVEIPVRFRDVFIKRQLIDEEHGNPWGTWIHMGRPRYPSKEQVNTLREVAKPEIMTSQPVANDGYLNLKFKLGKNAVVLYELTERIDESSTYIGLDDSKINGY 500
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 8)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (2, 8)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1UHV)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (XYNB_THESA | P36906)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
    GO:0009044    xylan 1,4-beta-xylosidase activity    Catalysis of the hydrolysis of (1->4)-beta-D-xylans so as to remove successive D-xylose residues from the non-reducing termini.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0000272    polysaccharide catabolic process    The chemical reactions and pathways resulting in the breakdown of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.
    GO:0045493    xylan catabolic process    The chemical reactions and pathways resulting in the breakdown of xylan, a polymer containing a beta-1,4-linked D-xylose backbone.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    DFX  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gly A:101 - Phe A:102   [ RasMol ]
    Gly A:197 - Pro A:198   [ RasMol ]
    Gly B:101 - Phe B:102   [ RasMol ]
    Gly B:197 - Pro B:198   [ RasMol ]
    Gly C:101 - Phe C:102   [ RasMol ]
    Gly C:197 - Pro C:198   [ RasMol ]
    Gly D:101 - Phe D:102   [ RasMol ]
    Gly D:197 - Pro D:198   [ RasMol ]
    Trp A:315 - Thr A:316   [ RasMol ]
    Trp B:315 - Thr B:316   [ RasMol ]
    Trp C:315 - Thr C:316   [ RasMol ]
    Trp D:315 - Thr D:316   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

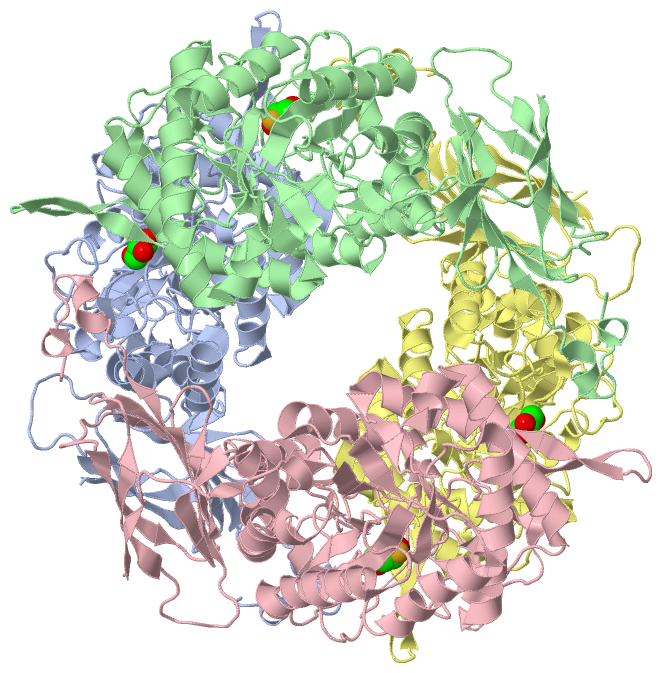

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1uhv
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  XYNB_THESA | P36906
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.2.1.37
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  XYNB_THESA | P36906
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        XYNB_THESA | P36906: 1px8

(-) Related Entries Specified in the PDB File

1px8 D-XYLOSE BOUND STRUCTURE OF THE SAME PROTEIN
