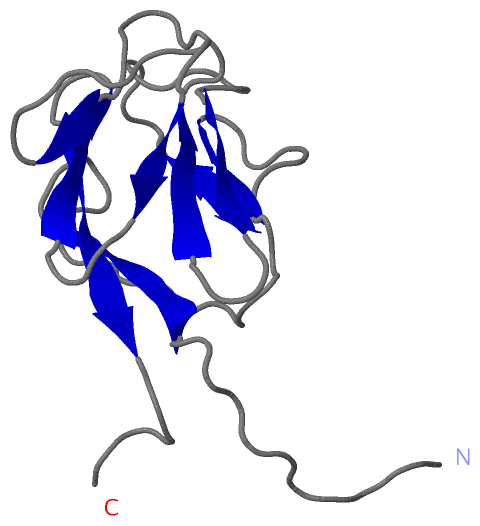

NMR Structure - model 1 (Jmol Viewer)

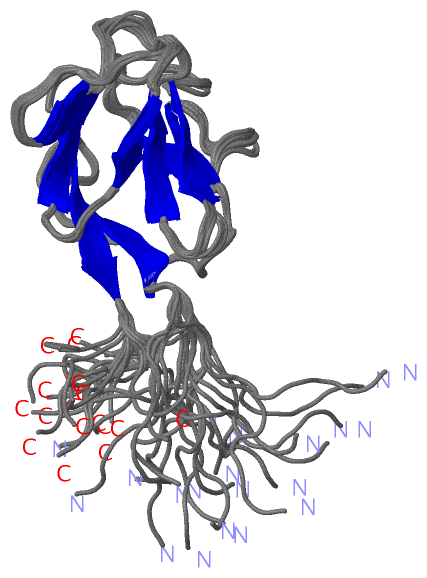

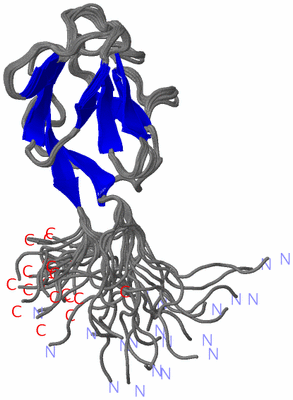

NMR Structure - all models (Jmol Viewer)

Title :   SOLUTION STRUCTURE OF THE FHA DOMAIN OF ARABIDOPSIS THALIANA HYPOTHETICAL PROTEIN

Authors :   T. Tomizawa, M. Inoue, S. Koshiba, F. Hayashi, M. Shirouzu, T. Terada, T. Yabuki, M. Aoki, T. Matsuda, E. Seki, H. Hirota, M. Yoshida, A. Tanaka, T. Osanai, K. Shinozaki, M. Seki, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)

Date :   10 Jul 03 (Deposition) - 10 Jan 04 (Release) - 24 Feb 09 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A  (20x)

Keywords :   Fha Domain, Beta-Sandwich, Antiparallel Beta-Sheets, Phosphopeptide Binding Motif, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   T. Tomizawa, M. Inoue, S. Koshiba, F. Hayashi, M. Shirouzu, T. Terada, T. Yabuki, M. Aoki, T. Matsuda, E. Seki, H. Hirota, M. Yoshida, A. Tanaka, T. Osanai, K. Shinozaki, M. Seki, T. Kigawa, S. Yokoyama
Solution Structure Of The Fha Domain Of Arabidopsis Thaliana Hypothetical Protein
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - EXPRESSED PROTEIN
	Chains	:	A
	Engineered	:	YES
	Expression System Plasmid	:	P021218-71
	Expression System Vector Type	:	PLASMID
	Fragment	:	FORKHEAD ASSOCIATED DOMAIN, FHA DOMAIN
	Gene	:	RIKEN CDNA RAFL09-79-A12
	Organism Common	:	THALE CRESS
	Organism Scientific	:	ARABIDOPSIS THALIANA
	Organism Taxid	:	3702
	Other Details	:	CELL-FREE PROTEIN SYNTHESIS
	Synonym	:	HYPOTHETICAL PROTEIN


NMR Structure (20x)	:

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1UHT)

(no "Site" information available for 1UHT)

(no "SS Bond" information available for 1UHT)

(no "Cis Peptide Bond" information available for 1UHT)

(no "SAP(SNP)/Variant" information available for 1UHT)

NMR Structure (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FHA_DOMAIN	PS50006	Forkhead-associated (FHA) domain profile.	Y4449_ARATH	28-78	1	A:35-85

(no "Exon" information available for 1UHT)

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:118
 aligned with Y4449_ARATH | O23305 from UniProtKB/Swiss-Prot  Length:386

    Alignment length:164
                                   1
                                   | 3        13        23        33        43        53        63        73        83        93       103       113       123       133       143       153
          Y4449_ARATH     - -------MVTPSLRLVFVKGPREGDALDYKPGSTIRVGRIVRGNEIAIKDAGISTKHLRIESDSGNWVIQDLGSSNGTLLNSNALDPETSVNLGDGDVIKLGEYTSILVNFVIDDFQEKKLTRNNRRQANARKRIRVLESINLGDITEEEKGLDVKFENKPSSR 157
               SCOP domains d1uhta_ A: FHA domain containing protein At4G14490                                                                                                                   SCOP domains
               CATH domains 1uhtA00 A:1-118  [code=2.60.200.20, no name defined]                                                                                                                 CATH domains
               Pfam domains ----------------------------------FHA-1uhtA01 A:35-102                                                -------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeee.................eeee.......ee..........eeeee....eeee........ee.........eee....eeeee...eeeeeee..------------------------------.----------------.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------FHA_DOMAIN  PDB: A:35-85 UniProt: 28-78            ------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uht A   1 GSSGSSGMVTPSLRLVFVKGPREGDALDYKPGSTIRVGRIVRGNEIAIKDAGISTKHLRIESDSGNWVIQDLGSSNGTLLNSNALDPETSVNLGDGDVIKLGEYTSILVNFVS------------------------------G----------------PSSG 118
                                    10        20        30        40        50        60        70        80        90       100       110  |      -         -         -   |     -         -|
                                                                                                                                          113                            114              115

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

NMR Structure

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: SMAD/FHA domain (62)

Superfamily: SMAD/FHA domain (62)

Family: FHA domain (36)

Protein domain: FHA domain containing protein At4G14490 (1)

Thale cress (Arabidopsis thaliana) [TaxId: 3702] (1)

d1uhta_

NMR Structure

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Tumour Suppressor Smad4 (52)

Homologous Superfamily: [code=2.60.200.20, no name defined] (26)

Thale cress (Arabidopsis thaliana) (2)

1uhtA00

A:1-118

NMR Structure

Clans(

)

Families(

)

Organisms( (-)

)

Clan: SMAD-FHA (27)

Family: FHA (18)

Arabidopsis thaliana (Mouse-ear cress) (2)

FHA-1uhtA01

A:35-102

NMR Structure(hide GO term definitions)

Chain A (Y4449_ARATH | O23305)

biological process
	GO:0008150		biological_process		Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1uht)

	Sites
(no "Sites" information available for 1uht)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1uht)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ NMR Structure - model 1 PNG format \| NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1uht
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	Y4449_ARATH \| O23305
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	Y4449_ARATH \| O23305
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
