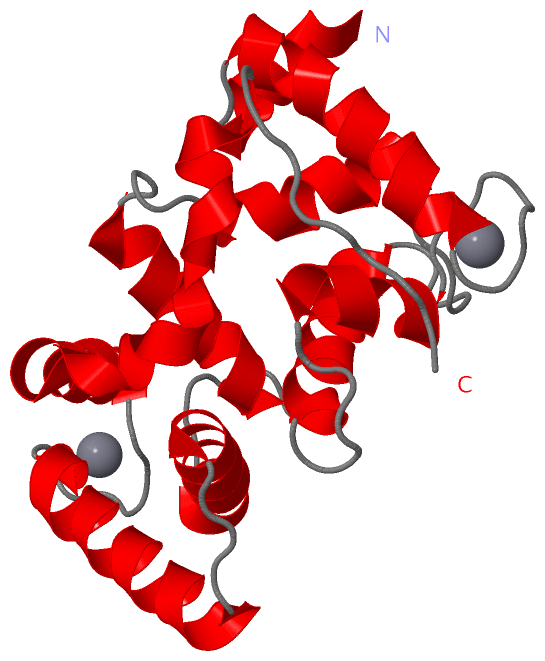

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

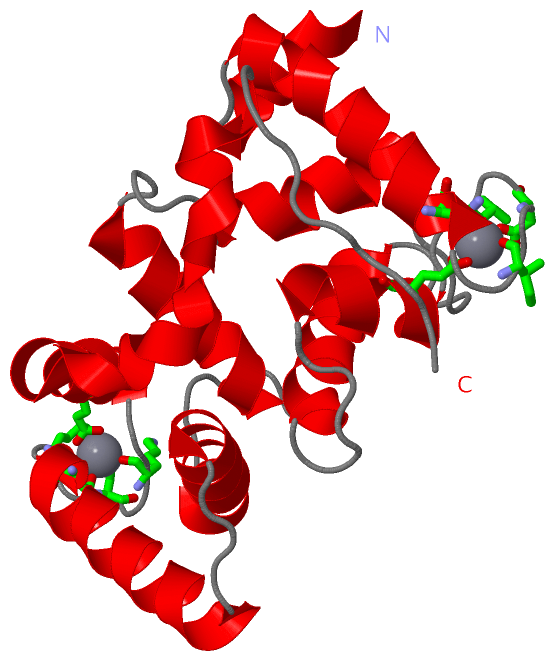

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  THE CRYSTAL STRUCTURE OF THE CALCIUM BINDING PROTEIN ATCBL2 FROM ARABIDOPSIS THALIANA

Authors :  M. Nagae, A. Nozawa, N. Koizumi, H. Sano, H. Hashimoto, M. Sato, T. Shimizu
Date :  07 Jul 03  (Deposition) - 04 Nov 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A
Keywords :  Calcium Binding Protein, Metal Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Nagae, A. Nozawa, N. Koizumi, H. Sano, H. Hashimoto, M. Sato, T. Shimizu
The Crystal Structure Of The Novel Calcium-Binding Protein Atcbl2 From Arabidopsis Thaliana
J. Biol. Chem. V. 278 42240 2003
PubMed-ID: 12871972  |  Reference-DOI: 10.1074/JBC.M303630200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CALCINEURIN B-LIKE PROTEIN 2
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PDEST15
    Expression System Strain: BL21(DE3)SI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 32-220
    Organism Common: THALE CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702
    Synonym: ATCBL2

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1CA2Ligand/IonCALCIUM ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:58 , ILE A:62 , ASP A:64 , LEU A:66 , GLU A:71 , HOH A:514BINDING SITE FOR RESIDUE CA A 500
2AC2SOFTWAREASP A:176 , LYS A:178 , ASP A:180 , LYS A:182 , GLU A:187 , HOH A:515BINDING SITE FOR RESIDUE CA A 501

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1UHN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1UHN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UHN)

(-) PROSITE Motifs  (1, 3)

Asymmetric/Biological Unit (1, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1EF_HAND_2PS50222 EF-hand calcium-binding domain profile.CNBL2_ARATH82-117
119-154
163-198		  3A:82-117
A:119-154
A:163-198

(-) Exons   (0, 0)

(no "Exon" information available for 1UHN)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:189
 aligned with CNBL2_ARATH | Q8LAS7 from UniProtKB/Swiss-Prot  Length:226

    Alignment length:189
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211
          CNBL2_ARATH    32 DPELLARDTVFSVSEIEALYELFKKISSAVIDDGLINKEEFQLALFKTNKKESLFADRVFDLFDTKHNGILGFEEFARALSVFHPNAPIDDKIHFSFQLYDLKQQGFIERQEVKQMVVATLAESGMNLKDTVIEDIIDKTFEEADTKHDGKIDKEEWRSLVLRHPSLLKNMTLQYLKDITTTFPSFVFH 220
               SCOP domains d1uhna_ A: Calcineurin B-like protein 2                                                                                                                                                       SCOP domains
               CATH domains 1uhnA00 A:32-220 EF-hand                                                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------EF_hand_3-1uhnA01         ---------------------------- Pfam domains
         Sec.struct. author hhhhhhhhh..hhhhhhhhhhhhhhhhh........hhhhhhhhh......hhhhhhhhhhhhh.......hhhhhhhhhhh.....hhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------EF_HAND_2  PDB: A:82-117            -EF_HAND_2  PDB: A:119-154           --------EF_HAND_2  PDB: A:163-198           ---------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uhn A  32 DPELLARDTVFSVSEIEALYELFKKISSAVIDDGLINKEEFQLALFKTNKKESLFADRVFDLFDTKHNGILGFEEFARALSVFHPNAPIDDKIHFSFQLYDLKQQGFIERQEVKQMVVATLAESGMNLKDTVIEDIIDKTFEEADTKHDGKIDKEEWRSLVLRHPSLLKNMTLQYLKDITTTFPSFVFH 220
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: EF_hand (270)

(-) Gene Ontology  (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CNBL2_ARATH | Q8LAS7)
molecular function
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0019722    calcium-mediated signaling    Any intracellular signal transduction in which the signal is passed on within the cell via calcium ions.
    GO:0055075    potassium ion homeostasis    Any process involved in the maintenance of an internal steady state of potassium ions within an organism or cell.
cellular component
    GO:0022626    cytosolic ribosome    A ribosome located in the cytosol.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0009705    plant-type vacuole membrane    The lipid bilayer surrounding a vacuole that retains the same shape regardless of cell cycle phase. The membrane separates its contents from the cytoplasm of the cell. An example of this component is found in Arabidopsis thaliana.
    GO:0005774    vacuolar membrane    The lipid bilayer surrounding the vacuole and separating its contents from the cytoplasm of the cell.
    GO:0005773    vacuole    A closed structure, found only in eukaryotic cells, that is completely surrounded by unit membrane and contains liquid material. Cells contain one or several vacuoles, that may have different functions from each other. Vacuoles have a diverse array of functions. They can act as a storage organelle for nutrients or waste products, as a degradative compartment, as a cost-effective way of increasing cell size, and as a homeostatic regulator controlling both turgor pressure and pH of the cytosol.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1uhn)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1uhn
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CNBL2_ARATH | Q8LAS7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CNBL2_ARATH | Q8LAS7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CNBL2_ARATH | Q8LAS7: 2zfd

(-) Related Entries Specified in the PDB File

1aui CALCINEURIN B
