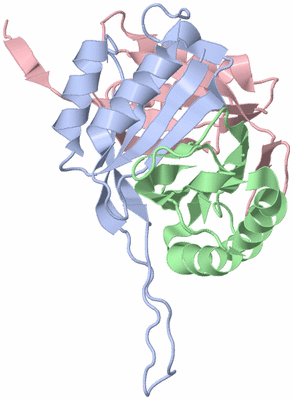

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

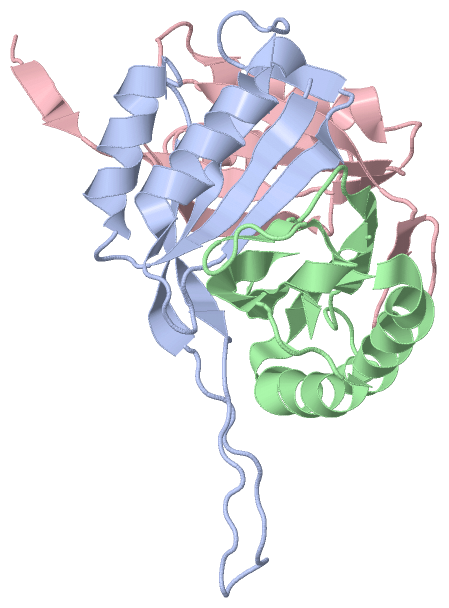

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

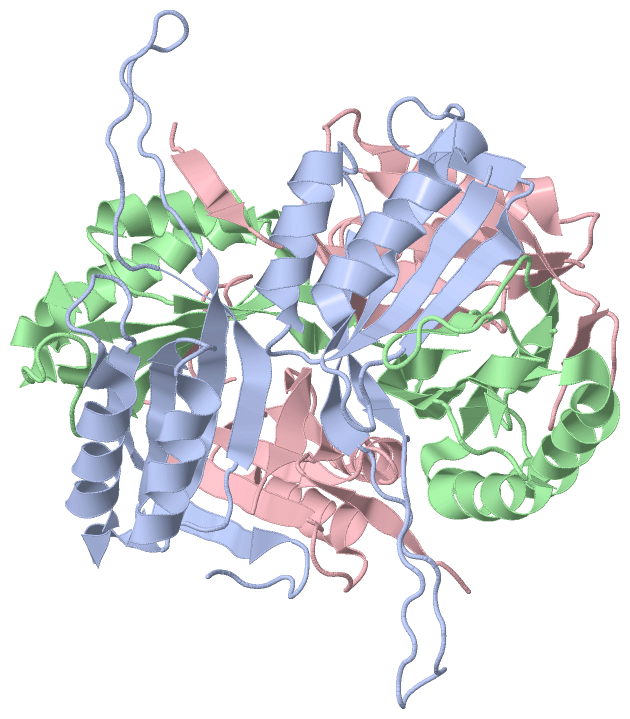

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TT1020 FROM THERMUS THERMOPHILUS HB8

Authors :  H. Wang, H. Sakai, C. Hori-Takemoto, T. Kaminishi, T. Terada, S. Kurami M. Shirouzu, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  31 May 03  (Deposition) - 30 Nov 03  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A,B,C  (1x)
Biol. Unit 2:  A,B,C  (2x)
Keywords :  Structural Genomics, Signal Transducing Protein, Riken Structural Genomics/Proteomics Initiative, Rsgi, Nppsfa, National Project On Protein Structural And Functional Analyses, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Sakai, H. Wang, C. Takemoto-Hori, T. Kaminishi, H. Yamaguchi, Y. Kamewari, T. Terada, S. Kuramitsu, M. Shirouzu, S. Yokoyama
Crystal Structures Of The Signal Transducing Protein Glnk From Thermus Thermophilus Hb8.
J. Struct. Biol. V. 149 99 2005
PubMed-ID: 15629661  |  Reference-DOI: 10.1016/J.JSB.2004.08.007

(-) Compounds

Molecule 1 - NITROGEN REGULATORY PROTEIN P-II
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET26B
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Mutation: YES
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): ABC
Biological Unit 2 (2x): ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1UFL)

(-) Sites  (0, 0)

(no "Site" information available for 1UFL)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1UFL)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1UFL)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UFL)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1UFL)

(-) Exons   (0, 0)

(no "Exon" information available for 1UFL)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:108
 aligned with P83820_THETH | P83820 from UniProtKB/TrEMBL  Length:116

    Alignment length:108
                                    10        20        30        40        50        60        70        80        90       100
         P83820_THETH     1 MKLIVAIVRPEKLNEVLKALFQAEVRGLTLSRVQGHGGETERVETYRGTTVKMELHEKVRLEIGVSEPFVKPTVEAILKAARTGEVGDGKIFVLPVEKVYRIRTGEED 108
               SCOP domains d1ufla_ A: PII (product of glnB)                                                                             SCOP domains
               CATH domains 1uflA00 A:1-108  [code=3.30.70.120, no name defined]                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeeee...hhhhhhhhhhhh.....eeeeeee....................eeeeeeeeeehhhhhhhhhhhhhhhhh.......eeeeee..eeee....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------ Transcript
                 1ufl A   1 MKLIVAIVRPEKLNEVLKALFQAEVRGLTLSRVQGHGGETERVETYRGTTVKMELHEKVRLEIGVSEPFVKPTVEAILKAARTGEVGDGKIFVLPVEKVYRIRTGEED 108
                                    10        20        30        40        50        60        70        80        90       100


Chain B from PDB  Type:PROTEIN  Length:96
 aligned with P83820_THETH | P83820 from UniProtKB/TrEMBL  Length:116

    Alignment length:113
                                    10        20        30        40        50        60        70        80        90       100       110
         P83820_THETH     1 MKLIVAIVRPEKLNEVLKALFQAEVRGLTLSRVQGHGGETERVETYRGTTVKMELHEKVRLEIGVSEPFVKPTVEAILKAARTGEVGDGKIFVLPVEKVYRIRTGEEDEAAVT 113
               SCOP domains d1uflb_ B: PII (product of glnB)                                                                                  SCOP domains
               CATH domains 1uflB00 B:1-113  [code=3.30.70.120,                  no name defined]                                             CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeehhhhhhhhhhhhhhh.....eeeeeeee-----------------..eeeeeeeeeehhhhhhhhhhhhhhhhh.......eeeeee....ee.....hhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------- Transcript
                 1ufl B   1 MKLIVAIVRPEKLNEVLKALFQAEVRGLTLSRVQGH-----------------ELHEKVRLEIGVSEPFVKPTVEAILKAARTGEVGDGKIFVLPVEKVYRIRTGEEDEAAVT 113
                                    10        20        30     |   -         -   |    60        70        80        90       100       110
                                                              36                54


Chain C from PDB  Type:PROTEIN  Length:99
 aligned with P83820_THETH | P83820 from UniProtKB/TrEMBL  Length:116

    Alignment length:109
                                    10        20        30        40        50        60        70        80        90       100
         P83820_THETH     1 MKLIVAIVRPEKLNEVLKALFQAEVRGLTLSRVQGHGGETERVETYRGTTVKMELHEKVRLEIGVSEPFVKPTVEAILKAARTGEVGDGKIFVLPVEKVYRIRTGEEDE 109
               SCOP domains d1uflc_ C: PII (product of glnB)                                                                              SCOP domains
               CATH domains 1uflC00 C:1-109  [code=3.30.70.120, n          o name defined]                                                CATH domains
           Pfam domains (1) ---P-II-1uflC01 C:4-105                                                                                  ---- Pfam domains (1)
           Pfam domains (2) ---P-II-1uflC02 C:4-105                                                                                  ---- Pfam domains (2)
           Pfam domains (3) ---P-II-1uflC03 C:4-105                                                                                  ---- Pfam domains (3)
         Sec.struct. author .eeeeeee...hhhhhhhhhhh.....eeeeeeee..----------..eeee..eeeeee..ee...hhhhhhhhhhhhhh......eeeeeee..eee......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 1ufl C   1 MKLIVAIVRPEKLNEVLKALFQAEVRGLTLSRVQGHG----------GTTVKMELHEKVRLEIGVSEPFVKPTVEAILKAARTGEVGDGKIFVLPVEKVYRIRTGEEDE 109
                                    10        20        30      |  -       |50        60        70        80        90       100
                                                               37         48
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 3)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 3)

Asymmetric Unit
(-)
Clan: GlnB-like (50)
(-)
Family: P-II (26)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C   (P83820_THETH | P83820)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0030234    enzyme regulator activity    Binds to and modulates the activity of an enzyme.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0050790    regulation of catalytic activity    Any process that modulates the activity of an enzyme.
    GO:0006808    regulation of nitrogen utilization    Any process that modulates the frequency, rate or extent of nitrogen utilization.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
