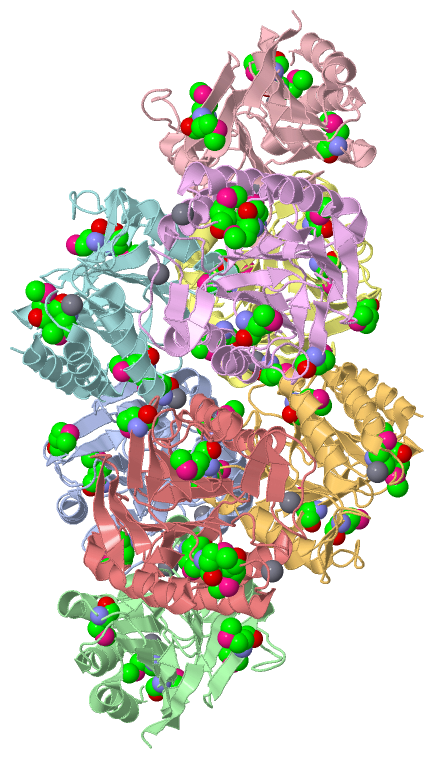

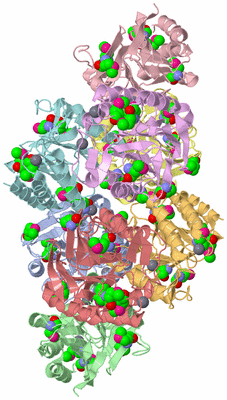

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

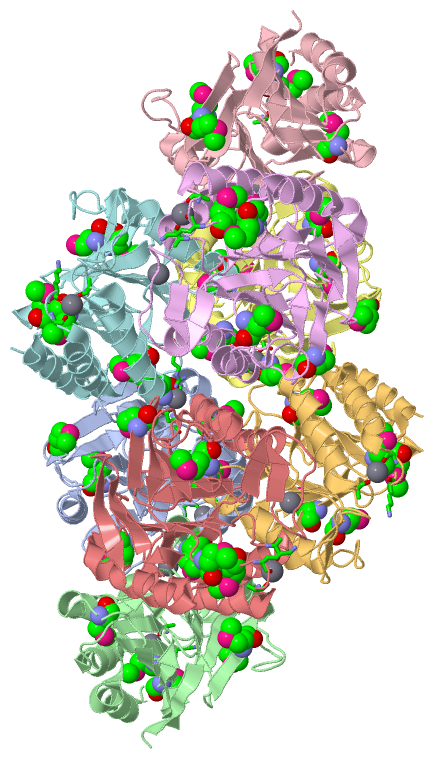

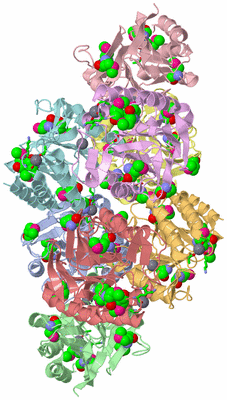

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TT1561 OF THERMUS THERMOPHILUS HB8

Authors :  M. Kato-Murayama, M. Shirouzu, T. Terada, K. Murayama, S. Kuramitsu, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  23 May 03  (Deposition) - 23 Nov 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F,G,H
Keywords :  Metallo-Dependent Phosphatases, Thermus Thermophilus, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Kato-Murayama, M. Shirouzu, T. Terada, K. Murayama, S. Kuramitsu, S. Yokoyama
Crystal Structure Of Tt1561 Of Thermus Thermophilus Hb8
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN TT1561
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11A
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 274
    Synonym: PREDICTED PHOSPHOESTERASES

 Structural Features

(-) Chains, Units

  12345678
Asymmetric/Biological Unit : ABCDEFGH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 60)

Asymmetric/Biological Unit (2, 60)
No.NameCountTypeFull Name
1CA14Ligand/IonCALCIUM ION
2MSE46Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (14, 14)

Asymmetric Unit (14, 14)
No.NameEvidenceResiduesDescription
01AC1SOFTWARELYS A:45 , ALA A:47 , ALA A:75 , HOH A:953 , HOH A:961 , HOH A:987 , HOH A:988BINDING SITE FOR RESIDUE CA A 901
02AC2SOFTWARELYS B:45 , ALA B:47 , ALA B:75 , HOH B:904 , HOH B:954 , HOH B:962 , HOH B:964BINDING SITE FOR RESIDUE CA B 902
03AC3SOFTWARELYS C:45 , ALA C:47 , ALA C:75 , HOH C:913 , HOH C:914 , HOH C:956 , HOH C:963BINDING SITE FOR RESIDUE CA C 903
04AC4SOFTWARELYS D:45 , ALA D:47 , ALA D:75 , HOH D:923 , HOH D:955 , HOH D:958 , HOH D:972BINDING SITE FOR RESIDUE CA D 904
05AC5SOFTWARELYS E:45 , ALA E:47 , ALA E:75 , HOH E:942 , HOH E:967 , HOH E:974 , HOH E:975BINDING SITE FOR RESIDUE CA E 905
06AC6SOFTWARELYS F:45 , ALA F:47 , ALA F:75 , HOH F:955 , HOH F:963 , HOH F:1003 , HOH F:1005BINDING SITE FOR RESIDUE CA F 906
07AC7SOFTWARELYS G:45 , ALA G:47 , ALA G:75 , HOH G:921 , HOH G:922 , HOH G:948 , HOH G:998BINDING SITE FOR RESIDUE CA G 907
08AC8SOFTWARELYS H:45 , ALA H:47 , ALA H:75 , HOH H:928 , HOH H:929 , HOH H:969 , HOH H:974BINDING SITE FOR RESIDUE CA H 908
09AC9SOFTWAREHOH A:911 , HOH A:933 , HOH A:1033 , HOH B:903 , HOH B:961 , HOH B:980BINDING SITE FOR RESIDUE CA A 909
10BC1SOFTWAREHOH C:916 , HOH C:934 , HOH C:982 , HOH C:985 , HOH D:914 , HOH D:986BINDING SITE FOR RESIDUE CA C 910
11BC2SOFTWAREHOH E:920 , HOH E:924 , HOH F:923 , HOH F:932 , HOH F:1004 , HOH F:1026BINDING SITE FOR RESIDUE CA E 911
12BC3SOFTWAREHOH G:926 , HOH G:980 , HOH G:987 , HOH G:1001 , HOH H:920 , HOH H:932 , HOH H:970BINDING SITE FOR RESIDUE CA G 912
13BC4SOFTWAREGLY D:32 , ASP D:34 , HOH D:985 , HOH D:992 , MSE G:1 , HOH G:1010BINDING SITE FOR RESIDUE CA D 913
14BC5SOFTWAREGLY A:32 , ASP A:34 , HOH A:955 , MSE F:1 , ARG F:105 , HOH F:965 , HOH F:986BINDING SITE FOR RESIDUE CA F 914

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1UF3)

(-) Cis Peptide Bonds  (24, 24)

Asymmetric/Biological Unit
No.Residues
1Gly A:40 -Asn A:41
2Ala A:75 -Pro A:76
3Gly A:106 -Pro A:107
4Gly B:40 -Asn B:41
5Ala B:75 -Pro B:76
6Gly B:106 -Pro B:107
7Gly C:40 -Asn C:41
8Ala C:75 -Pro C:76
9Gly C:106 -Pro C:107
10Gly D:40 -Asn D:41
11Ala D:75 -Pro D:76
12Gly D:106 -Pro D:107
13Gly E:40 -Asn E:41
14Ala E:75 -Pro E:76
15Gly E:106 -Pro E:107
16Gly F:40 -Asn F:41
17Ala F:75 -Pro F:76
18Gly F:106 -Pro F:107
19Gly G:40 -Asn G:41
20Ala G:75 -Pro G:76
21Gly G:106 -Pro G:107
22Gly H:40 -Asn H:41
23Ala H:75 -Pro H:76
24Gly H:106 -Pro H:107

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UF3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1UF3)

(-) Exons   (0, 0)

(no "Exon" information available for 1UF3)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:228
 aligned with P84068_THETH | P84068 from UniProtKB/TrEMBL  Length:228

    Alignment length:228
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         P84068_THETH     1 MRRTVRYILATSNPMGDLEALEKFVKLAPDTGADAIALIGNLMPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEMRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTMPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEMLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
               SCOP domains d1uf3a_ A: Hypothetical protein TT1561                                                                                                                                                                                               SCOP domains
               CATH domains -1uf3A00 A:2-228  [code=3.60.21.10, no name defined]                                                                                                                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee....hhhhhhhhhhhhhhhh..eeeee........hhhhhhhhhhhhhhhh..eeee......hhhhhhhhhhhhhhhh..eee....eeee...eeeeee..eee...........eeehhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhh..eeee.....eeeee..eeeee..hhhh.eeeeee....eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1uf3 A   1 mRRTVRYILATSNPmGDLEALEKFVKLAPDTGADAIALIGNLmPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEmRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTmPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEmLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
                            |       10    |   20        30        40  |     50        60        70        80        90   |   100       110       120       130       140       150       160       170       180       190    |  200       210       220
                            |            15-MSE                      43-MSE                                             94-MSE                                                         158-MSE                              195-MSE
                            1-MSE


Chain B from PDB  Type:PROTEIN  Length:226
 aligned with P84068_THETH | P84068 from UniProtKB/TrEMBL  Length:228

    Alignment length:226
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222
         P84068_THETH     3 RTVRYILATSNPMGDLEALEKFVKLAPDTGADAIALIGNLMPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEMRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTMPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEMLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
               SCOP domains d1uf3b_ B: Hypothetical protein TT1561                                                                                                                                                                                             SCOP domains
               CATH domains 1uf3B00 B:3-228  [code=3.60.21.10, no name defined]                                                                                                                                                                                CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeee....hhhhhhhhhhhhhhhh..eeeee........hhhhhhhhhhhhhh....eeee......hhhhhhhhhhhhhhhh..eee....eeee...eeeeee..eee...........eeehhhhhhhhhhhhhhh...eeeee.............hhhhhhhhhhhh..eeee.....eeeee..eeeee..hhhh.eeeeee....eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uf3 B   3 RTVRYILATSNPmGDLEALEKFVKLAPDTGADAIALIGNLmPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEmRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTmPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEmLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
                                    12  |     22        32        42|       52        62        72        82        92 |     102       112       122       132       142       152     | 162       172       182       192  |    202       212       222
                                       15-MSE                      43-MSE                                             94-MSE                                                         158-MSE                              195-MSE


Chain C from PDB  Type:PROTEIN  Length:225
 aligned with P84068_THETH | P84068 from UniProtKB/TrEMBL  Length:228

    Alignment length:225
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223
         P84068_THETH     4 TVRYILATSNPMGDLEALEKFVKLAPDTGADAIALIGNLMPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEMRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTMPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEMLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
               SCOP domains d1uf3c_ C: Hypothetical protein TT1561                                                                                                                                                                                            SCOP domains
               CATH domains 1uf3C00 C:4-228  [code=3.60.21.10, no name defined]                                                                                                                                                                               CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee....hhhhhhhhhhhhhhhh..eeeee........hhhhhhhhhhhhhh....eeee......hhhhhhhhhhhhhhhh..eee....eeee...eeeeee..eee...........eeehhhhhhhhhhhhhhh...eeeee.............hhhhhhhhhhhh..eee......eeeee..eeeee..hhhh.eeeeee....eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uf3 C   4 TVRYILATSNPmGDLEALEKFVKLAPDTGADAIALIGNLmPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEmRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTmPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEmLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
                                    13 |      23        33        43        53        63        73        83        93|      103       113       123       133       143       153    |  163       173       183       193 |     203       213       223
                                      15-MSE                      43-MSE                                             94-MSE                                                         158-MSE                              195-MSE


Chain D from PDB  Type:PROTEIN  Length:228
 aligned with P84068_THETH | P84068 from UniProtKB/TrEMBL  Length:228

    Alignment length:228
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         P84068_THETH     1 MRRTVRYILATSNPMGDLEALEKFVKLAPDTGADAIALIGNLMPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEMRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTMPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEMLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
               SCOP domains d1uf3d_ D: Hypothetical protein TT1561                                                                                                                                                                                               SCOP domains
               CATH domains -1uf3D00 D:2-228  [code=3.60.21.10, no name defined]                                                                                                                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee....hhhhhhhhhhhhhhhh..eeeee........hhhhhhhhhhhhhhhh..eeee......hhhhhhhhhhhhhhhh..eee....eeee...eeeeee..eee...........eeehhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhh..eee......eeeee..eeeee..hhhh.eeeeee....eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1uf3 D   1 mRRTVRYILATSNPmGDLEALEKFVKLAPDTGADAIALIGNLmPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEmRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTmPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEmLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
                            |       10    |   20        30        40  |     50        60        70        80        90   |   100       110       120       130       140       150       160       170       180       190    |  200       210       220
                            1-MSE        15-MSE                      43-MSE                                             94-MSE                                                         158-MSE                              195-MSE


Chain E from PDB  Type:PROTEIN  Length:228
 aligned with P84068_THETH | P84068 from UniProtKB/TrEMBL  Length:228

    Alignment length:228
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         P84068_THETH     1 MRRTVRYILATSNPMGDLEALEKFVKLAPDTGADAIALIGNLMPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEMRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTMPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEMLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
               SCOP domains d1uf3e_ E: Hypothetical protein TT1561                                                                                                                                                                                               SCOP domains
               CATH domains -1uf3E00 E:2-228  [code=3.60.21.10, no name defined]                                                                                                                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee....hhhhhhhhhhhhhhhh..eeeee........hhhhhhhhhhhhhh....eeee......hhhhhhhhhhhhhhhh..eee....eeee...eeeeee..eee...........eeehhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhh..eee......eeeee..eeeee..hhhh.eeeeee....eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1uf3 E   1 mRRTVRYILATSNPmGDLEALEKFVKLAPDTGADAIALIGNLmPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEmRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTmPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEmLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
                            |       10    |   20        30        40  |     50        60        70        80        90   |   100       110       120       130       140       150       160       170       180       190    |  200       210       220
                            1-MSE        15-MSE                      43-MSE                                             94-MSE                                                         158-MSE                              195-MSE


Chain F from PDB  Type:PROTEIN  Length:228
 aligned with P84068_THETH | P84068 from UniProtKB/TrEMBL  Length:228

    Alignment length:228
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         P84068_THETH     1 MRRTVRYILATSNPMGDLEALEKFVKLAPDTGADAIALIGNLMPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEMRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTMPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEMLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
               SCOP domains d1uf3f_ F: Hypothetical protein TT1561                                                                                                                                                                                               SCOP domains
               CATH domains -1uf3F00 F:2-228  [code=3.60.21.10, no name defined]                                                                                                                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee....hhhhhhhhhhhhhhhh..eeeee........hhhhhhhhhhhhhhhh..eeee......hhhhhhhhhhhhhhhh..eee....eeee...eeeeee..eee...........eeehhhhhhhhhhhhhhh...eeeee.............hhhhhhhhhhhh..eee......eeeee..eeeee..hhhh.eeeeee....eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1uf3 F   1 mRRTVRYILATSNPmGDLEALEKFVKLAPDTGADAIALIGNLmPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEmRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTmPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEmLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
                            |       10    |   20        30        40  |     50        60        70        80        90   |   100       110       120       130       140       150       160       170       180       190    |  200       210       220
                            1-MSE        15-MSE                      43-MSE                                             94-MSE                                                         158-MSE                              195-MSE


Chain G from PDB  Type:PROTEIN  Length:228
 aligned with P84068_THETH | P84068 from UniProtKB/TrEMBL  Length:228

    Alignment length:228
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         P84068_THETH     1 MRRTVRYILATSNPMGDLEALEKFVKLAPDTGADAIALIGNLMPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEMRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTMPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEMLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
               SCOP domains d1uf3g_ G: Hypothetical protein TT1561                                                                                                                                                                                               SCOP domains
               CATH domains -1uf3G00 G:2-228  [code=3.60.21.10, no name defined]                                                                                                                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee....hhhhhhhhhhhhhhhh..eeeee........hhhhhhhhhhhhhhhh..eeee......hhhhhhhhhhhhhhhh..eee....eeee...eeeeee..eee...........eeehhhhhhhhhhhhhhh...eeeee.............hhhhhhhhhhhh..eee......eeeee..eeeee..hhhh.eeeeee....eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1uf3 G   1 mRRTVRYILATSNPmGDLEALEKFVKLAPDTGADAIALIGNLmPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEmRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTmPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEmLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
                            |       10    |   20        30        40  |     50        60        70        80        90   |   100       110       120       130       140       150       160       170       180       190    |  200       210       220
                            1-MSE        15-MSE                      43-MSE                                             94-MSE                                                         158-MSE                              195-MSE


Chain H from PDB  Type:PROTEIN  Length:228
 aligned with P84068_THETH | P84068 from UniProtKB/TrEMBL  Length:228

    Alignment length:228
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         P84068_THETH     1 MRRTVRYILATSNPMGDLEALEKFVKLAPDTGADAIALIGNLMPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEMRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTMPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEMLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
               SCOP domains d1uf3h_ H: Hypothetical protein TT1561                                                                                                                                                                                               SCOP domains
               CATH domains -1uf3H00 H:2-228  [code=3.60.21.10, no name defined]                                                                                                                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee....hhhhhhhhhhhhhhhh..eeeee........hhhhhhhhhhhhhhhh..eeee......hhhhhhhhhhhhhhhh..eee....eeee...eeeeee..eee...........eeehhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhh..eeee.....eeeee..eeeee..hhhh.eeeeee....eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1uf3 H   1 mRRTVRYILATSNPmGDLEALEKFVKLAPDTGADAIALIGNLmPKAAKSRDYAAFFRILSEAHLPTAYVPGPQDAPIWEYLREAANVELVHPEmRNVHETFTFWRGPYLVAGVGGEIADEGEPEEHEALRYPAWVAEYRLKALWELKDYPKIFLFHTmPYHKGLNEQGSHEVAHLIKTHNPLLVLVAGKGQKHEmLGASWVVVPGDLSEGEYSLLDLRARKLETGNVR 228
                            |       10    |   20        30        40  |     50        60        70        80        90   |   100       110       120       130       140       150       160       170       180       190    |  200       210       220
                            1-MSE        15-MSE                      43-MSE                                             94-MSE                                                         158-MSE                              195-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 8)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 8)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1UF3)

(-) Gene Ontology  (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H   (P84068_THETH | P84068)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:75 - Pro A:76   [ RasMol ]
    Ala B:75 - Pro B:76   [ RasMol ]
    Ala C:75 - Pro C:76   [ RasMol ]
    Ala D:75 - Pro D:76   [ RasMol ]
    Ala E:75 - Pro E:76   [ RasMol ]
    Ala F:75 - Pro F:76   [ RasMol ]
    Ala G:75 - Pro G:76   [ RasMol ]
    Ala H:75 - Pro H:76   [ RasMol ]
    Gly A:106 - Pro A:107   [ RasMol ]
    Gly A:40 - Asn A:41   [ RasMol ]
    Gly B:106 - Pro B:107   [ RasMol ]
    Gly B:40 - Asn B:41   [ RasMol ]
    Gly C:106 - Pro C:107   [ RasMol ]
    Gly C:40 - Asn C:41   [ RasMol ]
    Gly D:106 - Pro D:107   [ RasMol ]
    Gly D:40 - Asn D:41   [ RasMol ]
    Gly E:106 - Pro E:107   [ RasMol ]
    Gly E:40 - Asn E:41   [ RasMol ]
    Gly F:106 - Pro F:107   [ RasMol ]
    Gly F:40 - Asn F:41   [ RasMol ]
    Gly G:106 - Pro G:107   [ RasMol ]
    Gly G:40 - Asn G:41   [ RasMol ]
    Gly H:106 - Pro H:107   [ RasMol ]
    Gly H:40 - Asn H:41   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1uf3
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  P84068_THETH | P84068
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  P84068_THETH | P84068
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1UF3)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1UF3)
