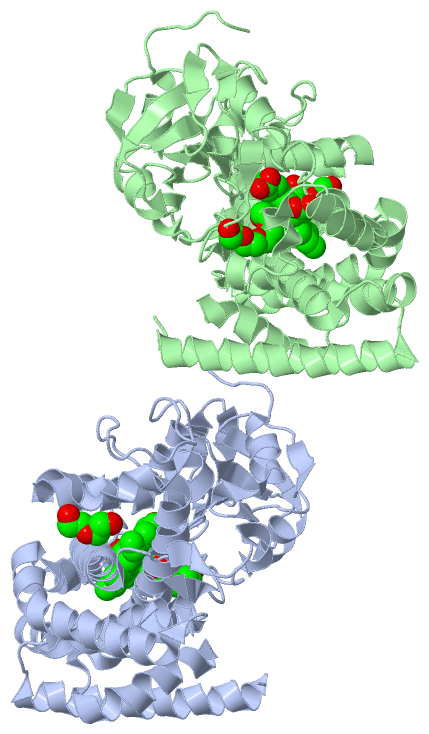

Asymmetric Unit (Jmol Viewer)

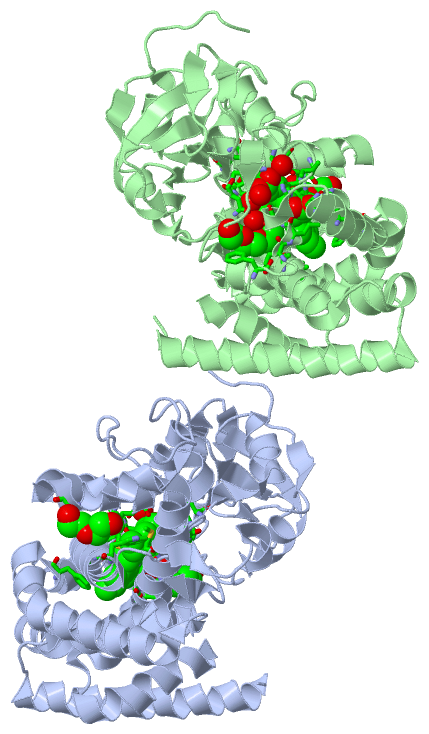

Asym. Unit - sites (Jmol Viewer)

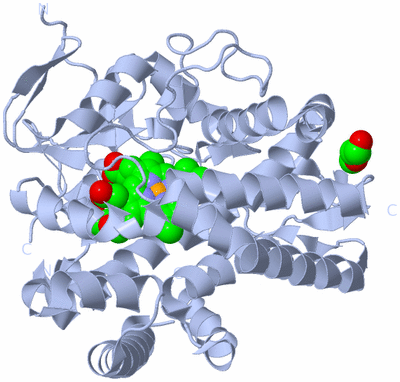

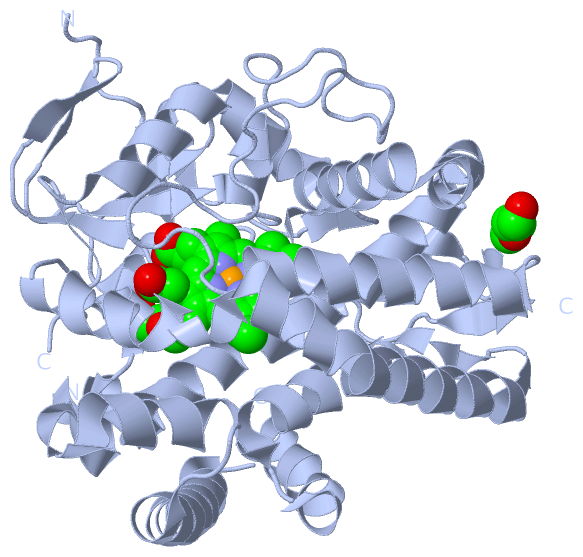

Biological Unit 1 (Jmol Viewer)

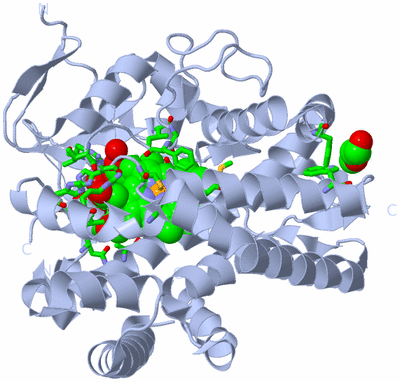

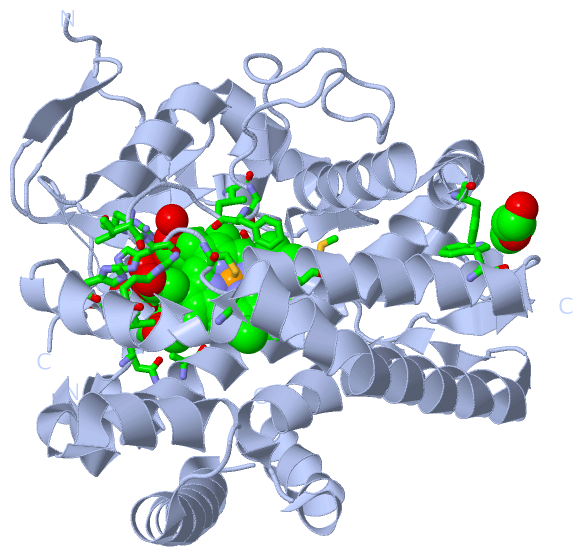

Biol. Unit 1 - sites (Jmol Viewer)

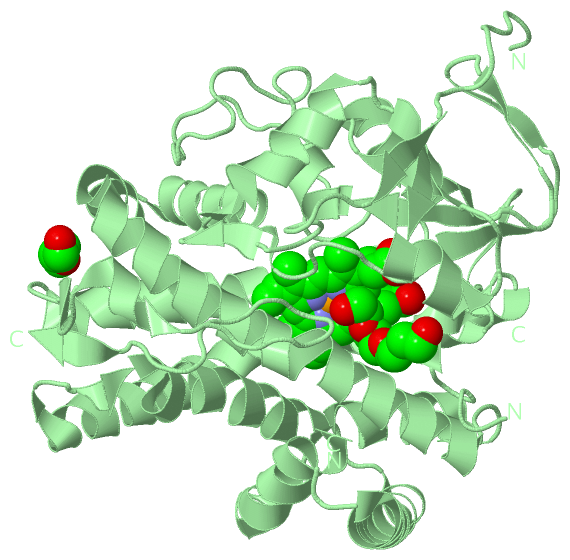

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF OXYC A CYTOCHROME P450 IMPLICATED IN AN OXIDATIVE C-C COUPLING REACTION DURING VANCOMYCIN BIOSYNTHESIS.

Authors :   O. Pylypenko, F. Vitali, K. Zerbe, J. A. Robinson, I. Schlichting

Date :   11 May 03 (Deposition) - 09 Dec 03 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.90

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Cytochrome P450 Vancomycin Biosynthesis, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   O. Pylypenko, F. Vitali, K. Zerbe, J. A. Robinson, I. Schlichting
Crystal Structure Of Oxyc, A Cytochrome P450 Implicated In An Oxidative C-C Coupling Reaction During Vancomycin Biosynthesis
J. Biol. Chem. V. 278 46727 2003
PubMed-ID: 12888556 | Reference-DOI: 10.1074/JBC.M306486200
(for further references see the PDB file header)

Molecule 1 - P450 MONOOXYGENASE
	Chains	:	A, B
	EC Number	:	1.14.-.-
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET14B
	Expression System Strain	:	BL21(DE3)PLYSS
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	AMYCOLATOPSIS ORIENTALIS
	Organism Taxid	:	31958
	Synonym	:	P450 OXYC

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 6)

No.	Name	Count	Type	Full Name
1	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
2	PEG	2	Ligand/Ion	DI(HYDROXYETHYL)ETHER
3	PG4	2	Ligand/Ion	TETRAETHYLENE GLYCOL

Biological Unit 1 (3, 3)

No.	Name	Count	Type	Full Name
1	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
2	PEG	1	Ligand/Ion	DI(HYDROXYETHYL)ETHER
3	PG4	1	Ligand/Ion	TETRAETHYLENE GLYCOL

Biological Unit 2 (3, 3)

No.	Name	Count	Type	Full Name
1	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
2	PEG	1	Ligand/Ion	DI(HYDROXYETHYL)ETHER
3	PG4	1	Ligand/Ion	TETRAETHYLENE GLYCOL

Asymmetric Unit (5, 5)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ILE A:97 , SER A:98 , HIS A:105 , ARG A:109 , PHE A:116 , GLY A:245 , GLY A:246 , THR A:249 , MET A:253 , VAL A:292 , PRO A:295 , ARG A:298 , ILE A:321 , GLY A:348 , PHE A:349 , ILE A:353 , HIS A:354 , CYS A:356 , ALA A:362 , PG4 A:4502 , HOH A:4514 , HOH A:4518 , HOH A:4606 , HOH A:4693	BINDING SITE FOR RESIDUE HEM A 1430
2	AC2	SOFTWARE	GLN A:96 , SER A:98 , THR A:99 , ALA A:241 , GLY A:245 , ASN A:296 , HEM A:1430 , HOH A:4518 , HOH A:4611 , HOH A:4635 , HOH A:4654	BINDING SITE FOR RESIDUE PG4 A 4502
3	AC3	SOFTWARE	ILE B:97 , SER B:98 , HIS B:105 , ARG B:109 , PHE B:116 , LEU B:161 , GLY B:245 , GLY B:246 , THR B:249 , VAL B:250 , VAL B:292 , PRO B:295 , ARG B:298 , ILE B:321 , GLY B:348 , PHE B:349 , GLY B:350 , ILE B:353 , HIS B:354 , CYS B:356 , ALA B:362 , PG4 B:5502 , HOH B:5505 , HOH B:5608 , HOH B:5669 , HOH B:5680	BINDING SITE FOR RESIDUE HEM B 2430
4	AC4	SOFTWARE	PHE B:93 , GLN B:96 , SER B:98 , ALA B:241 , GLY B:245 , ASN B:296 , HEM B:2430 , HOH B:5622 , HOH B:5680	BINDING SITE FOR RESIDUE PG4 B 5502
5	AC5	SOFTWARE	PHE A:272 , TRP A:374	BINDING SITE FOR RESIDUE PEG A 4503

(no "SS Bond" information available for 1UED)

Asymmetric Unit

No.	Residues
1	Pro A:102	-	Pro A:103
2	Pro B:102	-	Pro B:103

(no "SAP(SNP)/Variant" information available for 1UED)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CYTOCHROME_P450	PS00086	Cytochrome P450 cysteine heme-iron ligand signature.	C5C4_AMYOR	349-358	2	A:349-358 B:349-358

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CYTOCHROME_P450	PS00086	Cytochrome P450 cysteine heme-iron ligand signature.	C5C4_AMYOR	349-358	1	A:349-358 -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CYTOCHROME_P450	PS00086	Cytochrome P450 cysteine heme-iron ligand signature.	C5C4_AMYOR	349-358	1	- B:349-358

(no "Exon" information available for 1UED)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:391
 aligned with C5C4_AMYOR | Q8RN03 from UniProtKB/Swiss-Prot  Length:406

    Alignment length:403
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403
           C5C4_AMYOR     4 DIDQVAPLLREPANFQLRTNCDPHEDNFGLRAHGPLVRIVGESSTQLGRDFVWQAHGYEVVRRILGDHEHFTTRPQFTQSKSGAHVEAQFVGQISTYDPPEHTRLRKMLTPEFTVRRIRRMEPAIQSLIDDRLDLLEAEGPSADLQGLFADPVGAHALCELLGIPRDDQREFVRRIRRNADLSRGLKARAADSAAFNRYLDNLLARQRADPDDGLLGMIVRDHGDNVTDEELKGLCTALILGGVETVAGMIGFGVLALLDNPGQIELLFESPEKAERVVNELVRYLSPVQAPNPRLAIKDVVIDGQLIKAGDYVLCSILMANRDEALTPDPDVLDANRAAVSDVGFGHGIHYCVGAALARSMLRMAYQTLWRRFPGLRLAVPIEEVKYRSAFVDCPDQVPVTW 406
               SCOP domains d1ueda_ A: p450 monoxygenase OxyC                                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 1uedA00 A:4-406 Cytochrome p450                                                                                                                                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eee.......ee..eehhhhhhhhh...eeeeehhhhhhh....eeee.hhhhhhhhhhh...ee.....---------hhhhh.hhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eehhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh.---.hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......eee...eee..eee....eeeehhhhhh................................hhhhhhhhhhhhhhhhhhhh...ee..hhhhh.............eee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------CYTOCHROME------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ued A   4 DIDQVAPLLREPANFQLRTNCDPHEDNFGLRAHGPLVRIVGESSTQLGRDFVWQAHGYEVVRRILGDHEHFTTRPQF---------EAQFVGQISTYDPPEHTRLRKMLTPEFTVRRIRRMEPAIQSLIDDRLDLLEAEGPSADLQGLFADPVGAHALCELLGIPRDDQREFVRRIRRNA---RGLKARAADSAAFNRYLDNLLARQRADPDDGLLGMIVRDHGDNVTDEELKGLCTALILGGVETVAGMIGFGVLALLDNPGQIELLFESPEKAERVVNELVRYLSPVQAPNPRLAIKDVVIDGQLIKAGDYVLCSILMANRDEALTPDPDVLDANRAAVSDVGFGHGIHYCVGAALARSMLRMAYQTLWRRFPGLRLAVPIEEVKYRSAFVDCPDQVPVTW 406
                                    13        23        33        43        53        63        73      |  -      | 93       103       113       123       133       143       153       163       173       183   |   193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403
                                                                                                       80        90                                                                                          183 187

Chain B from PDB  Type:PROTEIN  Length:391
 aligned with C5C4_AMYOR | Q8RN03 from UniProtKB/Swiss-Prot  Length:406

    Alignment length:405
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401
           C5C4_AMYOR     2 GHDIDQVAPLLREPANFQLRTNCDPHEDNFGLRAHGPLVRIVGESSTQLGRDFVWQAHGYEVVRRILGDHEHFTTRPQFTQSKSGAHVEAQFVGQISTYDPPEHTRLRKMLTPEFTVRRIRRMEPAIQSLIDDRLDLLEAEGPSADLQGLFADPVGAHALCELLGIPRDDQREFVRRIRRNADLSRGLKARAADSAAFNRYLDNLLARQRADPDDGLLGMIVRDHGDNVTDEELKGLCTALILGGVETVAGMIGFGVLALLDNPGQIELLFESPEKAERVVNELVRYLSPVQAPNPRLAIKDVVIDGQLIKAGDYVLCSILMANRDEALTPDPDVLDANRAAVSDVGFGHGIHYCVGAALARSMLRMAYQTLWRRFPGLRLAVPIEEVKYRSAFVDCPDQVPVTW 406
               SCOP domains d1uedb_ B: p450 monoxygenase OxyC                                                                                                                                                                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1uedB00 B:2-406 Cytochrome p450                                                                                                                                                                                                                                                                                                                                                                                       CATH domains
           Pfam domains (1) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------p450-1uedB01 B:276-381                                                                                    ------------------------- Pfam domains (1)
           Pfam domains (2) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------p450-1uedB02 B:276-381                                                                                    ------------------------- Pfam domains (2)
         Sec.struct. author .........eee.......ee..eehhhhhhhhh...eeeeehhhhhhh....eeee.hhhhhhhhhhh...ee...------------.....hhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eehhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh--..hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh.......eee...eee..eee....eeeehhhhhh................................hhhhhhhhhhhhhhhhhhhh...ee..hhhhh.............eee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------CYTOCHROME------------------------------------------------ PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ued B   2 GHDIDQVAPLLREPANFQLRTNCDPHEDNFGLRAHGPLVRIVGESSTQLGRDFVWQAHGYEVVRRILGDHEHFTTRP------------AQFVGQISTYDPPEHTRLRKMLTPEFTVRRIRRMEPAIQSLIDDRLDLLEAEGPSADLQGLFADPVGAHALCELLGIPRDDQREFVRRIRRNA--SRGLKARAADSAAFNRYLDNLLARQRADPDDGLLGMIVRDHGDNVTDEELKGLCTALILGGVETVAGMIGFGVLALLDNPGQIELLFESPEKAERVVNELVRYLSPVQAPNPRLAIKDVVIDGQLIKAGDYVLCSILMANRDEALTPDPDVLDANRAAVSDVGFGHGIHYCVGAALARSMLRMAYQTLWRRFPGLRLAVPIEEVKYRSAFVDCPDQVPVTW 406
                                    11        21        31        41        51        61        71      |  -        91       101       111       121       131       141       151       161       171       181 |  |  191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401
                                                                                                       78           91                                                                                         183  |
                                                                                                                                                                                                                  186

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Cytochrome P450 (480)

Superfamily: Cytochrome P450 (480)

Family: Cytochrome P450 (323)

Protein domain: p450 monoxygenase OxyC (1)

Amycolatopsis orientalis [TaxId: 31958] (1)

1a	d1ueda_	A:
1b	d1uedb_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Cytochrome p450 (271)

Homologous Superfamily: Cytochrome p450 (271)

Amycolatopsis orientalis. Organism_taxid: 31958. (4)

1a	1uedA00	A:4-406
1b	1uedB00	B:2-406

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: p450] (161)

Family: p450 (161)

Amycolatopsis orientalis (Nocardia orientalis) (4)

1a	p450-1uedB01	B:276-381
1b	p450-1uedB02	B:276-381

Asymmetric Unit(hide GO term definitions)

Chain A,B (C5C4_AMYOR | Q8RN03)

molecular function
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0005506	iron ion binding	Interacting selectively and non-covalently with iron (Fe) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0004497	monooxygenase activity	Catalysis of the incorporation of one atom from molecular oxygen into a compound and the reduction of the other atom of oxygen to water.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0016705	oxidoreductase activity, acting on paired donors, with incorporation or reduction of molecular oxygen	Catalysis of an oxidation-reduction (redox) reaction in which hydrogen or electrons are transferred from each of two donors, and molecular oxygen is reduced or incorporated into a donor.
biological process
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0033072	vancomycin biosynthetic process	The chemical reactions and pathways leading to the formation of vancomycin, (3S,6R,7R,11R,23S,26S,30aS,36R,38aR)-44-[2-O-(3-amino-2,3,6-trideoxy-3-C-methyl-alpha-L-lyxo-hexopyranosyl)-beta-D-glucopyranosyloxy]-3-(carbamoylmethyl)-10,19-dichloro-2,3,4,5,6,7,23,25,26,36,37,38,38a-tetradecahydro-7,22,28,30,32-pentahydroxy-6-(N-methyl-D-leucyl)-2,5,24,38,39-pentaoxo-1H,22H-23,36-(epiminomethano)-8,11:18,21-dietheno-13,16:31,35-di(metheno)[1,6,9]oxadiazacyclohexadecino[4,5-m][10,2,16]benzoxadiazacyclotetracosine-26-carboxylic acid, a complex glycopeptide from Streptomyces orientalis that inhibits a specific step in the synthesis of the peptidoglycan layer in Gram-positive bacteria.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		HEM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PEG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PG4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Pro A:102 - Pro A:103	[ RasMol ]
		Pro B:102 - Pro B:103	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1ued
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	C5C4_AMYOR \| Q8RN03
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.14.-.-
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	C5C4_AMYOR \| Q8RN03
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
