1UDE - JenaLib

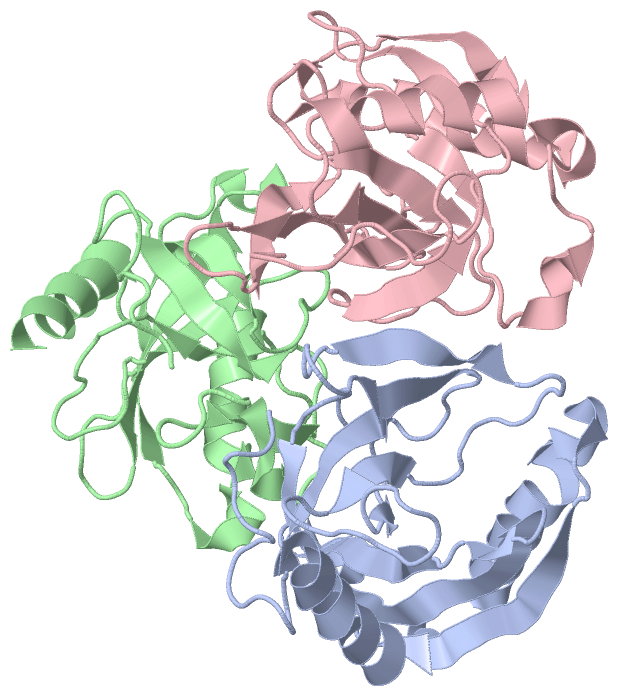

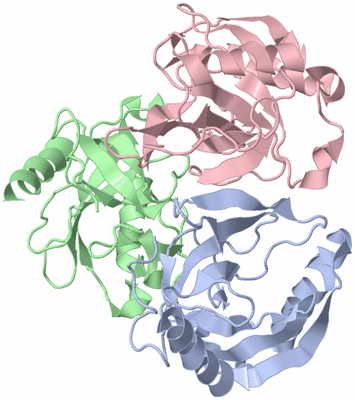

Asymmetric Unit (Jmol Viewer)

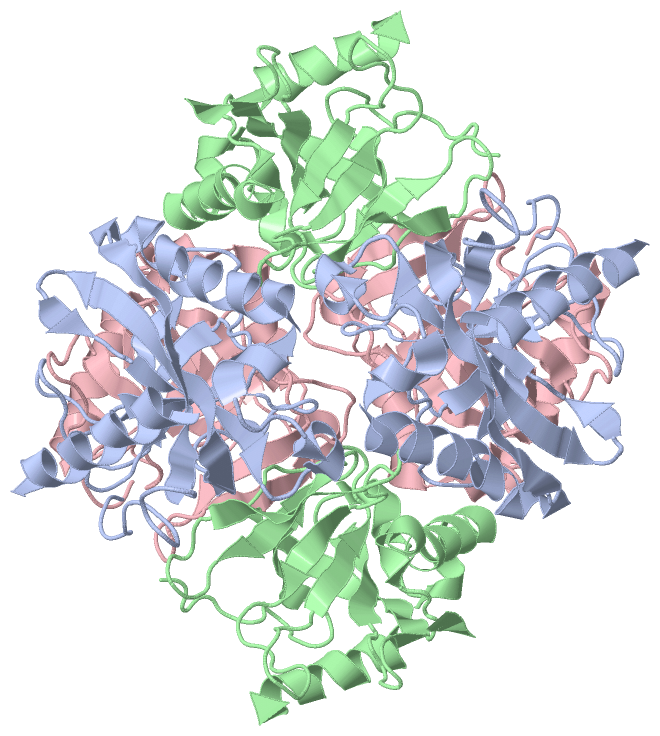

Biological Unit 1 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF THE INORGANIC PYROPHOSPHATASE FROM THE HYPERTHERMOPHILIC ARCHAEON PYROCOCCUS HORIKOSHII OT3

Authors :   B. Liu, R. Gao, W. Zhou, M. Bartlam, Z. Rao

Date :   29 Apr 03 (Deposition) - 20 Jan 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.66

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A,B,C  (2x)

Keywords :   Inorganic Pyrophosphatase X-Ray Crystallographic Analysis, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   B. Liu, M. Bartlam, R. Gao, W. Zhou, H. Pang, Y. Liu, Y. Feng, Z. Rao
Crystal Structure Of The Hyperthermophilic Inorganic Pyrophosphatase From The Archaeon Pyrococcus Horikoshii.
Biophys. J. V. 86 420 2004
PubMed-ID: 14695284

Molecule 1 - INORGANIC PYROPHOSPHATASE
	Chains	:	A, B, C
	EC Number	:	3.6.1.1
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET15B
	Expression System Strain	:	BE21
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	PPA
	Organism Scientific	:	PYROCOCCUS HORIKOSHII
	Organism Taxid	:	53953

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (2x)	:	A	B	C

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1UDE)

(no "Site" information available for 1UDE)

(no "SS Bond" information available for 1UDE)

(no "Cis Peptide Bond" information available for 1UDE)

(no "SAP(SNP)/Variant" information available for 1UDE)

Asymmetric Unit (1, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PPASE	PS00387	Inorganic pyrophosphatase signature.	IPYR_PYRHO	66-72	3	A:66-72 B:66-72 C:66-72

Biological Unit 1 (1, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PPASE	PS00387	Inorganic pyrophosphatase signature.	IPYR_PYRHO	66-72	6	A:66-72 B:66-72 C:66-72

(no "Exon" information available for 1UDE)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:168
 aligned with IPYR_PYRHO | O59570 from UniProtKB/Swiss-Prot  Length:178

    Alignment length:168
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163
           IPYR_PYRHO     4 FHDLEPGPNVPEVVYALIEIPKGSRNKYELDKETGLLKLDRVLYTPFHYPVDYGIIPRTWYEDGDPFDIMVIMREPTYPLTIIEARPIGLFKMIDSGDKDYKVLAVPVEDPYFKDWKDISDVPKAFLDEIAHFFKRYKELEGKEIIVEGWEGAEAAKREILRAIEMYK 171
               SCOP domains d1udea_ A: Inorganic pyrophosphatase                                                                                                                                     SCOP domains
               CATH domains 1udeA00 A:4-172 Inorganic Pyrophosphatase                                                                                                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .............eeeeeee.....eeeee......eeeeee.........eeee............eeee..........eeeeeeeeeeeeee..ee..eeeeee..hhhhh...hhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeehhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------------------------------------------------------------PPASE  --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1ude A   4 FHDLEPGPNVPEVVYALIEIPKGSRNKYELDKETGLLKLDRVLYTPFHYPVDYGIIPRTWYEDGDPFDIMVIMREPTYPLTIIEARPIGLFKMIDSGDKDYKVLAVPVEDPYFKDWKDISDVPKAFLDEIAHFFKRYKELEGKEIIVEGWEGAEAAKREILRAIEMYK 172
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143||     154       164
                                                                                                                                                                      144|
                                                                                                                                                                       146

Chain B from PDB  Type:PROTEIN  Length:167
 aligned with IPYR_PYRHO | O59570 from UniProtKB/Swiss-Prot  Length:178

    Alignment length:167
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163
           IPYR_PYRHO     4 FHDLEPGPNVPEVVYALIEIPKGSRNKYELDKETGLLKLDRVLYTPFHYPVDYGIIPRTWYEDGDPFDIMVIMREPTYPLTIIEARPIGLFKMIDSGDKDYKVLAVPVEDPYFKDWKDISDVPKAFLDEIAHFFKRYKELEGKEIIVEGWEGAEAAKREILRAIEMY 170
               SCOP domains d1udeb_ B: Inorganic pyrophosphatase                                                                                                                                    SCOP domains
               CATH domains 1udeB00 B:4-171 Inorganic Pyrophosphatase                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eeeeeee.....eeeee......eeeeee.........eeee............eeee.........eeeeeeeeeeeeee.......eeeeee..hhhhh...hhhhhhhhhhhhhhhhhhhhhhhhh...eeee..hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------PPASE  -------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ude B   4 FHDLEPGPNVPEVVYALIEIPKGSRNKYELDKETGLLKLDRVLYTPFHYPVDYGIIPRTWYEDGDPFDIMVIMREPTYPLTIIEARPIGLFKMIDSGDKDYKVLAVPVEDPYFKDWKDISDVPKAFLDEIAHFFKRYKELEGKEIIVEGWEGAEAAKREILRAIEMY 171
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143||     154       164
                                                                                                                                                                      144|
                                                                                                                                                                       146

Chain C from PDB  Type:PROTEIN  Length:167
 aligned with IPYR_PYRHO | O59570 from UniProtKB/Swiss-Prot  Length:178

    Alignment length:167
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163
           IPYR_PYRHO     4 FHDLEPGPNVPEVVYALIEIPKGSRNKYELDKETGLLKLDRVLYTPFHYPVDYGIIPRTWYEDGDPFDIMVIMREPTYPLTIIEARPIGLFKMIDSGDKDYKVLAVPVEDPYFKDWKDISDVPKAFLDEIAHFFKRYKELEGKEIIVEGWEGAEAAKREILRAIEMY 170
               SCOP domains d1udec_ C: Inorganic pyrophosphatase                                                                                                                                    SCOP domains
               CATH domains 1udeC00 C:4-171 Inorganic Pyrophosphatase                                                                                                                               CATH domains
           Pfam domains (1) --------------Pyrophosphatase-1udeC01 C:18-171                                                                                                                          Pfam domains (1)
           Pfam domains (2) --------------Pyrophosphatase-1udeC02 C:18-171                                                                                                                          Pfam domains (2)
           Pfam domains (3) --------------Pyrophosphatase-1udeC03 C:18-171                                                                                                                          Pfam domains (3)
         Sec.struct. author .............eeeeeee.....eeeee......eeeeee.........eeeee..........eeeee.........eeeee....eeeee........eee....hhhhh...hhhhhhhhhhhhhhhhhh..hhhhh...eeeeeehhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------PPASE  -------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ude C   4 FHDLEPGPNVPEVVYALIEIPKGSRNKYELDKETGLLKLDRVLYTPFHYPVDYGIIPRTWYEDGDPFDIMVIMREPTYPLTIIEARPIGLFKMIDSGDKDYKVLAVPVEDPYFKDWKDISDVPKAFLDEIAHFFKRYKELEGKEIIVEGWEGAEAAKREILRAIEMY 171
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143||     154       164
                                                                                                                                                                      144|
                                                                                                                                                                       146

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: OB-fold (1179)

Superfamily: Inorganic pyrophosphatase (69)

Family: Inorganic pyrophosphatase (56)

Protein domain: Inorganic pyrophosphatase (41)

Pyrococcus horikoshii [TaxId: 53953] (1)

1a	d1udea_	A:
1b	d1udeb_	B:
1c	d1udec_	C:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Alpha-Beta Complex (3881)

Topology: Inorganic Pyrophosphatase (59)

Homologous Superfamily: Inorganic Pyrophosphatase (59)

Pyrococcus horikoshii. Organism_taxid: 53953. (1)

1a	1udeA00	A:4-172
1b	1udeB00	B:4-171
1c	1udeC00	C:4-171

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (IPYR_PYRHO | O59570)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0004427	inorganic diphosphatase activity	Catalysis of the reaction: diphosphate + H(2)O = H(+) + 2 phosphate.
	GO:0000287	magnesium ion binding	Interacting selectively and non-covalently with magnesium (Mg) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0006796	phosphate-containing compound metabolic process	The chemical reactions and pathways involving the phosphate group, the anion or salt of any phosphoric acid.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ude)

	Sites
(no "Sites" information available for 1ude)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ude)

Biological Unit
	Complete Structure

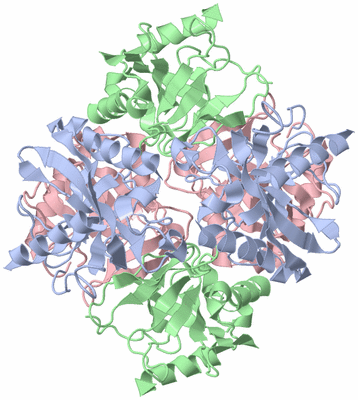

		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1ude
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	IPYR_PYRHO \| O59570
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.6.1.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	IPYR_PYRHO \| O59570
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1UDE)

(no "Related Entries Specified in the PDB File" available for 1UDE)
