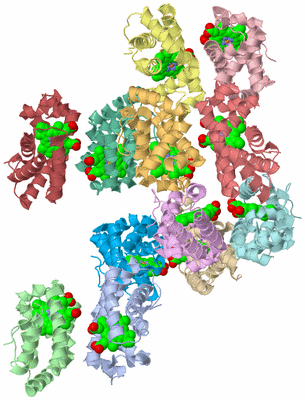

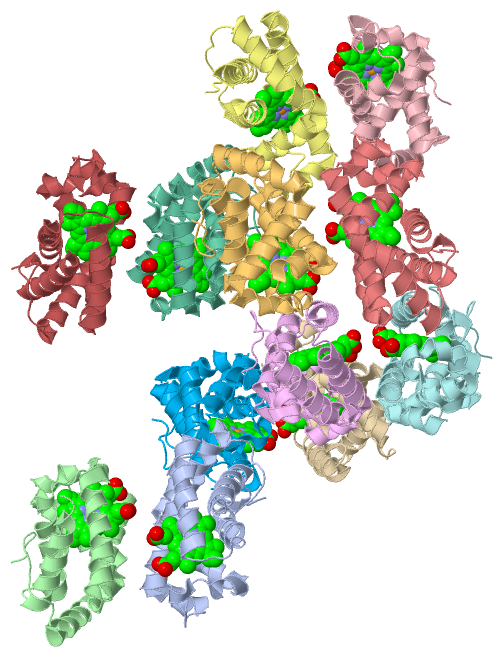

Asymmetric Unit (Jmol Viewer)

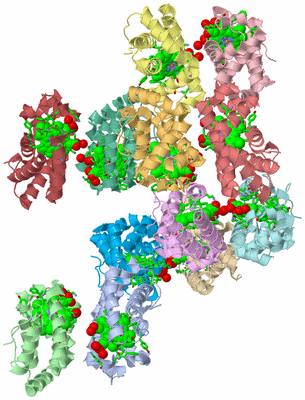

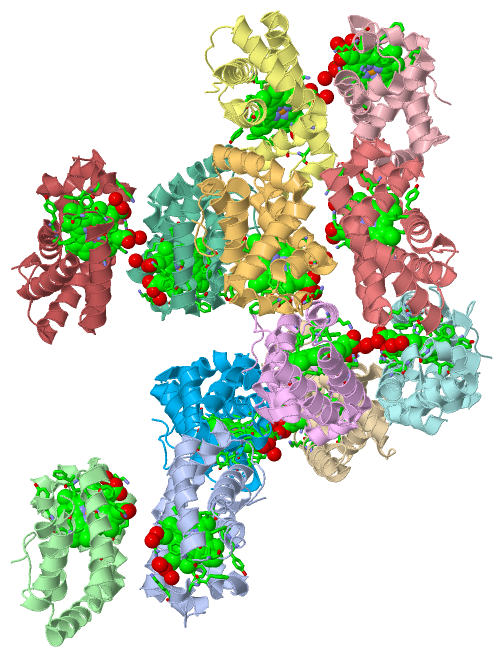

Asym. Unit - sites (Jmol Viewer)

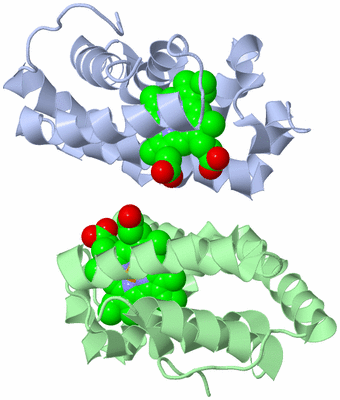

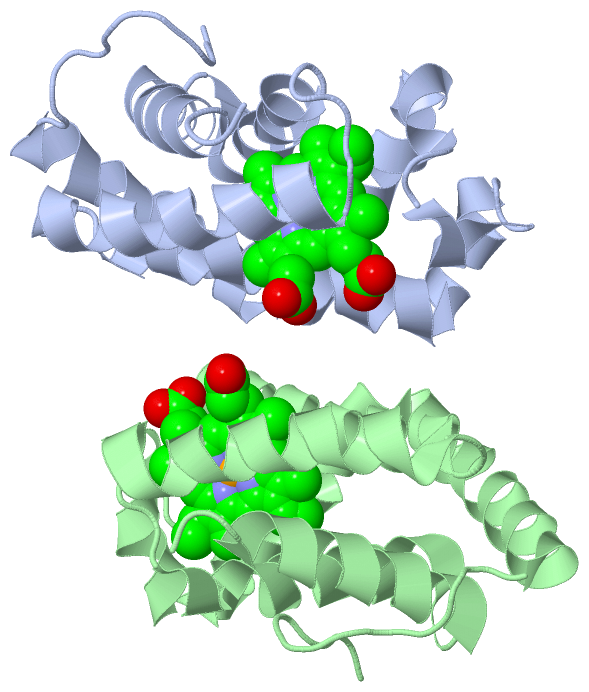

Biological Unit 1 (Jmol Viewer)

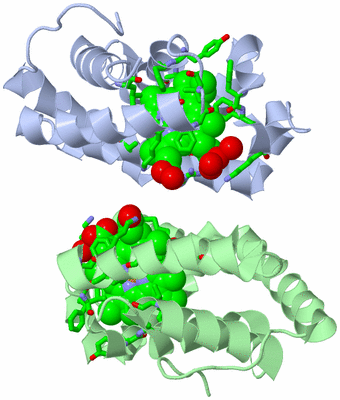

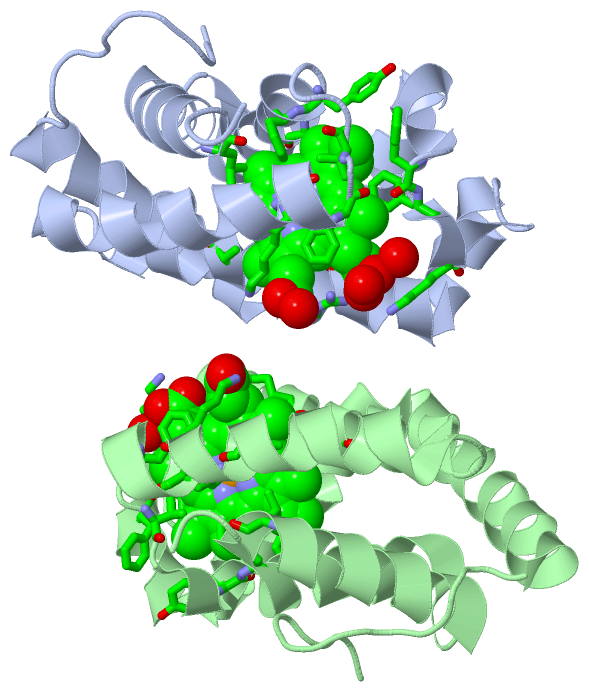

Biol. Unit 1 - sites (Jmol Viewer)

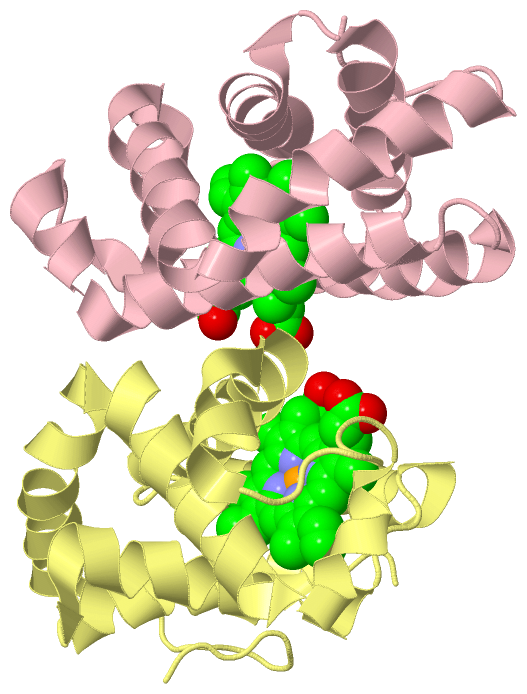

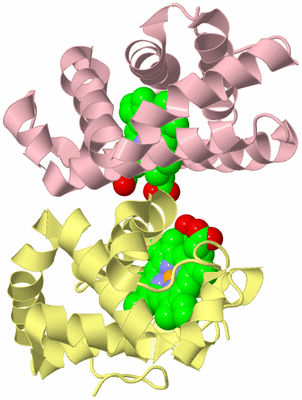

Biological Unit 2 (Jmol Viewer)

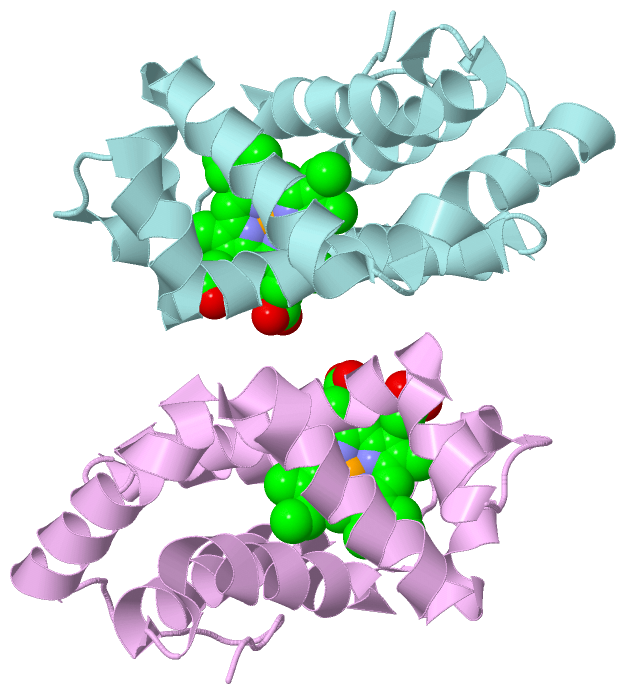

Biological Unit 3 (Jmol Viewer)

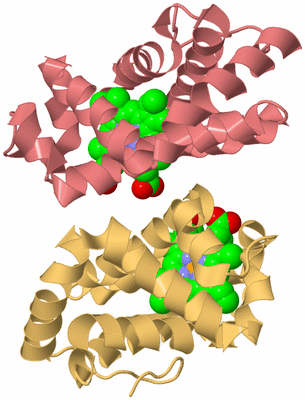

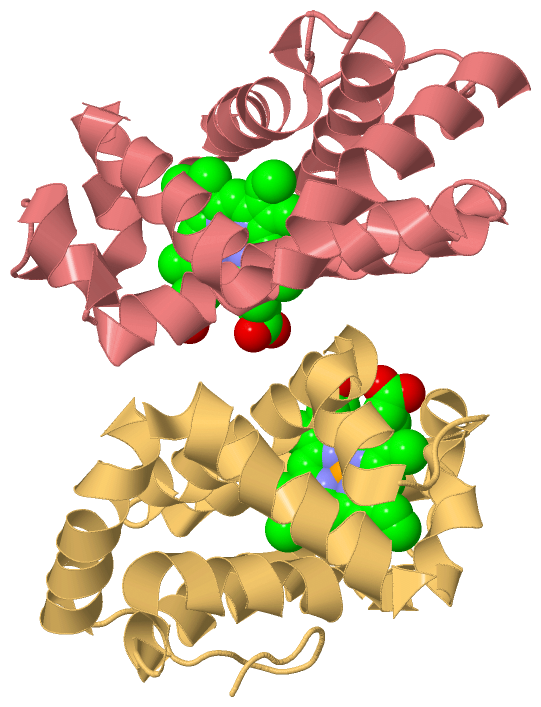

Biological Unit 4 (Jmol Viewer)

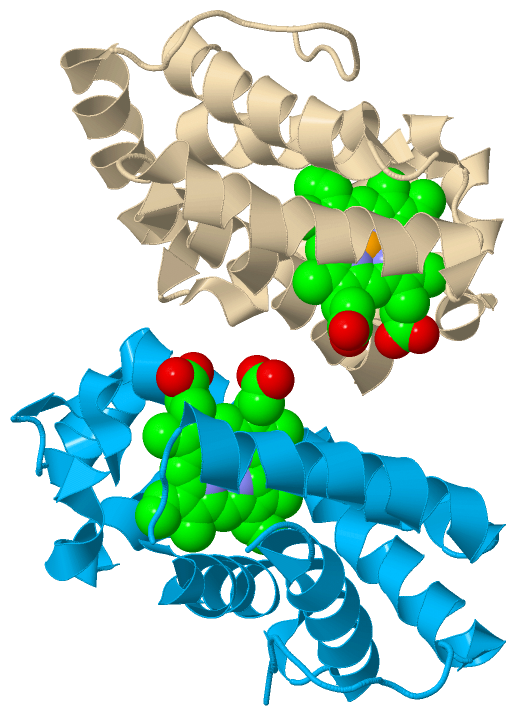

Biological Unit 5 (Jmol Viewer)

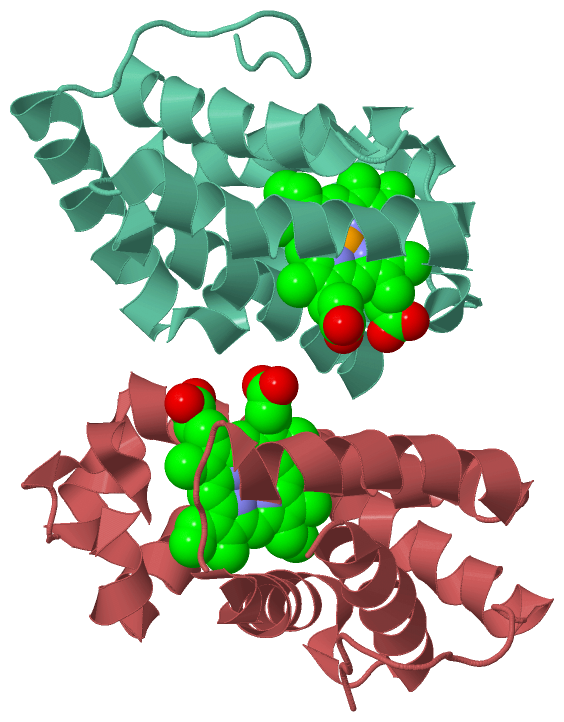

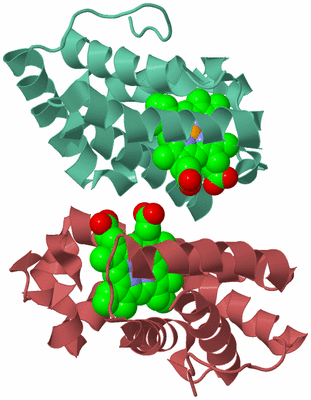

Biological Unit 6 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF HEMOGLOBINI FROM RIVER LAMPREY

Authors :   M. Seki, M. Yao, Y. Yazawa, I. Tanaka

Date :   08 Apr 03 (Deposition) - 29 Apr 03 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym. Unit : A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)
Biol. Unit 3: E,F  (1x)
Biol. Unit 4: G,H  (1x)
Biol. Unit 5: I,J  (1x)
Biol. Unit 6: K,L  (1x)

Keywords :   Globin-Fold, Oxygen Storage/Transport Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Seki, M. Yao, Y. Yazawa, I. Tanaka
Crystal Structure Analysis Of River Lamprey Hemoglobini
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - GLOBIN
	Chains	:	A, B, C, D, E, F, G, H, I, J, K, L
	Organism Common	:	EUROPEAN RIVER LAMPREY
	Organism Scientific	:	LAMPETRA FLUVIATILIS
	Organism Taxid	:	7748
	Synonym	:	HEMOGLOBINI

		1	2	3	4	5	6	7	8	9	10	11	12
Asymmetric Unit	:	A	B	C	D	E	F	G	H	I	J	K	L
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D
Biological Unit 3 (1x)	:					E	F
Biological Unit 4 (1x)	:							G	H
Biological Unit 5 (1x)	:									I	J
Biological Unit 6 (1x)	:											K	L

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 12)

No.	Name	Count	Type	Full Name
1	HEM	12	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 2 (1, 2)

No.	Name	Count	Type	Full Name
1	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 3 (1, 2)

No.	Name	Count	Type	Full Name
1	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 4 (1, 2)

No.	Name	Count	Type	Full Name
1	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 5 (1, 2)

No.	Name	Count	Type	Full Name
1	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 6 (1, 2)

No.	Name	Count	Type	Full Name
1	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Asymmetric Unit (12, 12)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	PHE A:51 , PHE A:52 , LYS A:54 , HIS A:73 , ARG A:76 , ALA A:80 , LYS A:104 , HIS A:105 , PHE A:109 , VAL A:111 , TYR A:115 , PHE A:116 , LEU A:119 , LEU A:145 , HOH A:159 , HOH A:161 , HOH A:162	BINDING SITE FOR RESIDUE HEM A 150
02	AC2	SOFTWARE	PHE B:51 , PHE B:52 , LYS B:54 , HIS B:73 , ARG B:76 , ALA B:80 , LEU B:101 , LYS B:104 , HIS B:105 , PHE B:109 , VAL B:111 , TYR B:115 , PHE B:116 , LEU B:119 , LEU B:145 , HOH B:188	BINDING SITE FOR RESIDUE HEM B 150
03	AC3	SOFTWARE	PHE C:51 , PHE C:52 , LYS C:54 , HIS C:73 , ARG C:76 , ALA C:80 , LYS C:104 , HIS C:105 , PHE C:109 , VAL C:111 , TYR C:115 , PHE C:116 , LEU C:119 , LEU C:145 , HOH C:166 , HOH C:172 , HOH C:211	BINDING SITE FOR RESIDUE HEM C 150
04	AC4	SOFTWARE	PHE D:51 , PHE D:52 , LYS D:54 , HIS D:73 , ARG D:76 , ALA D:80 , LYS D:104 , HIS D:105 , PHE D:109 , VAL D:111 , TYR D:115 , PHE D:116 , LEU D:119 , LEU D:145 , HOH D:168 , HOH D:169 , HOH D:212	BINDING SITE FOR RESIDUE HEM D 150
05	AC5	SOFTWARE	PHE E:51 , PHE E:52 , LYS E:54 , HIS E:73 , ARG E:76 , ILE E:77 , ALA E:80 , LEU E:101 , LYS E:104 , HIS E:105 , PHE E:109 , TYR E:115 , PHE E:116 , LEU E:119 , LEU E:145 , HOH E:176 , HOH E:192 , HOH E:232	BINDING SITE FOR RESIDUE HEM E 150
06	AC6	SOFTWARE	PHE F:51 , PHE F:52 , LYS F:54 , HIS F:73 , ARG F:76 , LYS F:104 , HIS F:105 , PHE F:109 , VAL F:111 , TYR F:115 , PHE F:116 , LEU F:119 , LEU F:145 , HOH F:182 , HOH F:188 , HOH F:190	BINDING SITE FOR RESIDUE HEM F 150
07	AC7	SOFTWARE	PHE G:51 , PHE G:52 , LYS G:54 , HIS G:73 , ARG G:76 , ALA G:80 , LEU G:101 , LYS G:104 , HIS G:105 , PHE G:109 , VAL G:111 , TYR G:115 , PHE G:116 , LEU G:119 , LEU G:145 , HOH G:165 , HOH G:171 , HOH G:184	BINDING SITE FOR RESIDUE HEM G 150
08	AC8	SOFTWARE	PHE H:51 , PHE H:52 , LYS H:54 , HIS H:73 , ARG H:76 , ALA H:80 , LEU H:101 , LYS H:104 , HIS H:105 , PHE H:109 , VAL H:111 , TYR H:115 , PHE H:116 , LEU H:119 , LEU H:145 , HOH H:168	BINDING SITE FOR RESIDUE HEM H 150
09	AC9	SOFTWARE	PHE I:51 , PHE I:52 , LYS I:54 , HIS I:73 , ARG I:76 , LEU I:101 , LYS I:104 , HIS I:105 , PHE I:109 , TYR I:115 , PHE I:116 , LEU I:119 , LEU I:145 , HOH I:182 , HOH I:220	BINDING SITE FOR RESIDUE HEM I 150
10	BC1	SOFTWARE	PHE J:51 , PHE J:52 , LYS J:54 , HIS J:73 , ARG J:76 , ALA J:80 , LEU J:101 , LYS J:104 , HIS J:105 , PHE J:109 , VAL J:111 , TYR J:115 , PHE J:116 , LEU J:119 , LEU J:145 , HOH J:163 , HOH J:207 , HOH J:213 , HOH J:219	BINDING SITE FOR RESIDUE HEM J 150
11	BC2	SOFTWARE	PHE K:51 , PHE K:52 , LYS K:54 , HIS K:73 , ARG K:76 , LEU K:101 , LYS K:104 , HIS K:105 , PHE K:109 , VAL K:111 , TYR K:115 , PHE K:116 , LEU K:119 , HOH K:171 , HOH K:208	BINDING SITE FOR RESIDUE HEM K 150
12	BC3	SOFTWARE	PHE L:51 , PHE L:52 , LYS L:54 , HIS L:73 , ARG L:76 , ALA L:80 , LEU L:101 , LYS L:104 , HIS L:105 , PHE L:109 , VAL L:111 , TYR L:115 , PHE L:116 , LEU L:119 , LEU L:145 , HOH L:168 , HOH L:191	BINDING SITE FOR RESIDUE HEM L 150

(no "SS Bond" information available for 1UC3)

(no "Cis Peptide Bond" information available for 1UC3)

(no "SAP(SNP)/Variant" information available for 1UC3)

Asymmetric Unit (1, 12)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB_LAMFL	10-150	12	A:9-149 B:9-149 C:9-149 D:9-149 E:9-149 F:9-149 G:9-149 H:9-149 I:9-149 J:9-149 K:9-149 L:9-149

Biological Unit 1 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB_LAMFL	10-150	2	A:9-149 B:9-149 - - - - - - - - - -

Biological Unit 2 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB_LAMFL	10-150	2	- - C:9-149 D:9-149 - - - - - - - -

Biological Unit 3 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB_LAMFL	10-150	2	- - - - E:9-149 F:9-149 - - - - - -

Biological Unit 4 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB_LAMFL	10-150	2	- - - - - - G:9-149 H:9-149 - - - -

Biological Unit 5 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB_LAMFL	10-150	2	- - - - - - - - I:9-149 J:9-149 - -

Biological Unit 6 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB_LAMFL	10-150	2	- - - - - - - - - - K:9-149 L:9-149

(no "Exon" information available for 1UC3)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3a_ A: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3A00 A:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: A:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 A   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain B from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3b_ B: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3B00 B:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: B:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 B   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain C from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3c_ C: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3C00 C:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: C:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 C   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain D from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3d_ D: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3D00 D:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: D:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 D   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain E from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3e_ E: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3E00 E:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: E:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 E   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain F from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3f_ F: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3F00 F:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: F:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 F   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain G from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3g_ G: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3G00 G:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: G:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 G   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain H from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3h_ H: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3H00 H:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh.hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: H:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 H   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain I from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3i_ I: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3I00 I:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: I:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 I   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain J from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3j_ J: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3J00 J:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: J:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 J   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain K from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3k_ K: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3K00 K:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: K:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 K   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain L from PDB  Type:PROTEIN  Length:149
 aligned with GLB_LAMFL | P02207 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
            GLB_LAMFL     2 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1uc3l_ L: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1uc3L00 L:1-149 Globins                                                                                                                               CATH domains
           Pfam domains (1) --------------Globin-1uc3L01 L:15-124                                                                                       ------------------------- Pfam domains (1)
           Pfam domains (2) --------------Globin-1uc3L02 L:15-124                                                                                       ------------------------- Pfam domains (2)
           Pfam domains (3) --------------Globin-1uc3L03 L:15-124                                                                                       ------------------------- Pfam domains (3)
           Pfam domains (4) --------------Globin-1uc3L04 L:15-124                                                                                       ------------------------- Pfam domains (4)
           Pfam domains (5) --------------Globin-1uc3L05 L:15-124                                                                                       ------------------------- Pfam domains (5)
           Pfam domains (6) --------------Globin-1uc3L06 L:15-124                                                                                       ------------------------- Pfam domains (6)
           Pfam domains (7) --------------Globin-1uc3L07 L:15-124                                                                                       ------------------------- Pfam domains (7)
           Pfam domains (8) --------------Globin-1uc3L08 L:15-124                                                                                       ------------------------- Pfam domains (8)
           Pfam domains (9) --------------Globin-1uc3L09 L:15-124                                                                                       ------------------------- Pfam domains (9)
          Pfam domains (10) --------------Globin-1uc3L10 L:15-124                                                                                       ------------------------- Pfam domains (10)
          Pfam domains (11) --------------Globin-1uc3L11 L:15-124                                                                                       ------------------------- Pfam domains (11)
          Pfam domains (12) --------------Globin-1uc3L12 L:15-124                                                                                       ------------------------- Pfam domains (12)
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: L:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uc3 L   1 PIVDSGSVAPLSAAEKTKIRSAWAPVYSNYETSGVDILVKFFTSTPAAQEFFPKFKGMTSADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Globin-like (1351)

Superfamily: Globin-like (1308)

Family: Globins (1157)

Protein domain: Lamprey globin (5)

Lamprey (Lampetra fluviatilis) [TaxId: 7748] (1)

1a	d1uc3a_	A:
1b	d1uc3b_	B:
1c	d1uc3k_	K:
1d	d1uc3l_	L:
1e	d1uc3c_	C:
1f	d1uc3d_	D:
1g	d1uc3e_	E:
1h	d1uc3f_	F:
1i	d1uc3g_	G:
1j	d1uc3h_	H:
1k	d1uc3i_	I:
1l	d1uc3j_	J:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Globin-like (786)

Homologous Superfamily: Globins (743)

European river lamprey (Lampetra fluviatilis) (1)

1a	1uc3A00	A:1-149
1b	1uc3B00	B:1-149
1c	1uc3K00	K:1-149
1d	1uc3L00	L:1-149
1e	1uc3C00	C:1-149
1f	1uc3D00	D:1-149
1g	1uc3E00	E:1-149
1h	1uc3F00	F:1-149
1i	1uc3G00	G:1-149
1j	1uc3H00	H:1-149
1k	1uc3I00	I:1-149
1l	1uc3J00	J:1-149

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Globin (291)

Family: Globin (264)

Lampetra fluviatilis (European river lamprey) (Petromyzon fluviatilis) (1)

1a	Globin-1uc3L01	L:15-124
1b	Globin-1uc3L02	L:15-124
1c	Globin-1uc3L03	L:15-124
1d	Globin-1uc3L04	L:15-124
1e	Globin-1uc3L05	L:15-124
1f	Globin-1uc3L06	L:15-124
1g	Globin-1uc3L07	L:15-124
1h	Globin-1uc3L08	L:15-124
1i	Globin-1uc3L09	L:15-124
1j	Globin-1uc3L10	L:15-124
1k	Globin-1uc3L11	L:15-124
1l	Globin-1uc3L12	L:15-124

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H,I,J,K,L (GLB_LAMFL | P02207)

molecular function
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0005506	iron ion binding	Interacting selectively and non-covalently with iron (Fe) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0019825	oxygen binding	Interacting selectively and non-covalently with oxygen (O2).
	GO:0005344	oxygen transporter activity	Enables the directed movement of oxygen into, out of or within a cell, or between cells.
biological process
	GO:0015671	oxygen transport	The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		HEM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1uc3)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1uc3
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	GLB_LAMFL \| P02207
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	GLB_LAMFL \| P02207
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1UC3)

(no "Related Entries Specified in the PDB File" available for 1UC3)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 12)

Sites (12, 12)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 12)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 12)

CATH Domains (1, 12)

Pfam Domains (1, 12)

Gene Ontology (7, 7)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
