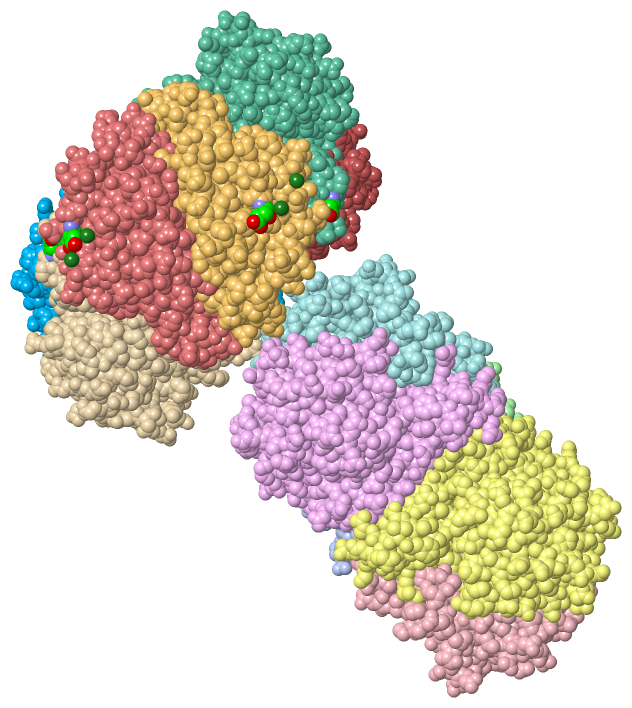

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

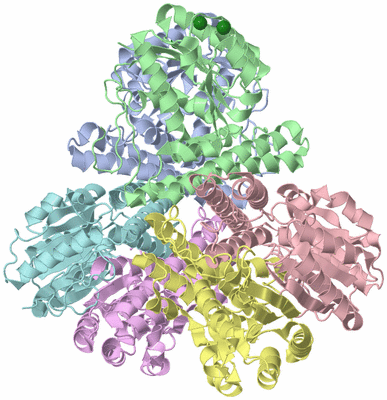

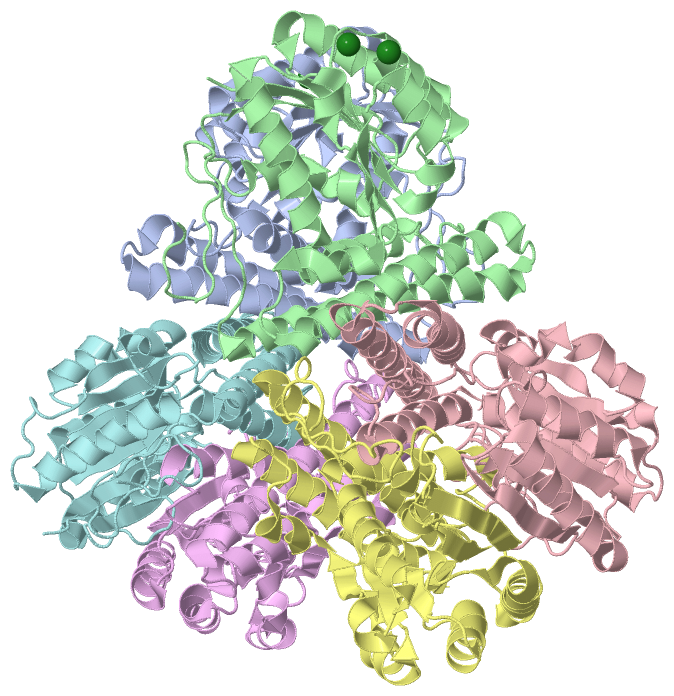

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

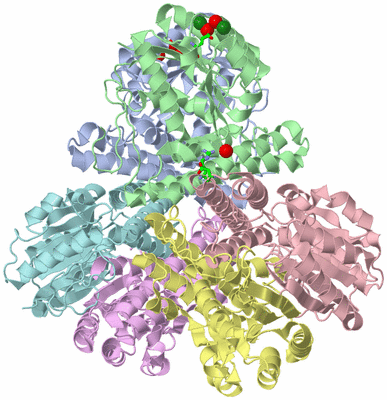

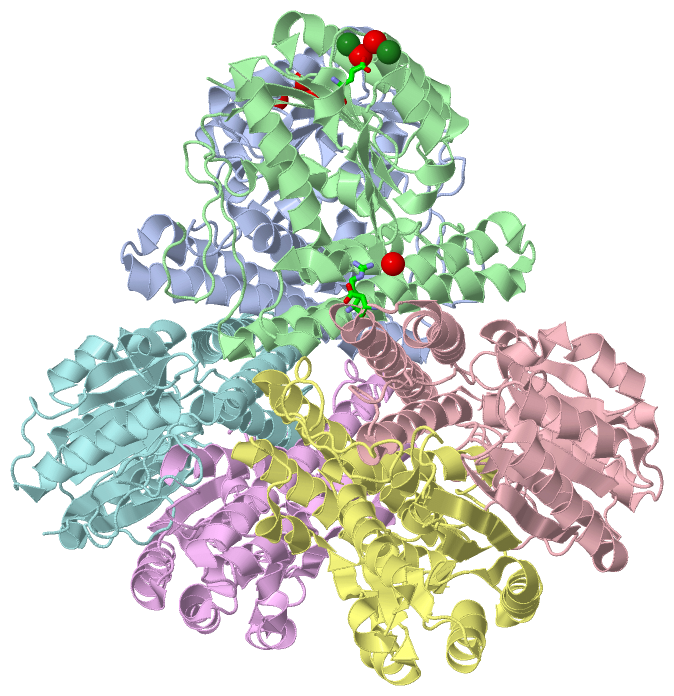

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

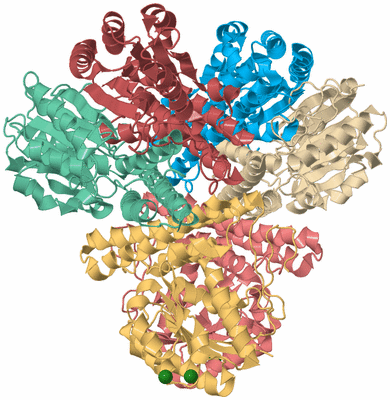

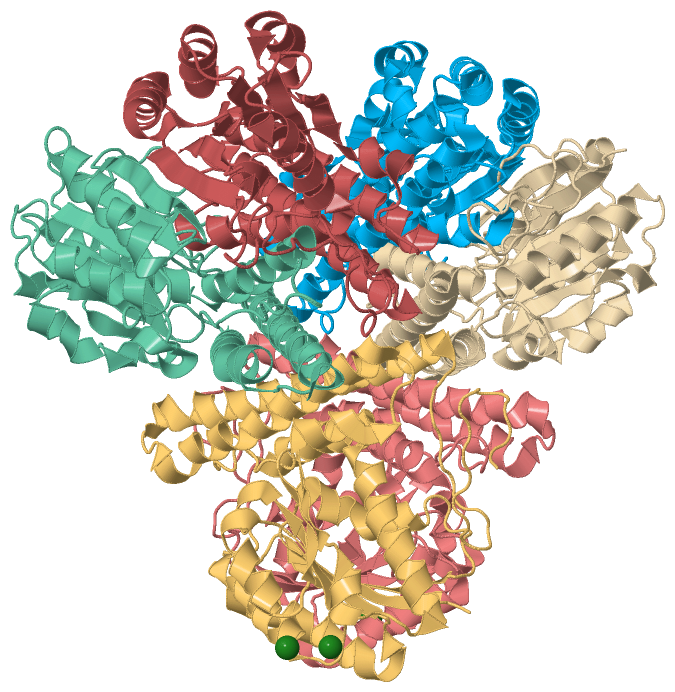

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF NATIVE COENZYME F420-DEPENDENT METHYLENETETRAHYDROMETHANOPTERIN DEHYDROGENASE AT 2.4A RESOLUTION

Authors :  E. Warkentin, C. H. Hagemeier, S. Shima, R. K. Thauer, U. Ermler
Date :  30 Jul 04  (Deposition) - 01 Feb 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1:  A,B,C,D,E,F  (1x)
Biol. Unit 2:  G,H,I,J,K,L  (1x)
Keywords :  Monomer: Alpha/Beta Domain, Helix Bundle; Trimer Of Dimers, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Warkentin, C. H. Hagemeier, S. Shima, R. K. Thauer, U. Ermler
The Structure Of F420-Dependent Methylenetetrahydromethanopterin Dehydrogenase: A Crystallographic 'Superstructure' Of The Selenomethionine-Labelled Protein Crystal Structure.
Acta Crystallogr. , Sect. D V. 61 198 2005
PubMed-ID: 15681872  |  Reference-DOI: 10.1107/S0907444904030732
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - F420-DEPENDENT METHYLENETETRAHYDROMETHANOPTERIN DEHYDROGENASE
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    EC Number: 1.5.99.9
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET17B
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Gene: MTD
    Organism Scientific: METHANOPYRUS KANDLERI
    Organism Taxid: 2320
    Synonym: MTD, COENZYME F420 DEPENDENT N5,N10- METHYLENETETRAHYDROMETHANOPTERIN DEHYDROGENASE

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric Unit : ABCDEFGHIJKL
Biological Unit 1 (1x): ABCDEF
Biological Unit 2 (1x):       GHIJKL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 8)

Asymmetric Unit (1, 8)
No.NameCountTypeFull Name
1MG8Ligand/IonMAGNESIUM ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1MG-1Ligand/IonMAGNESIUM ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1MG-1Ligand/IonMAGNESIUM ION

(-) Sites  (8, 8)

Asymmetric Unit (8, 8)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHOH A:9008 , HOH A:9010 , HOH A:9011 , HOH A:9013 , HOH A:9014 , ASP L:226BINDING SITE FOR RESIDUE MG A 6001
2AC2SOFTWAREHOH A:8387 , HOH A:9087 , HOH A:9088 , HOH A:9089 , HOH A:9090 , HOH A:9091BINDING SITE FOR RESIDUE MG A 6002
3AC3SOFTWAREHOH B:9009 , HOH B:9015 , HOH B:9017 , HOH B:9018 , HOH B:9019 , ASP C:226BINDING SITE FOR RESIDUE MG B 6003
4AC4SOFTWAREGLU B:175 , HOH B:8239 , HOH B:9092 , ARG C:229 , HOH C:8238BINDING SITE FOR RESIDUE MG B 6004
5AC5SOFTWAREHOH G:8421 , HOH G:9020 , HOH G:9021 , HOH G:9023 , HOH G:9024 , HOH G:9025BINDING SITE FOR RESIDUE MG G 6005
6AC6SOFTWAREGLU G:91 , HOH G:8021 , HOH G:8235 , HOH G:8236 , HOH G:8243BINDING SITE FOR RESIDUE MG G 6006
7AC7SOFTWAREGLU H:175 , HOH H:9028 , HOH H:9029 , HOH H:9030 , ARG I:229 , HOH I:8261BINDING SITE FOR RESIDUE MG H 6007
8AC8SOFTWAREHOH H:8240 , HOH H:9102 , HOH H:9104 , HOH H:9105 , ASP I:226BINDING SITE FOR RESIDUE MG H 6008

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1U6J)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1U6J)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1U6J)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1U6J)

(-) Exons   (0, 0)

(no "Exon" information available for 1U6J)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6ja_ A: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeee..hhhhhhhhhhh........eeeeeeeee...hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhh....eeeeehhhhhhhhhhhhh...eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh.eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j A   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain B from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6jb_ B: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeee...hhhhhhhhhhhh.......eeeeeee.....hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhh....eeeeehhhhhhhhhhhhhh..eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh.eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j B   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain C from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6jc_ C: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeee.......hhhhhh........eeeeeeeee...hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhh....eeeeehhhhhhhhhhhhhh..eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhh.eeeehhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j C   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain D from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6jd_ D: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeee..hhhhhhhhhhhh.......eeeeeeeee...hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhhh...eeeeehhhhhhhhhhhhhhh.eeeee.............hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh..hhhhh.eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........................ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j D   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain E from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6je_ E: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeee..hhhhhhh............eeeeeeeee...hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhhh...eeeeehhhhhhhhhhhhhhh.eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j E   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain F from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6jf_ F: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeee..hhhhhhhhhhhh.......eeeeeeeee...hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhh....eeeeee.hhhhhhhhhhhh..eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........eeeehhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j F   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain G from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6jg_ G: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeee..hhhhhhhhhhh........eeeeeeeee...hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhh....eeeeehhhhhhhhhhhhh...eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh.eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j G   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain H from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6jh_ H: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeee...hhhhhhhhhhhh.......eeeeeee.....hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhh....eeeeehhhhhhhhhhhhhh..eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh.eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j H   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain I from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6ji_ I: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeee.......hhhhhh........eeeeeeeee...hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhh....eeeeehhhhhhhhhhhhhh..eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhh.eeeehhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j I   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain J from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6jj_ J: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeee..hhhhhhhhhhhh.......eeeeeeeee...hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhhh...eeeeehhhhhhhhhhhhhhh.eeeee.............hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh..hhhhh.eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j J   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain K from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6jk_ K: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeee..hhhhhhh............eeeeeeeee...hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhhh...eeeeehhhhhhhhhhhhhhh.eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j K   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain L from PDB  Type:PROTEIN  Length:282
 aligned with MTD_METKA | P94951 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:282
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
            MTD_METKA     2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
               SCOP domains d1u6jl_ L: F420-dependent methylenetetrahydromethanopterin dehydrogenase (MTD)                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) -MTD-1u6jL01 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (1)
           Pfam domains (2) -MTD-1u6jL02 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (2)
           Pfam domains (3) -MTD-1u6jL03 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (3)
           Pfam domains (4) -MTD-1u6jL04 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (4)
           Pfam domains (5) -MTD-1u6jL05 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (5)
           Pfam domains (6) -MTD-1u6jL06 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (6)
           Pfam domains (7) -MTD-1u6jL07 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (7)
           Pfam domains (8) -MTD-1u6jL08 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (8)
           Pfam domains (9) -MTD-1u6jL09 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (9)
          Pfam domains (10) -MTD-1u6jL10 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (10)
          Pfam domains (11) -MTD-1u6jL11 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (11)
          Pfam domains (12) -MTD-1u6jL12 L:3-282                                                                                                                                                                                                                                                                     - Pfam domains (12)
         Sec.struct. author ..eeeeeeee.........hhhhh.......eeeeeeeee...hhhhhhhhhhhhhhhh......eeeee.....hhhhhhhhhhhh.....eeeee.hhhhh.hhhhhhh..eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhh.eeeehhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u6j L   2 TVAKAIFIKCGNLGTSMMMDMLLDERADREDVEFRVVGTSVKMDPECVEAAVEMALDIAEDFEPDFIVYGGPNPAAPGPSKAREMLADSEYPAVIIGDAPGLKVKDEMEEQGLGYILVKPDAMLGARREFLDPVEMAIYNADLMKVLAATGVFRVVQEAFDELIEKAKEDEISENDLPKLVIDRNTLLEREEFENPYAMVKAMAALEIAENVADVSVEGCFVEQDKERYVPIVASAHEMMRKAAELADEARELEKSNDAVLRTPHAPDGKVLSKRKFMEDPE 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 12)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1U6J)

(-) Pfam Domains  (1, 12)

Asymmetric Unit
(-)
Clan: no clan defined [family: MTD] (4)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I,J,K,L   (MTD_METKA | P94951)
molecular function
    GO:0008901    ferredoxin hydrogenase activity    Catalysis of the reaction: 2 reduced ferredoxin + 2 H+ = 2 oxidized ferredoxin + H2.
    GO:0030268    methylenetetrahydromethanopterin dehydrogenase activity    Catalysis of the reaction: 5,10-methylenetetrahydromethanopterin + coenzyme F420 + 2 H(+) = 5,10-methenyl-5,6,7,8-tetrahydromethanopterin + reduced coenzyme F420.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
    GO:0015948    methanogenesis    The chemical reactions and pathways resulting in the formation of methane, a colorless, odorless, flammable gas with the formula CH4. It is the simplest of the alkanes.
    GO:0019386    methanogenesis, from carbon dioxide    The chemical reactions and pathways resulting in the formation of methane, a colorless, odorless, flammable gas with the formula CH4, from other compounds, including carbon dioxide (CO2).
    GO:0006730    one-carbon metabolic process    The chemical reactions and pathways involving the transfer of one-carbon units in various oxidation states.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1u6j)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1u6j
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MTD_METKA | P94951
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.5.99.9
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MTD_METKA | P94951
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MTD_METKA | P94951: 1qv9 1u6i 1u6k 3iqe 3iqf 3iqz

(-) Related Entries Specified in the PDB File

1qv9 SE-METHIONINE DERIVATIVE
1u6i
1u6k
