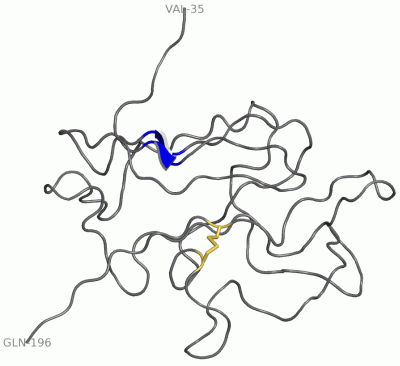

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

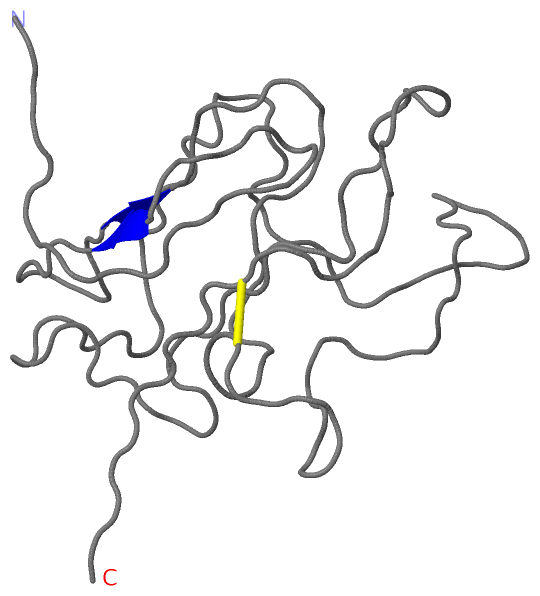

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

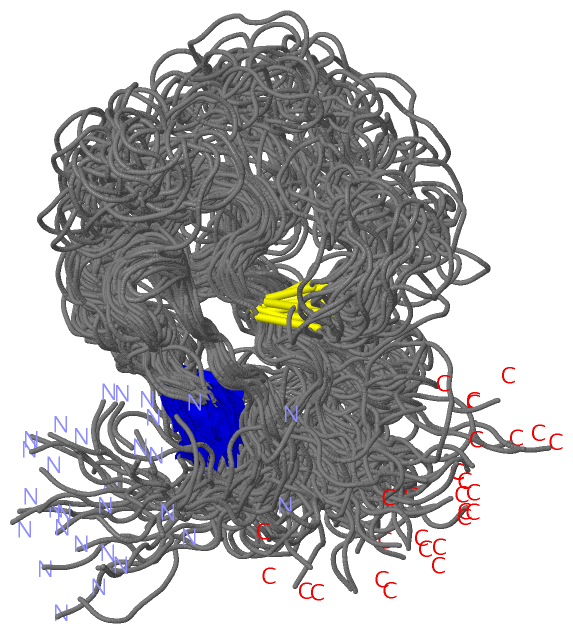

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  A SOD-LIKE PROTEIN FROM B. SUBTILIS, UNSTRUCTURED IN SOLUTION, BECOMES ORDERED IN THE CRYSTAL: IMPLICATIONS FOR FUNCTION AND FOR FIBRILLOGENESIS

Authors :  L. Banci, I. Bertini, V. Calderone, F. Cramaro, R. Del Conte, A. Fantoni, S. Mangani, A. Quattrone, M. S. Viezzoli
Date :  22 Jul 04  (Deposition) - 03 May 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (30x)
Keywords :  Sod-Like; Bacillus Subtilis; Bssod; Solution Structure; Nmr; Metalloprotein, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Banci, I. Bertini, V. Calderone, F. Cramaro, R. Del Conte, A. Fantoni, S. Mangani, A. Quattrone, M. S. Viezzoli
A Prokaryotic Superoxide Dismutase Paralog Lacking Two Cu Ligands: From Largely Unstructured In Solution To Ordered In The Crystal.
Proc. Natl. Acad. Sci. Usa V. 102 7541 2005
PubMed-ID: 15897454  |  Reference-DOI: 10.1073/PNAS.0502450102
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL SUPEROXIDE DISMUTASE-LIKE PROTEIN YOJM
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PPMSOD159
    Expression System Strain: TOPP1
    Expression System Taxid: 562
    Expression System Vector Type: PBR322
    Fragment: SOD-LIKE
    Gene: YOJM, BSU19400
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units


NMR Structure (30x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1U3N)

(-) Sites  (0, 0)

(no "Site" information available for 1U3N)

(-) SS Bonds  (1, 1)

NMR Structure
No.Residues
1A:93 -A:186

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1U3N)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1U3N)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1U3N)

(-) Exons   (0, 0)

(no "Exon" information available for 1U3N)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:162
 aligned with YOJM_BACSU | O31851 from UniProtKB/Swiss-Prot  Length:196

    Alignment length:162
                                    44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194
           YOJM_BACSU    35 VVETSAFGHHVQLVNREGKAVGFIEIKESDDEGLDIHISANSLRPGASLGFHIYEKGSCVRPDFESAGGPFNPLNKEHGFNNPMGHHAGDLPNLEVGADGKVDVIMNAPDTSLKKGSKLNILDEDGSAFIIHEQADDYLTNPSGNSGARIVCGALLGNNEKQ 196
               SCOP domains d1u3na_ A: automated matches                                                                                                                                       SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------Sod_Cu-1u3nA01 A:41-189                                                                                                                              ------- Pfam domains
         Sec.struct. author .......................ee...........ee............................................................................................................................ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u3n A  35 VVETSAFGHHVQLVNREGKAVGFIEIKESDDEGLDIHISANSLRPGASLGFHIYEKGSCVRPDFESAGGPFNPLNKEHGFNNPMGHHAGDLPNLEVGADGKVDVIMNAPDTSLKKGSKLNILDEDGSAFIIHEQADDYLTNPSGNSGARIVCGALLGNNEKQ 196
                                    44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1U3N)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: Sod_Cu] (71)

(-) Gene Ontology  (10, 10)

NMR Structure(hide GO term definitions)
Chain A   (YOJM_BACSU | O31851)
molecular function
    GO:0005507    copper ion binding    Interacting selectively and non-covalently with copper (Cu) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004784    superoxide dismutase activity    Catalysis of the reaction: 2 superoxide + 2 H+ = O2 + hydrogen peroxide.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0019430    removal of superoxide radicals    Any process, acting at the cellular level, involved in removing superoxide radicals (O2-) from a cell or organism, e.g. by conversion to dioxygen (O2) and hydrogen peroxide (H2O2).
    GO:0006801    superoxide metabolic process    The chemical reactions and pathways involving superoxide, the superoxide anion O2- (superoxide free radical), or any compound containing this species.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1u3n)

  Sites
(no "Sites" information available for 1u3n)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1u3n)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1u3n
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  YOJM_BACSU | O31851
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  YOJM_BACSU | O31851
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        YOJM_BACSU | O31851: 1s4i 1xtl 1xtm
