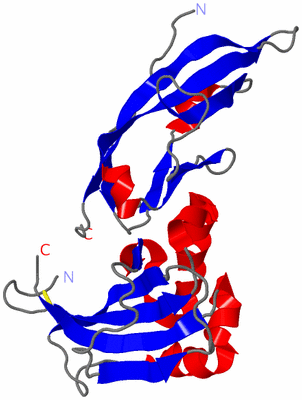

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A-DYSTROGLYCAN

Authors :  D. Bozic, F. Sciandra, D. Lamba, A. Brancaccio
Date :  18 Jul 04  (Deposition) - 07 Sep 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A
Keywords :  Ig-Like Domain, S6 Like Fold, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  D. Bozic, F. Sciandra, D. Lamba, A. Brancaccio
The Structure Of The N-Terminal Region Of Murine Skeletal Muscle {Alpha}-Dystroglycan Discloses A Modular Architecture
J. Biol. Chem. V. 279 44812 2004
PubMed-ID: 15326183  |  Reference-DOI: 10.1074/JBC.C400353200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DYSTROGLYCAN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    FragmentRESIDUES 58-303
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    SynonymALPHA-DYSTROGLYCAN

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1U2C)

(-) Sites  (0, 0)

(no "Site" information available for 1U2C)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:180 -A:262

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1U2C)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1U2C)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1U2C)

(-) Exons   (0, 0)

(no "Exon" information available for 1U2C)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:228
 aligned with DAG1_MOUSE | Q62165 from UniProtKB/Swiss-Prot  Length:893

    Alignment length:246
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297
           DAG1_MOUSE    58 AVPTVVGIPDGTAVVGRSFRVSIPTDLIASSGEIIKVSAAGKEALPSWLHWDPHSHILEGLPLDTDKGVHYISVSAARLGANGSHVPQTSSVFSIEVYPEDHNEPQSVRAASSDPGEVVPSACAADEPVTVLTVILDADLTKMTPKQRIDLLNRMQSFSEVELHNMKLVPVVNNRLFDMSAFMAGPGNAKKVVENGALLSWKLGCSLNQNSVPDIRGVETPAREGAMSAQLGYPVVGWHIANKKPT 303
               SCOP domains d1u2ca1 A:58-160 Dystroglycan, N-terminal domain                                                       ------------------d1u2ca2 A:179-303 Dystroglycan, domain 2                                                                                      SCOP domains
               CATH domains 1u2cA01 A:58-160 Immunoglobulins                                                                       ------------------1u2cA02 A:179-303 A-dystroglycan                                                                                              CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..........eeee....eeee.hhhhhh...eeeeeee.........eeee....eeee..hhhhheeeeeeeeeeee.....eeeeeeeeeeeeee.....------------------.......eeeeeeee..hhhhhhhhhhhhhhhhhhhhhh.hhhhheeee............eeee..........eeeeeeeee.........hhhhhhhhhhhhhhhhhh..eeeeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1u2c A  58 AVPTVVGIPDGTAVVGRSFRVSIPTDLIASSGEIIKVSAAGKEALPSWLHWDPHSHILEGLPLDTDKGVHYISVSAARLGANGSHVPQTSSVFSIEVYPEDHN------------------ACAADEPVTVLTVILDADLTKMTPKQRIDLLNRMQSFSEVELHNMKLVPVVNNRLFDMSAFMAGPGNAKKVVENGALLSWKLGCSLNQNSVPDIRGVETPAREGAMSAQLGYPVVGWHIANKKPT 303
                                    67        77        87        97       107       117       127       137       147       157  |      -         - |     187       197       207       217       227       237       247       257       267       277       287       297
                                                                                                                                160                179

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1U2C)

(-) Gene Ontology  (60, 60)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (DAG1_MOUSE | Q62165)
molecular function
    GO:0042169    SH2 domain binding    Interacting selectively and non-covalently with a SH2 domain (Src homology 2) of a protein, a protein domain of about 100 amino-acid residues and belonging to the alpha + beta domain class.
    GO:0003779    actin binding    Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
    GO:0051393    alpha-actinin binding    Interacting selectively and non-covalently with alpha-actinin, one of a family of proteins that cross-link F-actin as antiparallel homodimers. Alpha-actinin has a molecular mass of 93-103 KDa; at the N-terminus there are two calponin homology domains, at the C-terminus there are two EF-hands. These two domains are connected by the rod domain. This domain is formed by triple-helical spectrin repeats.
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0002162    dystroglycan binding    Interacting selectively and non-covalently with dystroglycan. Dystroglycan is glycoprotein found in non-muscle tissues as well as in muscle tissues, often in association with dystrophin. The native dystroglycan cleaved into two non-covalently associated subunits, alpha (N-terminal) and beta (C-terminal).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0032403    protein complex binding    Interacting selectively and non-covalently with any protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0008307    structural constituent of muscle    The action of a molecule that contributes to the structural integrity of a muscle fiber.
    GO:0015631    tubulin binding    Interacting selectively and non-covalently with monomeric or multimeric forms of tubulin, including microtubules.
    GO:0017166    vinculin binding    Interacting selectively and non-covalently with vinculin, a protein found in muscle, fibroblasts, and epithelial cells that binds actin and appears to mediate attachment of actin filaments to integral proteins of the plasma membrane.
biological process
    GO:0006607    NLS-bearing protein import into nucleus    The directed movement of a protein bearing a nuclear localization signal (NLS) from the cytoplasm into the nucleus, across the nuclear membrane.
    GO:0014044    Schwann cell development    The process aimed at the progression of a Schwann cell over time, from initial commitment of the cell to a specific fate, to the fully functional differentiated cell. Schwann cells are found in the peripheral nervous system, where they insulate neurons and axons, and regulate the environment in which neurons function.
    GO:0071711    basement membrane organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of the basement membrane.
    GO:0060445    branching involved in salivary gland morphogenesis    The process in which the branching structure of the salivary gland is generated and organized.
    GO:0016340    calcium-dependent cell-matrix adhesion    The binding of a cell to the extracellular matrix via adhesion molecules that require the presence of calcium for the interaction.
    GO:0071679    commissural neuron axon guidance    The process in which the migration of an axon growth cone of a commissural neuron is directed to its target in the brain in response to a combination of attractive and repulsive cues.
    GO:0007016    cytoskeletal anchoring at plasma membrane    A cytoskeleton organization process that directly or indirectly links cytoskeletal filaments to the plasma membrane.
    GO:0060441    epithelial tube branching involved in lung morphogenesis    The process in which a highly ordered sequence of patterning events generates the branched epithelial tubes of the lung, consisting of reiterated combinations of bud outgrowth, elongation, and dichotomous subdivision of terminal units.
    GO:0006509    membrane protein ectodomain proteolysis    The proteolytic cleavage of transmembrane proteins and release of their ectodomain (extracellular domain).
    GO:0034453    microtubule anchoring    Any process in which a microtubule is maintained in a specific location in a cell.
    GO:0019048    modulation by virus of host morphology or physiology    The process in which a virus effects a change in the structure or processes of its host organism.
    GO:0002011    morphogenesis of an epithelial sheet    The process in which the anatomical structures of an epithelial sheet are generated and organized. An epithelial sheet is a flat surface consisting of closely packed epithelial cells.
    GO:0022011    myelination in peripheral nervous system    The process in which neuronal axons and dendrites become coated with a segmented lipid-rich sheath (myelin) to enable faster and more energetically efficient conduction of electrical impulses. The sheath is formed by the cell membranes of Schwann cells in the peripheral nervous system. Adjacent myelin segments are separated by a non-myelinated stretch of axon called a node of Ranvier.
    GO:0043409    negative regulation of MAPK cascade    Any process that stops, prevents, or reduces the frequency, rate or extent of signal transduction mediated by the MAPKKK cascade.
    GO:0030336    negative regulation of cell migration    Any process that stops, prevents, or reduces the frequency, rate or extent of cell migration.
    GO:0051898    negative regulation of protein kinase B signaling    Any process that stops, prevents, or reduces the frequency, rate or extent of protein kinase B signaling, a series of reactions mediated by the intracellular serine/threonine kinase protein kinase B.
    GO:0021682    nerve maturation    A developmental process, independent of morphogenetic (shape) change, that is required for a nerve to attain its fully functional state.
    GO:1904261    positive regulation of basement membrane assembly involved in embryonic body morphogenesis    Any process that activates or increases the frequency, rate or extent of basement membrane assembly involved in embryonic body morphogenesis.
    GO:0010717    regulation of epithelial to mesenchymal transition    Any process that modulates the rate, frequency, or extent of epithelial to mesenchymal transition. Epithelial to mesenchymal transition where an epithelial cell loses apical/basolateral polarity, severs intercellular adhesive junctions, degrades basement membrane components and becomes a migratory mesenchymal cell.
    GO:0010470    regulation of gastrulation    Any process that modulates the rate or extent of gastrulation. Gastrulation is the complex and coordinated series of cellular movements that occurs at the end of cleavage during embryonic development of most animals.
    GO:0043434    response to peptide hormone    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a peptide hormone stimulus. A peptide hormone is any of a class of peptides that are secreted into the blood stream and have endocrine functions in living animals.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
cellular component
    GO:0005604    basement membrane    A thin layer of dense material found in various animal tissues interposed between the cells and the adjacent connective tissue. It consists of the basal lamina plus an associated layer of reticulin fibers.
    GO:0016323    basolateral plasma membrane    The region of the plasma membrane that includes the basal end and sides of the cell. Often used in reference to animal polarized epithelial membranes, where the basal membrane is the part attached to the extracellular matrix, or in plant cells, where the basal membrane is defined with respect to the zygotic axis.
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0009279    cell outer membrane    A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
    GO:0005913    cell-cell adherens junction    An adherens junction which connects a cell to another cell.
    GO:0005911    cell-cell junction    A cell junction that forms a connection between two or more cells in a multicellular organism; excludes direct cytoplasmic junctions such as ring canals.
    GO:0070938    contractile ring    A cytoskeletal structure composed of filamentous protein that forms beneath the membrane of many cells or organelles, in the plane of cell or organelle division. Ring contraction is associated with centripetal growth of the membrane that divides the cytoplasm of the two daughter cells or organelles.
    GO:0043034    costamere    Regular periodic sub membranous arrays of vinculin in skeletal and cardiac muscle cells, these arrays link Z-discs to the sarcolemma and are associated with links to extracellular matrix.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0016011    dystroglycan complex    A protein complex that includes alpha- and beta-dystroglycan, which are alternative products of the same gene; the laminin-binding component of the dystrophin-associated glycoprotein complex, providing a link between the subsarcolemmal cytoskeleton (in muscle cells) and the extracellular matrix. Alpha-dystroglycan is an extracellular protein binding to alpha-laminin and to beta-dystroglycan; beta-dystroglycan is a transmembrane protein which binds alpha-dystroglycan and dystrophin.
    GO:0016010    dystrophin-associated glycoprotein complex    A multiprotein complex that forms a strong mechanical link between the cytoskeleton and extracellular matrix; typical of, but not confined to, muscle cells. The complex is composed of transmembrane, cytoplasmic, and extracellular proteins, including dystrophin, sarcoglycans, dystroglycan, dystrobrevins, syntrophins, sarcospan, caveolin-3, and NO synthase.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005615    extracellular space    That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
    GO:0030175    filopodium    Thin, stiff, actin-based protrusion extended by the leading edge of a motile cell such as a crawling fibroblast or amoeba, or an axonal or dendritic growth cone, or a dendritic shaft.
    GO:0005925    focal adhesion    Small region on the surface of a cell that anchors the cell to the extracellular matrix and that forms a point of termination of actin filaments.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0030027    lamellipodium    A thin sheetlike process extended by the leading edge of a migrating cell or extending cell process; contains a dense meshwork of actin filaments.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0045121    membrane raft    Any of the small (10-200 nm), heterogeneous, highly dynamic, sterol- and sphingolipid-enriched membrane domains that compartmentalize cellular processes. Small rafts can sometimes be stabilized to form larger platforms through protein-protein and protein-lipid interactions.
    GO:0033268    node of Ranvier    An axon part that is a gap in the myelin where voltage-gated sodium channels cluster and saltatory conduction is executed.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0045211    postsynaptic membrane    A specialized area of membrane facing the presynaptic membrane on the tip of the nerve ending and separated from it by a minute cleft (the synaptic cleft). Neurotransmitters cross the synaptic cleft and transmit the signal to the postsynaptic membrane.
    GO:0042383    sarcolemma    The outer membrane of a muscle cell, consisting of the plasma membrane, a covering basement membrane (about 100 nm thick and sometimes common to more than one fiber), and the associated loose network of collagen fibers.
    GO:0045202    synapse    The junction between a nerve fiber of one neuron and another neuron, muscle fiber or glial cell. As the nerve fiber approaches the synapse it enlarges into a specialized structure, the presynaptic nerve ending, which contains mitochondria and synaptic vesicles. At the tip of the nerve ending is the presynaptic membrane; facing it, and separated from it by a minute cleft (the synaptic cleft) is a specialized area of membrane on the receiving cell, known as the postsynaptic membrane. In response to the arrival of nerve impulses, the presynaptic nerve ending secretes molecules of neurotransmitters into the synaptic cleft. These diffuse across the cleft and transmit the signal to the postsynaptic membrane.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1u2c)

  Sites
(no "Sites" information available for 1u2c)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1u2c)

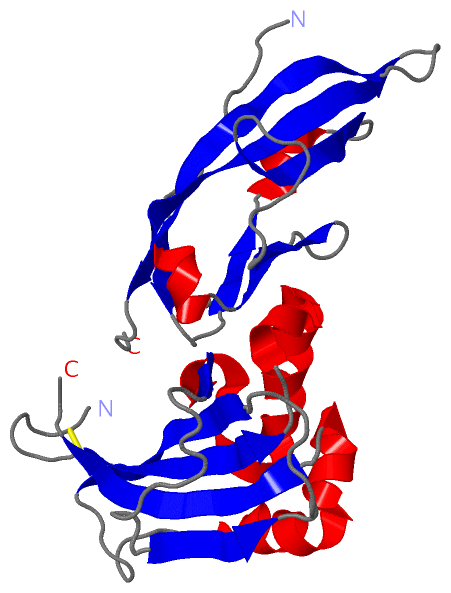

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1u2c
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DAG1_MOUSE | Q62165
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  DAG1_MOUSE | Q62165
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DAG1_MOUSE | Q621654wiq
