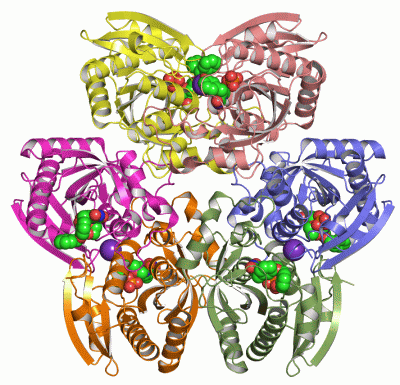

Asym./Biol. Unit - manually (Jmol Viewer)

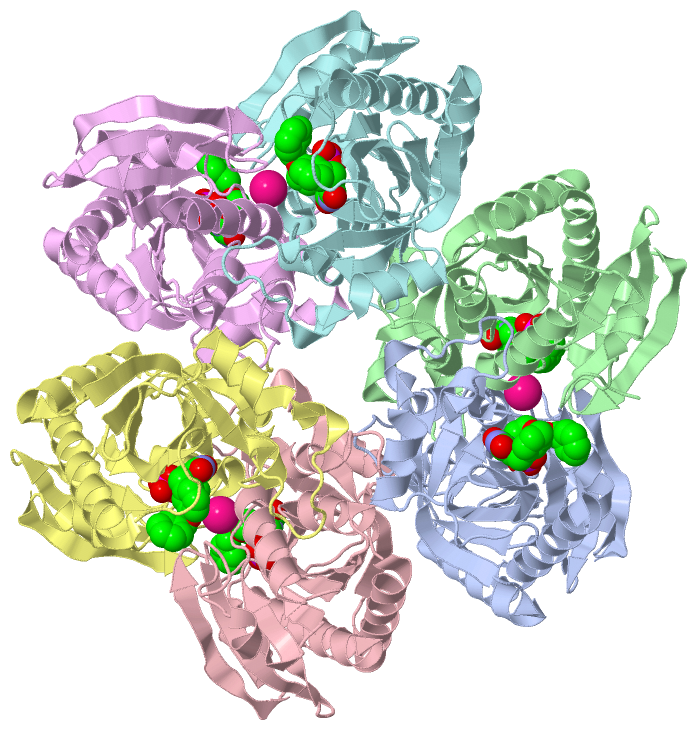

Asym./Biol. Unit (Jmol Viewer)

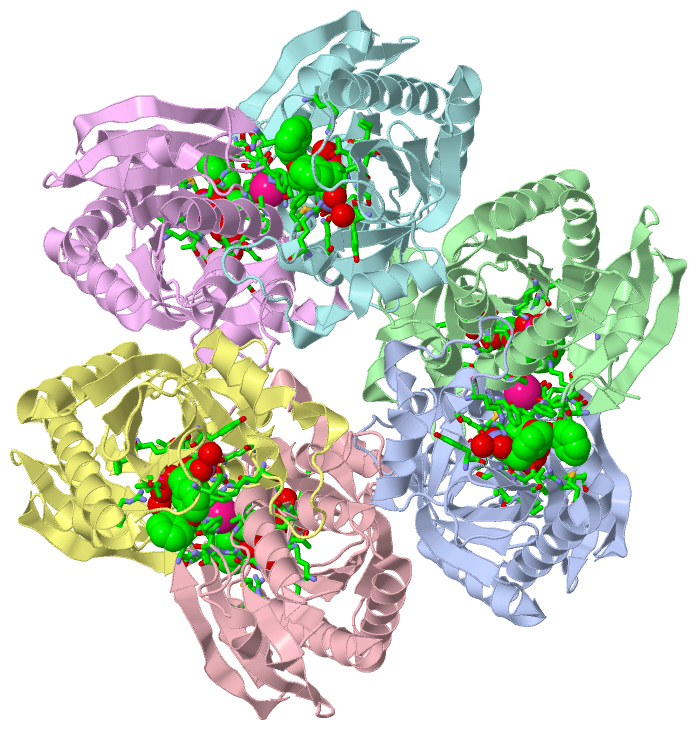

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   STRUCTURE OF E. COLI URIDINE PHOSPHORYLASE COMPLEXED TO 5-(M-(BENZYLOXY)BENZYL)ACYCLOURIDINE (BBAU)

Authors :   W. Bu, E. C. Settembre, S. E. Ealick

Date :   15 Jul 04 (Deposition) - 05 Jul 05 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym./Biol. Unit : A,B,C,D,E,F

Keywords :   Pyrimidine Nucleoside Phosphorylase; Uridine Salvage; Udp; 5-(M- (Benzyloxy)Benzyl)Acyclouridine; Bbau, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   W. Bu, E. C. Settembre, M. H. El Kouni, S. E. Ealick
Structural Basis For Inhibition Of Escherichia Coli Uridine Phosphorylase By 5-Substituted Acyclouridines.
Acta Crystallogr. , Sect. D V. 61 863 2005
PubMed-ID: 15983408 | Reference-DOI: 10.1107/S0907444905007882

Molecule 1 - URIDINE PHOSPHORYLASE
	Chains	:	A, B, C, D, E, F
	EC Number	:	2.4.2.3
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET-28
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	UDP, B3831
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Synonym	:	URDPASE; UPASE

		1	2	3	4	5	6
Asymmetric/Biological Unit	:	A	B	C	D	E	F

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (3, 15)

No.	Name	Count	Type	Full Name
1	183	6	Ligand/Ion	1-((2-HYDROXYETHOXY)METHYL)-5-(3-(BENZYLOXY)BENZYL)PYRIMIDINE-2,4(1H,3H)-DIONE
2	K	3	Ligand/Ion	POTASSIUM ION
3	PO4	6	Ligand/Ion	PHOSPHATE ION

Asymmetric Unit (15, 15)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ARG A:48 , GLY B:26 , ARG B:30 , ARG B:91 , ILE B:92 , GLY B:93 , THR B:94 , GLU B:198 , HOH B:4353	BINDING SITE FOR RESIDUE PO4 B 3301
02	AC2	SOFTWARE	GLY A:26 , ARG A:30 , ARG A:91 , ILE A:92 , GLY A:93 , THR A:94 , GLU A:198 , HOH A:4356 , HOH A:4404 , ARG B:48	BINDING SITE FOR RESIDUE PO4 A 4301
03	AC3	SOFTWARE	ARG C:48 , GLY D:26 , ARG D:30 , ARG D:91 , ILE D:92 , GLY D:93 , THR D:94 , GLU D:198 , HOH D:6335 , HOH D:6358 , HOH D:6392	BINDING SITE FOR RESIDUE PO4 D 5301
04	AC4	SOFTWARE	GLY C:26 , ARG C:30 , ARG C:91 , ILE C:92 , GLY C:93 , THR C:94 , GLU C:198 , 183 C:5300 , HOH C:6375 , HOH C:6420 , ARG D:48	BINDING SITE FOR RESIDUE PO4 C 6301
05	AC5	SOFTWARE	ARG E:48 , GLY F:26 , ARG F:30 , ARG F:91 , ILE F:92 , GLY F:93 , THR F:94 , GLU F:198 , HOH F:8337 , HOH F:8347	BINDING SITE FOR RESIDUE PO4 F 7301
06	AC6	SOFTWARE	GLY E:26 , ARG E:30 , ARG E:91 , ILE E:92 , GLY E:93 , THR E:94 , GLU E:198 , 183 E:7300 , HOH E:8356 , ARG F:48	BINDING SITE FOR RESIDUE PO4 E 8301
07	AC7	SOFTWARE	GLU C:49 , ILE C:69 , SER C:73 , GLU D:49 , ILE D:69 , SER D:73	BINDING SITE FOR RESIDUE K C 1001
08	AC8	SOFTWARE	GLU A:49 , ILE A:69 , SER A:73 , HOH A:4338 , GLU B:49 , ILE B:69 , SER B:73	BINDING SITE FOR RESIDUE K A 1002
09	AC9	SOFTWARE	GLU E:49 , ILE E:69 , SER E:73 , GLU F:49 , ILE F:69 , SER F:73	BINDING SITE FOR RESIDUE K E 1003
10	BC1	SOFTWARE	THR A:94 , THR A:95 , GLY A:96 , PHE A:162 , GLN A:166 , ARG A:168 , TYR A:195 , GLU A:196 , MET A:197 , ILE A:220 , MET A:234 , HOH A:4324 , HOH A:4372 , PHE B:7 , HIS B:8	BINDING SITE FOR RESIDUE 183 A 3300
11	BC2	SOFTWARE	PHE A:7 , HIS A:8 , ARG A:48 , THR B:94 , GLY B:96 , PHE B:162 , GLN B:166 , ARG B:168 , TYR B:195 , GLU B:196 , MET B:197 , ILE B:220 , GLU B:227 , HOH B:4356 , HOH B:4381	BINDING SITE FOR RESIDUE 183 B 4300
12	BC3	SOFTWARE	THR C:94 , THR C:95 , GLY C:96 , PHE C:162 , GLN C:166 , ARG C:168 , TYR C:195 , GLU C:196 , MET C:197 , ILE C:220 , PRO C:229 , MET C:234 , PO4 C:6301 , HOH C:6308 , HOH C:6375 , HOH C:6377 , PHE D:7 , HIS D:8	BINDING SITE FOR RESIDUE 183 C 5300
13	BC4	SOFTWARE	PHE C:7 , HIS C:8 , THR D:94 , THR D:95 , GLY D:96 , PHE D:162 , GLN D:166 , ARG D:168 , TYR D:195 , GLU D:196 , MET D:197 , ILE D:220 , GLU D:227 , HOH D:6327	BINDING SITE FOR RESIDUE 183 D 6300
14	BC5	SOFTWARE	THR E:94 , THR E:95 , GLY E:96 , PHE E:162 , GLN E:166 , ARG E:168 , TYR E:195 , GLU E:196 , MET E:197 , ILE E:220 , MET E:234 , PO4 E:8301 , HOH E:8329 , HOH E:8344 , PHE F:7 , HIS F:8	BINDING SITE FOR RESIDUE 183 E 7300
15	BC6	SOFTWARE	PHE E:7 , HIS E:8 , THR F:94 , GLY F:96 , PHE F:162 , GLN F:166 , ARG F:168 , TYR F:195 , GLU F:196 , MET F:197 , VAL F:221 , HOH F:8310	BINDING SITE FOR RESIDUE 183 F 8300

(no "SS Bond" information available for 1U1F)

(no "Cis Peptide Bond" information available for 1U1F)

(no "SAP(SNP)/Variant" information available for 1U1F)

Asymmetric/Biological Unit (1, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PNP_UDP_1	PS01232	Purine and other phosphorylases family 1 signature.	UDP_ECOLI	66-81	6	A:66-81 B:66-81 C:66-81 D:66-81 E:66-81 F:66-81

(no "Exon" information available for 1U1F)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:243
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:250
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253
            UDP_ECOLI     4 SDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
               SCOP domains d1u1fa_ A: Uridine phosphorylase                                                                                                                                                                                                                           SCOP domains
               CATH domains 1u1fA00 A:4-253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhh...eee.....hhhhhhhh..eeeeeeeee..eeeeeeee..eeeeee....hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeee.hhhhhh......ee.hhhhhhhhhhhhhhhh..eeeeeeeee...hhhhh.........hhhhhhhhhhhhhh...eee.hhhhhhhhhhh...eeeeeeeeeee...-------hhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1u1f A   4 SDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQ-------TMKQTESHAVKIVVEAARRLL 253
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223 |     233       243       253
                                                                                                                                                                                                                                                       225     233

Chain B from PDB  Type:PROTEIN  Length:251
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:251
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
            UDP_ECOLI     3 KSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
               SCOP domains d1u1fb_ B: Uridine phosphorylase                                                                                                                                                                                                                            SCOP domains
               CATH domains 1u1fB00 B:3-253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                       CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhh...eee...hhhhhhhhhh..eeeeeeeee..eeeeeeee..eeeeee....hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeee.hhhhhh......ee.hhhhhhhhhhhhhhhh..eeeeeeeee...hhhhh.........hhhhhhhhhhhhhh...eee.hhhhhhhhhhh...eeeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1u1f B   3 KSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252

Chain C from PDB  Type:PROTEIN  Length:250
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:250
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253
            UDP_ECOLI     4 SDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
               SCOP domains d1u1fc_ C: Uridine phosphorylase                                                                                                                                                                                                                           SCOP domains
               CATH domains 1u1fC00 C:4-253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhh...eee.....hhhhhhhh..eeeeeeeee..eeeeeeee..eeeeee....hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeee.hhhhhh......ee.hhhhhhhhhhhhhhhh..eeeeeeeee...hhhhh.........hhhhhhhhhhhhhh...eee.hhhhhhhhhhh...eeeeeeeeeee.........hhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1u1f C   4 SDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253

Chain D from PDB  Type:PROTEIN  Length:250
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:250
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253
            UDP_ECOLI     4 SDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
               SCOP domains d1u1fd_ D: Uridine phosphorylase                                                                                                                                                                                                                           SCOP domains
               CATH domains 1u1fD00 D:4-253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhh...eee.....hhhhhhhh..eeeeeeeee..eeeeeeee..eeeeee....hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeee.hhhhhh......ee.hhhhhhhhhhhhhhhh..eeeeeeeee...hhhhh.........hhhhhhhhhhhhhh...eee.hhhhhhhhhhh...eeeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1u1f D   4 SDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253

Chain E from PDB  Type:PROTEIN  Length:247
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:251
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
            UDP_ECOLI     3 KSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
               SCOP domains d1u1fe_ E: Uridine phosphorylase                                                                                                                                                                                                                            SCOP domains
               CATH domains 1u1fE00 E:3-253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                       CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhh...eeeee...hhhhhhhh..eeeeeeeee..eeeeeeee..eeeeee....hhhhhhhhhhhhhhhh..eeeeeeeeee.........eeeeeeeeee.hhhhhh......ee.hhhhhhhhhhhhhhhh..eeeeeeeee...hhhhh.........hhhhhhhhhhhhhh...eee.hhhhhhhhhhh...eeeeeeeeeee...----hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1u1f E   3 KSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQ----NAETMKQTESHAVKIVVEAARRLL 253
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222  |    232       242       252
                                                                                                                                                                                                                                                        225  230

Chain F from PDB  Type:PROTEIN  Length:250
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:250
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253
            UDP_ECOLI     4 SDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
               SCOP domains d1u1ff_ F: Uridine phosphorylase                                                                                                                                                                                                                           SCOP domains
               CATH domains 1u1fF00 F:4-253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                      CATH domains
           Pfam domains (1) ----------------PNP_UDP_1-1u1fF01 F:20-252                                                                                                                                                                                                               - Pfam domains (1)
           Pfam domains (2) ----------------PNP_UDP_1-1u1fF02 F:20-252                                                                                                                                                                                                               - Pfam domains (2)
           Pfam domains (3) ----------------PNP_UDP_1-1u1fF03 F:20-252                                                                                                                                                                                                               - Pfam domains (3)
           Pfam domains (4) ----------------PNP_UDP_1-1u1fF04 F:20-252                                                                                                                                                                                                               - Pfam domains (4)
           Pfam domains (5) ----------------PNP_UDP_1-1u1fF05 F:20-252                                                                                                                                                                                                               - Pfam domains (5)
           Pfam domains (6) ----------------PNP_UDP_1-1u1fF06 F:20-252                                                                                                                                                                                                               - Pfam domains (6)
         Sec.struct. author ........hhhhhh...eee......hhhhhhhh.eeeeeeeee..eeeeeeee..eeeeee....hhhhhhhhhhhhhhhh..eeeeeeeeee.........eeeeeeeeee.hhhhhh......ee.hhhhhhhhhhhhhhhh..eeeeeeeee...hhhhh.........hhhhhhhhhhhhhh...eee.hhhhhhhhhhh...eeeeeeeeeee........hhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1u1f F   4 SDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Phosphorylase/hydrolase-like (558)

Superfamily: Purine and uridine phosphorylases (283)

Family: Purine and uridine phosphorylases (224)

Protein domain: Uridine phosphorylase (42)

Escherichia coli [TaxId: 562] (15)

1a	d1u1fa_	A:
1b	d1u1fb_	B:
1c	d1u1fc_	C:
1d	d1u1fd_	D:
1e	d1u1fe_	E:
1f	d1u1ff_	F:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.1580, no name defined] (194)

Escherichia coli. Organism_taxid: 562. (30)

1a	1u1fB00	B:3-253
1b	1u1fC00	C:4-253
1c	1u1fD00	D:4-253
1d	1u1fF00	F:4-253
1e	1u1fE00	E:3-253
1f	1u1fA00	A:4-253

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: PUP (121)

Family: PNP_UDP_1 (121)

Escherichia coli (strain K12) (27)

1a	PNP_UDP_1-1u1fF01	F:20-252
1b	PNP_UDP_1-1u1fF02	F:20-252
1c	PNP_UDP_1-1u1fF03	F:20-252
1d	PNP_UDP_1-1u1fF04	F:20-252
1e	PNP_UDP_1-1u1fF05	F:20-252
1f	PNP_UDP_1-1u1fF06	F:20-252

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D,E,F (UDP_ECOLI | P12758)

molecular function
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0042802	identical protein binding	Interacting selectively and non-covalently with an identical protein or proteins.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0016757	transferase activity, transferring glycosyl groups	Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
	GO:0016763	transferase activity, transferring pentosyl groups	Catalysis of the transfer of a pentosyl group from one compound (donor) to another (acceptor).
	GO:0004850	uridine phosphorylase activity	Catalysis of the reaction: uridine + phosphate = uracil + alpha-D-ribose 1-phosphate.
biological process
	GO:0044206	UMP salvage	Any process which produces UMP, uridine monophosphate, from derivatives of it (e.g. cytidine, uridine, cytosine) without de novo synthesis.
	GO:0006974	cellular response to DNA damage stimulus	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.
	GO:0009116	nucleoside metabolic process	The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).
	GO:0009166	nucleotide catabolic process	The chemical reactions and pathways resulting in the breakdown of nucleotides, any nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the glycose moiety; may be mono-, di- or triphosphate; this definition includes cyclic-nucleotides (nucleoside cyclic phosphates).
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		183	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		K	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1u1f)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1u1f
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	UDP_ECOLI \| P12758
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.4.2.3
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	UDP_ECOLI \| P12758
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	UDP_ECOLI \| P12758	:	1k3f 1lx7 1rxc 1rxs 1rxu 1rxy 1t0u 1tgv 1tgy 1u1c 1u1d 1u1e 1u1g 3kvv

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 15)

Sites (15, 15)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 6)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 6)

CATH Domains (1, 6)

Pfam Domains (1, 6)

Gene Ontology (13, 13)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
