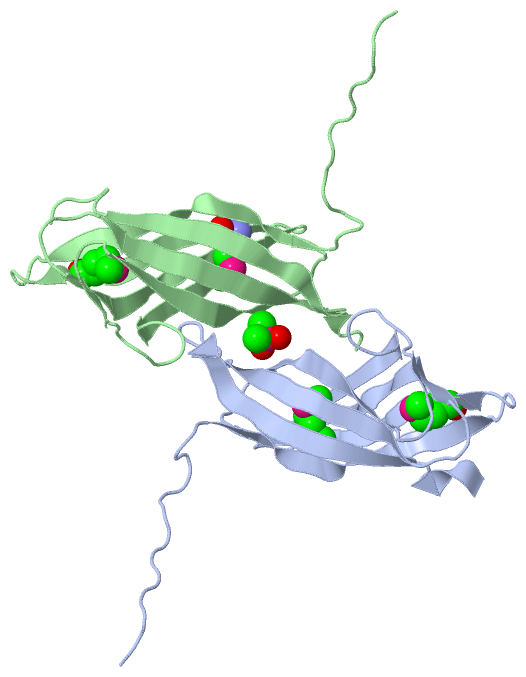

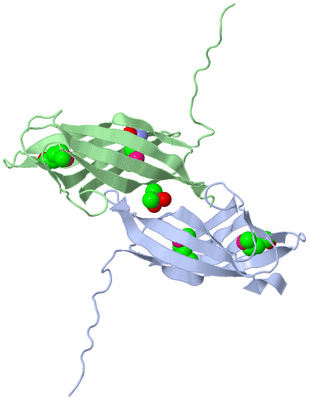

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  X-RAY STRUCTURE OF NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET SOR45

Authors :  A. P. Kuzin, S. M. Vorobiev, W. Edstrom, T. B. Acton, R. Shastry, L. -C. Ma B. Cooper, R. Xiao, G. Montelione, L. Tong, J. F. Hunt, Northeast Stru Genomics Consortium (Nesg)
Date :  09 Jul 04  (Deposition) - 27 Jul 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Structural Genomics, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. P. Kuzin, S. M. Vorobiev, W. Edstrom, T. B. Acton, R. Shastry, L. -C. Ma, B. Cooper, R. Xiao, G. Montelione, L. Tong, J. F. Hunt
X-Ray Structure Of Northeast Structural Genomics Consortium Target Sor45
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - APAG PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET21
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: SHEWANELLA ONEIDENSIS
    Organism Taxid: 211586
    Strain: MR-1
    Synonym: SOR45

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric/Biological Unit (2, 5)
No.NameCountTypeFull Name
1CAC1Ligand/IonCACODYLATE ION
2MSE4Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:31 , PHE B:30 , SER B:31 , SER B:85 , GLY B:86BINDING SITE FOR RESIDUE CAC B 201

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TZA)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1TZA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TZA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1TZA)

(-) Exons   (0, 0)

(no "Exon" information available for 1TZA)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:132
 aligned with APAG_SHEON | Q8EB92 from UniProtKB/Swiss-Prot  Length:126

    Alignment length:132
                                                                                                                                                     126
                                    12        22        32        42        52        62        72        82        92       102       112       122   |     -
           APAG_SHEON     3 ALDNSIRVEVKTEYIEQQSSPEDEKYLFSYTITIINLGEQAAKLETRHWIITDANGKTSEVQGAGVVGETPTIPPNTAYQYTSGTVLDTPFGIMYGTYGMVSESGEHFNAIIKPFRLATPGLLH--------   -
               SCOP domains d1tzaa_ A: ApaG                                                                                                                      SCOP domains
               CATH domains 1tzaA00 A:3-134 Protein apag                                                                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhh.eeeeeeeeeeee........eeeeeeeeeee.....eeeeeeeeeeee....eeeeeee.......ee...eeeeeeeeeee...eeeeeeeeeeee....eeeeeeeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1tza A   3 ALDNSIRVEVKTEYIEQQSSPEDEKYLFSYTITIINLGEQAAKLETRHWIITDANGKTSEVQGAGVVGETPTIPPNTAYQYTSGTVLDTPFGImYGTYGmVSESGEHFNAIIKPFRLATPGLLHLEHHHHHH 134
                                    12        22        32        42        52        62        72        82        92   |   102       112       122       132
                                                                                                                        96-MSE |
                                                                                                                             102-MSE


Chain B from PDB  Type:PROTEIN  Length:129
 aligned with APAG_SHEON | Q8EB92 from UniProtKB/Swiss-Prot  Length:126

    Alignment length:132
                                                                                                                                                     126
                                    12        22        32        42        52        62        72        82        92       102       112       122   |     -
           APAG_SHEON     3 ALDNSIRVEVKTEYIEQQSSPEDEKYLFSYTITIINLGEQAAKLETRHWIITDANGKTSEVQGAGVVGETPTIPPNTAYQYTSGTVLDTPFGIMYGTYGMVSESGEHFNAIIKPFRLATPGLLH--------   -
               SCOP domains d1tzab_ B: ApaG                                                                                                                      SCOP domains
               CATH domains 1tzaB00 B:3-134 Prot   ein apag                                                                                                      CATH domains
           Pfam domains (1) --------------DUF525   -1tzaB01 B:17-106                                                                ---------------------------- Pfam domains (1)
           Pfam domains (2) --------------DUF525   -1tzaB02 B:17-106                                                                ---------------------------- Pfam domains (2)
         Sec.struct. author .....eeeeeeeeeeee...---..eeeeeeeeeee.....eeeeeeeeeeee....eeeeeee.......ee...eeeeeeeeeee...eeeeeeeeeeee....eeeeeeeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1tza B   3 ALDNSIRVEVKTEYIEQQSS---EKYLFSYTITIINLGEQAAKLETRHWIITDANGKTSEVQGAGVVGETPTIPPNTAYQYTSGTVLDTPFGImYGTYGmVSESGEHFNAIIKPFRLATPGLLHLEHHHHHH 134
                                    12        22   |    32        42        52        62        72        82        92   |   102       112       122       132
                                              22  26                                                                    96-MSE |
                                                                                                                             102-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: DUF525] (3)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (APAG_SHEON | Q8EB92)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CAC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1tza)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1tza
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  APAG_SHEON | Q8EB92
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  APAG_SHEON | Q8EB92
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1TZA)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1TZA)
