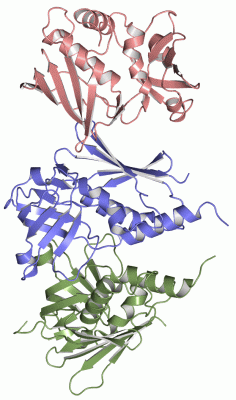

Asym.Unit - manually (Jmol Viewer)

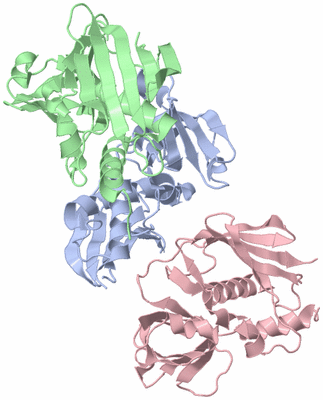

Asymmetric Unit (Jmol Viewer)

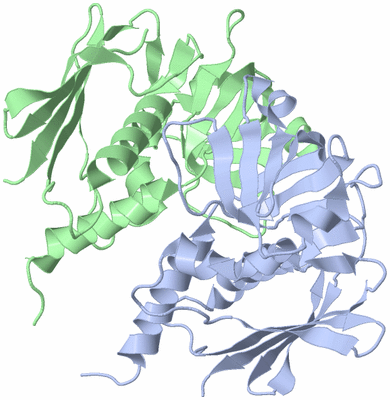

Biological Unit 1 (Jmol Viewer)

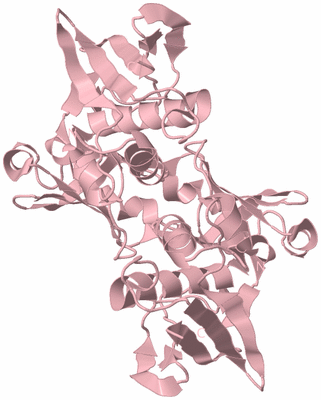

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF THE STREPTOCOCCAL PYROGENIC EXOTOXIN J (SPE-J)

Authors :   H. M. Baker, T. Proft, P. D. Webb, V. L. Arcus, J. D. Fraser, E. N. Baker

Date :   06 Jul 04 (Deposition) - 03 Aug 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.75

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C  (2x)

Keywords :   Superantigen, T-Cell Receptor Binding, Mutagenesis, Dimerization, Crystal Structure, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   H. M. Baker, T. Proft, P. D. Webb, V. L. Arcus, J. D. Fraser, E. N. Baker
Crystallographic And Mutational Data Show That The Streptococcal Pyrogenic Exotoxin J Can Use A Common Binding Surface For T-Cell Receptor Binding And Dimerization
J. Biol. Chem. V. 279 38571 2004
PubMed-ID: 15247241 | Reference-DOI: 10.1074/JBC.M406695200
(for further references see the PDB file header)

Molecule 1 - PUTATIVE EXOTOXIN (SUPERANTIGEN)
	Chains	:	A, B, C
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PGEX-3C
	Expression System Strain	:	DH5A
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	SPE-J
	Organism Scientific	:	STREPTOCOCCUS PYOGENES
	Organism Taxid	:	1314
	Synonym	:	EXOTOXIN J, SPE-J

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (2x)	:			C

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1TY0)

(no "Site" information available for 1TY0)

(no "SS Bond" information available for 1TY0)

(no "Cis Peptide Bond" information available for 1TY0)

(no "SAP(SNP)/Variant" information available for 1TY0)

(no "PROSITE Motif" information available for 1TY0)

(no "Exon" information available for 1TY0)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:211
 aligned with Q7BAE3_STRPY | Q7BAE3 from UniProtKB/TrEMBL  Length:232

    Alignment length:211
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
         Q7BAE3_STRPY    22 KSDSENIKDVKLQLNYAYEIIPVDYTNCNIDYLTTHDFYIDISSYKKKNFSVDSEVESYITTKFTKNQKVNIFGLPYIFTRYDVYYIYGGVTPSVNSNSENSKIVGNLLIDGVQQKTLINPIKIDKPIFTIQEFDFKIRQYLMQTYKIYDPNSPYIKGQLEIAINGNKHESFNLYDATSSSTRSDIFKKYKDNKTINMKDFSHFDIYLWTK 232
               SCOP domains ---d1ty0a1 A:4-99 Streptococcal pyrogenic exotoxin Spe-J                                           ----d1ty0a2 A:104-211 Streptococcal pyrogenic exotoxin Spe-J                                                     SCOP domains
               CATH domains 1ty0A01             1ty0A02 A:21-95  [code=2.40.50.110, no name defined]                       1ty0A01 A:1-20,A:96-211  [code=3.10.20.120, no name defined]                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh...eeeeeeeeeee...eeeeehhhhhh...eeeee....hhhhh....eeeeee.........eeeee..eee...........eeeeee..eeeeeee........eeehhhhhhhhhhhhhhhhh.........eeeeeeee...eeeeee........hhhhhhhhhhhh.eee...eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ty0 A   1 KSDSENIKDVKLQLNYAYEIIPVDYTNCNIDYLTTHDFYIDISSYKKKNFSVDSEVESYITTKFTKNQKVNIFGLPYIFTRYDVYYIYGGVTPSVNSNSENSKIVGNLLIDGVQQKTLINPIKIDKPIFTIQEFDFKIRQYLMQTYKIYDPNSPYIKGQLEIAINGNKHESFNLYDATSSSTRSDIFKKYKDNKTINMKDFSHFDIYLWTK 211
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210

Chain B from PDB  Type:PROTEIN  Length:207
 aligned with Q7BAE3_STRPY | Q7BAE3 from UniProtKB/TrEMBL  Length:232

    Alignment length:211
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
         Q7BAE3_STRPY    22 KSDSENIKDVKLQLNYAYEIIPVDYTNCNIDYLTTHDFYIDISSYKKKNFSVDSEVESYITTKFTKNQKVNIFGLPYIFTRYDVYYIYGGVTPSVNSNSENSKIVGNLLIDGVQQKTLINPIKIDKPIFTIQEFDFKIRQYLMQTYKIYDPNSPYIKGQLEIAINGNKHESFNLYDATSSSTRSDIFKKYKDNKTINMKDFSHFDIYLWTK 232
               SCOP domains ---d1ty0b1 B:4-98 Streptococcal pyrogenic exotoxin Spe-J                                          -----d1ty0b2 B:104-211 Streptococcal pyrogenic exotoxin Spe-J                                                     SCOP domains
               CATH domains 1ty0B01             1ty0B02 B:21-95  [code=2.40.50.110, no name defined]                       1ty    0B01 B:1-20,B:96-211  [code=3.10.20.120, no name defined]                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh...eeeeeeeeeee...eeeeehhhhhh...eeeee....hhhhh....eeeeee.........eeeee..eee.....----...eeeee..eeeeeee........eeehhhhhhhhhhhhhhhhh.........eeeeeeee.....eeee........hhhhhhhhhhhh.eee...eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ty0 B   1 KSDSENIKDVKLQLNYAYEIIPVDYTNCNIDYLTTHDFYIDISSYKKKNFSVDSEVESYITTKFTKNQKVNIFGLPYIFTRYDVYYIYGGVTPSVNSN----KIVGNLLIDGVQQKTLINPIKIDKPIFTIQEFDFKIRQYLMQTYKIYDPNSPYIKGQLEIAINGNKHESFNLYDATSSSTRSDIFKKYKDNKTINMKDFSHFDIYLWTK 211
                                    10        20        30        40        50        60        70        80        90       | -  |    110       120       130       140       150       160       170       180       190       200       210
                                                                                                                            98  103

Chain C from PDB  Type:PROTEIN  Length:208
 aligned with Q7BAE3_STRPY | Q7BAE3 from UniProtKB/TrEMBL  Length:232

    Alignment length:208
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224
         Q7BAE3_STRPY    25 SENIKDVKLQLNYAYEIIPVDYTNCNIDYLTTHDFYIDISSYKKKNFSVDSEVESYITTKFTKNQKVNIFGLPYIFTRYDVYYIYGGVTPSVNSNSENSKIVGNLLIDGVQQKTLINPIKIDKPIFTIQEFDFKIRQYLMQTYKIYDPNSPYIKGQLEIAINGNKHESFNLYDATSSSTRSDIFKKYKDNKTINMKDFSHFDIYLWTK 232
               SCOP domains d1ty0c1 C:4-99 Streptococcal pyrogenic exotoxin Spe-J                                           ----d1ty0c2 C:104-211 Streptococcal pyrogenic exotoxin Spe-J                                                     SCOP domains
               CATH domains 1ty0C01          1ty0C02 C:21-95  [code=2.40.50.110, no name defined]                       1ty0C01 C:4-20,C:96-211  [code=3.10.20.120, no name defined]                                                         CATH domains
           Pfam domains (1) -----------Stap_Strp_toxin-1ty0C04 C:15-94                                                 -------Stap_Strp_tox_C-1ty0C01 C:102-209                                                                           -- Pfam domains (1)
           Pfam domains (2) -----------Stap_Strp_toxin-1ty0C05 C:15-94                                                 -------Stap_Strp_tox_C-1ty0C02 C:102-209                                                                           -- Pfam domains (2)
           Pfam domains (3) -----------Stap_Strp_toxin-1ty0C06 C:15-94                                                 -------Stap_Strp_tox_C-1ty0C03 C:102-209                                                                           -- Pfam domains (3)
         Sec.struct. author ...hhhhhhhhhhhh....eeeeeeeeeee...eeeeehhhhhh...eeeee.hhhhhhh.....eeeeee.........eeeee..eee...........eeeeee..eeeeeee........eeehhhhhhhhhhhhhhhhh.........eeeeeeee...eeeeee........hhhhhhhhhhhh.eee...eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ty0 C   4 SENIKDVKLQLNYAYEIIPVDYTNCNIDYLTTHDFYIDISSYKKKNFSVDSEVESYITTKFTKNQKVNIFGLPYIFTRYDVYYIYGGVTPSVNSNSENSKIVGNLLIDGVQQKTLINPIKIDKPIFTIQEFDFKIRQYLMQTYKIYDPNSPYIKGQLEIAINGNKHESFNLYDATSSSTRSDIFKKYKDNKTINMKDFSHFDIYLWTK 211
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Ubiquitin-like (UB roll) (674)

Homologous Superfamily: [code=3.10.20.120, no name defined] (91)

Streptococcus pyogenes. Organism_taxid: 1314. (2)

1a	1ty0C01	C:4-20,C:96-211
1b	1ty0A01	A:1-20,A:96-211
1c	1ty0B01	B:1-20,B:96-211

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: OB fold (Dihydrolipoamide Acetyltransferase, E2P) (1040)

Homologous Superfamily: [code=2.40.50.110, no name defined] (136)

Streptococcus pyogenes. Organism_taxid: 1314. (2)

2a	1ty0A02	A:21-95
2b	1ty0B02	B:21-95
2c	1ty0C02	C:21-95

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Ant-toxin_C (48)

Family: Stap_Strp_tox_C (48)

Streptococcus pyogenes (4)

1a	Stap_Strp_tox_C-1ty0C01	C:102-209
1b	Stap_Strp_tox_C-1ty0C02	C:102-209
1c	Stap_Strp_tox_C-1ty0C03	C:102-209

Clan: no clan defined [family: Stap_Strp_toxin] (39)

Family: Stap_Strp_toxin (39)

Streptococcus pyogenes (4)

2a	Stap_Strp_toxin-1ty0C04	C:15-94
2b	Stap_Strp_toxin-1ty0C05	C:15-94
2c	Stap_Strp_toxin-1ty0C06	C:15-94

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (Q7BAE3_STRPY | Q7BAE3)

molecular function
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
