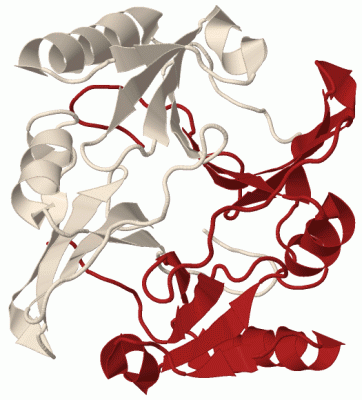

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

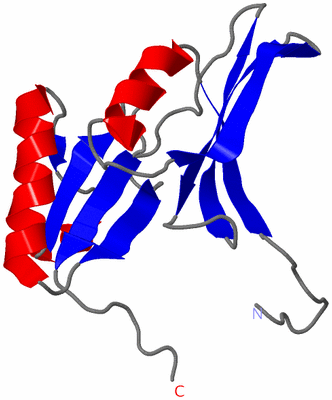

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  2.0 A CRYSTAL STRUCTURE OF A YYCE PROTEIN OF UNKNOWN FUNCTION FROM BACILLUS SUBTILIS, PUTATIVE GLYOXALASE/FOSFOMYCIN RESISTANCE PROTEIN

Authors :  R. Zhang, P. Quartey, F. Collart, A. Joachimiak, Midwest Center For Structural Genomics (Mcsg)
Date :  01 Jul 04  (Deposition) - 17 Aug 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Structural Genomics, Protein Structure Initiative, Mcsg, Duplication Of The Alpha-Beta Sandwichs. Bacillus Subtilis, Psi, Midwest Center For Structural Genomics, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, P. Quartey, F. Collart, A. Joachimiak
2. 0 A Crystal Structure Of A Hypothetical Protein Yyce From Bacillus Subtilis
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN YYCE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PDM68
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: YYCE OR BSU40430
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423
    Strain: 168

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1TWU)

(-) Sites  (0, 0)

(no "Site" information available for 1TWU)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TWU)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Leu A:54 -Pro A:55

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TWU)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1VOCPS51819 Vicinal oxygen chelate (VOC) domain profile.YYCE_BACSU9-133  1A:9-133
Biological Unit 1 (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1VOCPS51819 Vicinal oxygen chelate (VOC) domain profile.YYCE_BACSU9-133  2A:9-133

(-) Exons   (0, 0)

(no "Exon" information available for 1TWU)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:137
 aligned with YYCE_BACSU | P37479 from UniProtKB/Swiss-Prot  Length:139

    Alignment length:137
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
           YYCE_BACSU     3 KRFSSFQAAQIRIARPTGQLDEIIRFYEEGLCLKRIGEFSQHNGYDGVMFGLPHADYHLEFTQYEGGSTAPVPHPDSLLVFYVPNAVELAAITSKLKHMGYQEVESENPYWSNGGVTIEDPDGWRIVFMNSKGISGK 139
               SCOP domains d1twua_ A: Hypothetical protein YycE                                                                                                      SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------Glyoxalase-1twuA01 A:12-130                                                                                            --------- Pfam domains
         Sec.struct. author ..........eeeeee..hhhhhhhhhh......eeeeeeee..eeeeeee.....eeeeeeee.............eeeee..hhhhhhhhhhhhhhh...ee...hhhhhh.eeeee.....eeeee........ Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------VOC  PDB: A:9-133 UniProt: 9-133                                                                                             ------ PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1twu A   3 KRFSSFQAAQIRIARPTGQLDEIIRFYEEGLCLKRIGEFSQHNGYDGVMFGLPHADYHLEFTQYEGGSTAPVPHPDSLLVFYVPNAVELAAITSKLKHMGYQEVESENPYWSNGGVTIEDPDGWRIVFMNSKGISGK 139
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1TWU)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: Glyoxalase (58)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1TWU)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1twu)

  Sites
(no "Sites" information available for 1twu)

  Cis Peptide Bonds
    Leu A:54 - Pro A:55   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

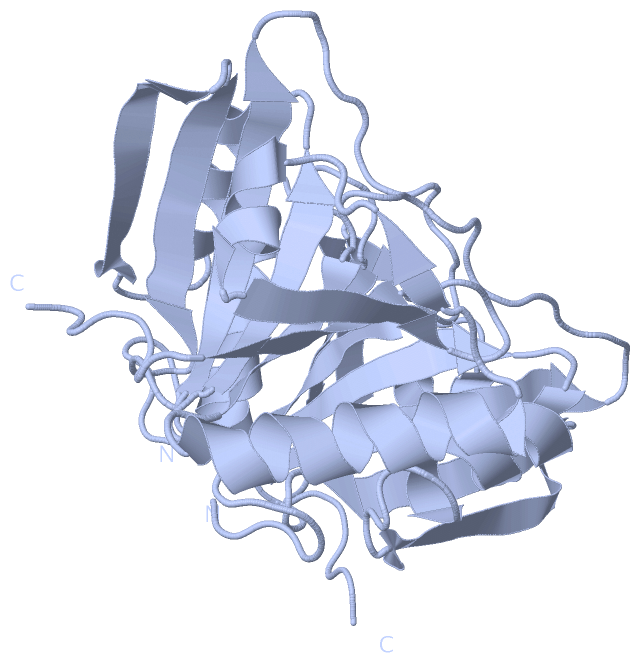

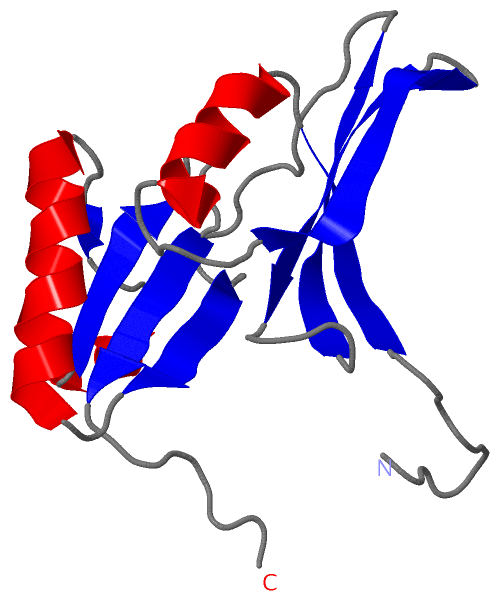

[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
