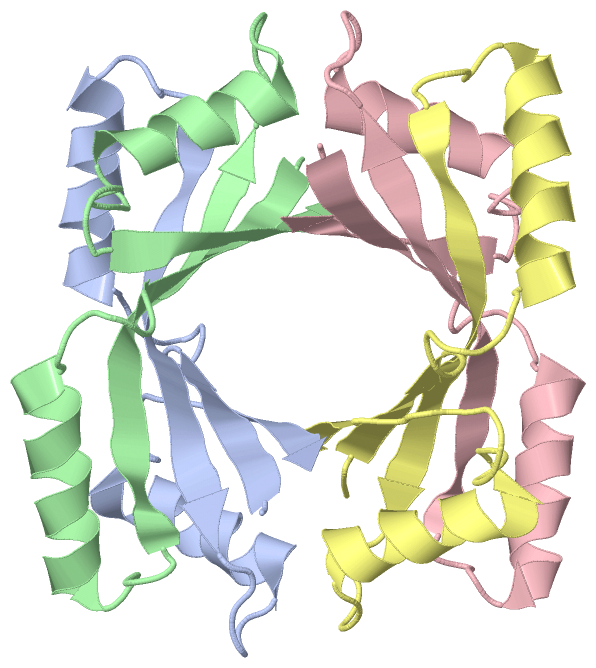

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF B. SUBTILIS PURS P21 CRYSTAL FORM

Authors :  R. Anand, S. E. Ealick, A. A. Hoskins, J. Stubbe
Date :  01 Jul 04  (Deposition) - 31 Aug 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Purs, Formylglycinamide Synthetase, Fgam (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Anand, A. A. Hoskins, E. M. Bennett, M. D. Sintchak, J. Stubbe, S. E. Ealick
A Model For The Bacillus Subtilis Formylglycinamide Ribonucleotide Amidotransferase Multiprotein Complex
Biochemistry V. 43 10343 2004
PubMed-ID: 15301532  |  Reference-DOI: 10.1021/BI0491292
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL UPF0062 PROTEIN YEXA
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: YEXA, BSU06460
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423
    Synonym: PURS

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1TWJ)

(-) Sites  (0, 0)

(no "Site" information available for 1TWJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TWJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1TWJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TWJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1TWJ)

(-) Exons   (0, 0)

(no "Exon" information available for 1TWJ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:80
 aligned with PURS_BACSU | P12049 from UniProtKB/Swiss-Prot  Length:84

    Alignment length:80
                                    10        20        30        40        50        60        70        80
            PURS_BACSU    1 MYKVKVYVSLKESVLDPQGSAVQHALHSMTYNEVQDVRIGKYMELTIEKSDRDLDVLVKEMCEKLLANTVIEDYRYEVEE 80
               SCOP domains d1twja_ A: PurS subunit of FGAM synthetase                                       SCOP domains
               CATH domains 1twjA00 A:1-80  [code=3.30.1280.10, no name defined]                             CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee.......hhhhhhhhhhhhh.....eeeeeeeeeeeeee.....hhhhhhhhhhhhh........eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------- Transcript
                  1twj A  1 MYKVKVYVSLKESVLDPQGSAVQHALHSMTYNEVQDVRIGKYMELTIEKSDRDLDVLVKEMCEKLLANTVIEDYRYEVEE 80
                                    10        20        30        40        50        60        70        80


Chain B from PDB  Type:PROTEIN  Length:80
 aligned with PURS_BACSU | P12049 from UniProtKB/Swiss-Prot  Length:84

    Alignment length:80
                                    10        20        30        40        50        60        70        80
            PURS_BACSU    1 MYKVKVYVSLKESVLDPQGSAVQHALHSMTYNEVQDVRIGKYMELTIEKSDRDLDVLVKEMCEKLLANTVIEDYRYEVEE 80
               SCOP domains d1twjb_ B: PurS subunit of FGAM synthetase                                       SCOP domains
               CATH domains 1twjB00 B:1-80  [code=3.30.1280.10, no name defined]                             CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee.....hhhhhhhhhhhhhh....eeeeeeeeeeeeee.....hhhhhhhhhhhh.......eeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------- Transcript
                  1twj B  1 MYKVKVYVSLKESVLDPQGSAVQHALHSMTYNEVQDVRIGKYMELTIEKSDRDLDVLVKEMCEKLLANTVIEDYRYEVEE 80
                                    10        20        30        40        50        60        70        80


Chain C from PDB  Type:PROTEIN  Length:79
 aligned with PURS_BACSU | P12049 from UniProtKB/Swiss-Prot  Length:84

    Alignment length:79
                                    10        20        30        40        50        60        70
            PURS_BACSU    1 MYKVKVYVSLKESVLDPQGSAVQHALHSMTYNEVQDVRIGKYMELTIEKSDRDLDVLVKEMCEKLLANTVIEDYRYEVE 79
               SCOP domains d1twjc_ C: PurS subunit of FGAM synthetase                                      SCOP domains
               CATH domains 1twjC00 C:1-79  [code=3.30.1280.10, no name defined]                            CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee.....hhhhhhhhhhhhhh....eeeeeeeeeeeeee.....hhhhhhhhhhhh.......ee..eee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                  1twj C  1 MYKVKVYVSLKESVLDPQGSAVQHALHSMTYNEVQDVRIGKYMELTIEKSDRDLDVLVKEMCEKLLANTVIEDYRYEVE 79
                                    10        20        30        40        50        60        70


Chain D from PDB  Type:PROTEIN  Length:80
 aligned with PURS_BACSU | P12049 from UniProtKB/Swiss-Prot  Length:84

    Alignment length:80
                                    10        20        30        40        50        60        70        80
            PURS_BACSU    1 MYKVKVYVSLKESVLDPQGSAVQHALHSMTYNEVQDVRIGKYMELTIEKSDRDLDVLVKEMCEKLLANTVIEDYRYEVEE 80
               SCOP domains d1twjd_ D: PurS subunit of FGAM synthetase                                       SCOP domains
               CATH domains 1twjD00 D:1-80  [code=3.30.1280.10, no name defined]                             CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.......hhhhhhhhhhhhhh....eeeeeeeeeeeeee.....hhhhhhhhhhhhh..........eeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------- Transcript
                  1twj D  1 MYKVKVYVSLKESVLDPQGSAVQHALHSMTYNEVQDVRIGKYMELTIEKSDRDLDVLVKEMCEKLLANTVIEDYRYEVEE 80
                                    10        20        30        40        50        60        70        80
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1TWJ)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (PURS_BACSU | P12049)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016874    ligase activity    Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0004642    phosphoribosylformylglycinamidine synthase activity    Catalysis of the reaction: N(2)-formyl-N(1)-(5-phospho-D-ribosyl)glycinamide + L-glutamine + ATP + H(2)O = 2-(formamido)-N(1)-(5-phospho-D-ribosyl)acetamidine + L-glutamate + ADP + 2 H(+) + phosphate.
biological process
    GO:0006189    'de novo' IMP biosynthetic process    The chemical reactions and pathways resulting in the formation of IMP, inosine monophosphate, by the stepwise assembly of a purine ring on ribose 5-phosphate.
    GO:0006164    purine nucleotide biosynthetic process    The chemical reactions and pathways resulting in the formation of a purine nucleotide, a compound consisting of nucleoside (a purine base linked to a deoxyribose or ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1twj)

  Sites
(no "Sites" information available for 1twj)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1twj)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1twj
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PURS_BACSU | P12049
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PURS_BACSU | P12049
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PURS_BACSU | P12049: 1t4a

(-) Related Entries Specified in the PDB File

1gtd STRUCTURE OF M.THERMOAUTOTROPHIUM PURS
1t4a STRUCTURE OF PURS C2 CRYSTAL FORM
