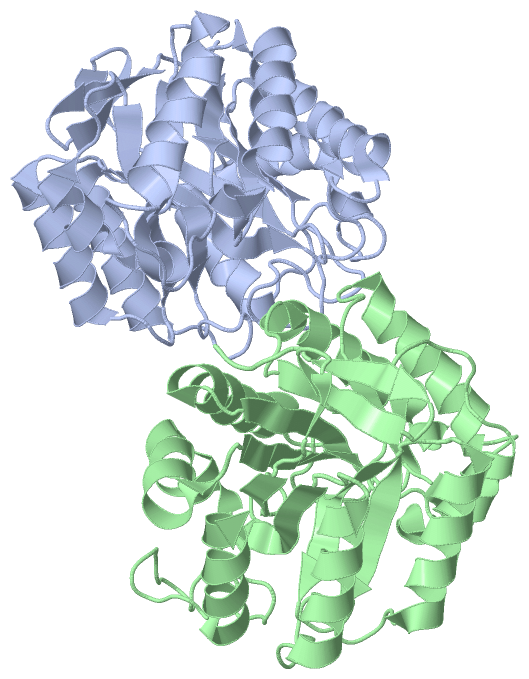

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CELLULASE CEL5G FROM PSEUDOALTEROMONAS HALOPLANKTIS, A FAMILY GH 5-2 ENZYME

Authors :  S. Violot, R. Haser, N. Aghajari
Date :  30 Jun 04  (Deposition) - 17 May 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.41
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Glycoside Hydrolase, Clan Gh-A, Family 5-2, Cellulase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Violot, N. Aghajari, M. Czjzek, G. Feller, G. K. Sonan, P. Gouet, C. Gerday, R. Haser, V. Receveur-Brechot
Structure Of A Full Length Psychrophilic Cellulase From Pseudoalteromonas Haloplanktis Revealed By X-Ray Diffraction And Small Angle X-Ray Scattering
J. Mol. Biol. V. 348 1211 2005
PubMed-ID: 15854656  |  Reference-DOI: 10.1016/J.JMB.2005.03.026
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CELLULASE
    Chains: A, B
    EC Number: 3.2.1.4
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET22B
    Expression System Strain: EPICURIAN BL21 (DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: CATALYTIC DOMAIN
    Gene: CELG
    Organism Scientific: PSEUDOALTEROMONAS HALOPLANKTIS
    Organism Taxid: 228
    Synonym: ENDOGLUCANASE G

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1TVN)

(-) Sites  (0, 0)

(no "Site" information available for 1TVN)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TVN)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Trp A:256 -Ala A:257
2Trp B:256 -Ala B:257

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TVN)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1TVN)

(-) Exons   (0, 0)

(no "Exon" information available for 1TVN)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:293
 aligned with O86099_PSEHA | O86099 from UniProtKB/TrEMBL  Length:494

    Alignment length:293
                                    42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322
         O86099_PSEHA    33 AVEKLTVSGNQILAGGENTSFAGPSLFWSNTGWGAEKFYTAETVAKAKTEFNATLIRAAIGHGTSTGGSLNFDWEGNMSRLDTVVNAAIAEDMYVIIDFHSHEAHTDQATAVRFFEDVATKYGQYDNVIYEIYNEPLQISWVNDIKPYAETVIDKIRAIDPDNLIVVGTPTWSQDVDVASQNPIDRANIAYTLHFYAGTHGQSYRNKAQTALDNGIALFATEWGTVNADGNGGVNINETDAWMAFFKTNNISHANWALNDKNEGASLFTPGGSWNSLTSSGSKVKEIIQGWGG 325
               SCOP domains d1tvna1 A:1-293 Endoglucanase Cel5a                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 1tvnA00 A:1-293 Glycosidases                                                                                                                                                                                                                                                                          CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeee..eeee..ee...eeeee........hhhhhhhhhhhhhhhhhh..eeeeeee...........hhhhhhhhhhhhhhhhhhh..eeeeeee..hhhhhhhhhhhhhhhhhhhhh....eeee............hhhhhhhhhhhhhhh.....eeee.hhhhhhhhhhhhhh......eeeeeeee....hhhhhhhhhhhhhh...eeeeeee..........hhhhhhhhhhhhhhhh..eeeeee...................hhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tvn A   1 AVEKLTVSGNQILAGGENTSFAGPSLFWSNTGWGAEKFYTAETVAKAKTEFNATLIRAAIGHGTSTGGSLNFDWEGNMSRLDTVVNAAIAEDMYVIIDFHSHEAHTDQATAVRFFEDVATKYGQYDNVIYEIYNEPLQISWVNDIKPYAETVIDKIRAIDPDNLIVVGTPTWSQDVDVASQNPIDRANIAYTLHFYAGTHGQSYRNKAQTALDNGIALFATEWGTVNADGNGGVNINETDAWMAFFKTNNISHANWALNDKNEGASLFTPGGSWNSLTSSGSKVKEIIQGWGG 293
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290


Chain B from PDB  Type:PROTEIN  Length:291
 aligned with O86099_PSEHA | O86099 from UniProtKB/TrEMBL  Length:494

    Alignment length:291
                                    42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322
         O86099_PSEHA    33 AVEKLTVSGNQILAGGENTSFAGPSLFWSNTGWGAEKFYTAETVAKAKTEFNATLIRAAIGHGTSTGGSLNFDWEGNMSRLDTVVNAAIAEDMYVIIDFHSHEAHTDQATAVRFFEDVATKYGQYDNVIYEIYNEPLQISWVNDIKPYAETVIDKIRAIDPDNLIVVGTPTWSQDVDVASQNPIDRANIAYTLHFYAGTHGQSYRNKAQTALDNGIALFATEWGTVNADGNGGVNINETDAWMAFFKTNNISHANWALNDKNEGASLFTPGGSWNSLTSSGSKVKEIIQGW 323
               SCOP domains d1tvnb_ B: Endoglucanase Cel5a                                                                                                                                                                                                                                                                      SCOP domains
               CATH domains 1tvnB00 B:1-291 Glycosidases                                                                                                                                                                                                                                                                        CATH domains
           Pfam domains (1) -----------Cellulase-1tvnB01 B:12-262                                                                                                                                                                                                                                 ----------------------------- Pfam domains (1)
           Pfam domains (2) -----------Cellulase-1tvnB02 B:12-262                                                                                                                                                                                                                                 ----------------------------- Pfam domains (2)
         Sec.struct. author ....eeee..eeee..ee...eeeee........hhhhhhhhhhhhhhhhhh..eeeeeee...........hhhhhhhhhhhhhhhhhhh..eeeeeee..hhhhhhhhhhhhhhhhhhhhh....eeee............hhhhhhhhhhhhhhh.....eeee.hhhhhhhhhhhhh.......eeeeeeee....hhhhhhhhhhhhhh...eeeeeee..........hhhhhhhhhhhhhh....eeeeee...................hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tvn B   1 AVEKLTVSGNQILAGGENTSFAGPSLFWSNTGWGAEKFYTAETVAKAKTEFNATLIRAAIGHGTSTGGSLNFDWEGNMSRLDTVVNAAIAEDMYVIIDFHSHEAHTDQATAVRFFEDVATKYGQYDNVIYEIYNEPLQISWVNDIKPYAETVIDKIRAIDPDNLIVVGTPTWSQDVDVASQNPIDRANIAYTLHFYAGTHGQSYRNKAQTALDNGIALFATEWGTVNADGNGGVNINETDAWMAFFKTNNISHANWALNDKNEGASLFTPGGSWNSLTSSGSKVKEIIQGW 291
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: Glyco_hydro_tim (488)

(-) Gene Ontology  (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (O86099_PSEHA | O86099)
molecular function
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0030246    carbohydrate binding    Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
    GO:0008810    cellulase activity    Catalysis of the endohydrolysis of (1->4)-beta-D-glucosidic linkages in cellulose, lichenin and cereal beta-D-glucans.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0007155    cell adhesion    The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1tvn)

  Sites
(no "Sites" information available for 1tvn)

  Cis Peptide Bonds
    Trp A:256 - Ala A:257   [ RasMol ]
    Trp B:256 - Ala B:257   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1tvn
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O86099_PSEHA | O86099
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  3.2.1.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O86099_PSEHA | O86099
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        O86099_PSEHA | O86099: 1tvp

(-) Related Entries Specified in the PDB File

1tvp THE SAME PROTEIN COMPLEXED WITH CELLOBIOSE
