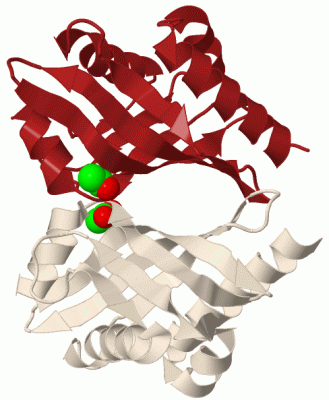

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

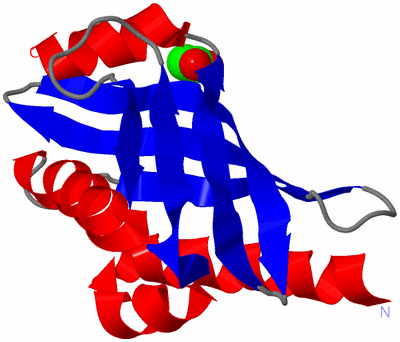

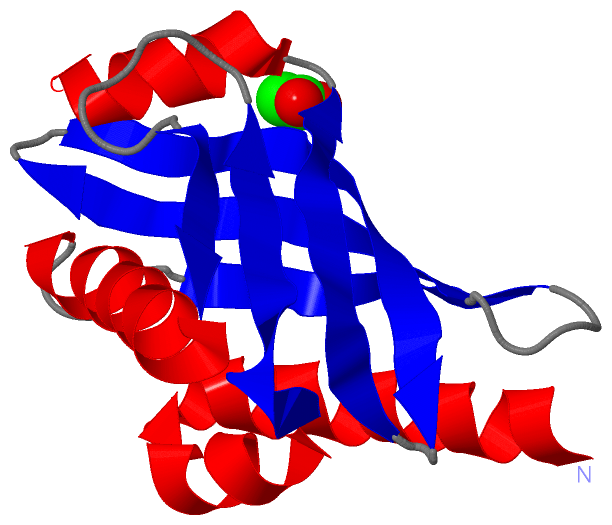

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

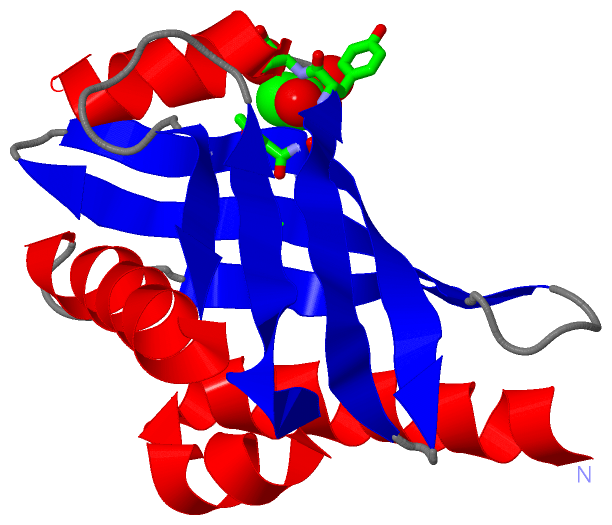

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

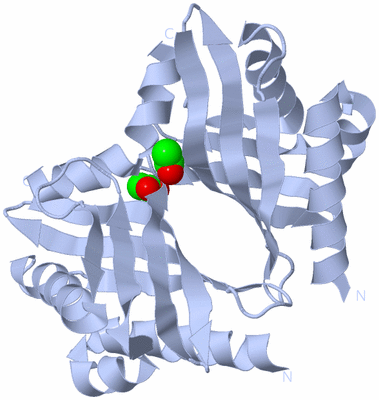

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

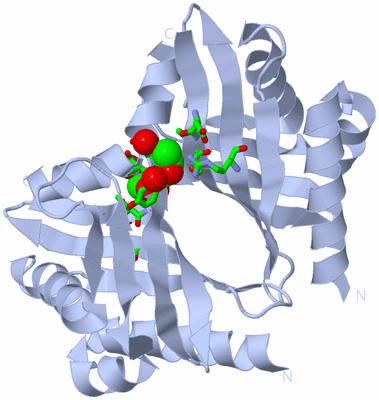

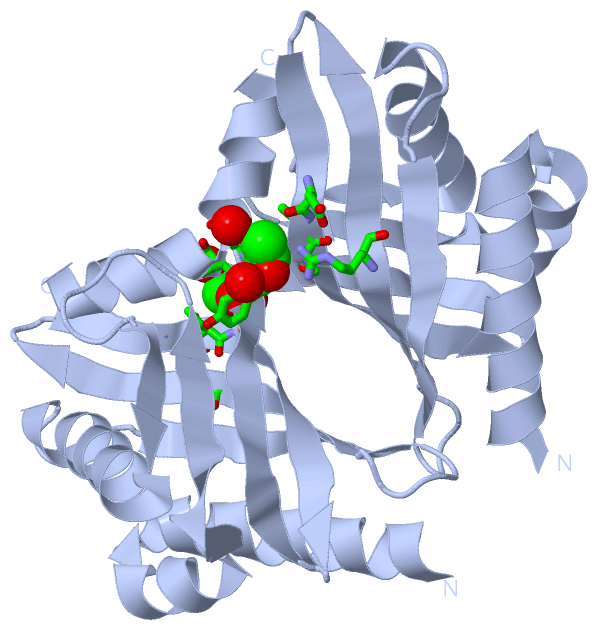

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF BAL32A FROM A SOIL-DERIVED MOBILE GENE CASSETTE

Authors :  A. Robinson, P. S. -C. Wu, S. J. Harrop, P. M. Schaeffer, N. E. Dixon, M. R. Gillings, A. J. Holmes, K. M. H. Nevalainen, G. Otting, H. W. Stokes, P. M. G. Curmi, B. C. Mabbutt
Date :  25 Jun 04  (Deposition) - 06 Jul 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.85
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Uncultured, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Robinson, P. S. -C. Wu, S. J. Harrop, P. M. Schaeffer, Z. Dosztanyi, M. R. Gillings, A. J. Holmes, K. M. H. Nevalainen, H. W. Stokes, G. Otting, N. E. Dixon, P. M. G. Curmi, B. C. Mabbutt
Integron-Associated Mobile Gene Cassettes Code For Folded Proteins: The Structure Of Bal32A, A New Member Of The Adaptable Alpha+Beta Barrel Family
J. Mol. Biol. V. 346 1229 2005
PubMed-ID: 15713477  |  Reference-DOI: 10.1016/J.JMB.2004.12.035
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN EGC068
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PETMCIII
    Expression System Strain: BL21(DE3)PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: EGC068
    Organism Scientific: UNCULTURED BACTERIUM
    Organism Taxid: 77133
    Synonym: BAL32A

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1ACT1Ligand/IonACETATE ION
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1ACT2Ligand/IonACETATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:106 , ASP A:117 , VAL A:118 , GLY A:119 , TYR A:139 , ASP A:140 , HOH A:562 , HOH A:564BINDING SITE FOR RESIDUE ACT A 501

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TUH)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1TUH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TUH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1TUH)

(-) Exons   (0, 0)

(no "Exon" information available for 1TUH)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:131
 aligned with Q99IU3_9BACT | Q99IU3 from UniProtKB/TrEMBL  Length:149

    Alignment length:131
                                    28        38        48        58        68        78        88        98       108       118       128       138       148
         Q99IU3_9BACT    19 NEAEQNAETVRRGYAAFNSGDMKTLTELFDENASWHTPGRSRIAGDHKGREAIFAQFGRYGGETGGTFKAVLLHVLKSDDGRVIGIHRNTAERGGKRLDVGCCIVFEFKNGRVIDGREHFYDLYAWDEFWR 149
               SCOP domains d1tuha_ A: Hypothetical protein egc068 from a soil-derived mobile gene cassette                                                     SCOP domains
               CATH domains 1tuhA00 A:19-149  [code=3.10.450.50, no name defined]                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhheeeeeeeee.......eeeehhhhhhhhhhhhhhh.....eeeeeeeee.....eeeeeeeeeee..eeeeeeeeeeeeee..eeeeeeeee.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tuh A  19 NEAEQNAETVRRGYAAFNSGDMKTLTELFDENASWHTPGRSRIAGDHKGREAIFAQFGRYGGETGGTFKAVLLHVLKSDDGRVIGIHRNTAERGGKRLDVGCCIVFEFKNGRVIDGREHFYDLYAWDEFWR 149
                                    28        38        48        58        68        78        88        98       108       118       128       138       148
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1TUH)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1TUH)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ACT  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1tuh)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1tuh
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q99IU3_9BACT | Q99IU3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q99IU3_9BACT | Q99IU3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1TUH)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1TUH)
