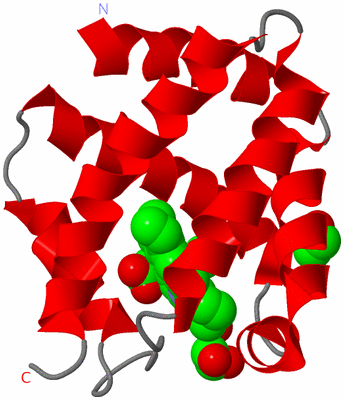

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

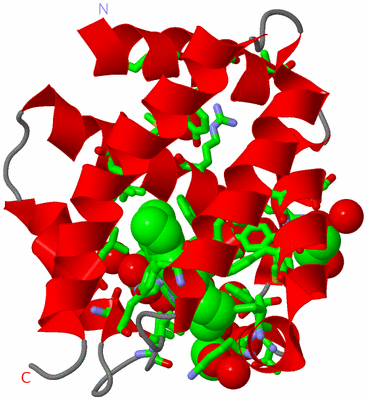

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A PROTEIN PA3967, A STRUCTURALLY HIGHLY HOMOLOGOUS TO A HUMAN HEMOGLOBIN, FROM PSEUDOMONAS AERUGINOSA PAO1

Authors :  Y. Kim, A. Joachimiak, T. Skarina, O. Egorova, A. Bochkarev, A. Savchen A. Edwards, Midwest Center For Structural Genomics (Mcsg)
Date :  24 Jun 04  (Deposition) - 10 Aug 04  (Release) - 30 Apr 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.20
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Heme, Hemoglobin, Pseudomonas Aeruginosa Pao1, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Kim, A. Joachimiak, T. Skarina, O. Egorova, A. Bochkarev, A. Savchenko, A. Edwards
Crystal Structure Of Pa3967 From Pseudomonas Aeruginosa Pao1, A Hypothetical Protein Which Is Highly Homologous To Human Hemoglobin In Structure.
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN PA3967
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: MODIFIED PET15B
    Expression System Strain: BL21DE3
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: PSEUDOMONAS AERUGINOSA
    Organism Taxid: 208964
    Strain: PAO1

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 4)

Asymmetric/Biological Unit (3, 4)
No.NameCountTypeFull Name
1EDO2Ligand/Ion1,2-ETHANEDIOL
2HEM1Ligand/IonPROTOPORPHYRIN IX CONTAINING FE
3PPI1Ligand/IonPROPANOIC ACID

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREMET A:8 , GLY A:12 , ALA A:16 , PHE A:28 , ILE A:35 , LYS A:38 , PHE A:39 , THR A:42 , GLN A:47 , LEU A:58 , LEU A:73 , SER A:76 , HIS A:77 , LEU A:82 , ILE A:84 , TYR A:89 , TRP A:92 , PPI A:302 , EDO A:303 , HOH A:307 , HOH A:308 , HOH A:346 , HOH A:460 , HOH A:576BINDING SITE FOR RESIDUE HEM A 301
2AC2SOFTWAREPHE A:24 , TYR A:25 , PHE A:28 , PHE A:39 , GLN A:47 , TRP A:92 , HEM A:301BINDING SITE FOR RESIDUE PPI A 302
3AC3SOFTWARETYR A:11 , LYS A:38 , THR A:41 , ARG A:52 , MET A:56 , HEM A:301 , HOH A:305 , HOH A:413 , HOH A:569BINDING SITE FOR RESIDUE EDO A 303
4AC4SOFTWAREASP A:22 , TYR A:25 , MET A:44 , LYS A:48 , HOH A:374 , HOH A:534BINDING SITE FOR RESIDUE EDO A 304

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TU9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1TU9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TU9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1TU9)

(-) Exons   (0, 0)

(no "Exon" information available for 1TU9)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:131
 aligned with Q9HX49_PSEAE | Q9HX49 from UniProtKB/TrEMBL  Length:130

    Alignment length:131
                                                                                                                                                          130
                                    11        21        31        41        51        61        71        81        91       101       111       121        |-
         Q9HX49_PSEAE     2 NAADRVMQSYGRCCASTGFFDDFYRHFLASSPQIRAKFATTDMTAQKHLLRAGIMNLVMYARGMSDSKLRALGASHSRAALDIRPELYDLWLDALLMAVAEHDRDCDAETRDAWRDVMGRGIAVIKSYY--   -
               SCOP domains d1tu9a_ A: Hypothetical protein PA3967                                                                                              SCOP domains
               CATH domains 1tu9A00 A:2-132 Globins                                                                                                             CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh.........hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tu9 A   2 NAADRVMQSYGRCCASTGFFDDFYRHFLASSPQIRAKFATTDMTAQKHLLRAGIMNLVMYARGMSDSKLRALGASHSRAALDIRPELYDLWLDALLMAVAEHDRDCDAETRDAWRDVMGRGIAVIKSYYGS 132
                                    11        21        31        41        51        61        71        81        91       101       111       121       131
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1TU9)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Q9HX49_PSEAE | Q9HX49)
molecular function
    GO:0020037    heme binding    Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0019825    oxygen binding    Interacting selectively and non-covalently with oxygen (O2).

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    EDO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    HEM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PPI  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1tu9)

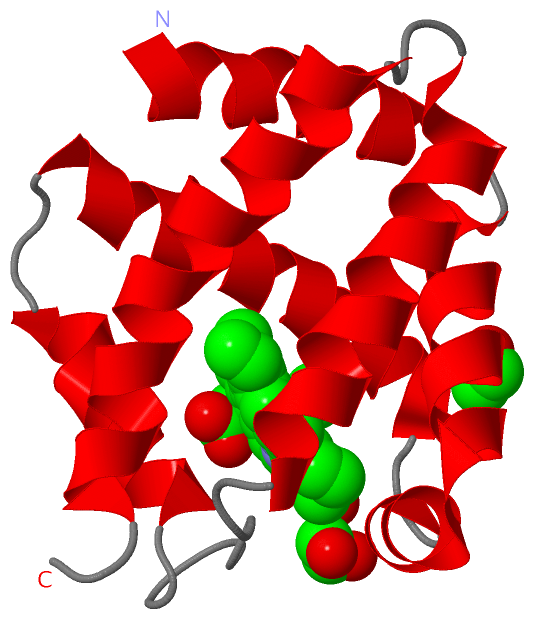

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1tu9
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9HX49_PSEAE | Q9HX49
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9HX49_PSEAE | Q9HX49
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1TU9)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1TU9)
