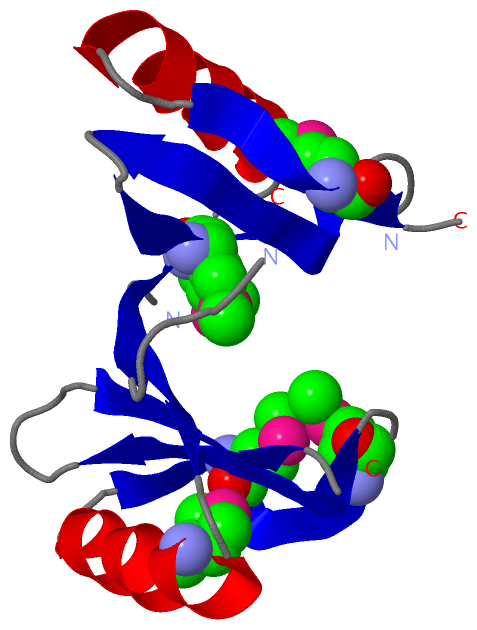

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

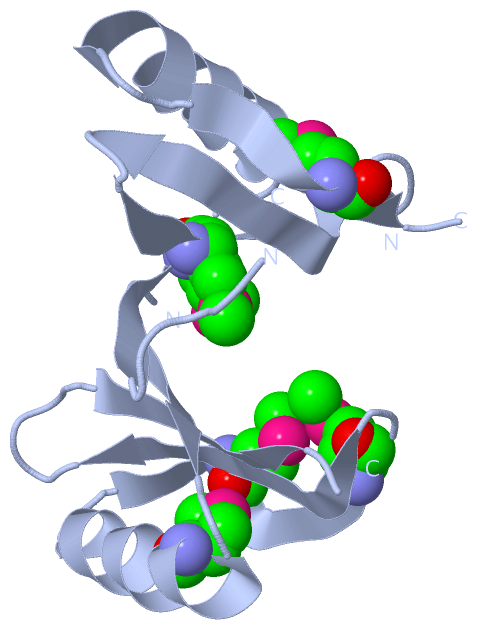

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

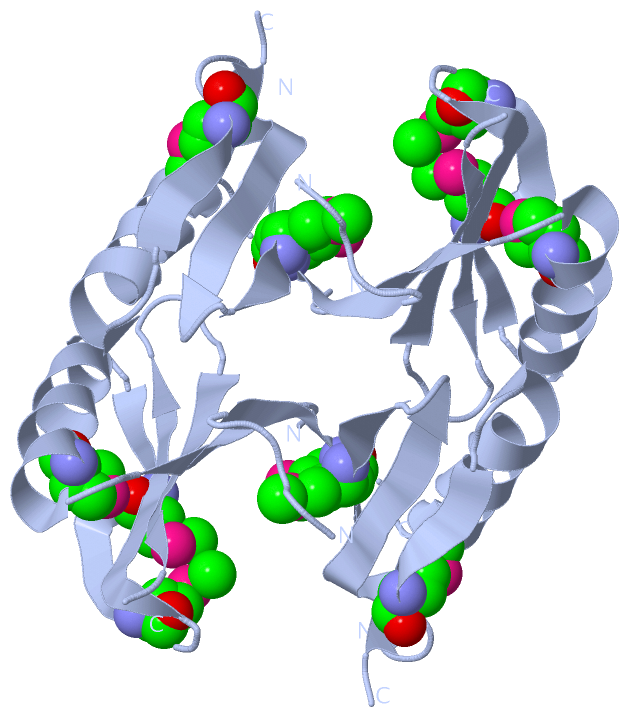

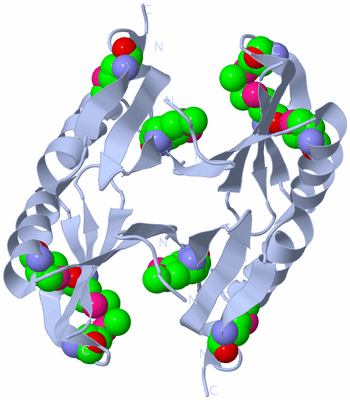

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PROTEIN FROM STAPHYLOCOCCUS AUREUS

Authors :  T. Min, J. Gorman, L. Shapiro, S. K. Burley, New York Sgx Research Ce Structural Genomics (Nysgxrc)
Date :  21 Jun 04  (Deposition) - 14 Dec 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (2x)
Keywords :  Conserved Hypothetical Protein, Structural Genomics, Protein Structure Initiative, Psi, Nysgxrc, New York Sgx Research Center For Structural Genomics, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Min, J. Gorman, L. Shapiro
The Crystal Structure Of Conserved Hypothetical Protein
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - CONSERVED HYPOTHETICAL PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: MODIFIED PET26B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: STAPHYLOCOCCUS AUREUS SUBSP. AUREUS
    Organism Taxid: 46170
    Strain: SUBSP. AUREUS

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 6)

Asymmetric Unit (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 12)
No.NameCountTypeFull Name
1MSE12Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1TSJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TSJ)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Pro A:111 -Pro A:112

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TSJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1TSJ)

(-) Exons   (0, 0)

(no "Exon" information available for 1TSJ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:117
 aligned with A0A0H3K2T2_S | A0A0H3K2T2 from UniProtKB/TrEMBL  Length:133

    Alignment length:133
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
         A0A0H3K2T2_S     1 MDIPKITTFLMFNNQAEEAVKLYTSLFEDSEIITMAKYGENGPGDPGTVQHSIFTLNGQVFMAIDANSGTELPMNPAISLFVTVKDTIEMERLFNGLKDEGAILMPKTNMPPYREFAWVQDKFGVSFQLALPE 133
               SCOP domains d1tsja_ A: Hypothetical protein MW1090                                                                                                SCOP domains
               CATH domains 1tsjA00 A:1-133 2,3-Dihydroxybiphenyl 1     ,2-Dioxygenase, domai           n 1                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeee...hhhhhhhhhhhhh...eeeeeee..-----....eeeeeeee..eeeeee.-----------...eeee..hhhhhhhhhhhhhh..eeeeeeeee..eeeeeeee.....eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tsj A   1 MDIPKITTFLmFNNQAEEAVKLYTSLFEDSEIITmAKYG-----DPGTVQHSIFTLNGQVFmAID-----------PISLFVTVKDTIEmERLFNGLKDEGAILmPKTNmPPYREFAWVQDKFGVSFQLALPE 133
                                    10|       20        30    |   |-    |   50        60 |  |    -      | 80        90       100    |  110       120       130
                                     11-MSE                  35-MSE    45               62-MSE         77           90-MSE        105-MSE|
                                                                                                                                       110-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1TSJ)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1TSJ)
