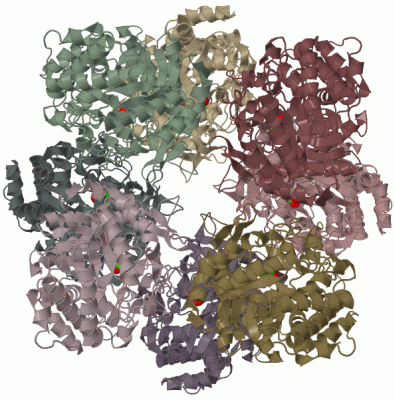

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

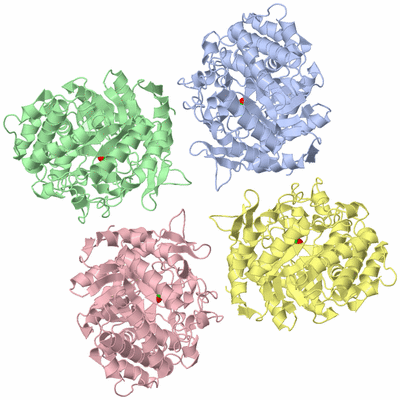

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

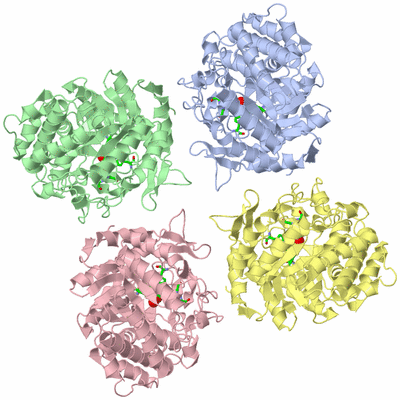

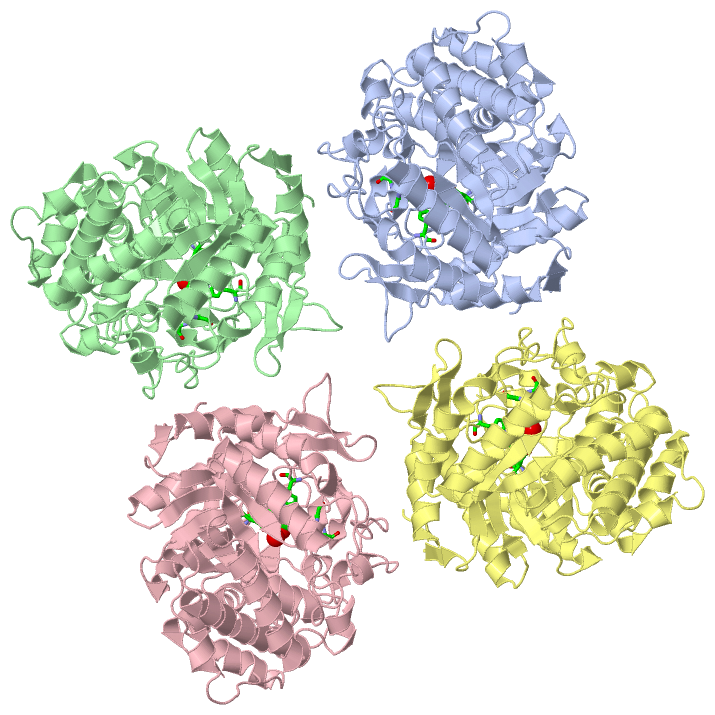

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

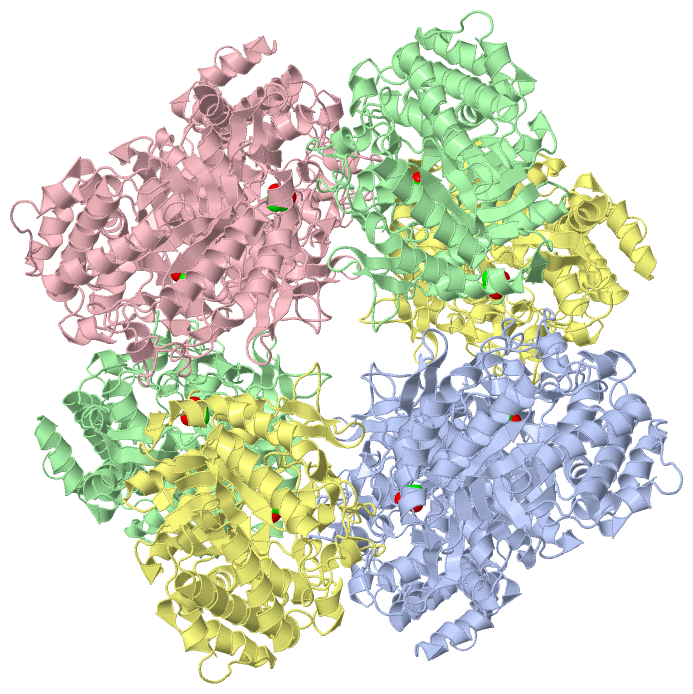

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF E96K MUTATED BETA-GLUCOSIDASE A FROM BACILLUS POLYMYXA, AN ENZYME WITH INCREASED THERMORESISTANCE

Authors :  J. Sanz-Aparicio, J. A. Hermoso, M. Martinez-Ripoll, B. Gonzalez-Per J. Polaina
Date :  12 Mar 98  (Deposition) - 20 Apr 99  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B,C,D  (2x)
Keywords :  Family 1 Beta-Glucosidase, Increased Thermoresistance (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Sanz-Aparicio, J. A. Hermoso, M. Martinez-Ripoll, J. L. Lequerica J. Polaina
Crystal Structure Of Beta-Glucosidase A From Bacillus Polymyxa: Insights Into The Catalytic Activity In Family 1 Glycosyl Hydrolases.
J. Mol. Biol. V. 275 491 1998
PubMed-ID: 9466926  |  Reference-DOI: 10.1006/JMBI.1997.1467
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BETA-GLUCOSIDASE A
    Atcc: ATCC 842
    Chains: A, B, C, D
    EC Number: 3.2.1.21
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PUC DERIVATIVE
    Expression System Strain: DHS-ALPHA
    Expression System Taxid: 562
    Gene: BGLA
    Mutation: YES
    Organism Scientific: PAENIBACILLUS POLYMYXA
    Organism Taxid: 1406
    Synonym: BGA

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (2x): ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
1GOL4Ligand/IonGLYCEROL
Biological Unit 1 (1, 8)
No.NameCountTypeFull Name
1GOL8Ligand/IonGLYCEROL

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN A:20 , TYR A:296 , TRP A:326 , GLU A:352 , TRP A:398 , GLU A:405 , TRP A:406 , PHE A:414 , HOH A:2297BINDING SITE FOR RESIDUE GOL A 2000
2AC2SOFTWAREGLN B:20 , TYR B:296 , TRP B:326 , GLU B:352 , TRP B:398 , GLU B:405 , TRP B:406 , PHE B:414BINDING SITE FOR RESIDUE GOL B 2000
3AC3SOFTWAREGLN C:20 , TYR C:296 , TRP C:326 , GLU C:352 , TRP C:398 , GLU C:405 , TRP C:406 , PHE C:414 , HOH C:2304BINDING SITE FOR RESIDUE GOL C 2000
4AC4SOFTWAREGLN D:20 , TYR D:296 , TRP D:326 , GLU D:352 , TRP D:398 , GLU D:405 , TRP D:406 , PHE D:414 , HOH D:2344BINDING SITE FOR RESIDUE GOL D 2000

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TR1)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Ala A:181 -Pro A:182
2Ala B:181 -Pro B:182
3Ala C:181 -Pro C:182
4Ala D:181 -Pro D:182

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TR1)

(-) PROSITE Motifs  (2, 8)

Asymmetric Unit (2, 8)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLYCOSYL_HYDROL_F1_2PS00653 Glycosyl hydrolases family 1 N-terminal signature.BGLA_PAEPO10-24


 		  4A:10-24
B:10-24
C:10-24
D:10-24
2GLYCOSYL_HYDROL_F1_1PS00572 Glycosyl hydrolases family 1 active site.BGLA_PAEPO348-356


 		  4A:348-356
B:348-356
C:348-356
D:348-356
Biological Unit 1 (2, 16)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLYCOSYL_HYDROL_F1_2PS00653 Glycosyl hydrolases family 1 N-terminal signature.BGLA_PAEPO10-24


 		  8A:10-24
B:10-24
C:10-24
D:10-24
2GLYCOSYL_HYDROL_F1_1PS00572 Glycosyl hydrolases family 1 active site.BGLA_PAEPO348-356


 		  8A:348-356
B:348-356
C:348-356
D:348-356

(-) Exons   (0, 0)

(no "Exon" information available for 1TR1)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:447
 aligned with BGLA_PAEPO | P22073 from UniProtKB/Swiss-Prot  Length:448

    Alignment length:447
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441
           BGLA_PAEPO     2 TIFQFPQDFMWGTATAAYQIEGAYQEDGRGLSIWDTFAHTPGKVFNGDNGNVACDSYHRYEEDIRLMKELGIRTYRFSVSWPRIFPNGDGEVNQEGLDYYHRVVDLLNDNGIEPFCTLYHWDLPQALQDAGGWGNRRTIQAFVQFAETMFREFHGKIQHWLTFNEPWCIAFLSNMLGVHAPGLTNLQTAIDVGHHLLVAHGLSVRRFRELGTSGQIGIAPNVSWAVPYSTSEEDKAACARTISLHSDWFLQPIYQGSYPQFLVDWFAEQGATVPIQDGDMDIIGEPIDMIGINYYSMSVNRFNPEAGFLQSEEINMGLPVTDIGWPVESRGLYEVLHYLQKYGNIDIYITENGACINDEVVNGKVQDDRRISYMQQHLVQVHRTIHDGLHVKGYMAWSLLDNFEWAEGYNMRFGMIHVDFRTQVRTPKESYYWYRNVVSNNWLETRR 448
               SCOP domains d1tr1a_ A: Beta-glucosidase A                                                                                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 1tr1A00 A:2-448 Glycosidases                                                                                                                                                                                                                                                                                                                                                                                                                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.....eeeee..hhhh............hhhhhh.................hhhhhhhhhhhhhhh...eeeee..hhhh.........hhhhhhhhhhhhhhhhh..eeeee.......hhhhh......hhhhhhhhhhhhhhhhh......eee....hhhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee...eee....hhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhh..........hhhhh.....eeeee....eeeee........eeee..............hhhhhhhhhhhhhh....eeeee................hhhhhhhhhhhhhhhhhhh....eeeeee........hhhhhh.....eeee....eeee.hhhhhhhhhhhh.eee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLYCOSYL_HYDROL-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_-------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tr1 A   2 TIFQFPQDFMWGTATAAYQIEGAYQEDGRGLSIWDTFAHTPGKVFNGDNGNVACDSYHRYEEDIRLMKELGIRTYRFSVSWPRIFPNGDGEVNQKGLDYYHRVVDLLNDNGIEPFCTLYHWDLPQALQDAGGWGNRRTIQAFVQFAETMFREFHGKIQHWLTFNEPWCIAFLSNMLGVHAPGLTNLQTAIDVGHHLLVAHGLSVRRFRELGTSGQIGIAPNVSWAVPYSTSEEDKAACARTISLHSDWFLQPIYQGSYPQFLVDWFAEQGATVPIQDGDMDIIGEPIDMIGINYYSMSVNRFNPEAGFLQSEEINMGLPVTDIGWPVESRGLYEVLHYLQKYGNIDIYITENGACINDEVVNGKVQDDRRISYMQQHLVQVHRTIHDGLHVKGYMAWSLLDNFEWAEGYNMRFGMIHVDFRTQVRTPKESYYWYRNVVSNNWLETRR 448
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441


Chain B from PDB  Type:PROTEIN  Length:447
 aligned with BGLA_PAEPO | P22073 from UniProtKB/Swiss-Prot  Length:448

    Alignment length:447
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441
           BGLA_PAEPO     2 TIFQFPQDFMWGTATAAYQIEGAYQEDGRGLSIWDTFAHTPGKVFNGDNGNVACDSYHRYEEDIRLMKELGIRTYRFSVSWPRIFPNGDGEVNQEGLDYYHRVVDLLNDNGIEPFCTLYHWDLPQALQDAGGWGNRRTIQAFVQFAETMFREFHGKIQHWLTFNEPWCIAFLSNMLGVHAPGLTNLQTAIDVGHHLLVAHGLSVRRFRELGTSGQIGIAPNVSWAVPYSTSEEDKAACARTISLHSDWFLQPIYQGSYPQFLVDWFAEQGATVPIQDGDMDIIGEPIDMIGINYYSMSVNRFNPEAGFLQSEEINMGLPVTDIGWPVESRGLYEVLHYLQKYGNIDIYITENGACINDEVVNGKVQDDRRISYMQQHLVQVHRTIHDGLHVKGYMAWSLLDNFEWAEGYNMRFGMIHVDFRTQVRTPKESYYWYRNVVSNNWLETRR 448
               SCOP domains d1tr1b_ B: Beta-glucosidase A                                                                                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 1tr1B00 B:2-448 Glycosidases                                                                                                                                                                                                                                                                                                                                                                                                                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.....eeeee..hhhh............hhhhhh.................hhhhhhhhhhhhhh....eeeee..hhhh.........hhhhhhhhhhhhhhhhh..eeeee.......hhhhh......hhhhhhhhhhhhhhhhh......eee....hhhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhh.....eee.......eee....hhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhh.........hhhhh......eeee....eeeee........eeee..............hhhhhhhhhhhhhh....eeeee................hhhhhhhhhhhhhhhhhhh....eeeeee........hhhhhh.....eeee....eeee.hhhhhhhhhhhh.eee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLYCOSYL_HYDROL-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_-------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tr1 B   2 TIFQFPQDFMWGTATAAYQIEGAYQEDGRGLSIWDTFAHTPGKVFNGDNGNVACDSYHRYEEDIRLMKELGIRTYRFSVSWPRIFPNGDGEVNQKGLDYYHRVVDLLNDNGIEPFCTLYHWDLPQALQDAGGWGNRRTIQAFVQFAETMFREFHGKIQHWLTFNEPWCIAFLSNMLGVHAPGLTNLQTAIDVGHHLLVAHGLSVRRFRELGTSGQIGIAPNVSWAVPYSTSEEDKAACARTISLHSDWFLQPIYQGSYPQFLVDWFAEQGATVPIQDGDMDIIGEPIDMIGINYYSMSVNRFNPEAGFLQSEEINMGLPVTDIGWPVESRGLYEVLHYLQKYGNIDIYITENGACINDEVVNGKVQDDRRISYMQQHLVQVHRTIHDGLHVKGYMAWSLLDNFEWAEGYNMRFGMIHVDFRTQVRTPKESYYWYRNVVSNNWLETRR 448
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441


Chain C from PDB  Type:PROTEIN  Length:447
 aligned with BGLA_PAEPO | P22073 from UniProtKB/Swiss-Prot  Length:448

    Alignment length:447
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441
           BGLA_PAEPO     2 TIFQFPQDFMWGTATAAYQIEGAYQEDGRGLSIWDTFAHTPGKVFNGDNGNVACDSYHRYEEDIRLMKELGIRTYRFSVSWPRIFPNGDGEVNQEGLDYYHRVVDLLNDNGIEPFCTLYHWDLPQALQDAGGWGNRRTIQAFVQFAETMFREFHGKIQHWLTFNEPWCIAFLSNMLGVHAPGLTNLQTAIDVGHHLLVAHGLSVRRFRELGTSGQIGIAPNVSWAVPYSTSEEDKAACARTISLHSDWFLQPIYQGSYPQFLVDWFAEQGATVPIQDGDMDIIGEPIDMIGINYYSMSVNRFNPEAGFLQSEEINMGLPVTDIGWPVESRGLYEVLHYLQKYGNIDIYITENGACINDEVVNGKVQDDRRISYMQQHLVQVHRTIHDGLHVKGYMAWSLLDNFEWAEGYNMRFGMIHVDFRTQVRTPKESYYWYRNVVSNNWLETRR 448
               SCOP domains d1tr1c_ C: Beta-glucosidase A                                                                                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 1tr1C00 C:2-448 Glycosidases                                                                                                                                                                                                                                                                                                                                                                                                                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.....eeeee..hhhh............hhhhhh.................hhhhhhhhhhhhhh....eeeee..hhhh.........hhhhhhhhhhhhhhhhh..eeeee.......hhhhh......hhhhhhhhhhhhhhhhh......eee....hhhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee...eee....hhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhh..........hhhhh.....eeeee....eeeee........eeee..............hhhhhhhhhhhhhh....eeeee................hhhhhhhhhhhhhhhhhhh....eeeeee........hhhhhh.....eeee....eeee.hhhhhhhhhhhh.eee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLYCOSYL_HYDROL-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_-------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tr1 C   2 TIFQFPQDFMWGTATAAYQIEGAYQEDGRGLSIWDTFAHTPGKVFNGDNGNVACDSYHRYEEDIRLMKELGIRTYRFSVSWPRIFPNGDGEVNQKGLDYYHRVVDLLNDNGIEPFCTLYHWDLPQALQDAGGWGNRRTIQAFVQFAETMFREFHGKIQHWLTFNEPWCIAFLSNMLGVHAPGLTNLQTAIDVGHHLLVAHGLSVRRFRELGTSGQIGIAPNVSWAVPYSTSEEDKAACARTISLHSDWFLQPIYQGSYPQFLVDWFAEQGATVPIQDGDMDIIGEPIDMIGINYYSMSVNRFNPEAGFLQSEEINMGLPVTDIGWPVESRGLYEVLHYLQKYGNIDIYITENGACINDEVVNGKVQDDRRISYMQQHLVQVHRTIHDGLHVKGYMAWSLLDNFEWAEGYNMRFGMIHVDFRTQVRTPKESYYWYRNVVSNNWLETRR 448
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441


Chain D from PDB  Type:PROTEIN  Length:447
 aligned with BGLA_PAEPO | P22073 from UniProtKB/Swiss-Prot  Length:448

    Alignment length:447
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441
           BGLA_PAEPO     2 TIFQFPQDFMWGTATAAYQIEGAYQEDGRGLSIWDTFAHTPGKVFNGDNGNVACDSYHRYEEDIRLMKELGIRTYRFSVSWPRIFPNGDGEVNQEGLDYYHRVVDLLNDNGIEPFCTLYHWDLPQALQDAGGWGNRRTIQAFVQFAETMFREFHGKIQHWLTFNEPWCIAFLSNMLGVHAPGLTNLQTAIDVGHHLLVAHGLSVRRFRELGTSGQIGIAPNVSWAVPYSTSEEDKAACARTISLHSDWFLQPIYQGSYPQFLVDWFAEQGATVPIQDGDMDIIGEPIDMIGINYYSMSVNRFNPEAGFLQSEEINMGLPVTDIGWPVESRGLYEVLHYLQKYGNIDIYITENGACINDEVVNGKVQDDRRISYMQQHLVQVHRTIHDGLHVKGYMAWSLLDNFEWAEGYNMRFGMIHVDFRTQVRTPKESYYWYRNVVSNNWLETRR 448
               SCOP domains d1tr1d_ D: Beta-glucosidase A                                                                                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 1tr1D00 D:2-448 Glycosidases                                                                                                                                                                                                                                                                                                                                                                                                                                    CATH domains
           Pfam domains (1) Glyco_hydro_1-1tr1D01 D:2-444                                                                                                                                                                                                                                                                                                                                                                                                                              ---- Pfam domains (1)
           Pfam domains (2) Glyco_hydro_1-1tr1D02 D:2-444                                                                                                                                                                                                                                                                                                                                                                                                                              ---- Pfam domains (2)
           Pfam domains (3) Glyco_hydro_1-1tr1D03 D:2-444                                                                                                                                                                                                                                                                                                                                                                                                                              ---- Pfam domains (3)
           Pfam domains (4) Glyco_hydro_1-1tr1D04 D:2-444                                                                                                                                                                                                                                                                                                                                                                                                                              ---- Pfam domains (4)
         Sec.struct. author .eee.....eeeee..hhhh............hhhhhh.................hhhhhhhhhhhhhh....eeeee..hhhh.........hhhhhhhhhhhhhhhhh..eeeee.......hhhhh......hhhhhhhhhhhhhhhhh......eee....hhhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee...eee....hhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhh.........hhhhh.....eeeee....eeeee........eeee..............hhhhhhhhhhhhhh....eeeee................hhhhhhhhhhhhhhhhhhh....eeeeee........hhhhhh.....eeee....eeee.hhhhhhhhhhhh.eee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------GLYCOSYL_HYDROL-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_-------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tr1 D   2 TIFQFPQDFMWGTATAAYQIEGAYQEDGRGLSIWDTFAHTPGKVFNGDNGNVACDSYHRYEEDIRLMKELGIRTYRFSVSWPRIFPNGDGEVNQKGLDYYHRVVDLLNDNGIEPFCTLYHWDLPQALQDAGGWGNRRTIQAFVQFAETMFREFHGKIQHWLTFNEPWCIAFLSNMLGVHAPGLTNLQTAIDVGHHLLVAHGLSVRRFRELGTSGQIGIAPNVSWAVPYSTSEEDKAACARTISLHSDWFLQPIYQGSYPQFLVDWFAEQGATVPIQDGDMDIIGEPIDMIGINYYSMSVNRFNPEAGFLQSEEINMGLPVTDIGWPVESRGLYEVLHYLQKYGNIDIYITENGACINDEVVNGKVQDDRRISYMQQHLVQVHRTIHDGLHVKGYMAWSLLDNFEWAEGYNMRFGMIHVDFRTQVRTPKESYYWYRNVVSNNWLETRR 448
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 4)

Asymmetric Unit
(-)
Clan: Glyco_hydro_tim (488)

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (BGLA_PAEPO | P22073)
molecular function
    GO:0008422    beta-glucosidase activity    Catalysis of the hydrolysis of terminal, non-reducing beta-D-glucose residues with release of beta-D-glucose.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
    GO:0102483    scopolin beta-glucosidase activity    Catalysis of the reaction: H2O + scopolin <=> beta-D-glucose + scopoletin
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0030245    cellulose catabolic process    The chemical reactions and pathways resulting in the breakdown of cellulose, a linear beta1-4 glucan of molecular mass 50-400 kDa with the pyranose units in the -4C1 conformation.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0000272    polysaccharide catabolic process    The chemical reactions and pathways resulting in the breakdown of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.
