1TMH - JenaLib

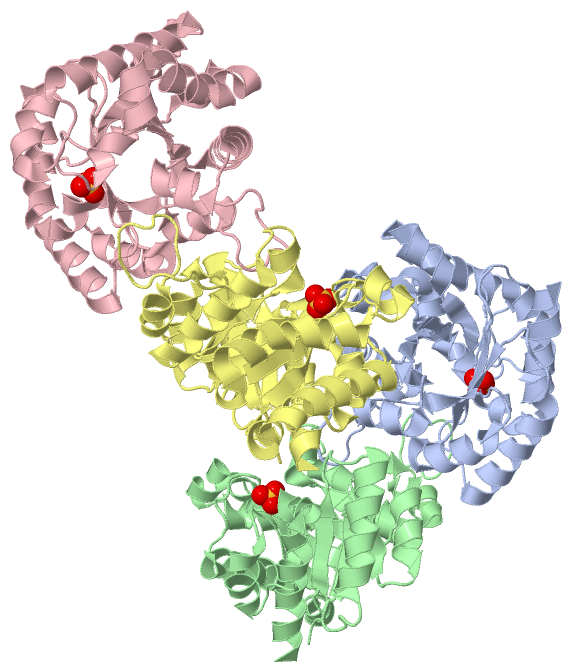

Asymmetric Unit (Jmol Viewer)

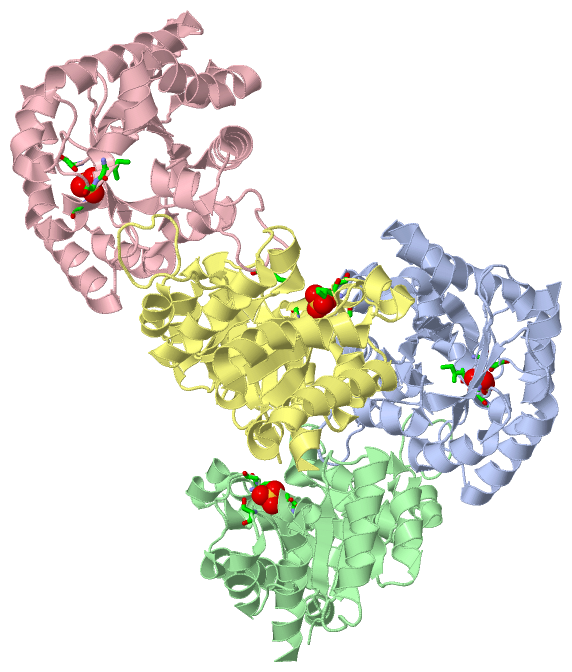

Asym. Unit - sites (Jmol Viewer)

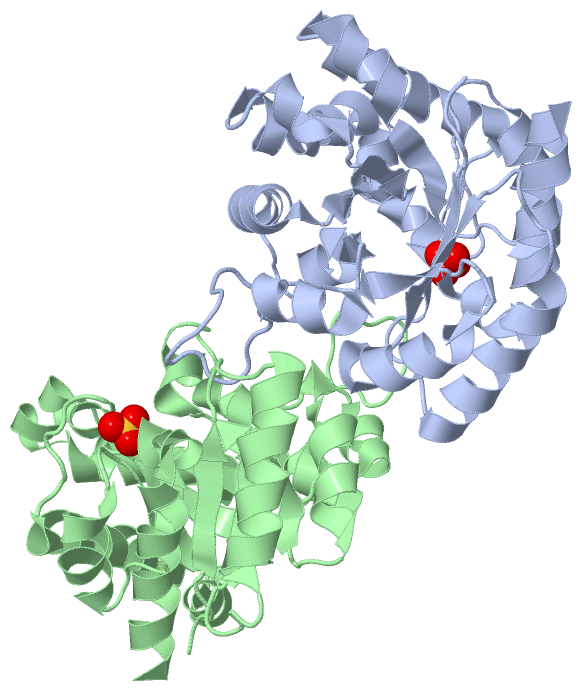

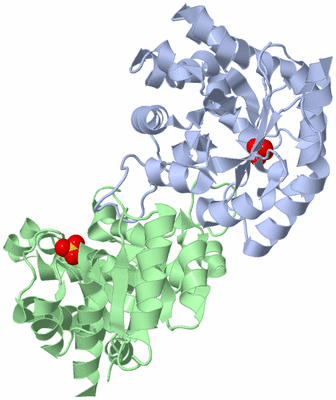

Biological Unit 1 (Jmol Viewer)

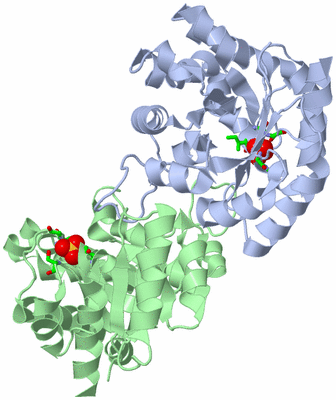

Biol. Unit 1 - sites (Jmol Viewer)

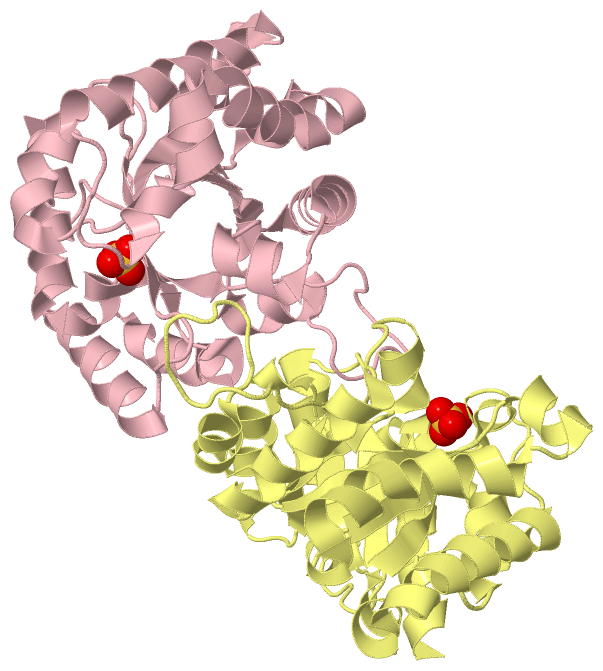

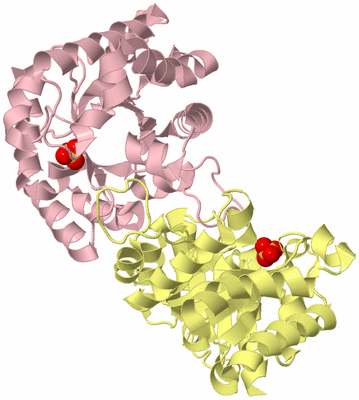

Biological Unit 2 (Jmol Viewer)

Title :   MODULAR MUTAGENESIS OF A TIM-BARREL ENZYME: THE CRYSTAL STRUCTURE OF A CHIMERIC E. COLI TIM HAVING THE EIGHTH (BETA-ALPHA)-UNIT REPLACED BY THE EQUIVALENT UNIT OF CHICKEN TIM

Authors :   K. V. Radha Kishan, J. Ph. Zeelen, R. K. Wierenga

Date :   22 Mar 94 (Deposition) - 22 Jun 94 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)

Keywords :   Isomerase(Intramolecular Oxidoreductase) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   R. Kishan, J. P. Zeelen, M. E. Noble, T. V. Borchert, V. Mainfroid, K. Goraj, J. A. Martial, R. K. Wierenga
Modular Mutagenesis Of A Tim-Barrel Enzyme: The Crystal Structure Of A Chimeric E. Coli Tim Having The Eighth Beta Alpha-Unit Replaced By The Equivalent Unit Of Chicken Tim.
Protein Eng. V. 7 945 1994
PubMed-ID: 7809033 | Reference-DOI: 10.1093/PROTEIN/7.8.945
(for further references see the PDB file header)

Molecule 1 - TRIOSEPHOSPHATE ISOMERASE
	Chains	:	A, B, C, D
	EC Number	:	5.3.1.1
	Engineered	:	YES
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 4)

No.	Name	Count	Type	Full Name
1	SO4	4	Ligand/Ion	SULFATE ION

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	SO4	2	Ligand/Ion	SULFATE ION

Biological Unit 2 (1, 2)

No.	Name	Count	Type	Full Name
1	SO4	2	Ligand/Ion	SULFATE ION

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ILE A:174 , GLY A:175 , GLY A:213 , SER A:214 , GLY A:235 , GLY A:236	BINDING SITE FOR RESIDUE SO4 A 555
2	AC2	SOFTWARE	ILE B:174 , GLY B:175 , SER B:214 , GLY B:235 , GLY B:236	BINDING SITE FOR RESIDUE SO4 B 556
3	AC3	SOFTWARE	ILE C:174 , GLY C:175 , SER C:214 , GLY C:235 , GLY C:236	BINDING SITE FOR RESIDUE SO4 C 557
4	AC4	SOFTWARE	LYS D:13 , ILE D:174 , GLY D:175 , SER D:214 , GLY D:235 , GLY D:236	BINDING SITE FOR RESIDUE SO4 D 558

(no "SS Bond" information available for 1TMH)

(no "Cis Peptide Bond" information available for 1TMH)

(no "SAP(SNP)/Variant" information available for 1TMH)

Asymmetric Unit (2, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TIM_2	PS51440	Triosephosphate isomerase (TIM) family profile.	TPIS_ECOLI	3-248	4	A:5-250 B:5-250 C:5-250 D:5-250
2	TIM_1	PS00171	Triosephosphate isomerase active site.	TPIS_ECOLI	165-175	4	A:167-177 B:167-177 C:167-177 D:167-177

Biological Unit 1 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TIM_2	PS51440	Triosephosphate isomerase (TIM) family profile.	TPIS_ECOLI	3-248	2	A:5-250 B:5-250 - -
2	TIM_1	PS00171	Triosephosphate isomerase active site.	TPIS_ECOLI	165-175	2	A:167-177 B:167-177 - -

Biological Unit 2 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TIM_2	PS51440	Triosephosphate isomerase (TIM) family profile.	TPIS_ECOLI	3-248	2	- - C:5-250 D:5-250
2	TIM_1	PS00171	Triosephosphate isomerase active site.	TPIS_ECOLI	165-175	2	- - C:167-177 D:167-177

(no "Exon" information available for 1TMH)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:254
 aligned with TPIS_ECOLI | P0A858 from UniProtKB/Swiss-Prot  Length:255

    Alignment length:255
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           TPIS_ECOLI     1 MRHPLVMGNWKLNGSRHMVHELVSNLRKELAGVAGCAVAIAPPEMYIDMAKREAEGSHIMLGAQNVDLNLSGAFTGETSAAMLKDIGAQYIIIGHSERRTYHKESDELIAKKFAVLKEQGLTPVLCIGETEAENEAGKTEEVCARQIDAVLKTQGAAAFEGAVIAYEPVWAIGTGKSATPAQAQAVHKFIRDHIAKVDANIAEQVIIQYGGSVNASNAAELFAQPDIDGALVGGASLKADAFAVIVKAAEAAKQA 255
               SCOP domains d1tmha_ A: Triosephosphate isomerase                                                                                                                                                                                                                            SCOP domains
               CATH domains 1tmhA00 A:3-257 Aldolase class I                                                                                                                                                                                                                                CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.....hhhhhhhhhhhhhhhh......eeeee.hhhhhhhhhhhhh....eeee...............hhhhhhhhh..eeee.hhhhhh....hhhhhhhhhhhhhhhh.eeeeee..hhhhhhhhhhhhhhhhhhhhhhh..hhhhhh..eeee.hhhhh......hhhhhhhhhhhhhhhhhh.hhhhhhhheeeee...hhhhhhhhhh.....eeeehhhhhhh-hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --TIM_2  PDB: A:5-250 UniProt: 3-248                                                                                                                                                                                                                    ------- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      -------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tmh A   3 MRHPLVMGNWKLNGSRHMVHELVSNLRKELAGVAGCAVAIAPPEMYIDMAKREAEGSHIMLGAQNVDLNLSGAFTGETSAAMLKDIGAQYIIIGHSERRTYHKESDELIAKKFAVLKEQGLTPVLCIGETEAENEAGKTEEVCARQIDAVLKTQGAAAFEGAVIAYEPVWAIGTGKSATPAQAQAVHKFIRDHIAKVDANIAEQVIIQYGGSVNASNAAELFAQHDVDGFLVGGASLKP-EFVDIINAAEAAKQA 257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232        |-|      252
                                                                                                                                                                                                                                                                        241 |
                                                                                                                                                                                                                                                                          243

Chain B from PDB  Type:PROTEIN  Length:254
 aligned with TPIS_ECOLI | P0A858 from UniProtKB/Swiss-Prot  Length:255

    Alignment length:255
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           TPIS_ECOLI     1 MRHPLVMGNWKLNGSRHMVHELVSNLRKELAGVAGCAVAIAPPEMYIDMAKREAEGSHIMLGAQNVDLNLSGAFTGETSAAMLKDIGAQYIIIGHSERRTYHKESDELIAKKFAVLKEQGLTPVLCIGETEAENEAGKTEEVCARQIDAVLKTQGAAAFEGAVIAYEPVWAIGTGKSATPAQAQAVHKFIRDHIAKVDANIAEQVIIQYGGSVNASNAAELFAQPDIDGALVGGASLKADAFAVIVKAAEAAKQA 255
               SCOP domains d1tmhb_ B: Triosephosphate isomerase                                                                                                                                                                                                                            SCOP domains
               CATH domains 1tmhB00 B:3-257 Aldolase class I                                                                                                                                                                                                                                CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.....hhhhhhhhhhhhhhhh......eeeee.hhhhhhhhhhhhh...eeeee...............hhhhhhhhh..eeee.hhhhhh....hhhhhhhhhhhhhhhh.eeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee.hhhhh......hhhhhhhhhhhhhhhhhh.hhhhhhhheeee....hhhhhhhhhh.....eeeehhhhhhh-hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --TIM_2  PDB: B:5-250 UniProt: 3-248                                                                                                                                                                                                                    ------- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      -------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tmh B   3 MRHPLVMGNWKLNGSRHMVHELVSNLRKELAGVAGCAVAIAPPEMYIDMAKREAEGSHIMLGAQNVDLNLSGAFTGETSAAMLKDIGAQYIIIGHSERRTYHKESDELIAKKFAVLKEQGLTPVLCIGETEAENEAGKTEEVCARQIDAVLKTQGAAAFEGAVIAYEPVWAIGTGKSATPAQAQAVHKFIRDHIAKVDANIAEQVIIQYGGSVNASNAAELFAQHDVDGFLVGGASLKP-EFVDIINAAEAAKQA 257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232        |-|      252
                                                                                                                                                                                                                                                                        241 |
                                                                                                                                                                                                                                                                          243

Chain C from PDB  Type:PROTEIN  Length:254
 aligned with TPIS_ECOLI | P0A858 from UniProtKB/Swiss-Prot  Length:255

    Alignment length:255
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           TPIS_ECOLI     1 MRHPLVMGNWKLNGSRHMVHELVSNLRKELAGVAGCAVAIAPPEMYIDMAKREAEGSHIMLGAQNVDLNLSGAFTGETSAAMLKDIGAQYIIIGHSERRTYHKESDELIAKKFAVLKEQGLTPVLCIGETEAENEAGKTEEVCARQIDAVLKTQGAAAFEGAVIAYEPVWAIGTGKSATPAQAQAVHKFIRDHIAKVDANIAEQVIIQYGGSVNASNAAELFAQPDIDGALVGGASLKADAFAVIVKAAEAAKQA 255
               SCOP domains d1tmhc_ C: Triosephosphate isomerase                                                                                                                                                                                                                            SCOP domains
               CATH domains 1tmhC00 C:3-257 Aldolase class I                                                                                                                                                                                                                                CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.....hhhhhhhhhhhhhhhh.......eeee.hhhhhhhhhhhhh...eeeee...............hhhhhhhhh..eeee.hhhhhhhh..hhhhhhhhhhhhhhhh.eeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee.hhhhh......hhhhhhhhhhhhhhhhhh.hhhhhhhheeeee...hhhhhhhhhh.....eeeehhhhhhh-hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --TIM_2  PDB: C:5-250 UniProt: 3-248                                                                                                                                                                                                                    ------- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      -------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tmh C   3 MRHPLVMGNWKLNGSRHMVHELVSNLRKELAGVAGCAVAIAPPEMYIDMAKREAEGSHIMLGAQNVDLNLSGAFTGETSAAMLKDIGAQYIIIGHSERRTYHKESDELIAKKFAVLKEQGLTPVLCIGETEAENEAGKTEEVCARQIDAVLKTQGAAAFEGAVIAYEPVWAIGTGKSATPAQAQAVHKFIRDHIAKVDANIAEQVIIQYGGSVNASNAAELFAQHDVDGFLVGGASLKP-EFVDIINAAEAAKQA 257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232        |-|      252
                                                                                                                                                                                                                                                                        241 |
                                                                                                                                                                                                                                                                          243

Chain D from PDB  Type:PROTEIN  Length:254
 aligned with TPIS_ECOLI | P0A858 from UniProtKB/Swiss-Prot  Length:255

    Alignment length:255
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           TPIS_ECOLI     1 MRHPLVMGNWKLNGSRHMVHELVSNLRKELAGVAGCAVAIAPPEMYIDMAKREAEGSHIMLGAQNVDLNLSGAFTGETSAAMLKDIGAQYIIIGHSERRTYHKESDELIAKKFAVLKEQGLTPVLCIGETEAENEAGKTEEVCARQIDAVLKTQGAAAFEGAVIAYEPVWAIGTGKSATPAQAQAVHKFIRDHIAKVDANIAEQVIIQYGGSVNASNAAELFAQPDIDGALVGGASLKADAFAVIVKAAEAAKQA 255
               SCOP domains d1tmhd_ D: Triosephosphate isomerase                                                                                                                                                                                                                            SCOP domains
               CATH domains 1tmhD00 D:3-257 Aldolase class I                                                                                                                                                                                                                                CATH domains
           Pfam domains (1) ---TIM-1tmhD01 D:6-240                                                                                                                                                                                                                        ----------------- Pfam domains (1)
           Pfam domains (2) ---TIM-1tmhD02 D:6-240                                                                                                                                                                                                                        ----------------- Pfam domains (2)
           Pfam domains (3) ---TIM-1tmhD03 D:6-240                                                                                                                                                                                                                        ----------------- Pfam domains (3)
           Pfam domains (4) ---TIM-1tmhD04 D:6-240                                                                                                                                                                                                                        ----------------- Pfam domains (4)
         Sec.struct. author ....eeeee.....hhhhhhhhhhhhhhhh......eeeee.hhhhhhhhhhhhh...eeeee...............hhhhhhhhh..eeee.hhhhhh....hhhhhhhhhhhhhhh..eeeeee..hhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh..eeee.hhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhheeee....hhhhhhhhhh.....eeeehhhhhhh-hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --TIM_2  PDB: D:5-250 UniProt: 3-248                                                                                                                                                                                                                    ------- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      -------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tmh D   3 MRHPLVMGNWKLNGSRHMVHELVSNLRKELAGVAGCAVAIAPPEMYIDMAKREAEGSHIMLGAQNVDLNLSGAFTGETSAAMLKDIGAQYIIIGHSERRTYHKESDELIAKKFAVLKEQGLTPVLCIGETEAENEAGKTEEVCARQIDAVLKTQGAAAFEGAVIAYEPVWAIGTGKSATPAQAQAVHKFIRDHIAKVDANIAEQVIIQYGGSVNASNAAELFAQHDVDGFLVGGASLKP-EFVDIINAAEAAKQA 257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232        |-|      252
                                                                                                                                                                                                                                                                        241 |
                                                                                                                                                                                                                                                                          243

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: TIM beta/alpha-barrel (3956)

Superfamily: Triosephosphate isomerase (TIM) (148)

Family: Triosephosphate isomerase (TIM) (128)

Protein domain: Triosephosphate isomerase (126)

Synthetic, hybrid between Escherichia coli and chicken TIM (1)

1a	d1tmha_	A:
1b	d1tmhb_	B:
1c	d1tmhc_	C:
1d	d1tmhd_	D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Alpha-Beta Barrel (2994)

Topology: TIM Barrel (2806)

Homologous Superfamily: Aldolase class I (887)

Escherichia coli. Organism_taxid: 562 (6)

1a	1tmhA00	A:3-257
1b	1tmhB00	B:3-257
1c	1tmhC00	C:3-257
1d	1tmhD00	D:3-257

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: TIM_barrel (694)

Family: TIM (80)

Escherichia coli (strain K12) (2)

1a	TIM-1tmhD01	D:6-240
1b	TIM-1tmhD02	D:6-240
1c	TIM-1tmhD03	D:6-240
1d	TIM-1tmhD04	D:6-240

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (TPIS_ECOLI | P0A858)

molecular function
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0042802	identical protein binding	Interacting selectively and non-covalently with an identical protein or proteins.
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0004807	triose-phosphate isomerase activity	Catalysis of the reaction: D-glyceraldehyde 3-phosphate = glycerone phosphate.
biological process
	GO:0006094	gluconeogenesis	The formation of glucose from noncarbohydrate precursors, such as pyruvate, amino acids and glycerol.
	GO:0046166	glyceraldehyde-3-phosphate biosynthetic process	The chemical reactions and pathways resulting in the formation of glyceraldehyde-3-phosphate, an important intermediate in glycolysis.
	GO:0019563	glycerol catabolic process	The chemical reactions and pathways resulting in the breakdown of glycerol, 1,2,3-propanetriol, a sweet, hygroscopic, viscous liquid, widely distributed in nature as a constituent of many lipids.
	GO:0006096	glycolytic process	The chemical reactions and pathways resulting in the breakdown of a carbohydrate into pyruvate, with the concomitant production of a small amount of ATP and the reduction of NAD(P) to NAD(P)H. Glycolysis begins with the metabolism of a carbohydrate to generate products that can enter the pathway and ends with the production of pyruvate. Pyruvate may be converted to acetyl-coenzyme A, ethanol, lactate, or other small molecules.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
	GO:0006098	pentose-phosphate shunt	The glucose-6-phosphate catabolic process in which, coupled to NADPH synthesis, glucose-6-P is oxidized with the formation of carbon dioxide (CO2) and ribulose 5-phosphate; ribulose 5-P then enters a series of reactions interconverting sugar phosphates. The pentose phosphate pathway is a major source of reducing equivalents for biosynthesis reactions and is also important for the conversion of hexoses to pentoses.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1tmh)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1tmh
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	TPIS_ECOLI \| P0A858
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	5.3.1.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	TPIS_ECOLI \| P0A858
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	TPIS_ECOLI \| P0A858	:	1tre

(no "Related Entries Specified in the PDB File" available for 1TMH)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 4)

Sites (4, 4)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 8)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (14, 14)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
